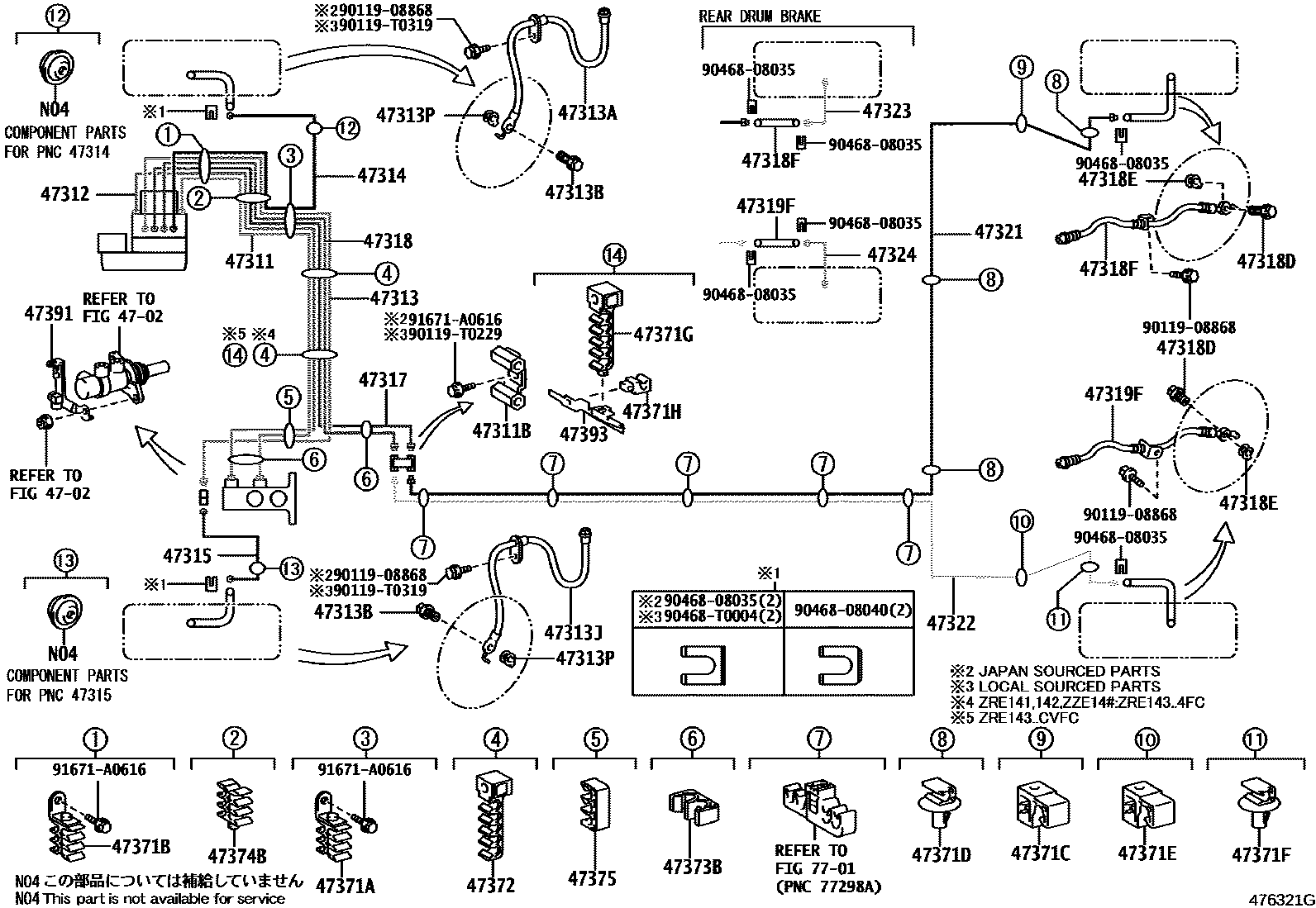

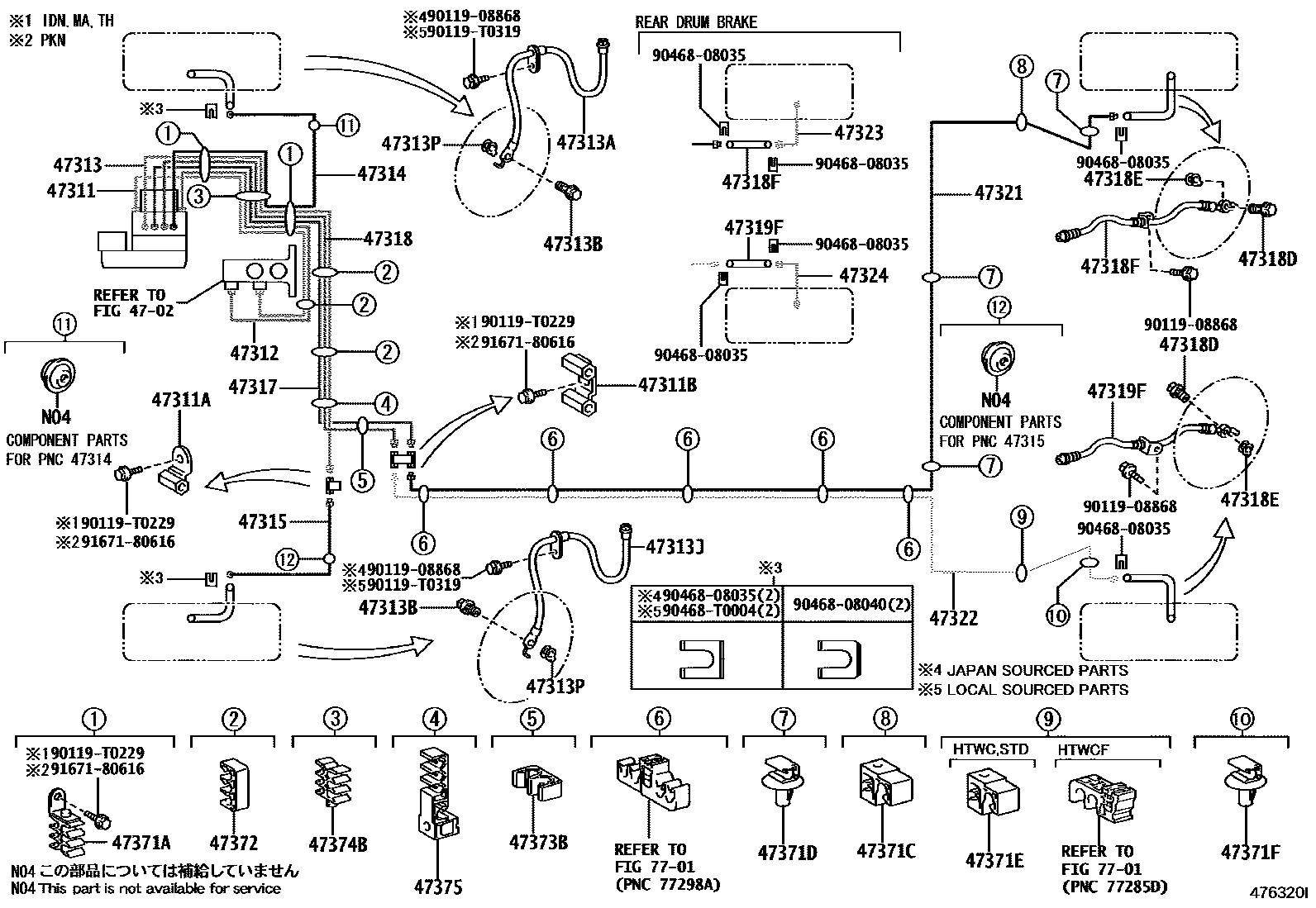

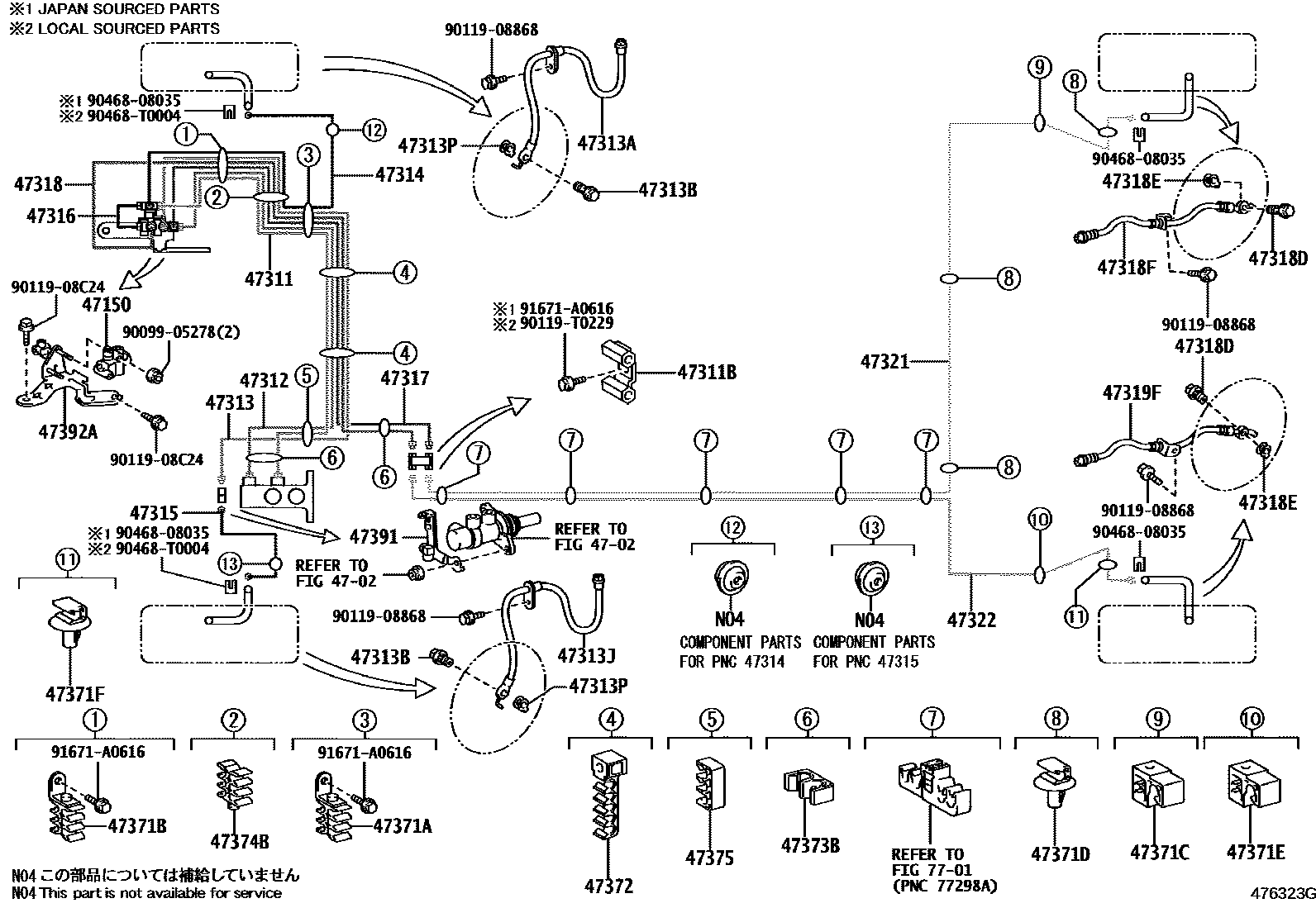

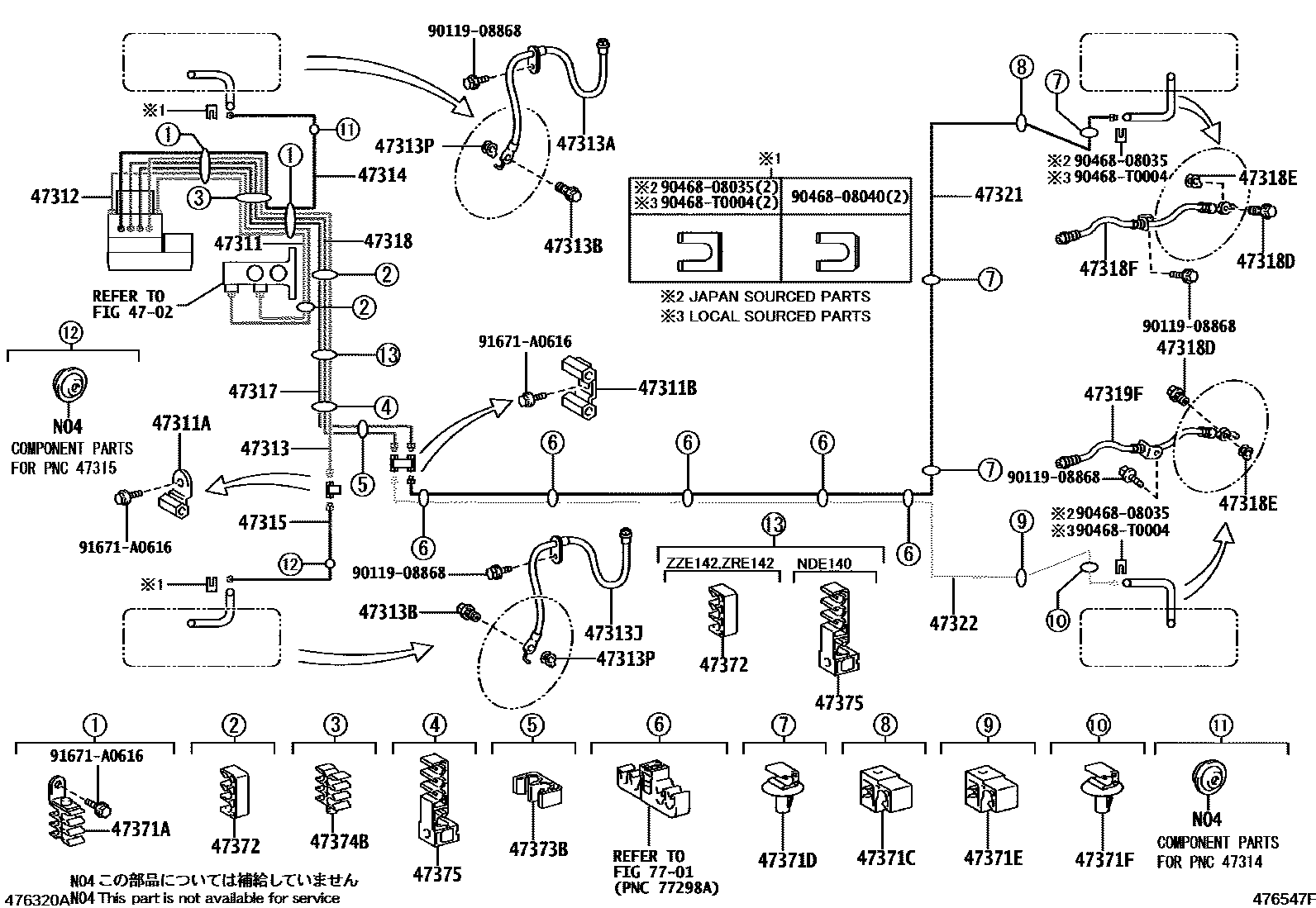

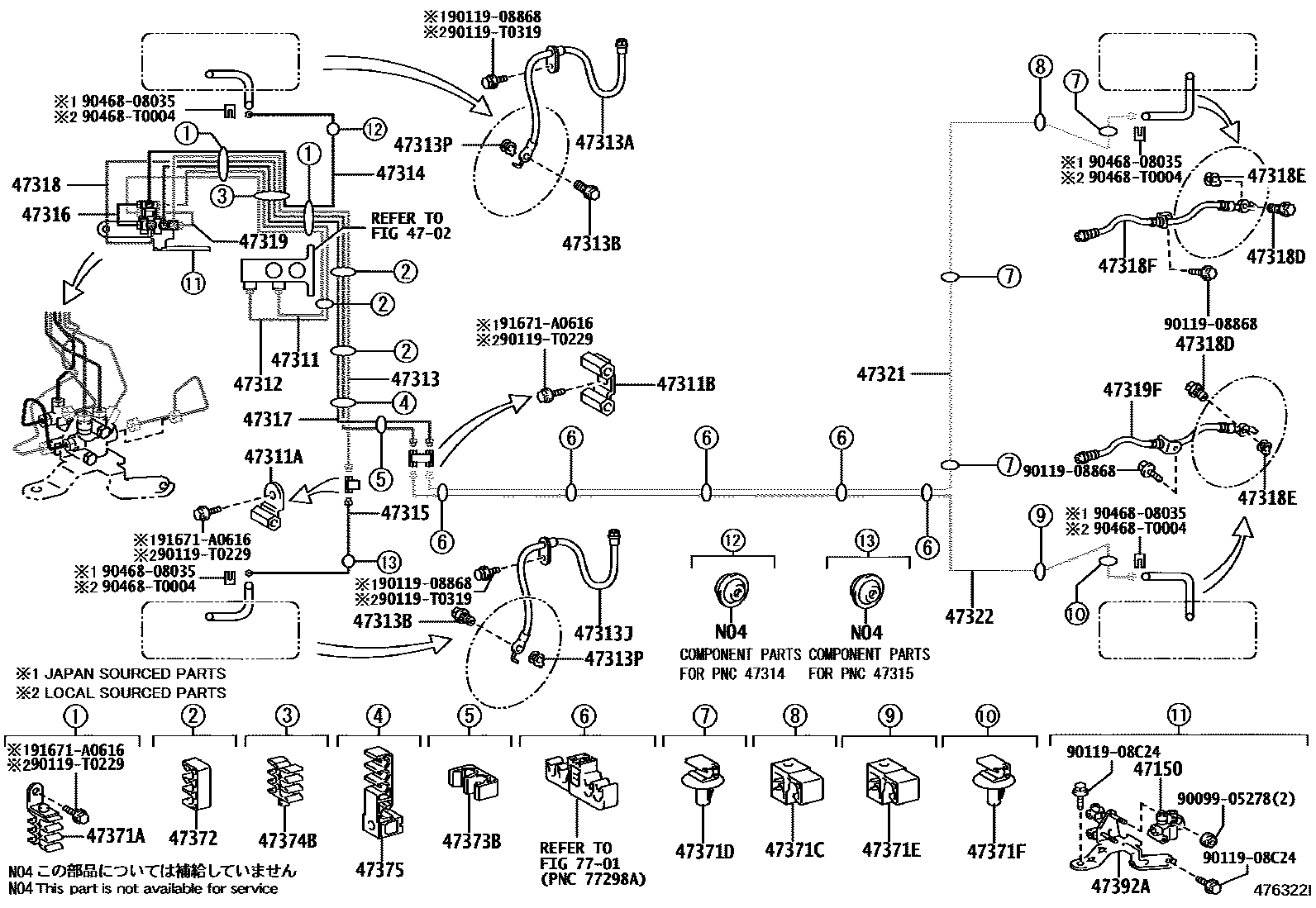

Toyota COROLLA 制动配管和卡箍 — Figure 4708

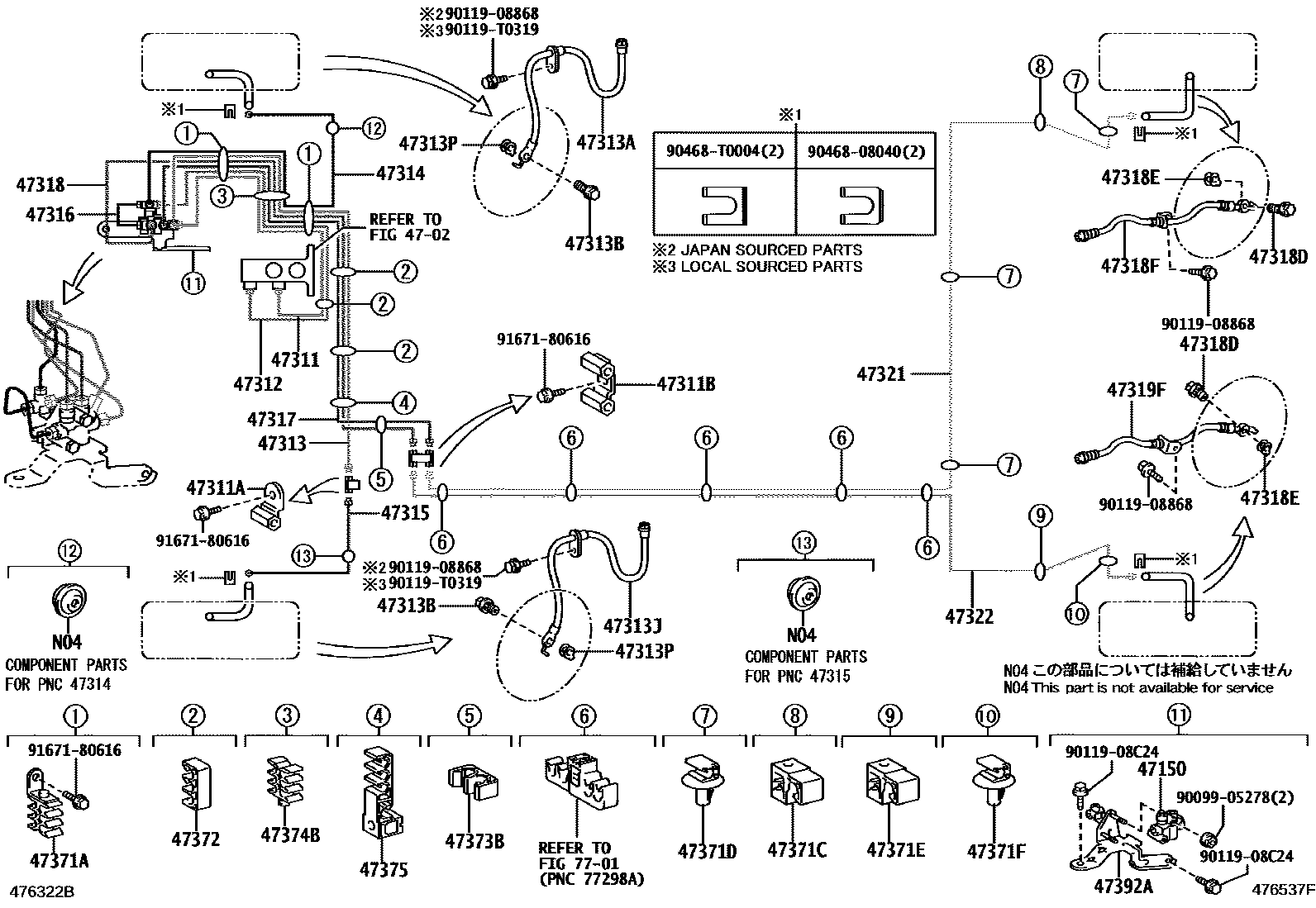

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 9 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

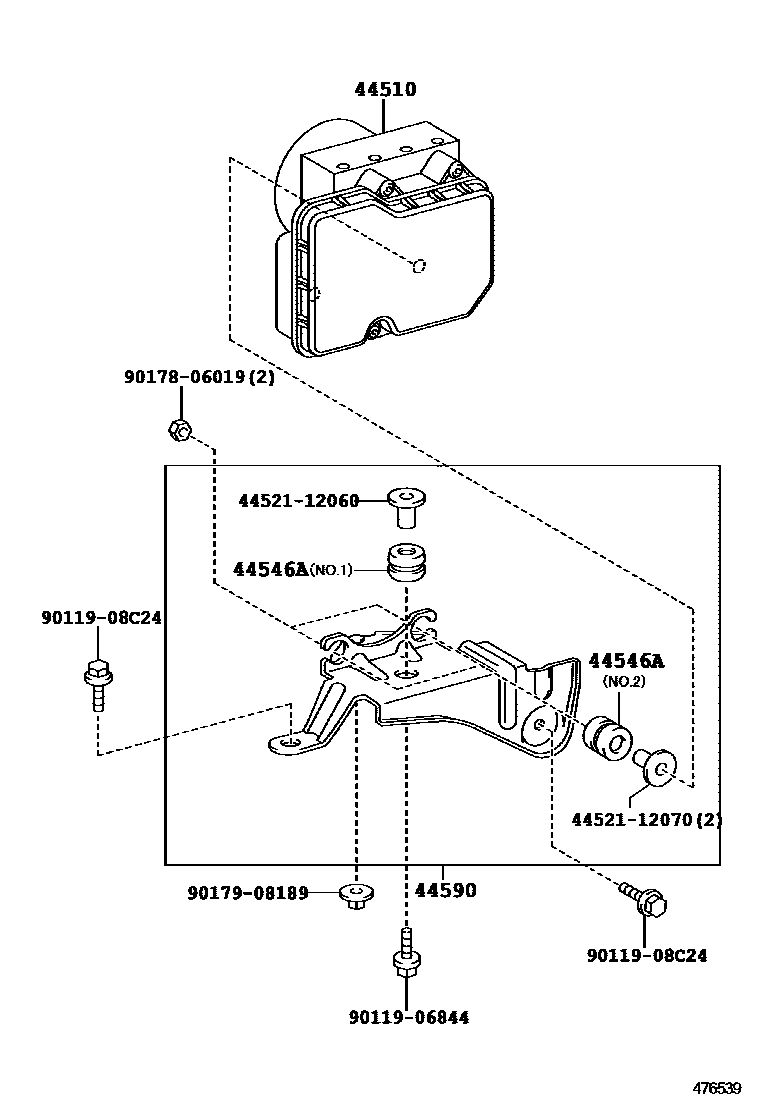

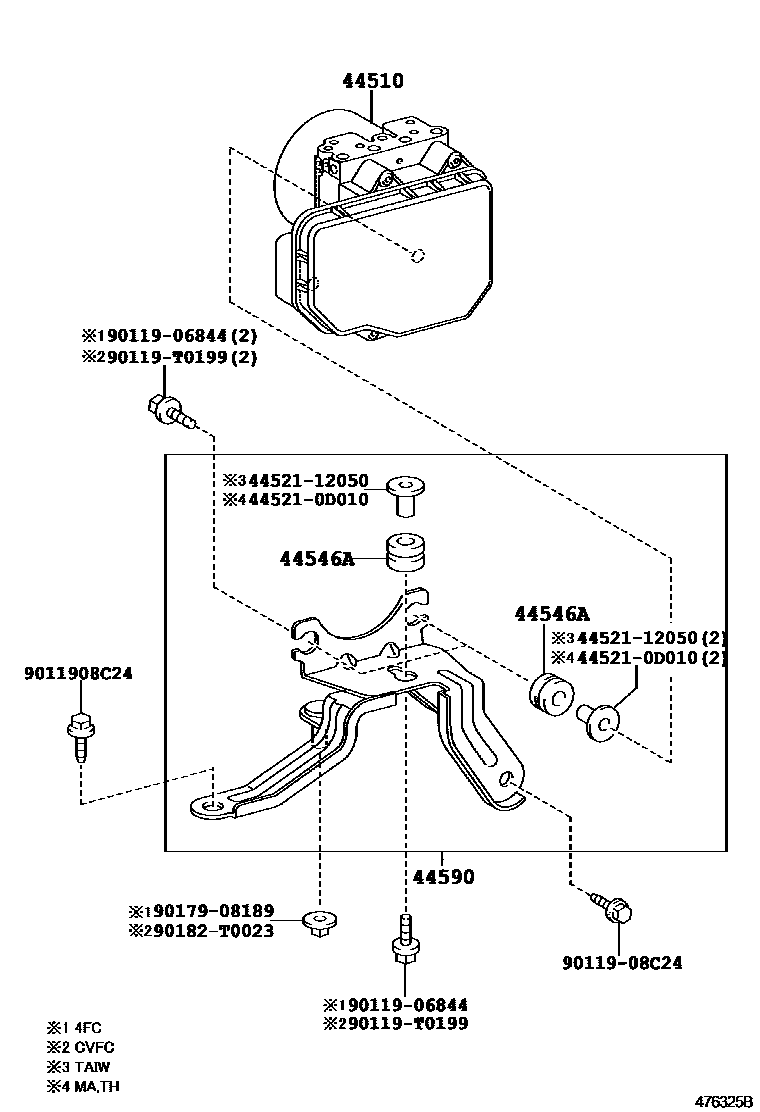

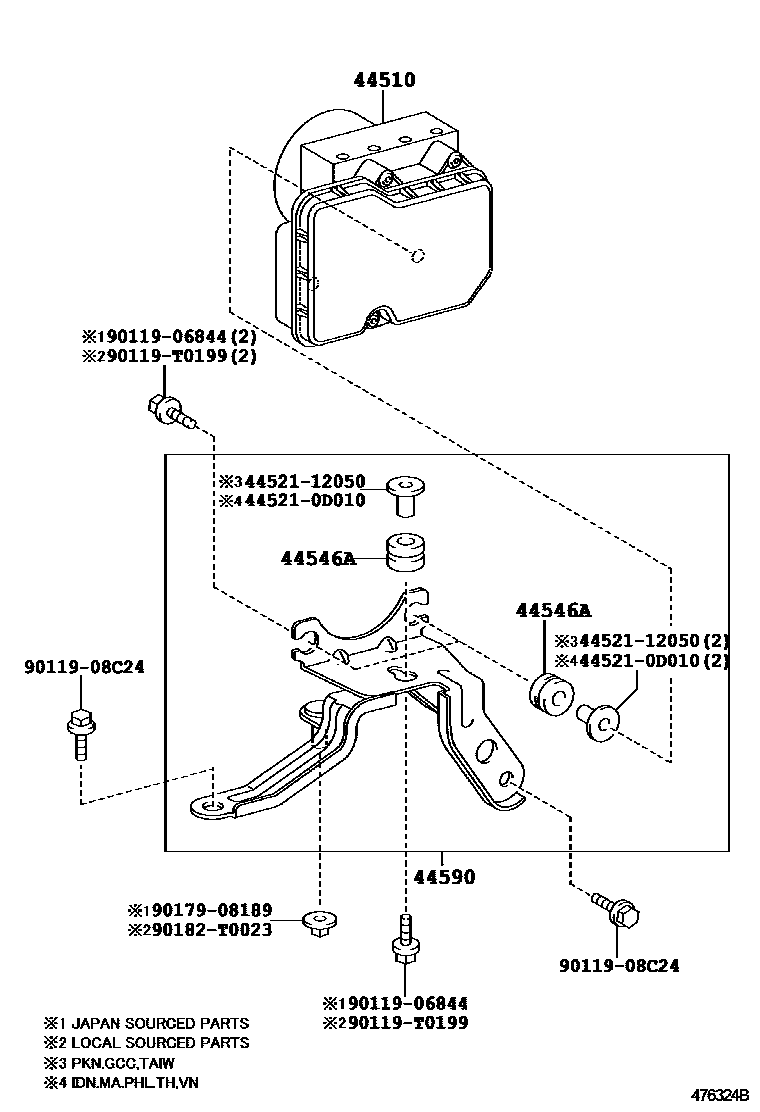

| 44510 | brake actuator assembly | 44050-02201 · 44050-02380 · 44050-02390 · 44050-02391 · 44050-02640 · 44050-12180 · 44050-12660 · 44050-12661 · 44050-12860 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44547-02050 · 44547-12010 · 44547-12030 |
| 44590 | Brake actuator bracket assembly | 44590-02240 · 44590-02250 · 44590-02260 · 44590-02270 · 44590-02280 · 44590-12160 |
| 47150 | Proportional valve assembly | 47150-12230 · 47150-12240 |
| 47311 | No. 1 front brake pipe | 47311-02560 · 47311-02570 · 47311-02580 · 47311-02600 · 47311-02610 · 47311-02620 · 47311-02630 · 47311-02640 · 47311-02650 · 47311-02660 · 47311-02760 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10227 · 90412-10255 · 90412-10272 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10227 · 90412-10255 · 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-02460 · 47312-02470 · 47312-02480 · 47312-02500 · 47312-02510 · 47312-02520 · 47312-02530 · 47312-02540 · 47312-02550 · 47312-02560 · 47312-02640 |
| 47313 | No. 3 front brake pipe | 47313-02510 · 47313-02520 · 47313-02530 · 47313-02550 · 47313-02560 · 47313-02570 · 47313-02580 · 47313-02590 · 47313-02600 · 47313-02610 · 47313-02690 |
| 47313A | No. 1 front flexible hose | 90947-T2041 · 90947-T2043 · 90947-T2045 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2042 · 90947-T2044 · 90947-T2046 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02510 · 47314-02520 · 47314-02530 · 47314-02550 · 47314-02560 · 47314-02570 · 47314-02580 · 47314-02590 · 47314-02600 · 47314-02610 |
| 47315 | No. 5 front brake pipe | 47315-02280 · 47315-02290 · 47315-02300 · 47315-02310 · 47315-02320 · 47315-02370 |
| 47316 | No. 6 front brake pipe | 47316-02120 · 47316-02130 · 47316-02140 |
| 47317 | No. 7 front brake pipe | 47317-02430 · 47317-02440 · 47317-02450 · 47317-02470 · 47317-02480 · 47317-02490 · 47317-02500 · 47317-02510 · 47317-02520 · 47317-02530 · 47317-02610 · 47317-02660 · 47317-02670 · 47317-02680 |
| 47318 | No. 8 front brake pipe | 47318-02450 · 47318-02460 · 47318-02470 · 47318-02490 · 47318-02500 · 47318-02510 · 47318-02520 · 47318-02530 · 47318-02540 · 47318-02550 · 47318-02630 · 47318-02680 · 47318-02690 · 47318-02700 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2047 · 90947-T2051 |
| 47319 | No. 9 front brake pipe | 47319-02020 |
| 47319F | Left rear flexible hose | 90947-T2048 · 90947-T2051 |
| 47321 | No. 1 rear brake pipe | 47321-02260 · 47321-02270 · 47321-02280 · 47321-02290 · 47321-02320 · 47321-02430 |
| 47322 | No. 2 rear brake pipe | 47322-02260 · 47322-02270 · 47322-02280 · 47322-02290 · 47322-02330 · 47322-02430 |
| 47323 | No. 3 rear brake pipe | 47323-02120 |
| 47324 | No. 4 rear brake pipe | 47324-02120 |
| 47371A | No. 1 brake pipe clamp | 47371-12240 · 90949-04050 |
| 47371B | No. 6 brake pipe clamp | 47371-12240 |
| 47371C | No. 7 brake pipe clamp | 90949-01C82 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90949-01C82 · 90949-01D17 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D79 |
| 47371H | No. 12 brake pipe clamp | 90949-01D81 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90949-01D28 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47374B | No. 4 brake pipe clamp | 90949-01C51 |
| 47375 | No. 5 brake pipe clamp | 90464-00857 · 90949-01D27 |
| 47391 | Brake pipe joint | 47391-12050 |
| 47392A | No. 2 brake pipe joint | 47391-12040 · 47391-12060 |
| 47393 | brake pipe heat shield | 47393-02010 · 47393-02020 |
