Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

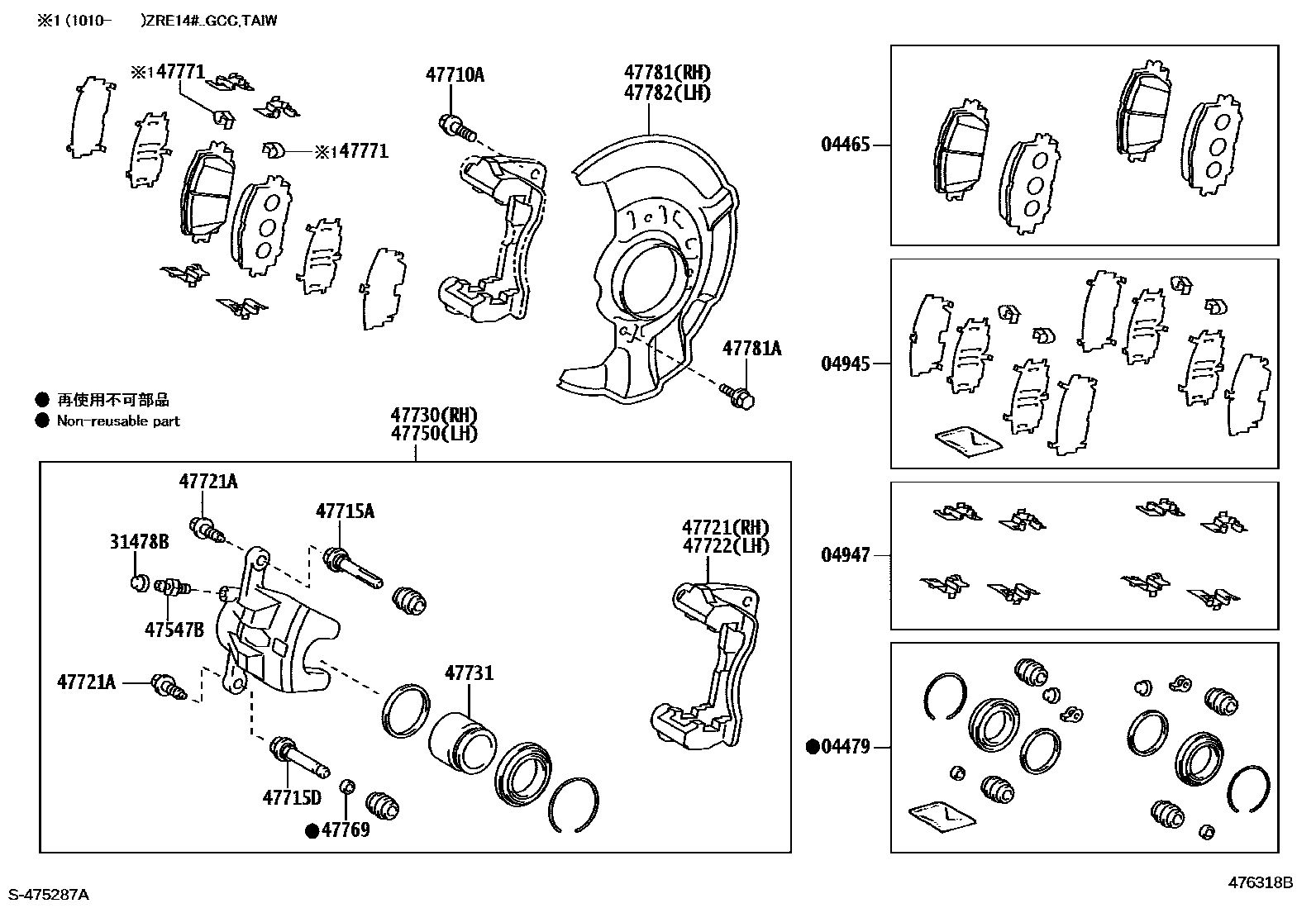

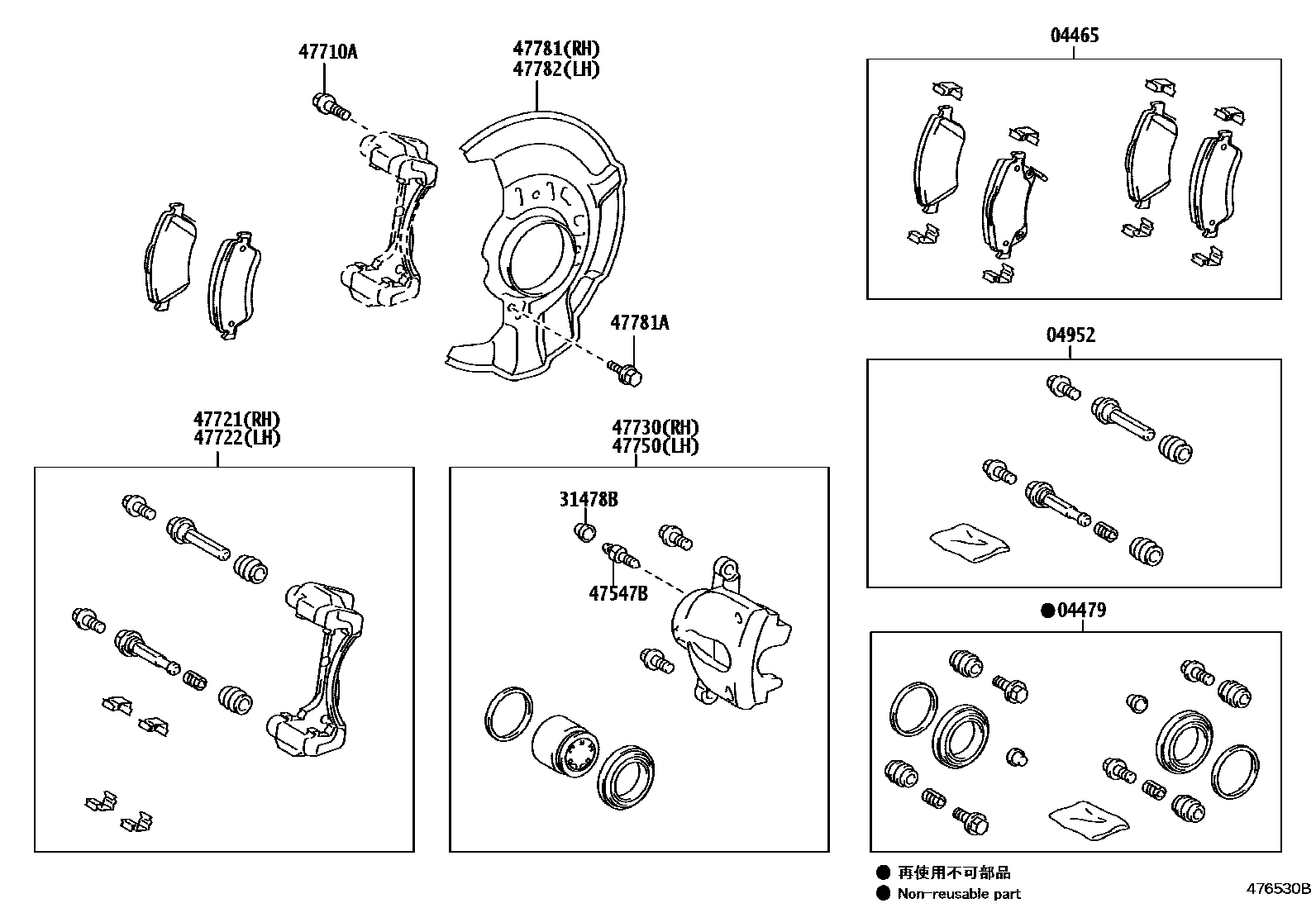

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02220 · 04465-02270 · 04465-02310 · 04465-02320 · 04465-02340 · 04465-02370 |
| 04479 | Front disc brake cylinder assembly | 04478-02190 · 04478-02200 · 04478-02270 · 04478-02280 · 04478-02300 · 04478-02310 · 04478-02330 · 04478-12110 |
| 04945 | Front silencer gasket assembly | 04945-02160 · 04945-02170 · 04945-02190 · 04945-02220 · 04945-12100 · 04945-12110 · 04945-12111 |
| 04947 | Front disc brake mounting kit | 04947-0D030 · 04947-42050 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04956-02080 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 · 31478-30010 · 90069-39009 |
| 47547B | Bleed plug (for front disc brake) | 47547-0D030 · 47547-20010 · 90069-39000 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47714-06250 · 47715-52190 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-06250 · 47715-12A10 · 47715-33340 |
| 47721 | Right front disc brake cylinder retainer | 47721-02450 · 47721-02460 · 47721-09460 · 47721-09461 · 47721-09515 · 47721-12A10 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA603 · 90080-10247 · 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-02450 · 47722-02460 · 47722-09160 · 47722-09161 · 47722-09210 · 47722-12A10 |
| 47730 | Right front disc brake cylinder assembly | 47730-02340 · 47730-02450 · 47730-02460 · 47730-02481 · 47730-12A10 |
| 47731 | Front disc brake piston | 47731-02450 · 47731-12A10 |
| 47750 | Left disc brake cylinder assembly | 47750-02221 · 47750-02340 · 47750-02450 · 47750-02460 · 47750-12A10 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-06030 · 47769-06040 · 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-52191 |
| 47781 | Right front disc brake dust cover | 47781-02160 · 47781-02170 · 47781-02180 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 · 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47782-02160 · 47782-02170 · 47782-02180 |
