Toyota COROLLA 制动助力器和真空管 — Figure 4703

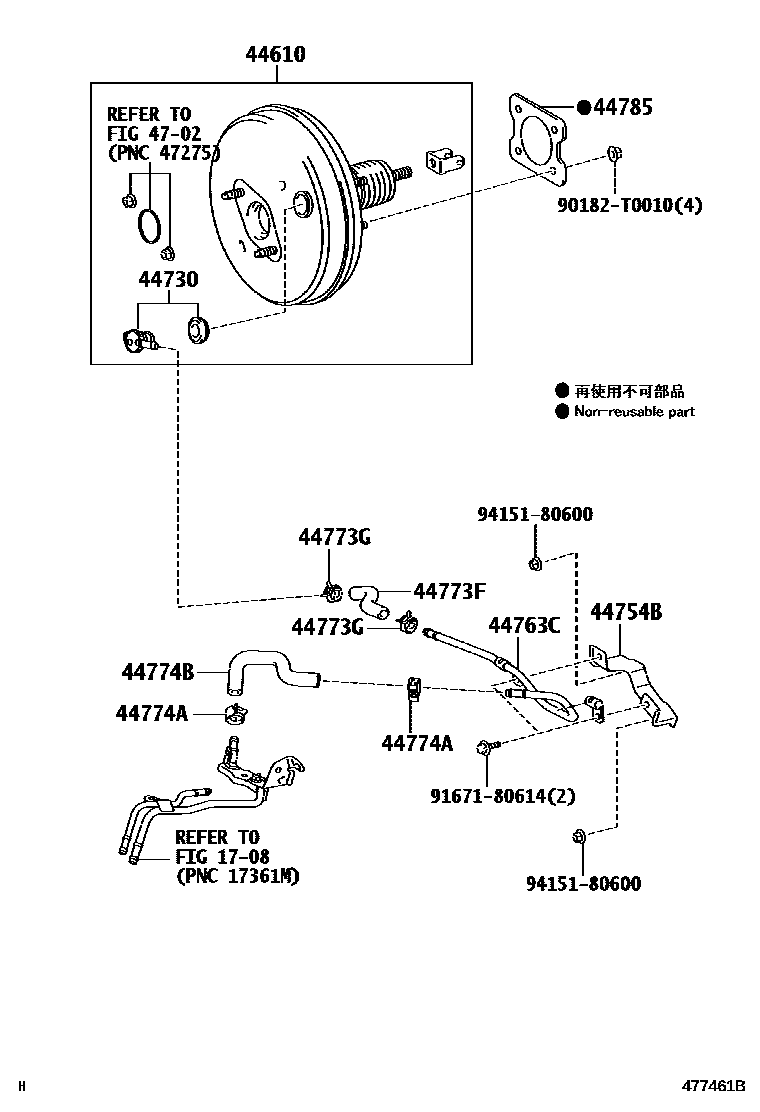

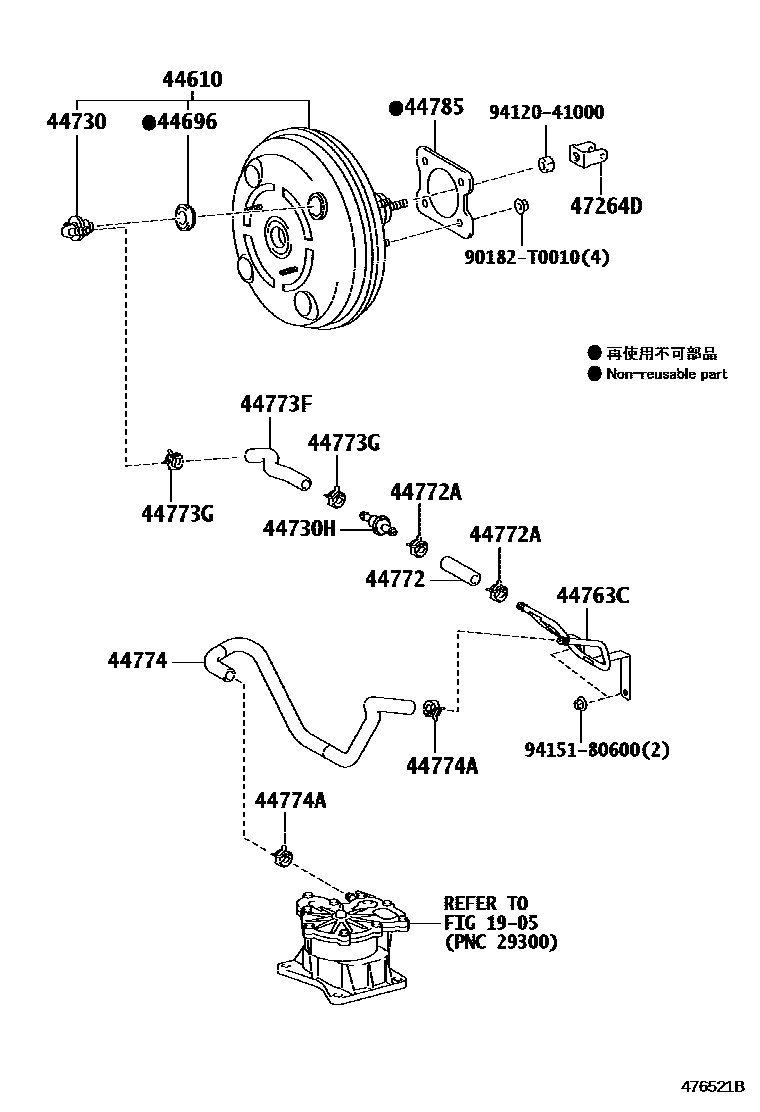

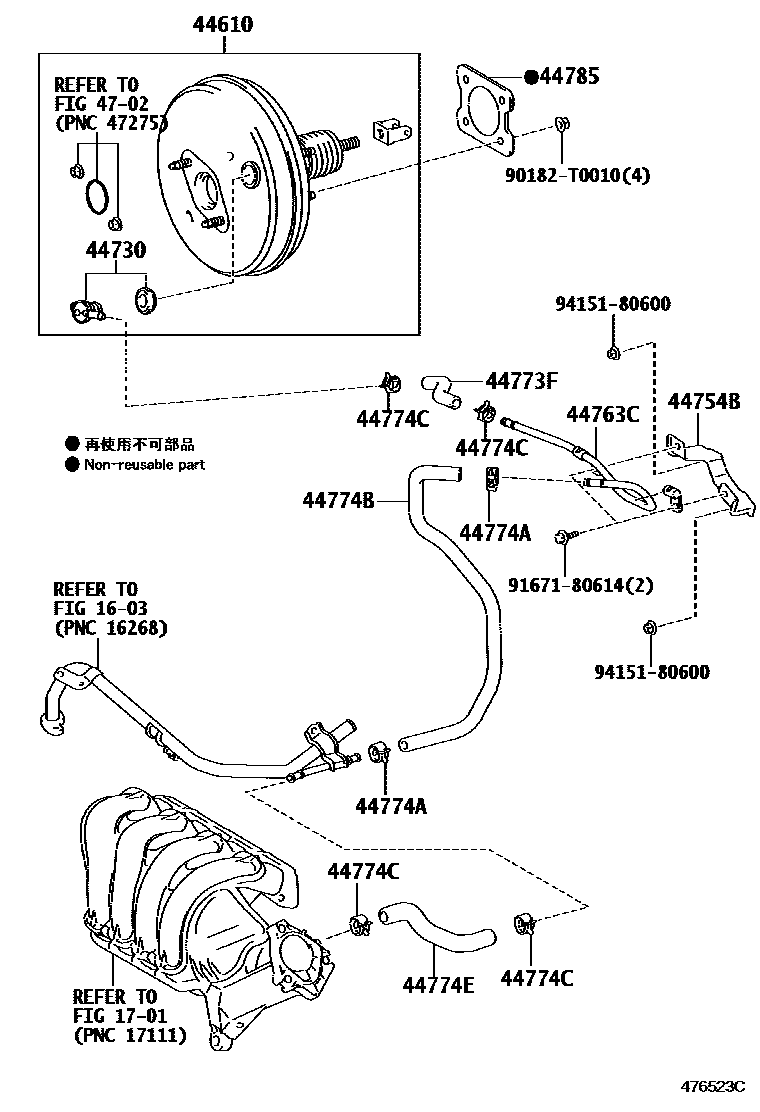

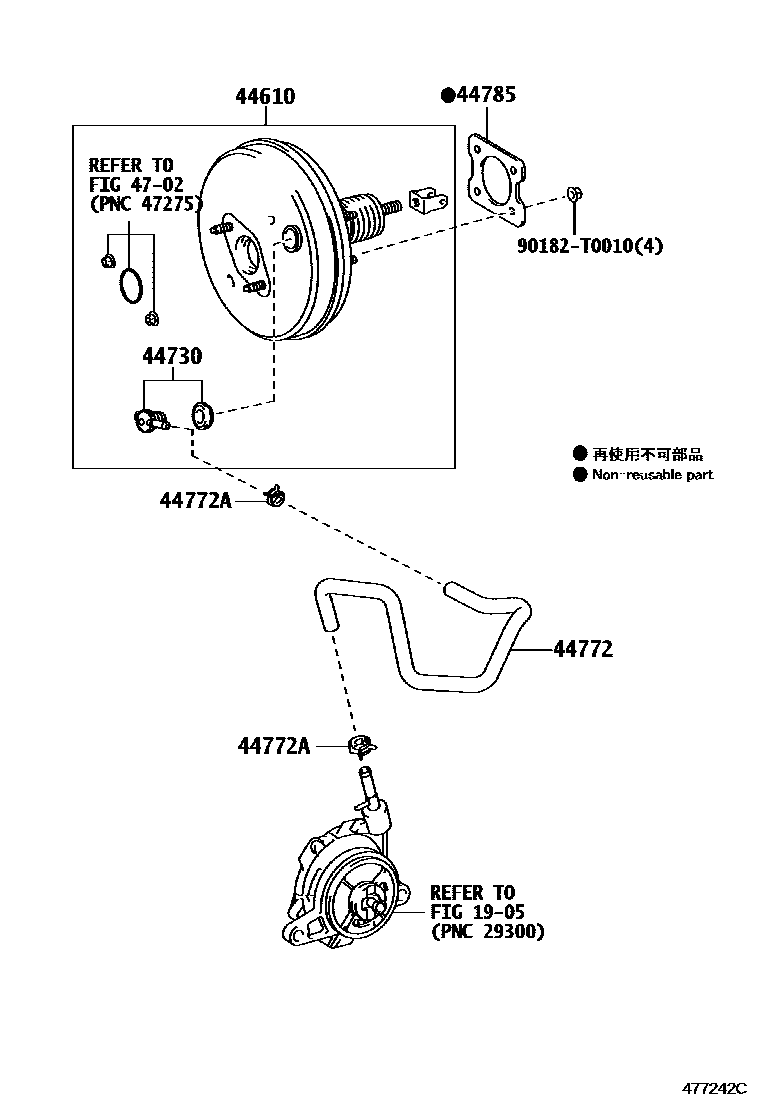

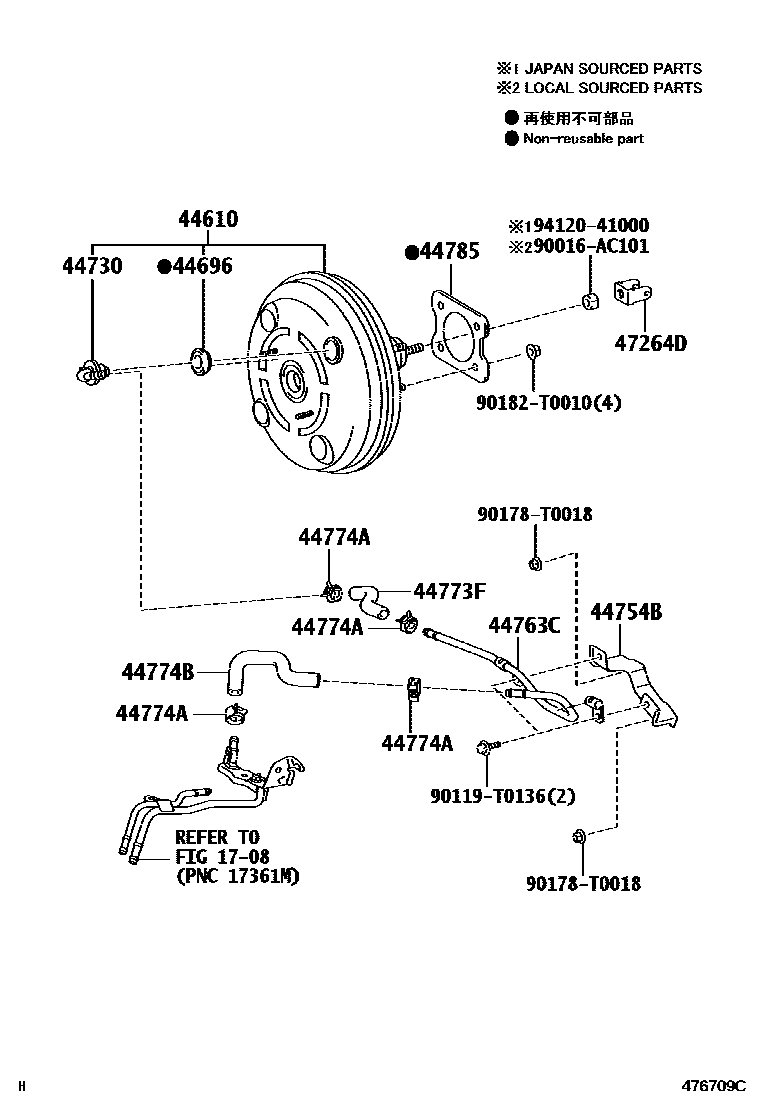

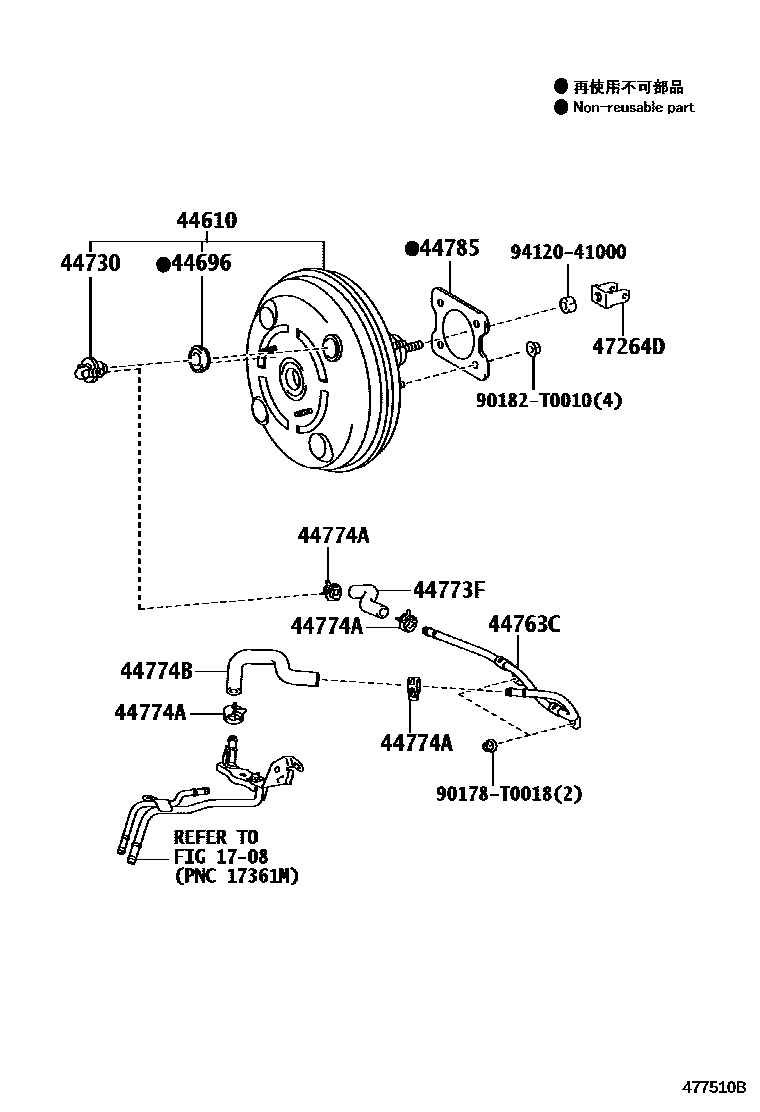

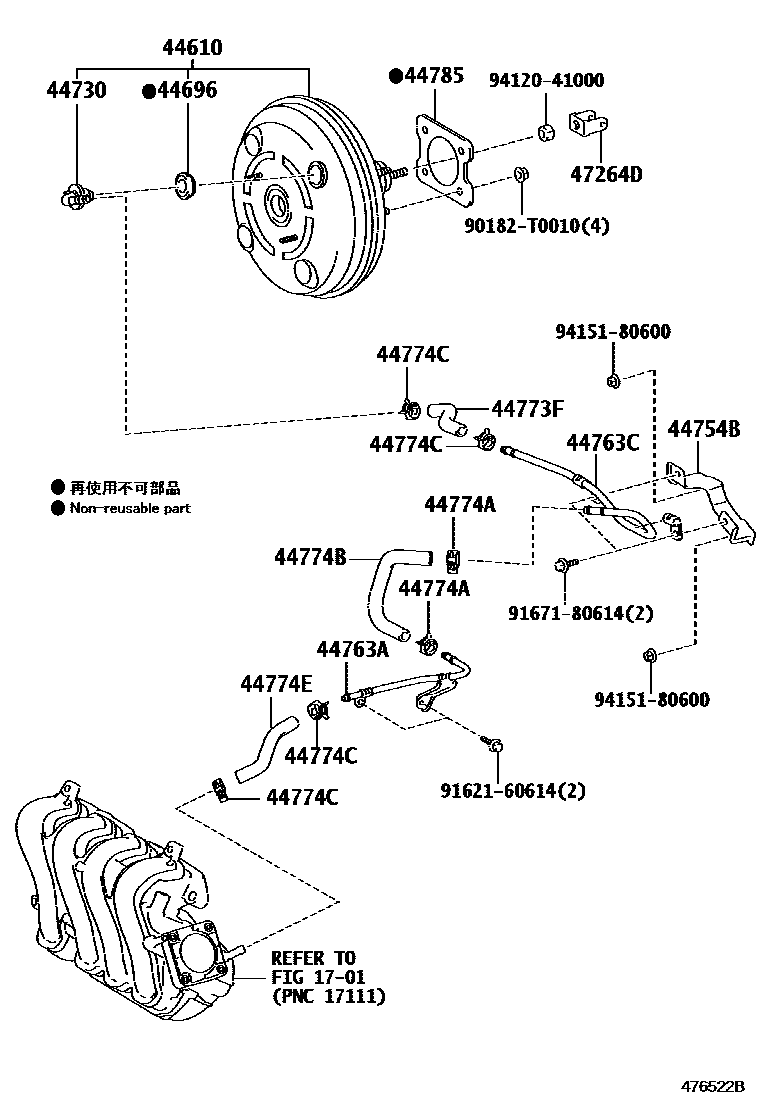

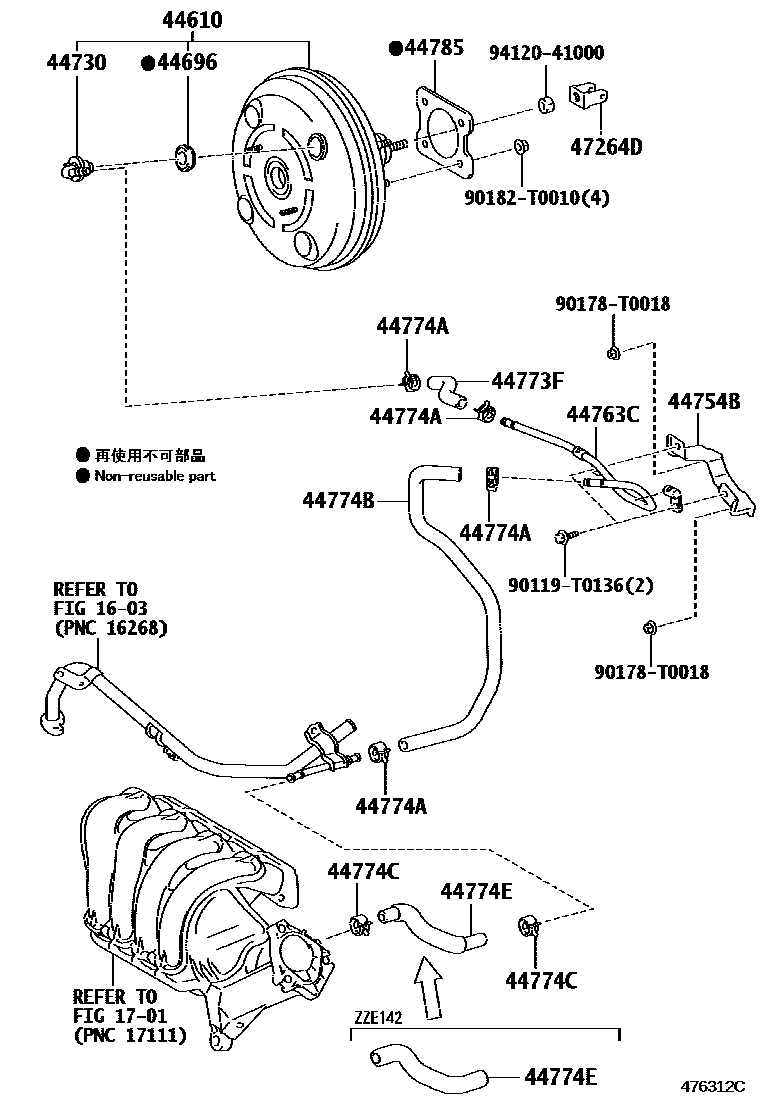

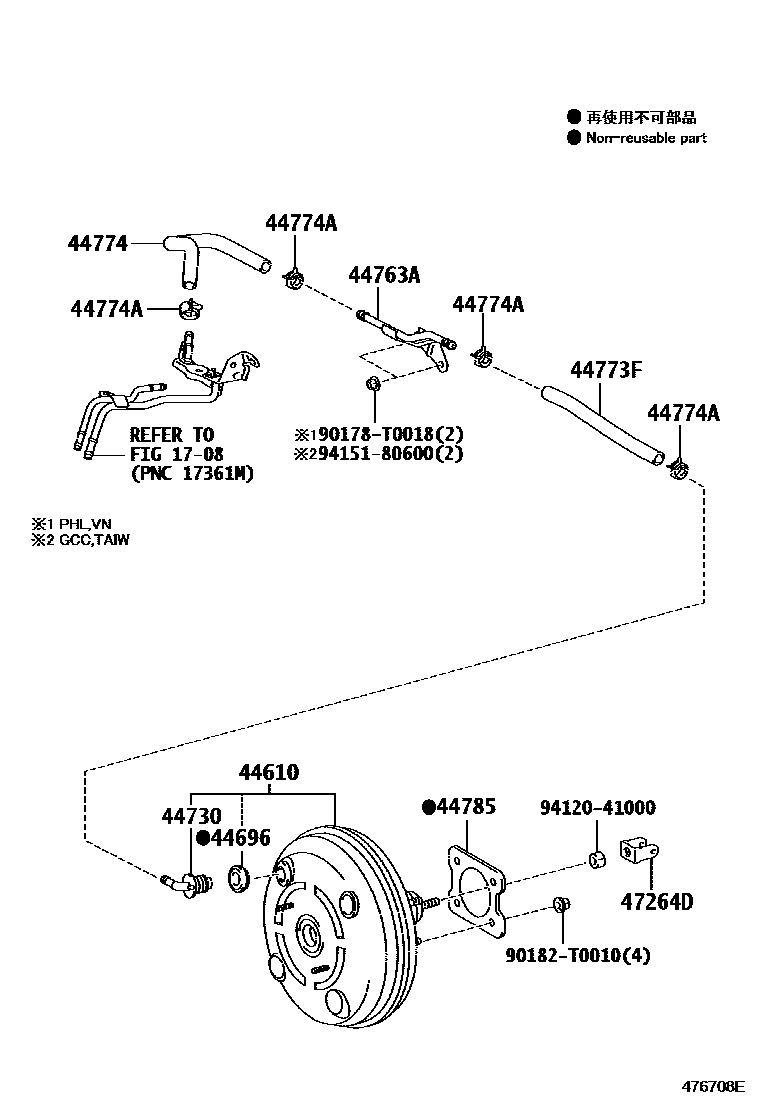

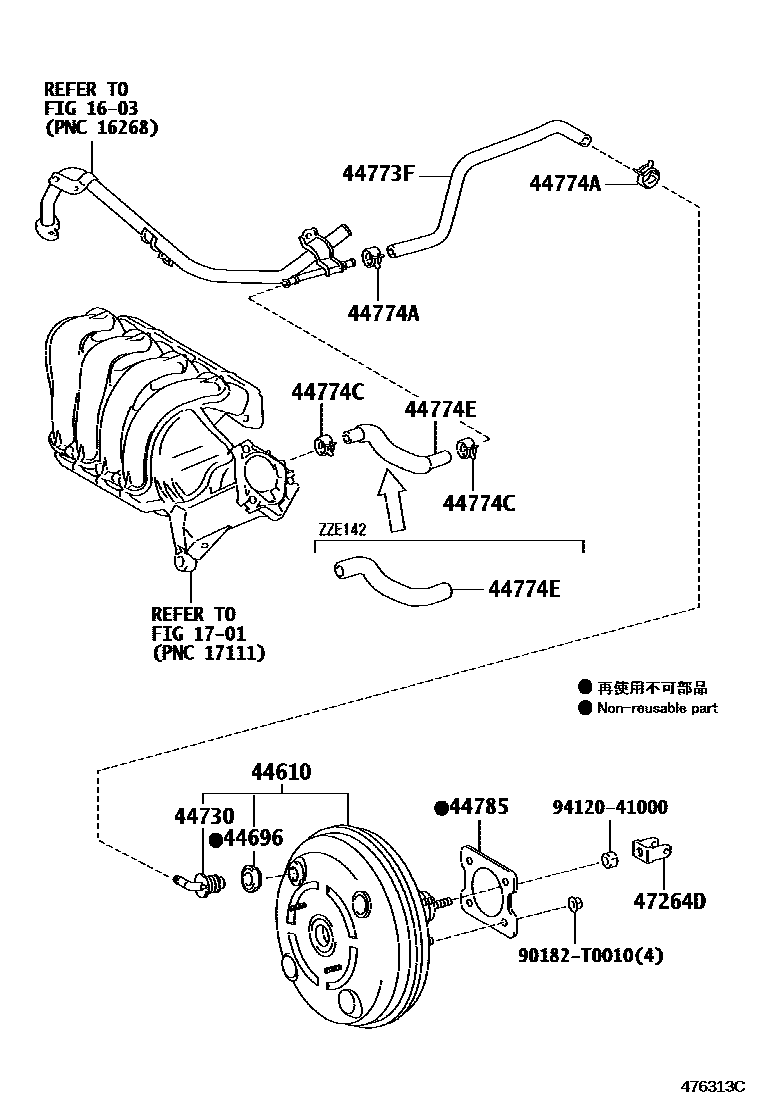

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 10 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02490 · 44610-02500 · 44610-02510 · 44610-02520 · 44610-02530 · 44610-02550 · 44610-09460 · 44610-09580 · 44610-12A31 · 44610-12C91 · 44610-12D01 · 44610-12E31 · 44610-12E60 · 44610-12E61 · 44610-12E70 · 44610-12E71 · 44610-12E80 · 44610-12E81 |
| 44696 | One-way valve seal | 90080-48050 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 · 44730-12070 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-35010 |
| 44754B | Vacuum tube holder | 44754-02010 · 44754-12040 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02150 · 44763-52080 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-02100 · 44763-02210 · 44763-12460 · 44763-12510 |
| 44772 | Hoses (check valve to connector tube) | 44772-02050 · 44772-12670 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-02110 · 44773-02120 · 44773-02130 · 44773-02150 · 44773-02151 · 44773-02170 · 44773-12820 · 44773-12840 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02190 · 44774-12720 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-T0019 · 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-02100 · 44774-02120 · 44774-02180 · 44774-02230 · 44774-12710 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-02140 · 44774-02150 · 44774-02160 · 44774-02170 · 44774-20310 · 95446-09130 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02110 · 47264-02120 · 47264-63020 |
