Toyota COROLLA Brake Pedal & Bracket — Figure 4701

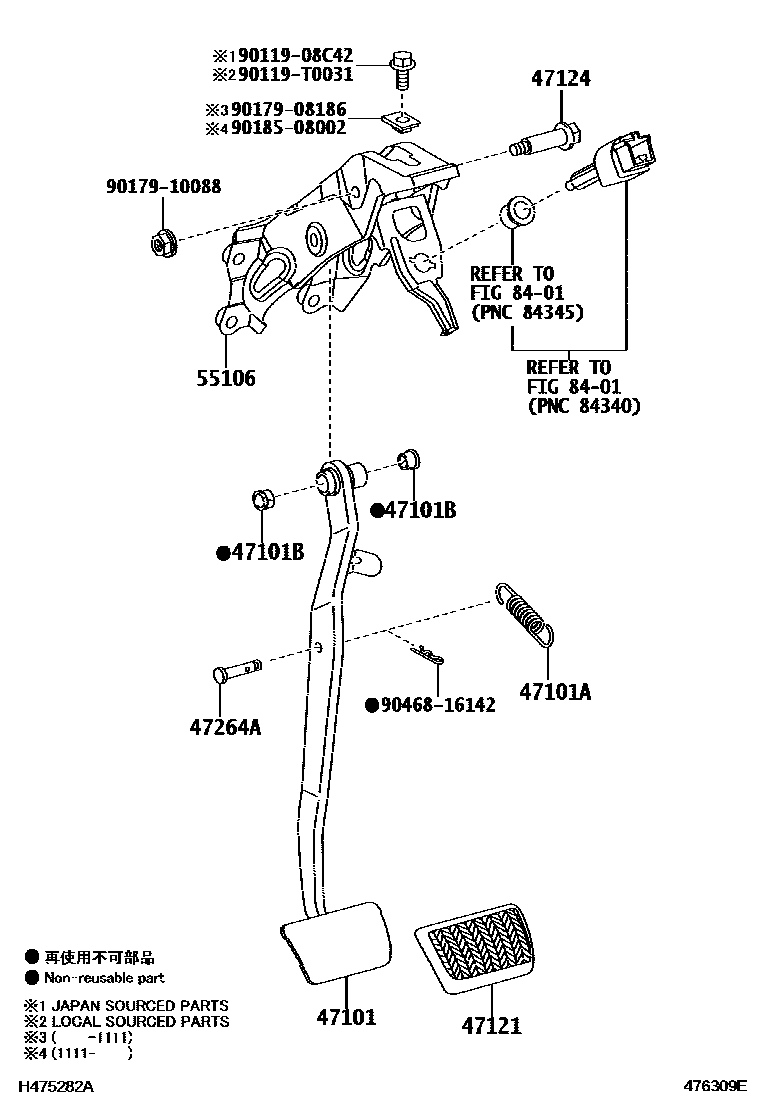

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-02320 · 47101-02330 · 47101-02340 · 47101-02350 · 47101-02380 · 47101-02390 · 47101-02400 |
| 47101A | Spring (for brake pedal return) | 90507-15005 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-02020 · 31321-02030 · 47121-02030 · 47121-02040 · 47121-02060 |
| 47124 | brake pedal shaft | 90109-10174 |
| 47264A | Pin (for push rod) | 90249-08256 |
| 55106 | Brake pedal bracket sub-assembly | 55106-02170 · 55106-02180 · 55106-02200 · 55106-02210 |
