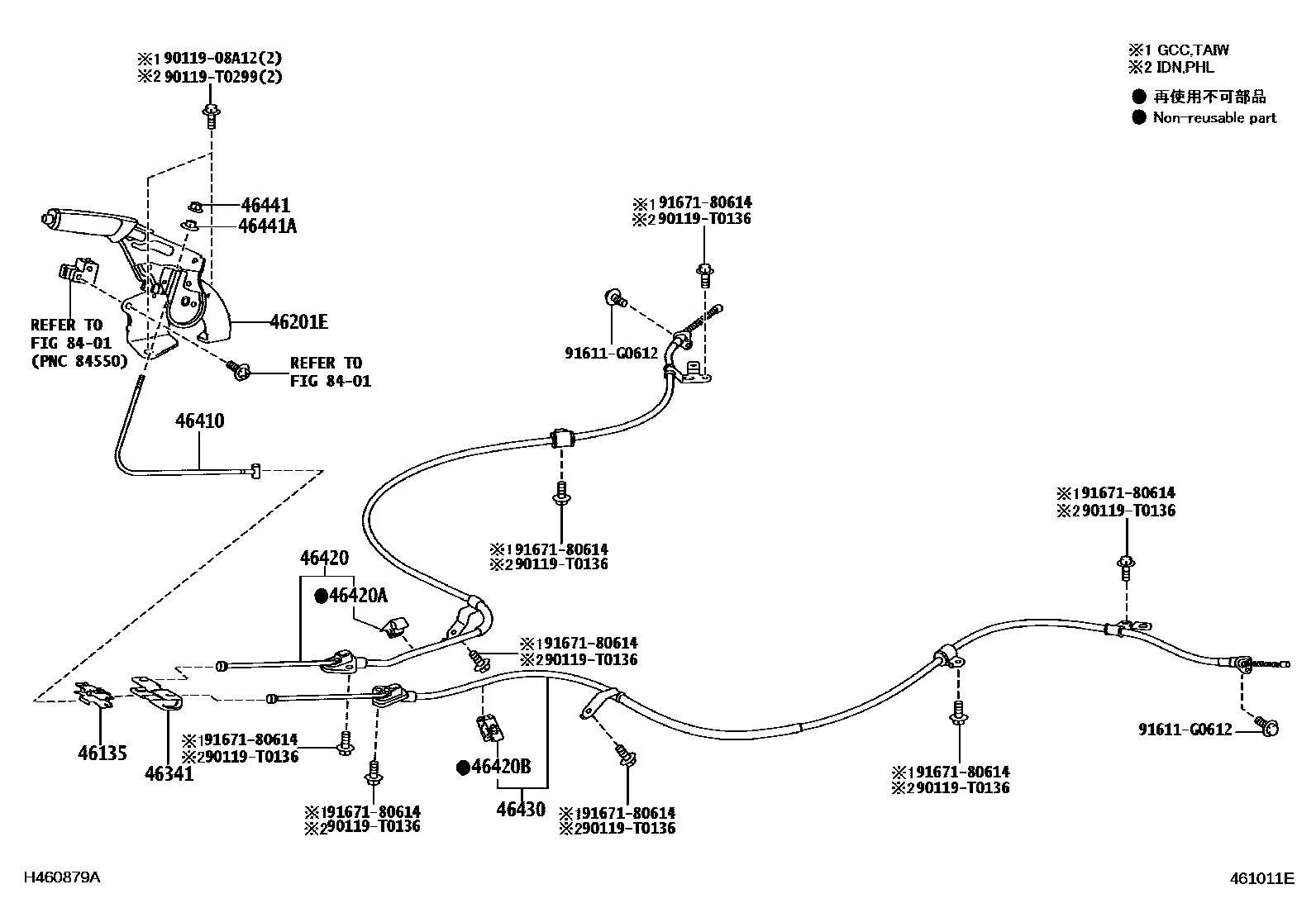

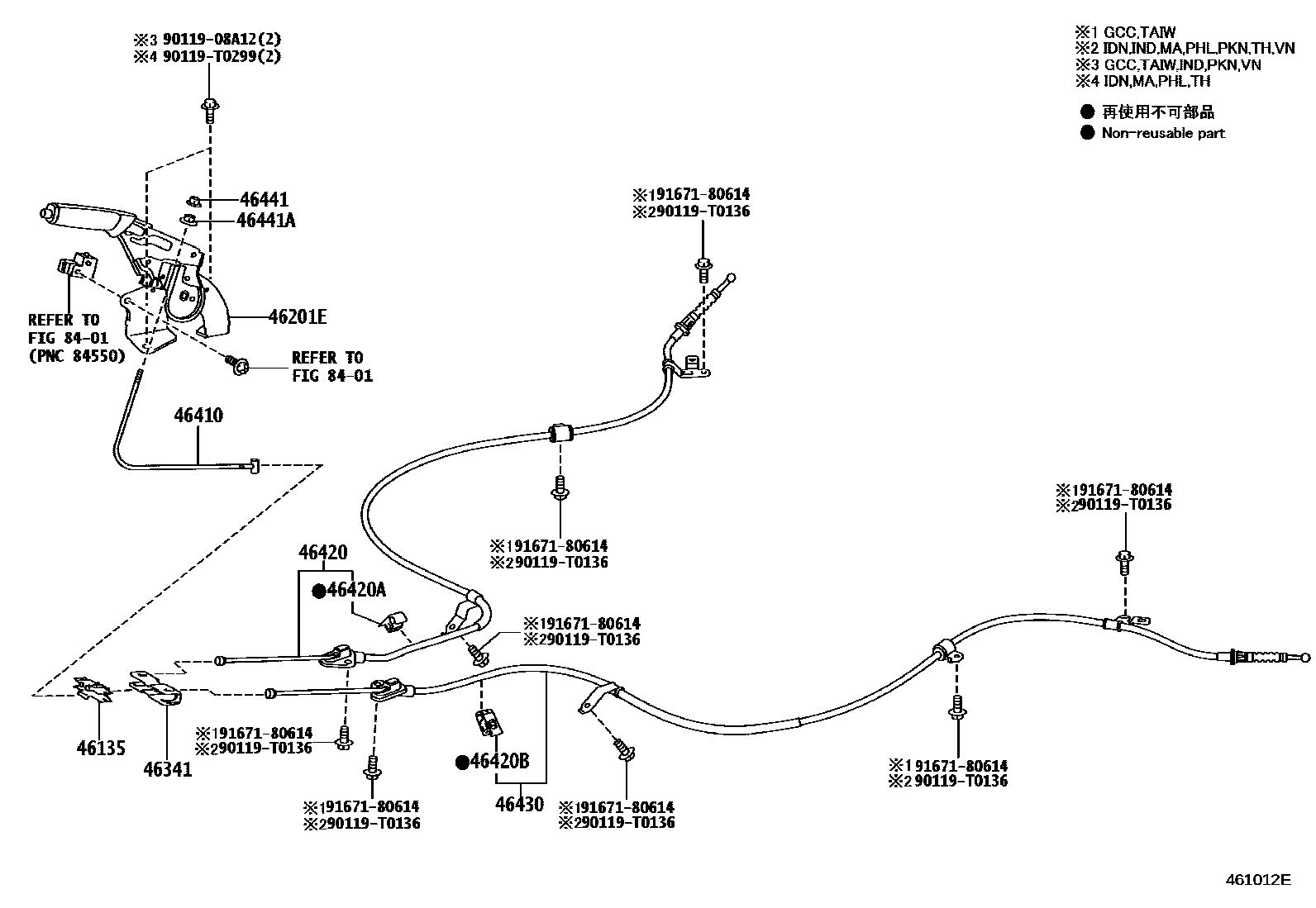

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-12010 |
| 46341 | Parking brake balancer | 46341-12040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02120 · 46410-02130 · 46410-02160 · 46410-12300 · 46410-12320 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02200 · 46420-02210 · 46420-12670 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46402-02040 · 46402-02050 · 46402-12020 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46402-02040 · 46402-02050 · 46402-12020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02200 · 46430-02210 · 46430-12560 |
| 46441 | No. 1 cable adjustment nut | 90178-T0004 · 90179-06299 |
| 46441A | No. 2 cable adjustment nut | 46441-02020 · 46441-12010 |
