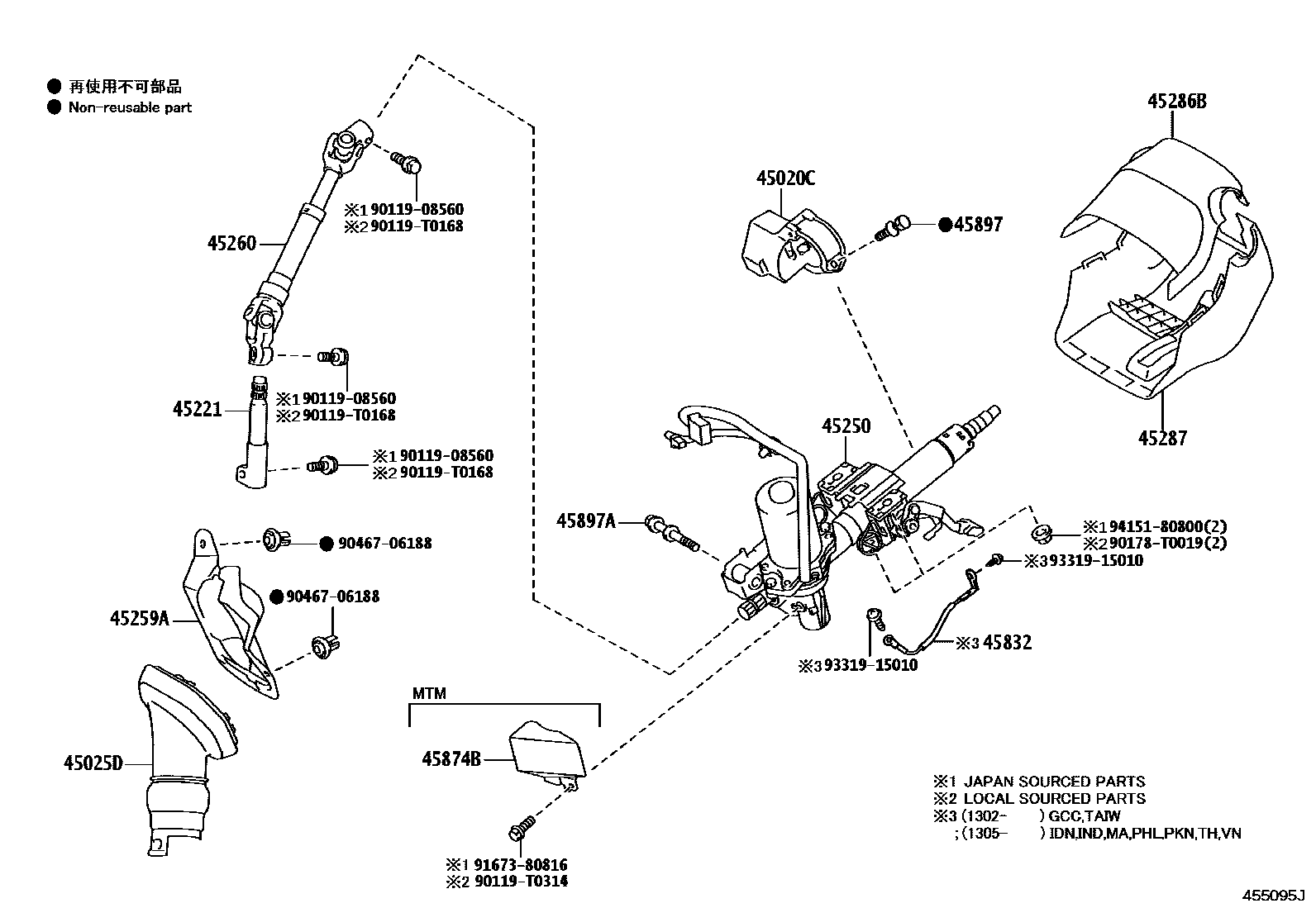

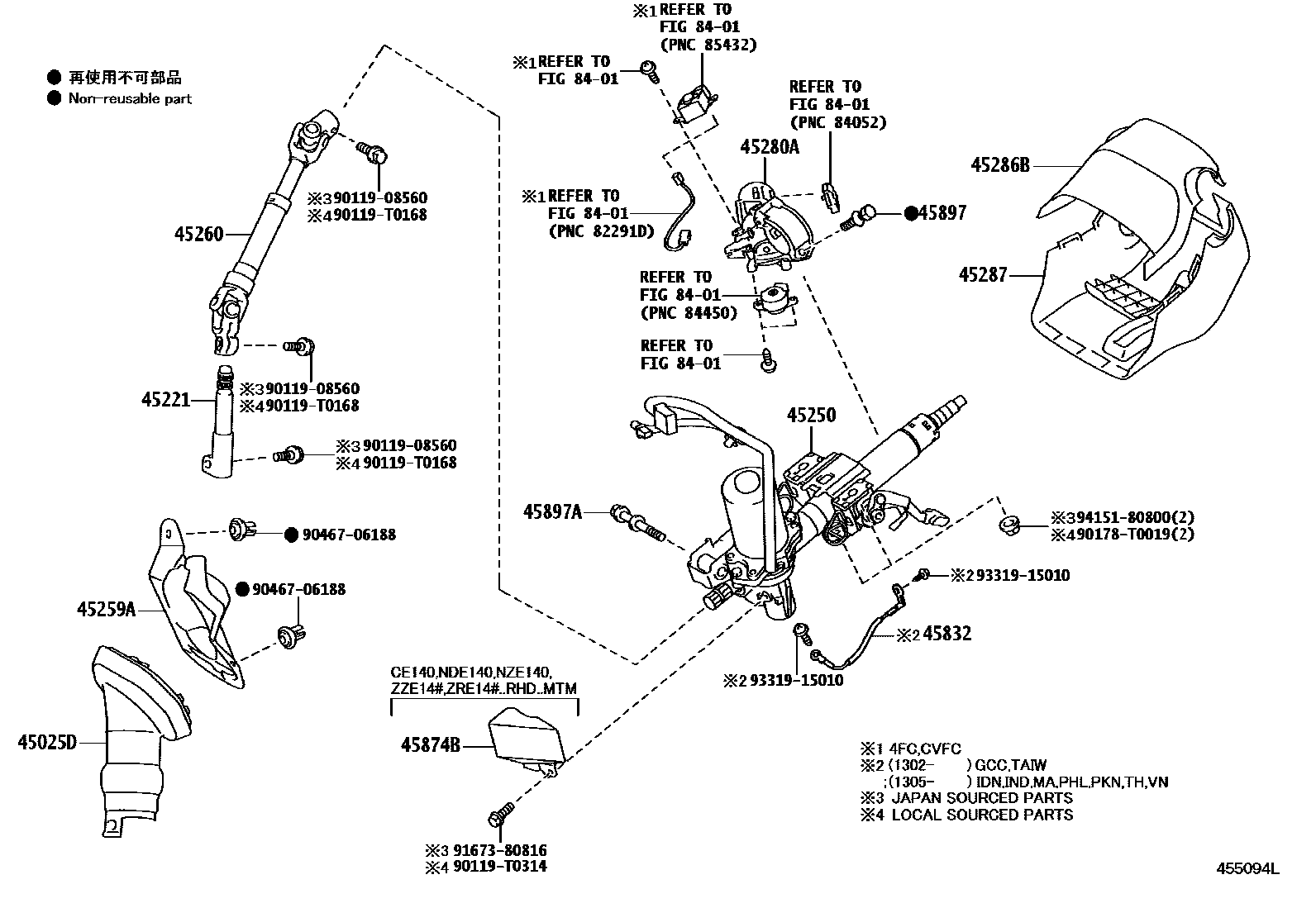

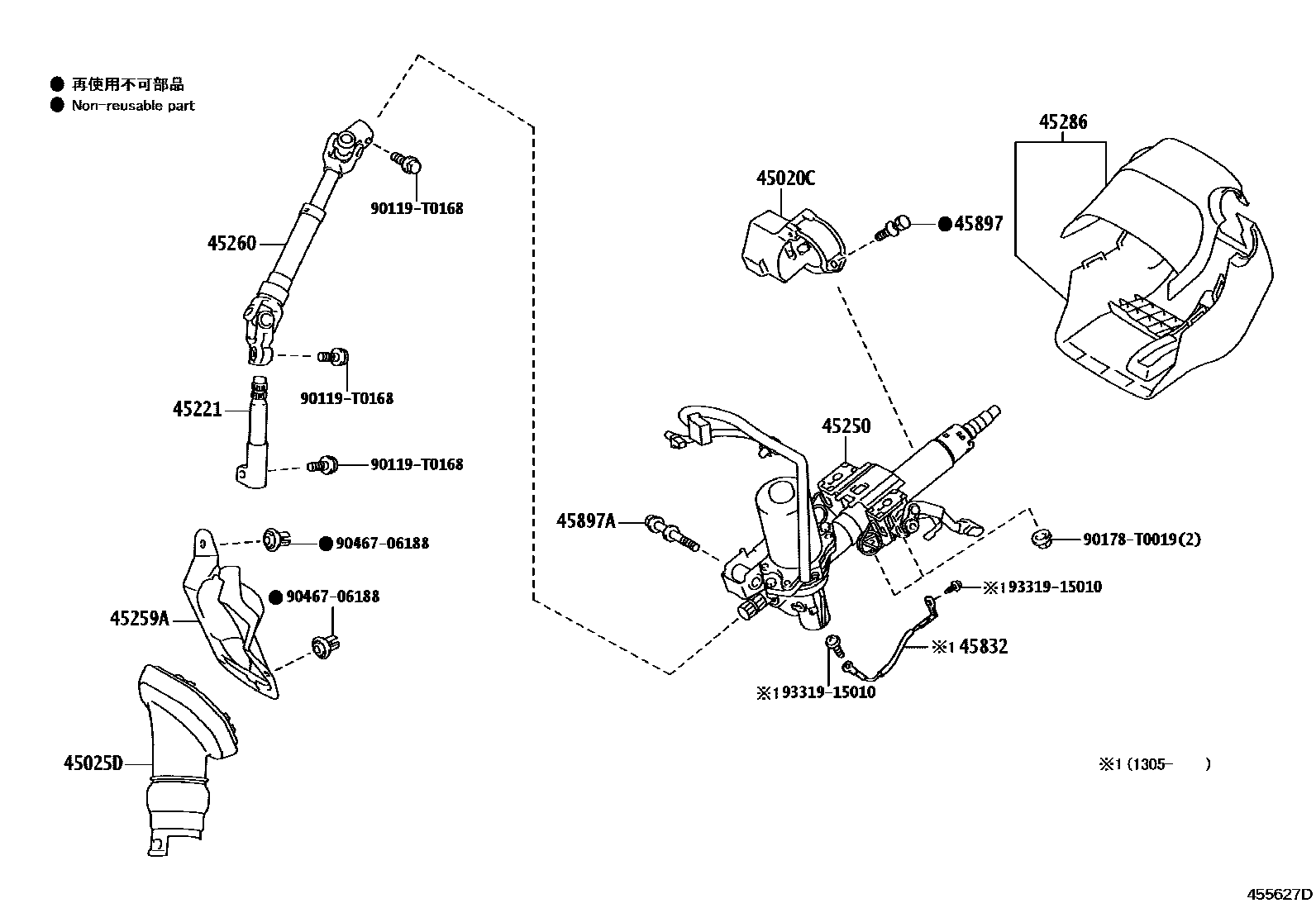

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-42150 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02140 · 45025-02150 · 45025-02160 · 45025-12250 |
| 45221 | steering intermediate shaft | 45221-02090 · 45221-12350 |
| 45250 | Steering column assembly | 45250-02780 · 45250-02790 · 45250-02800 · 45250-02A30 · 45250-02C50 · 45250-02C60 · 45250-02C70 · 45250-02C80 · 45250-12C41 · 45250-12C42 · 45250-12D41 · 45250-12D42 |
| 45259A | Steering column hole cover silencer plate | 45259-02130 · 45259-02140 · 45259-12100 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02140 · 45260-02150 · 45260-12620 |
| 45280A | Steering column upper bracket assembly | 45280-02250 · 45280-02260 · 45280-02270 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-02020 · 45832-21010 |
| 45874B | No. 1 steering column guard | 45874-02030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
