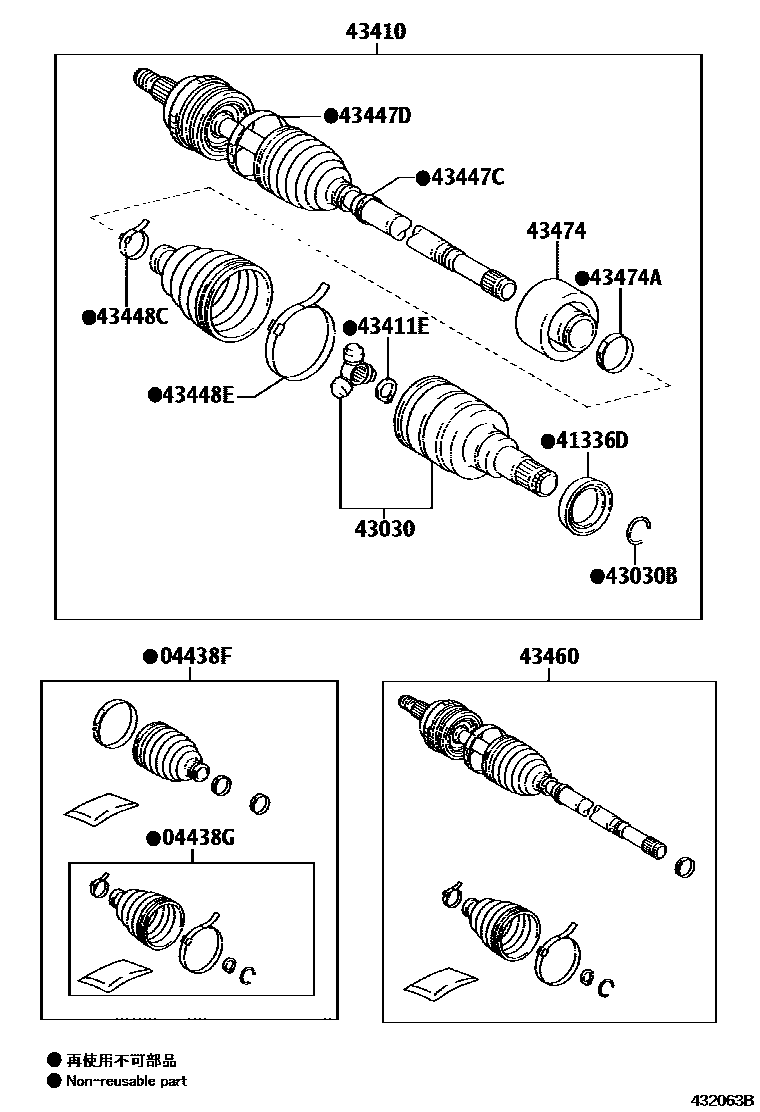

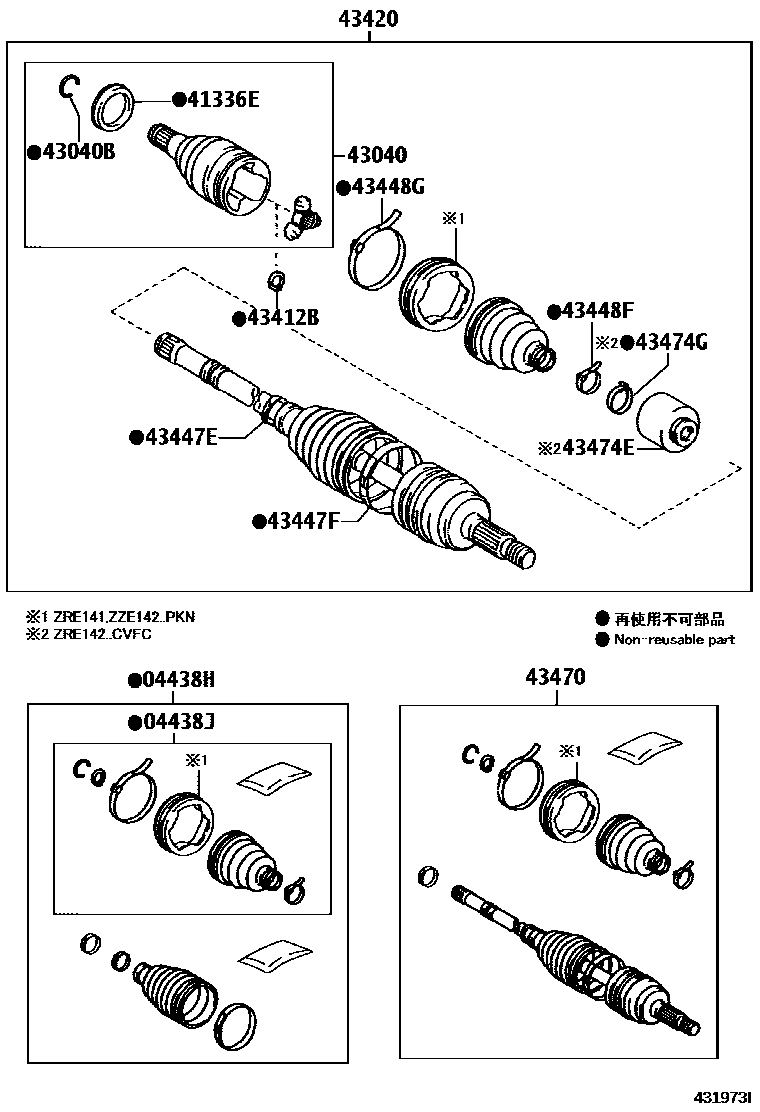

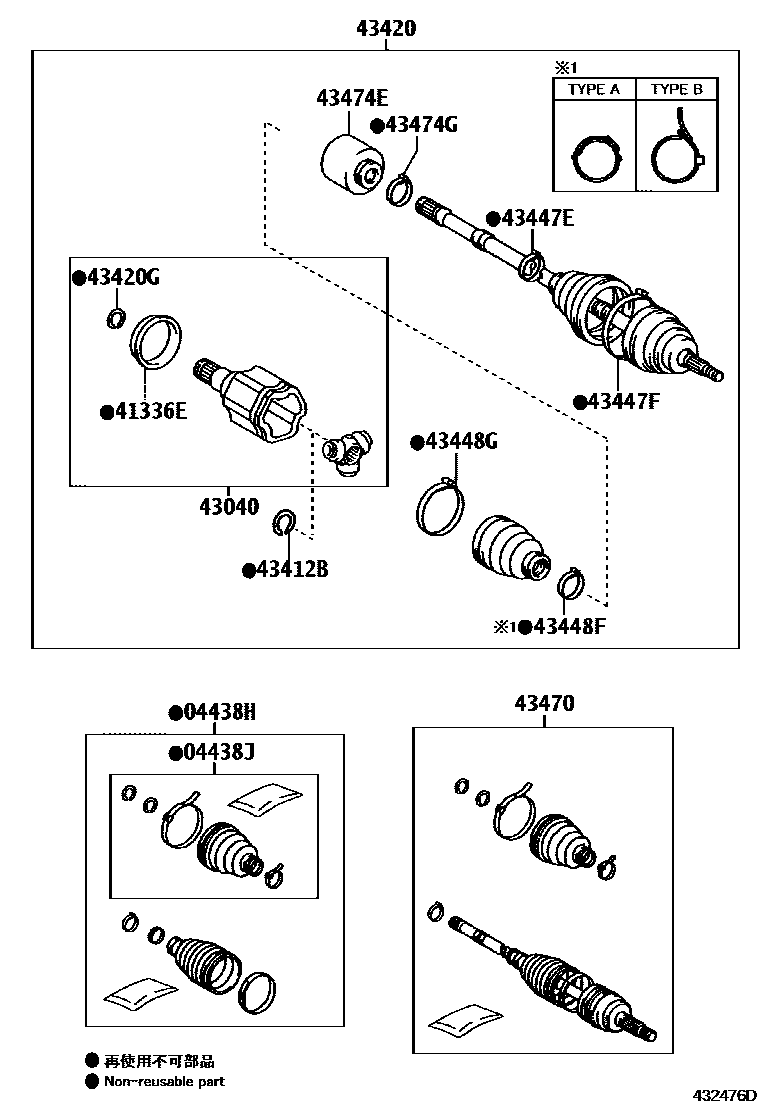

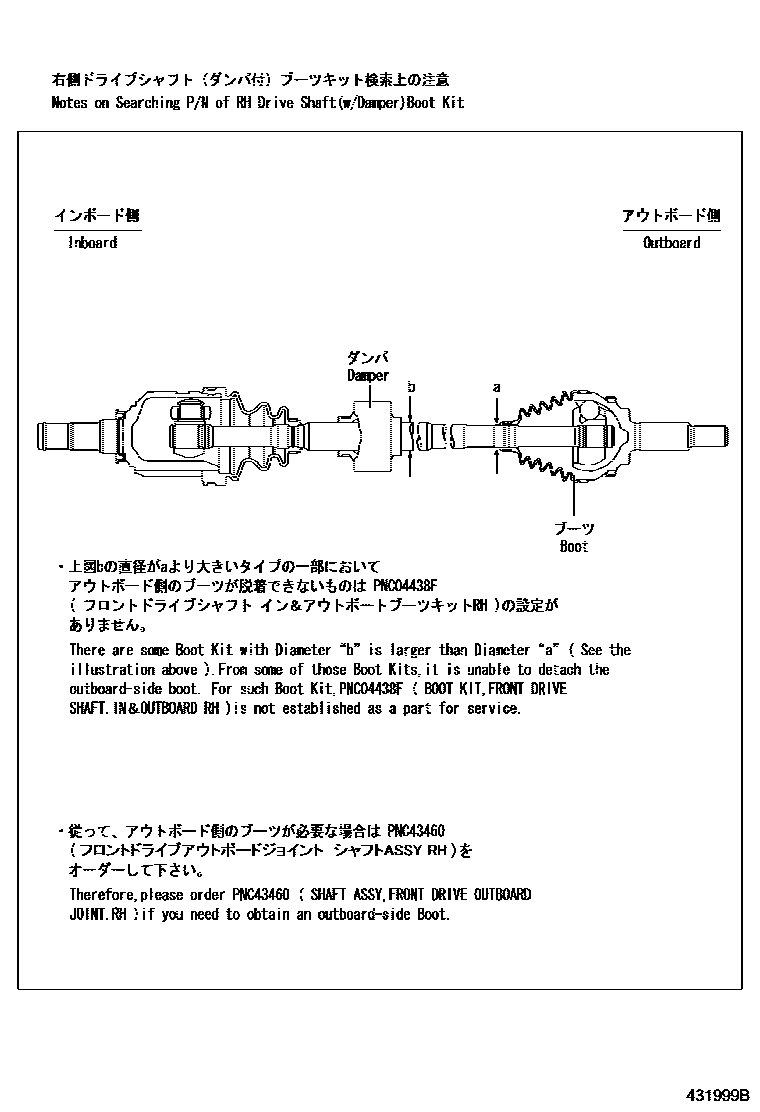

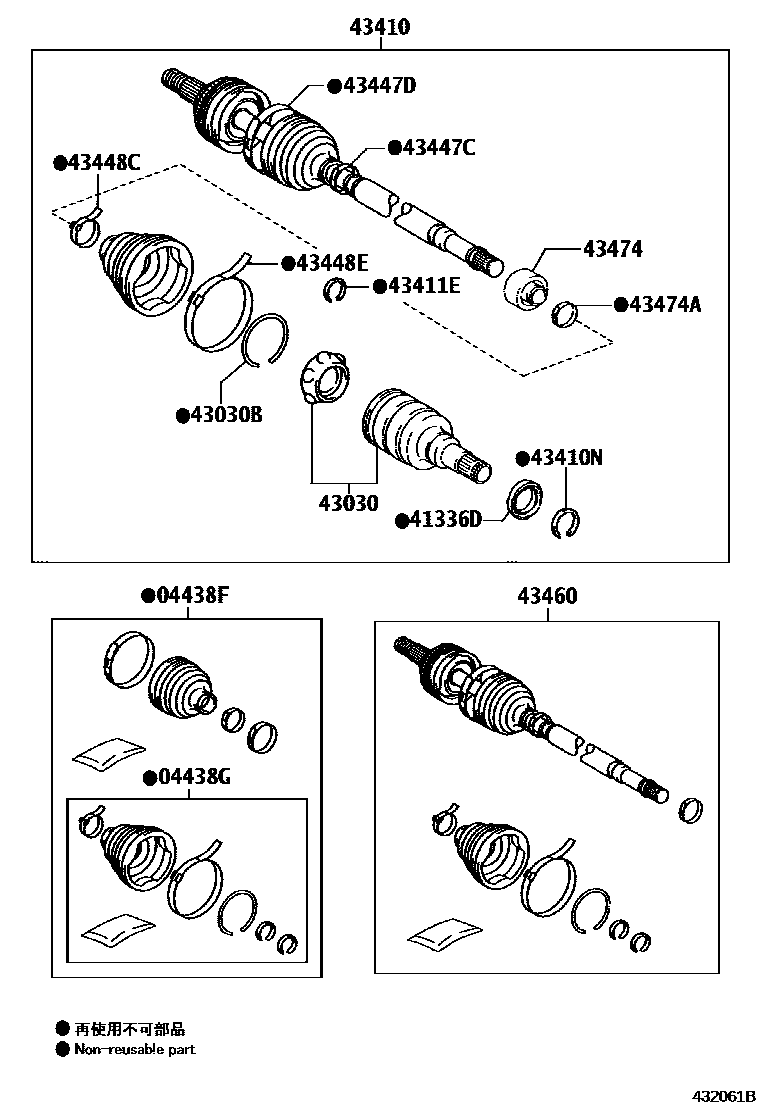

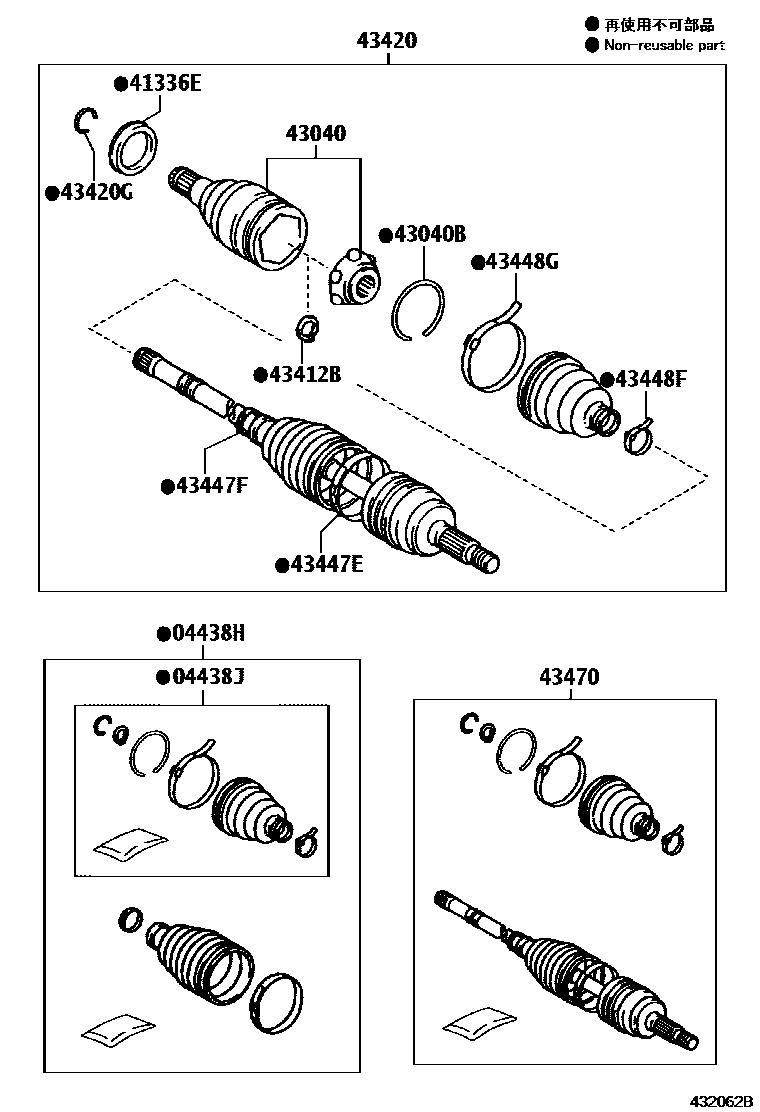

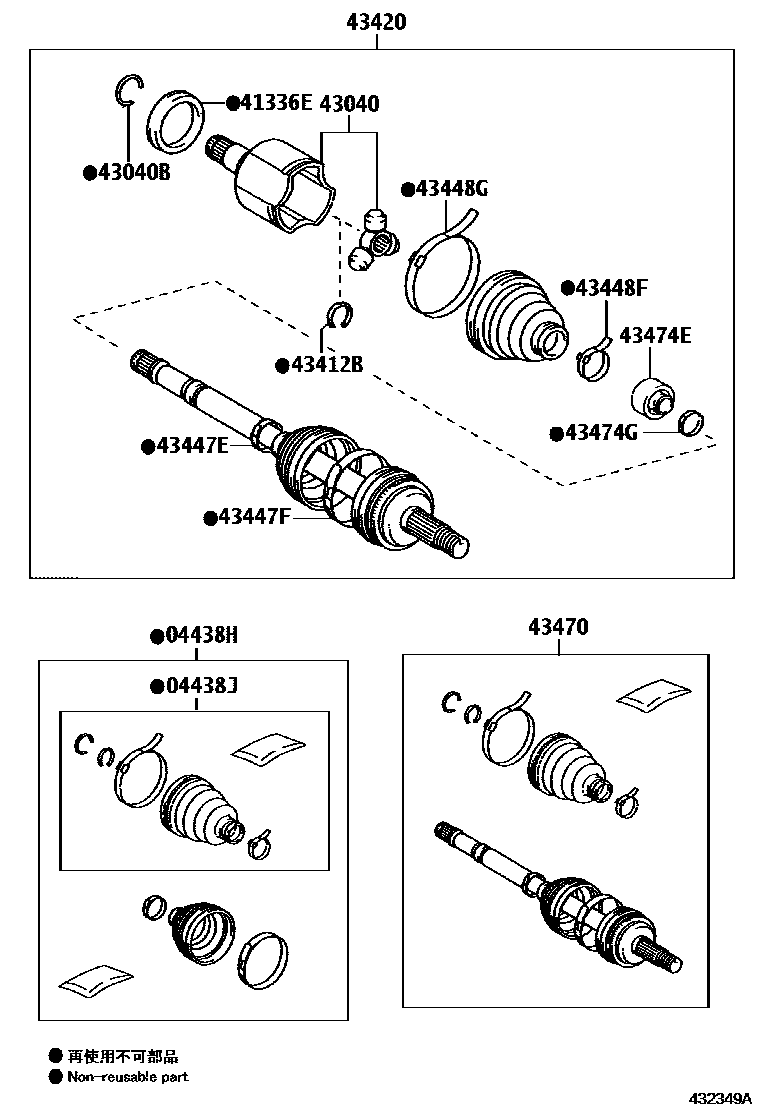

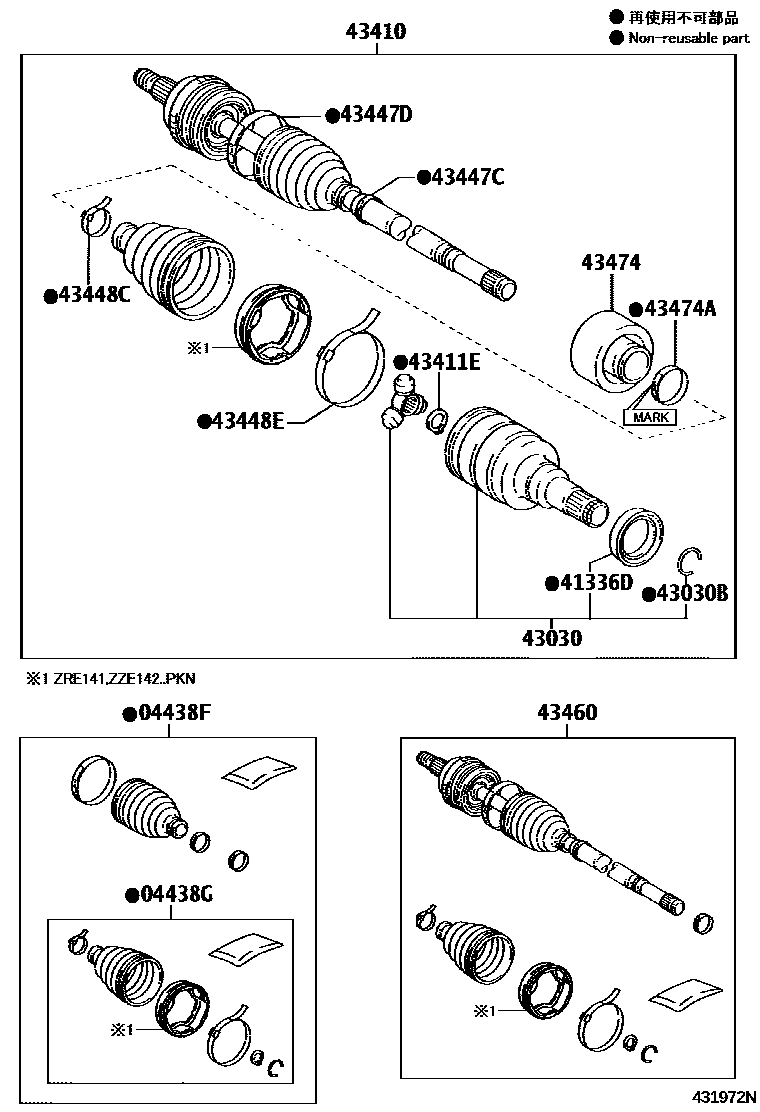

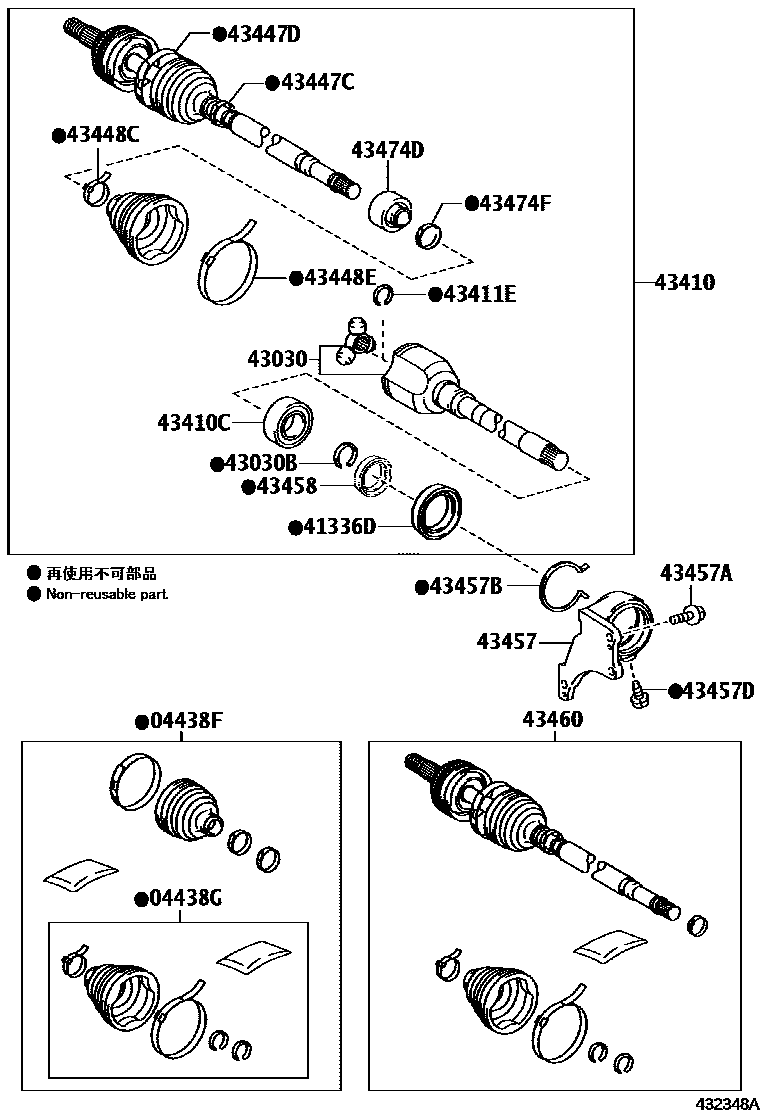

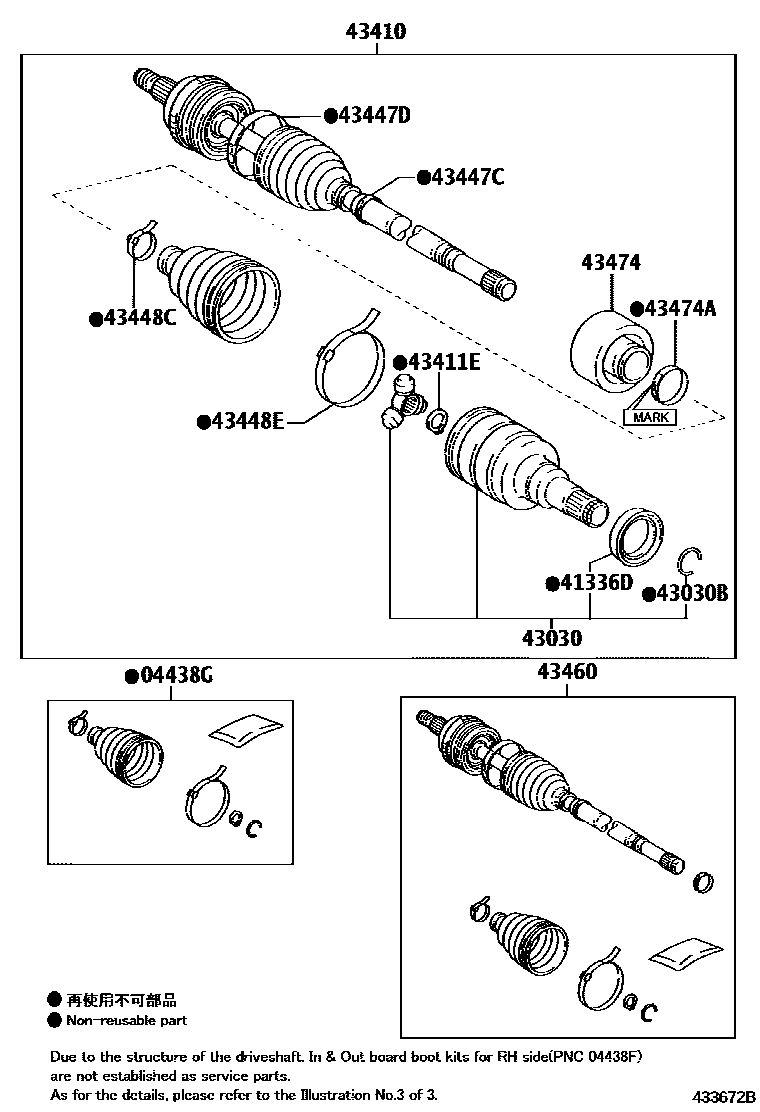

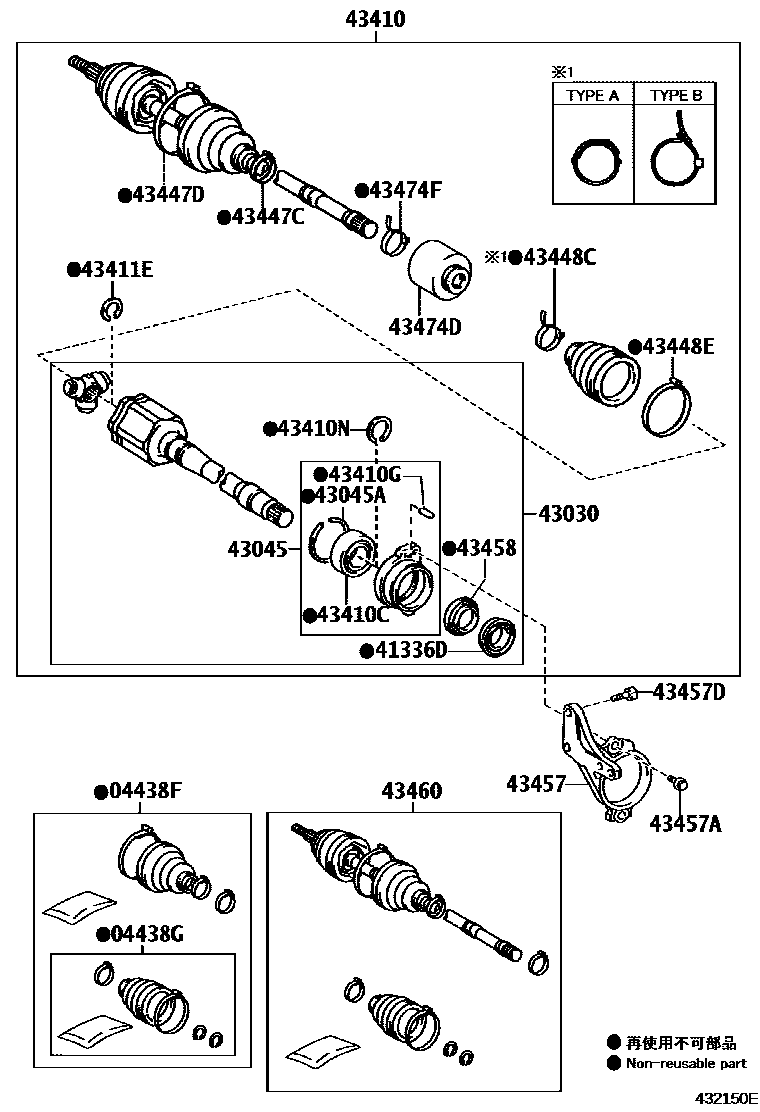

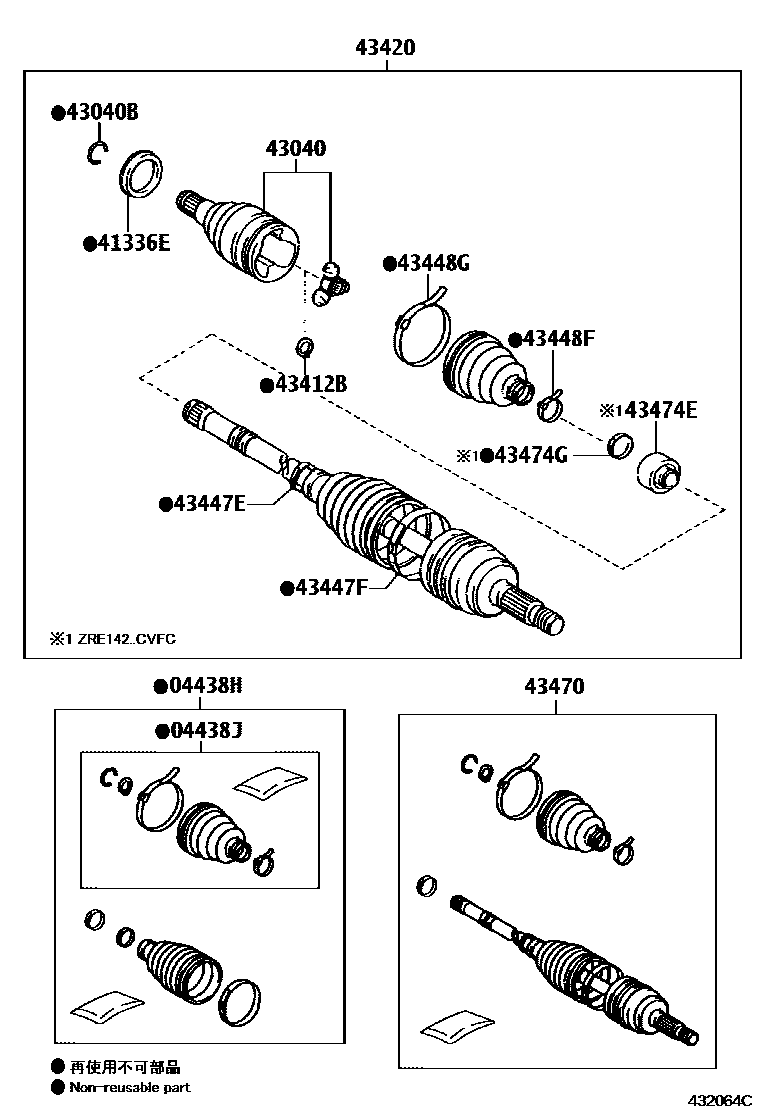

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 12 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02510 · 04427-02540 · 04427-02570 · 04427-12470 · 04427-12631 · 04427-12680 · 04427-12681 · 04427-12690 · 04427-12700 · 04428-12740 · 04428-58030 · 04438-12540 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02350 · 04437-02380 · 04437-02410 · 04437-12371 · 04437-12380 · 04437-12400 · 04437-52330 · 04437-52430 · 04438-12530 · 04438-12A00 · 04438-32231 · 04438-42180 · 04438-42201 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-12470 · 04427-12631 · 04427-12681 · 04428-02550 · 04428-02590 · 04428-12660 · 04428-12670 · 04428-12690 · 04428-12700 · 04428-12701 · 04428-12740 · 04428-12770 · 04428-42101 · 04428-42110 · 04428-44050 · 04438-12540 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02380 · 04437-12371 · 04437-12400 · 04437-52330 · 04438-02540 · 04438-12530 · 04438-12970 · 04438-12990 · 04438-12A00 · 04438-42180 · 04438-42201 · 04438-52230 |
| 41336D | Right front driveshaft dust cover | 41336-02150 · 41336-02200 · 41336-0D070 · 41336-12010 · 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-02150 · 41336-0D070 · 41336-12010 · 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02090 · 43030-12060 · 43030-44021 · 43040-02020 · 43040-02160 · 43040-12120 · 43040-12150 · 43403-02040 · 43403-12040 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-02260 · 43425-02400 · 90521-26004 · 90521-27005 · 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02020 · 43040-02160 · 43040-02220 · 43040-12050 · 43040-12120 · 43040-12150 · 43040-28011 · 43040-32040 · 43403-02040 · 43403-12040 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 43425-02260 · 90521-26004 · 90521-27005 · 90521-79001 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-02660 · 43410-02670 · 43410-02680 · 43410-02690 · 43410-02700 · 43410-02800 · 43410-12A10 · 43410-12A20 · 43410-12A30 · 43410-12A40 · 43410-12A80 · 43410-12B00 · 43410-44040 · 43410-44041 |
| 43410C | Bearings (for front driveshaft) | 90363-36009 · 90363-41003 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 · 90521-33002 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02240 · 43425-02410 · 43425-12070 · 43425-28010 · 90520-22005 · 90520-25034 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02240 · 43425-02410 · 43425-12070 · 43425-28010 · 90520-22005 · 90520-25034 |
| 43420 | Left front drive shaft assembly | 43420-02710 · 43420-02720 · 43420-02730 · 43420-02740 · 43420-02750 · 43420-02890 · 43420-02A10 · 43420-02A20 · 43420-12770 · 43420-12830 · 43420-12831 · 43420-12840 · 43420-12841 · 43420-12860 · 43420-12870 · 43420-12A10 · 43420-42091 · 43420-44040 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02480 · 42345-02740 · 42345-12150 · 42345-12190 · 42345-12230 · 42345-42100 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02490 · 42345-02750 · 42345-12080 · 42345-12140 · 42345-12180 · 42345-12240 · 42345-42090 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02480 · 42345-02740 · 42345-12080 · 42345-12150 · 42345-12190 · 42345-12230 · 42345-42100 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02490 · 42345-02750 · 42345-12140 · 42345-12180 · 42345-12240 · 42345-42090 · 90949-01A65 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02460 · 42345-02730 · 42345-12230 · 42345-42010 · 90949-01078 · 90949-01108 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02450 · 42345-02720 · 42345-12160 · 42345-12180 · 42346-22010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02460 · 42345-02730 · 42345-12230 · 42345-42010 · 90949-01078 · 90949-01108 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02450 · 42345-02720 · 42345-12160 · 42345-12180 · 42346-22010 |
| 43457 | drive shaft bearing bracket | 43457-12080 · 43457-28060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-02020 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09S80 · 43460-09S90 · 43460-09T00 · 43460-09T10 · 43460-49126 · 43460-80111 · 43460-80112 · 43460-80119 · 43460-80120 · 43460-80122 · 43460-80126 · 43460-80127 · 43460-80150 · 43460-80151 · 43470-8Z003 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09V90 · 43470-09W00 · 43470-09W10 · 43470-09W11 · 43470-09W20 · 43470-49586 · 43470-80064 · 43470-80191 · 43470-80192 · 43470-80193 · 43470-80199 · 43470-80203 · 43470-80260 · 43470-80292 · 43470-80293 · 43470-80313 · 43470-80315 · 43470-80328 · 43470-80329 · 43470-8Z004 · 43470-8Z032 |
| 43474 | drive shaft damper | 43474-02250 · 43474-02310 · 43474-12120 · 43474-12130 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02470 · 42345-14010 · 90949-01947 |
| 43474D | Right front driveshaft shock absorber | 43474-02350 · 43474-28010 |
| 43474E | Left front driveshaft shock absorber | 43474-02350 · 43474-02390 · 43474-12200 · 43474-44010 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02760 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02760 · 42345-02860 · 42345-14010 |
