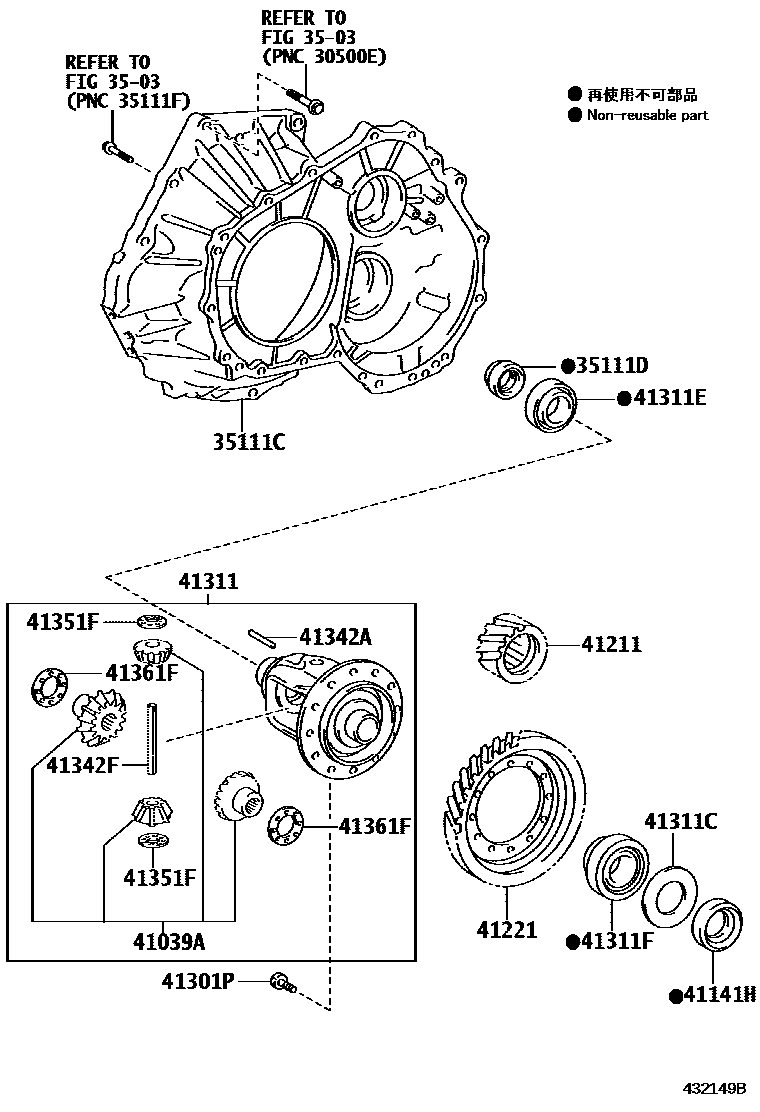

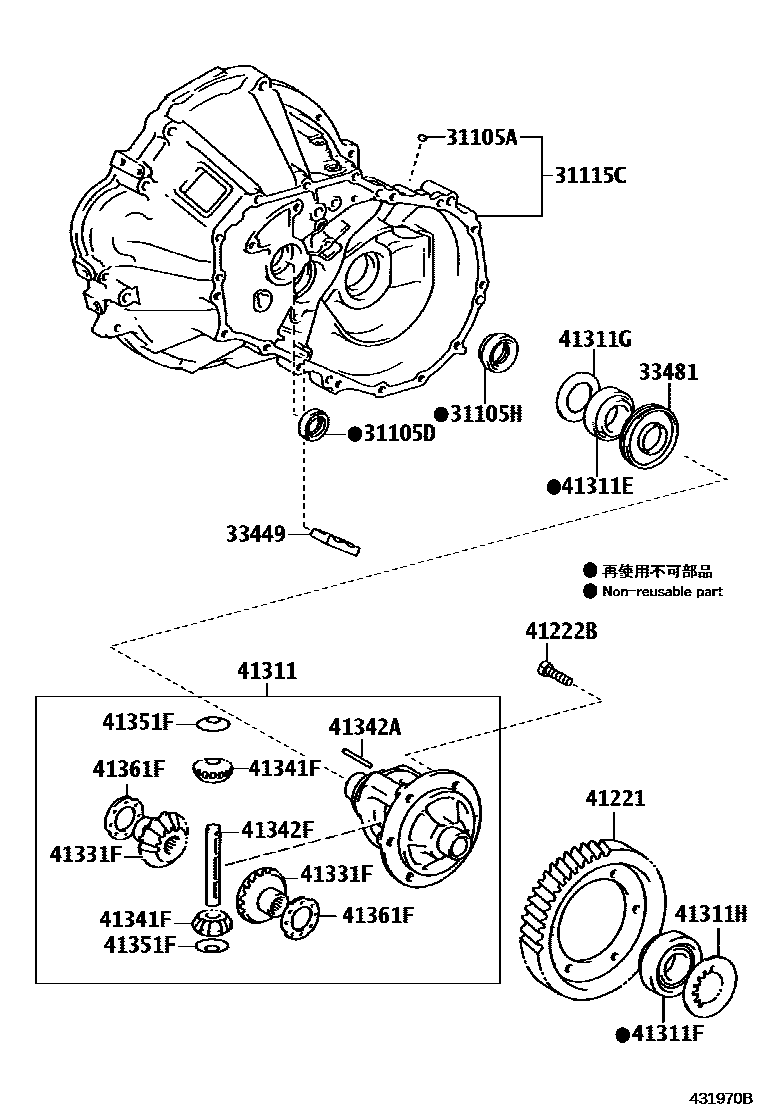

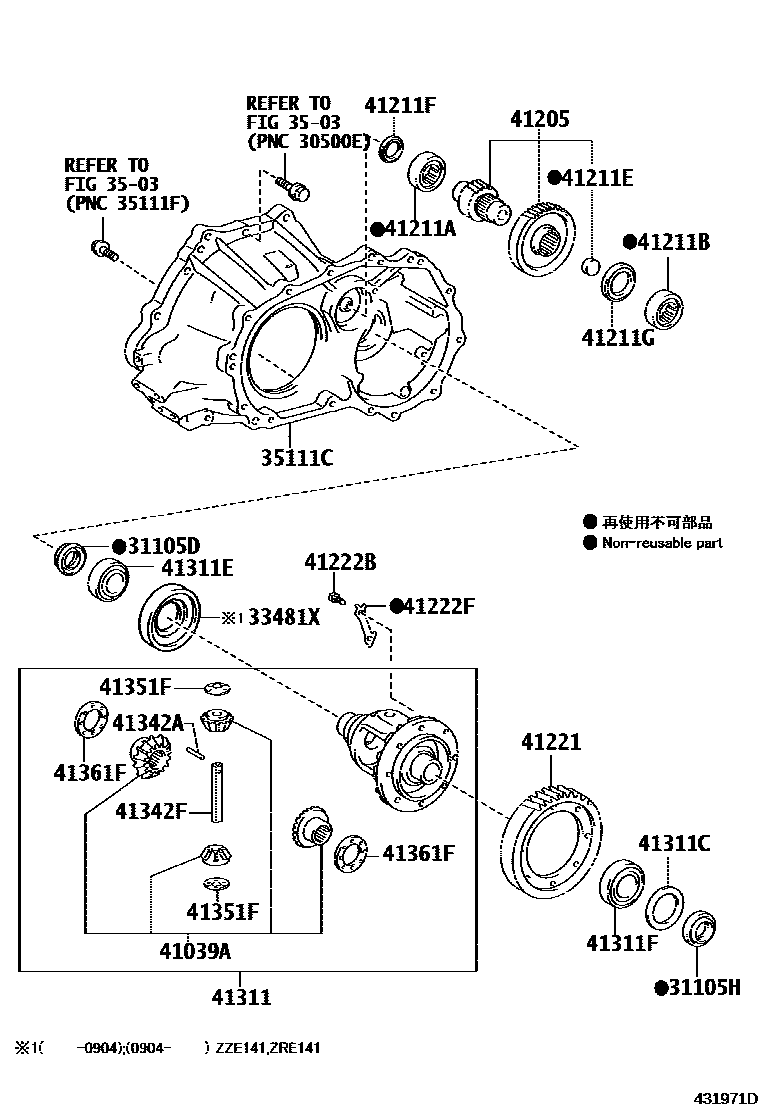

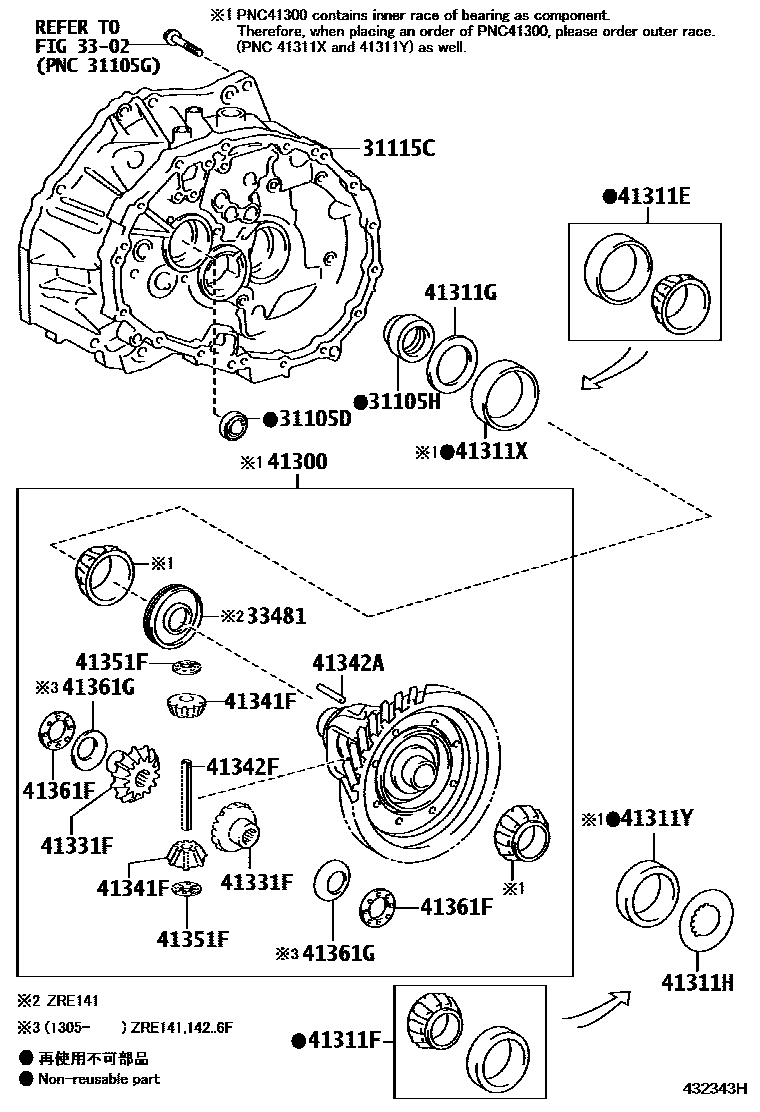

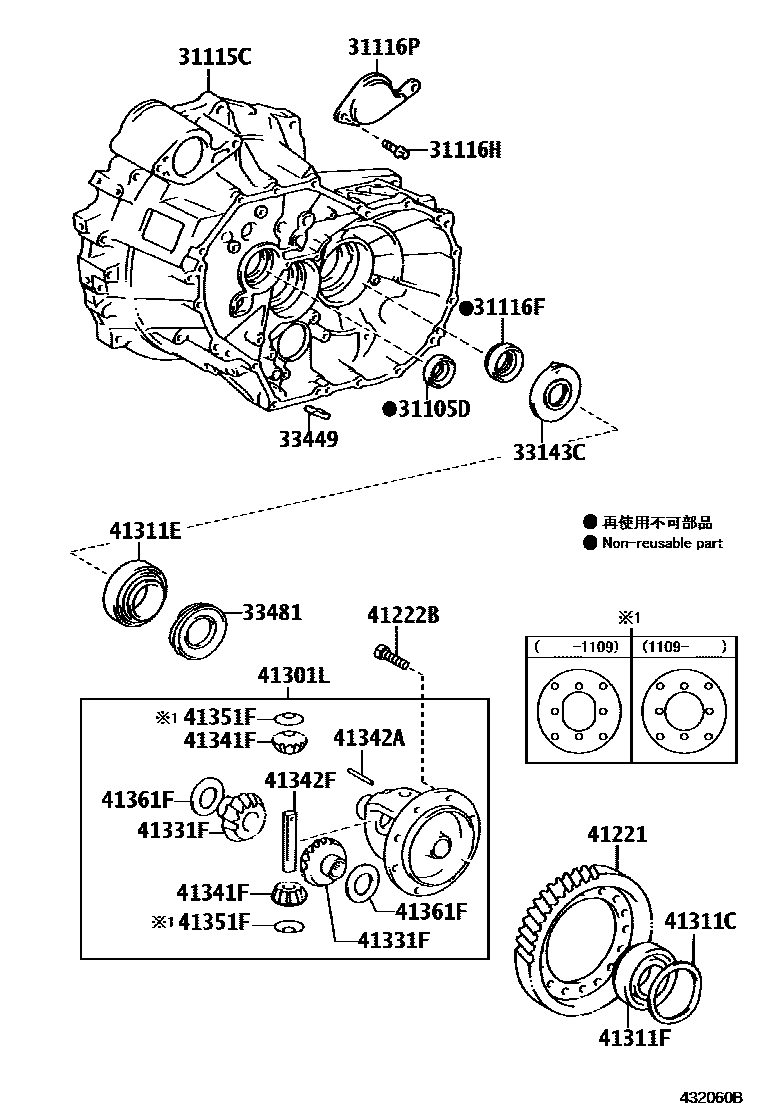

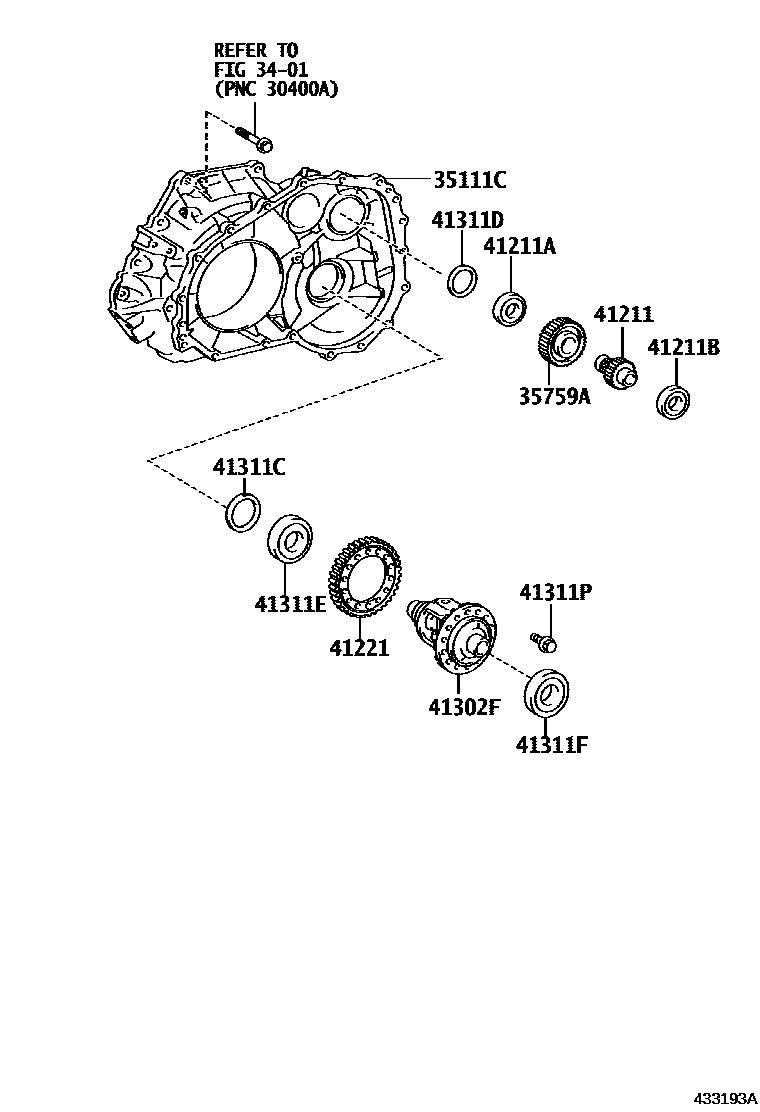

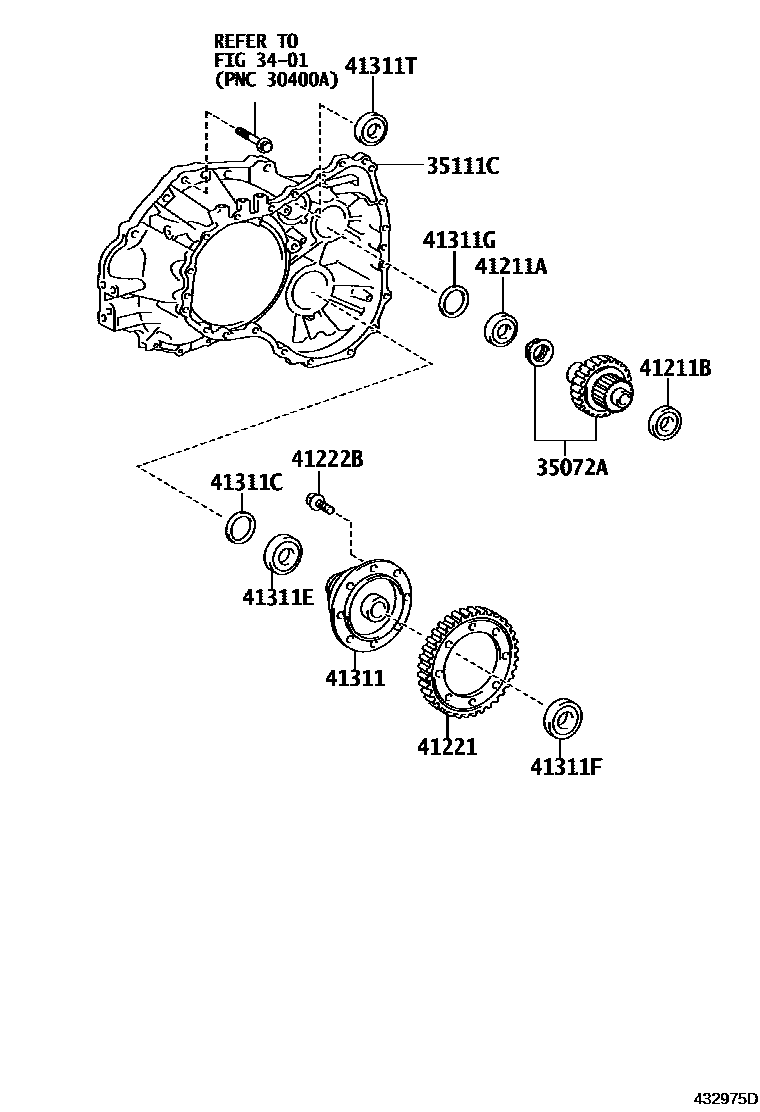

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 7 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 · 90311-25030 · 90311-30017 · 90311-34031 · 90311-34045 · 90311-35055 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34030 · 90311-34033 · 90311-34039 · 90311-34044 · 90311-35054 · 90311-35057 · 90311-35062 · 90311-35065 · 90311-35068 |
| 31115C | Front transmission axle housing (MTM) | 31105-12220 · 31105-12230 · 31115-12170 · 31115-12200 · 31115-12201 · 31115-20062 · 31115-52140 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40030 · 90311-40036 |
| 31116H | Bolts (for front transaxle housing cover) | 91622-B1025 |
| 31116P | Transmission axle housing cover | 31116-12020 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-20160 · 33481-28050 |
| 33481X | speedometer drive gear | 33481-32020 |
| 35072A | Counter shaft driven gear assembly | 35072-12030 |
| 35111C | Transmission axle housing | 35105-12080 · 35105-12090 · 35105-12091 · 35105-20070 · 35105-20161 · 35105-28070 · 35105-28071 · 35105-52071 |
| 35111D | Oil seal (for transaxle housing) | 90311-40031 |
| 35759A | Reduction driven gear | 35759-63010 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-28020 · 41039-32010 · 41039-32021 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50033 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211 | Differential drive pinion | 41211-32130 · 41211-63011 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 · 90366-25019 · 90366-25021 · 90366-35122 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 · 90366-29007 · 90366-29010 · 90366-30088 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-12420 · 41221-12431 · 41221-12480 · 41221-42130 · 41221-44010 · 41221-52060 · 41221-52061 · 41221-52090 · 41221-52091 · 41221-63011 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12319 · 90105-12379 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41300 | Front differential case assembly with ring gear | 41300-12020 · 41300-12050 · 41300-12060 · 41300-12090 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41302F | Front differential housing sub-assembly | 41301-20300 · 41301-20310 |
| 41311 | front differential case | 41301-12041 · 41301-12210 · 41301-12280 · 41301-32061 · 41301-33110 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 · 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-56091 · 90564-56092 · 90564-56093 · 90564-56094 · 90564-56095 · 90564-56096 · 90564-56097 · 90564-56098 · 90564-56099 · 90564-56100 · 90564-56101 · 90564-56102 · 90564-56103 · 90564-56104 · 90564-56105 · 90564-56106 · 90564-56107 · 90564-56108 · 90564-64031 · 90564-64032 · 90564-64033 · 90564-64034 · 90564-64035 · 90564-64036 · 90564-64037 · 90564-64038 · 90564-64039 · 90564-64040 · 90564-64041 · 90564-64042 · 90564-64043 · 90564-64044 · 90564-64045 · 90564-64046 · 90564-64047 · 90564-64048 · 90564-64049 · 90564-64050 · 90564-64051 · 90564-64052 · 90564-64053 · 90564-64054 · 90564-64055 · 90564-64056 · 90564-64057 · 90564-64058 · 90564-64059 · 90564-64060 · 90564-64061 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311D | Front gasket (for front differential case) | 90564-60039 · 90564-60040 · 90564-60041 · 90564-60042 · 90564-60043 · 90564-60044 · 90564-60045 · 90564-60046 · 90564-60047 · 90564-60048 · 90564-60049 · 90564-60050 · 90564-60051 · 90564-60052 · 90564-60053 · 90564-60054 · 90564-60055 · 90564-60056 · 90564-60057 · 90564-60063 · 90564-60064 · 90564-60065 · 90564-60066 · 90564-60067 · 90564-60068 · 90564-60069 · 90564-60070 · 90564-60071 · 90564-60072 · 90564-60073 · 90564-60074 · 90564-60075 · 90564-60076 · 90564-60077 · 90564-60078 · 90564-60079 · 90564-60080 · 90564-60086 · 90564-60087 · 90564-60088 · 90564-60089 · 90564-60090 · 90564-60091 · 90564-60092 · 90564-60093 · 90564-60094 · 90564-60095 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-40097 · 90366-40117 · 90366-40129 · 90366-50084 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-42009 · 90366-44001 · 90366-44007 · 90366-50072 · 90366-50078 · 90366-50081 · 90366-50141 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311P | Bolt (for front differential case) | 90105-12303 |
| 41311T | Roller bearing (for secondary pulley shaft) | 90365-24001 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-12011 · 41331-12140 · 41331-12150 · 41331-12190 · 41331-20130 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-12090 · 41341-12100 · 41341-12130 · 41341-20050 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12140 · 41342-20060 · 41342-20080 · 41342-20090 · 41342-28010 · 41342-32020 · 41342-33040 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-28010 · 41351-30060 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
