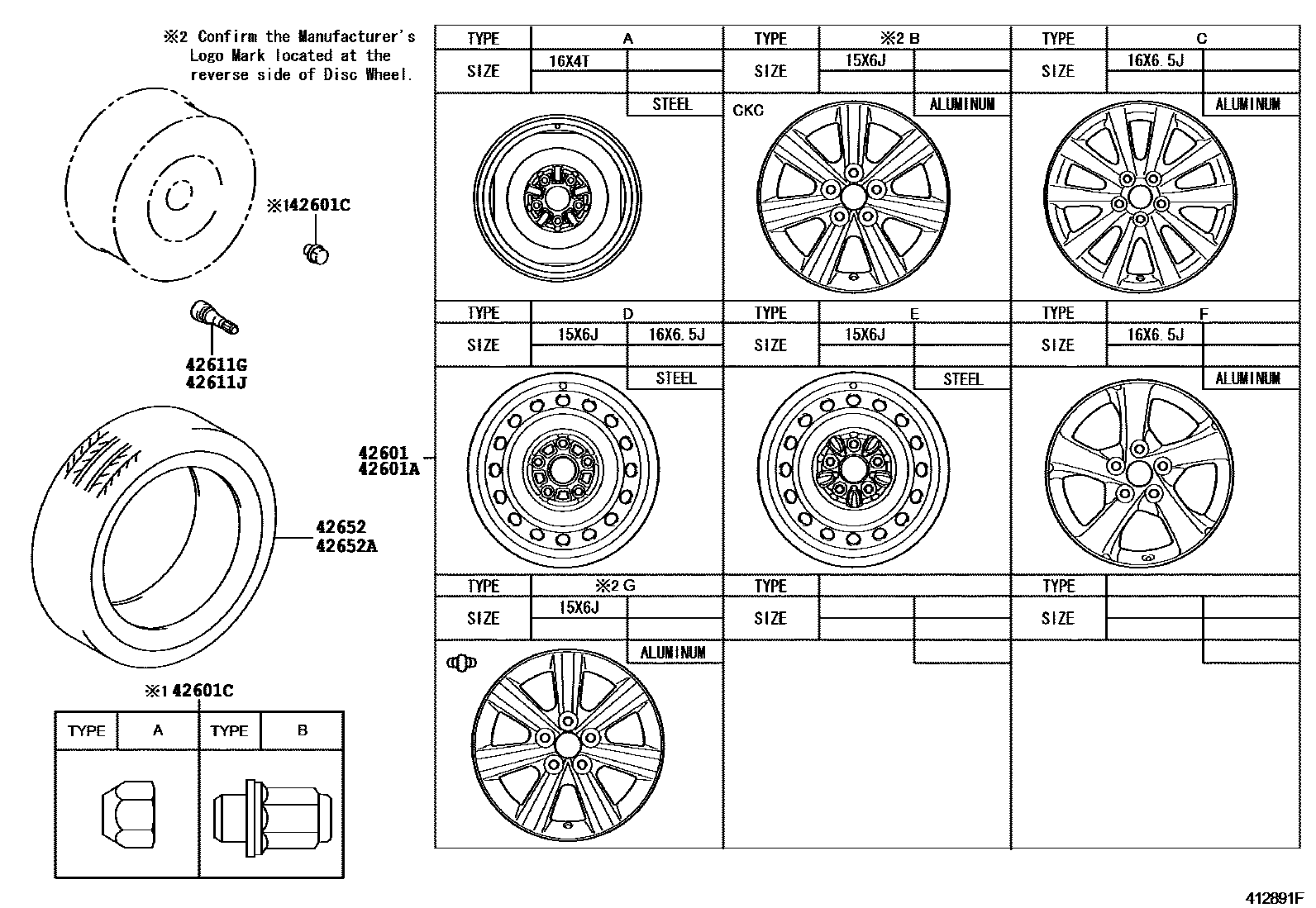

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-02670 · 42611-02680 · 42611-02840 · 42611-02A90 · 42611-02B00 · 42611-02B01 · 42611-02B10 · 42611-02B20 · 42611-02B30 · 42611-02B31 · 42611-02B40 · 42611-02B41 · 42611-02C20 · 42611-02C40 · 42611-02E10 · 42611-02E11 · 42611-02E20 · 42611-02F20 · 42611-02F30 · 42611-02K80 |
| 42601A | Spoke wheel (for spare tire) | 42611-02670 · 42611-02680 · 42611-02840 · 42611-02A90 · 42611-02B00 · 42611-02B01 · 42611-02B10 · 42611-02B20 · 42611-02B30 · 42611-02B31 · 42611-02B40 · 42611-02B41 · 42611-02C20 · 42611-02C30 · 42611-02C40 · 42611-02E10 · 42611-02E11 · 42611-02E20 · 42611-02F20 · 42611-02F30 · 42611-02K80 · 42611-0M020 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 |

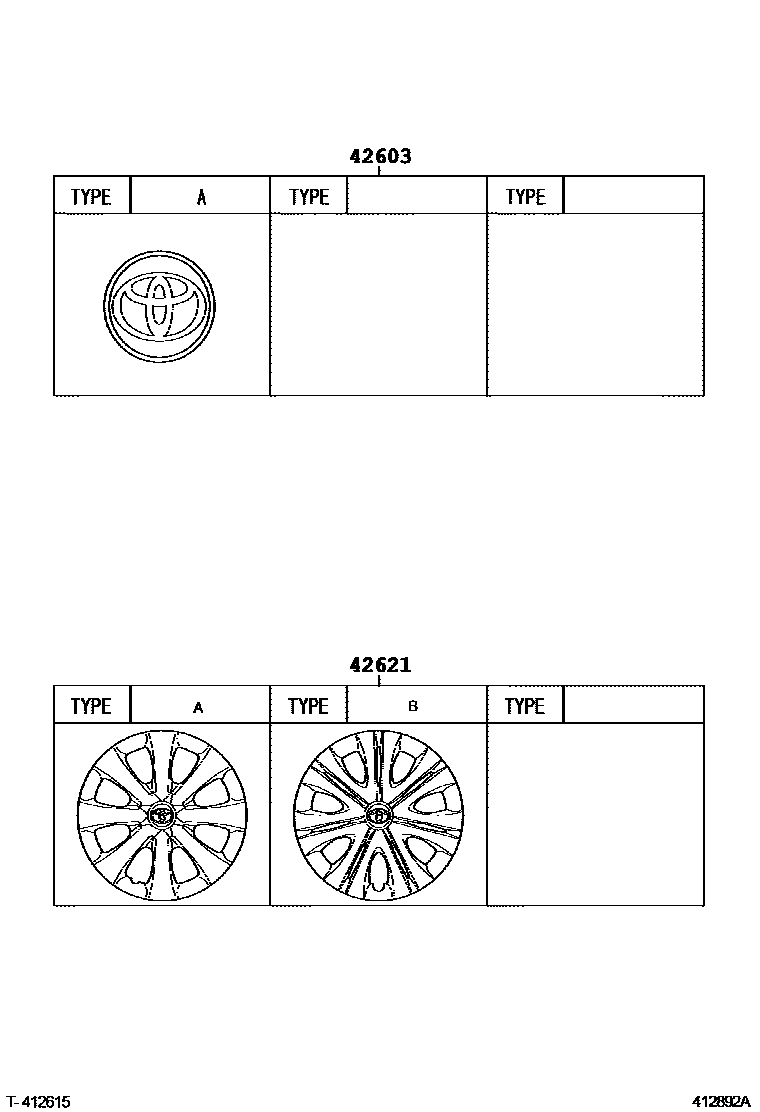

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02270 · 42603-0D070 · 42603-0D090 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 · 90942-T5001 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90942-05009 · 90942-T5001 |
| 42621 | wheel cover | 42602-02270 · 42602-12720 · 42602-12790 |
| 42652 | tires | 42652-02C60 · 42652-02D40 · 42652-02G60 · 42652-02G90 · 42652-02J00 · 42652-02J10 · 42652-02J20 · 42652-02J30 · 42652-02J40 · 42652-02J41 · 42652-02K40 · 42652-12C40 · 42652-12C70 · 42652-12D21 |
| 42652A | Tire (for Spare Wheel) | 42652-02890 · 42652-02C60 · 42652-02D40 · 42652-02G60 · 42652-02J30 · 42652-02J40 · 42652-02J41 · 42652-02K40 · 42652-12C40 · 42652-12C70 · 42652-12D21 |
