Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

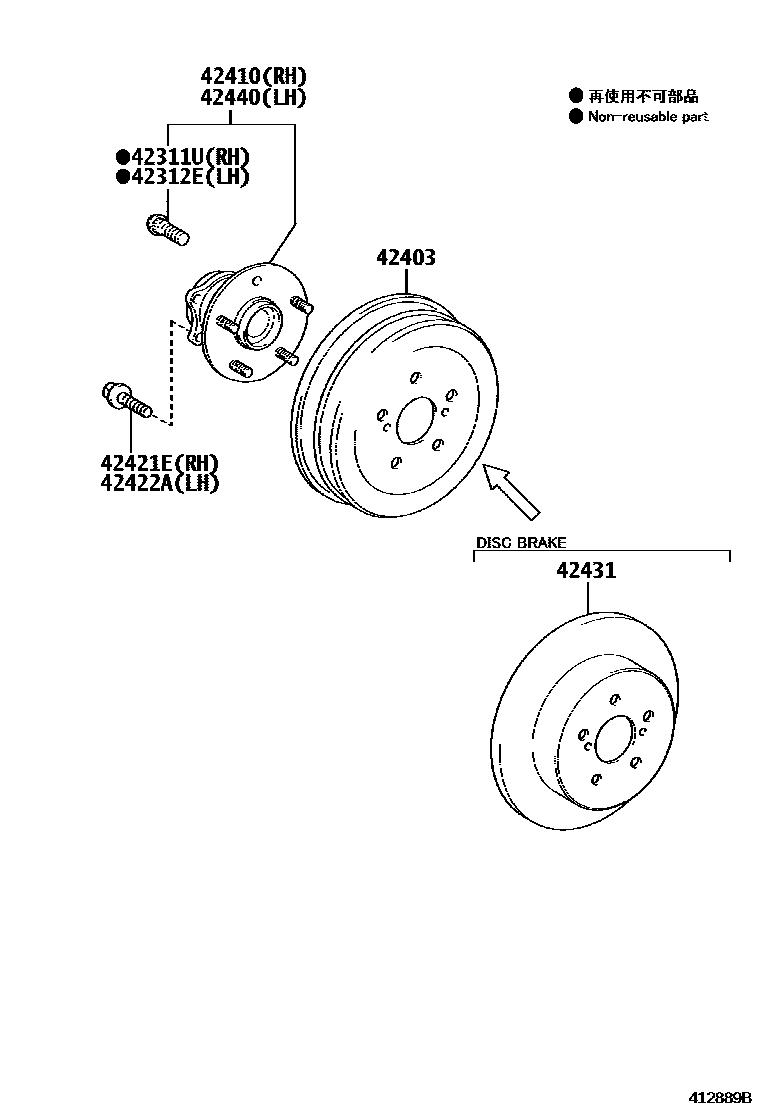

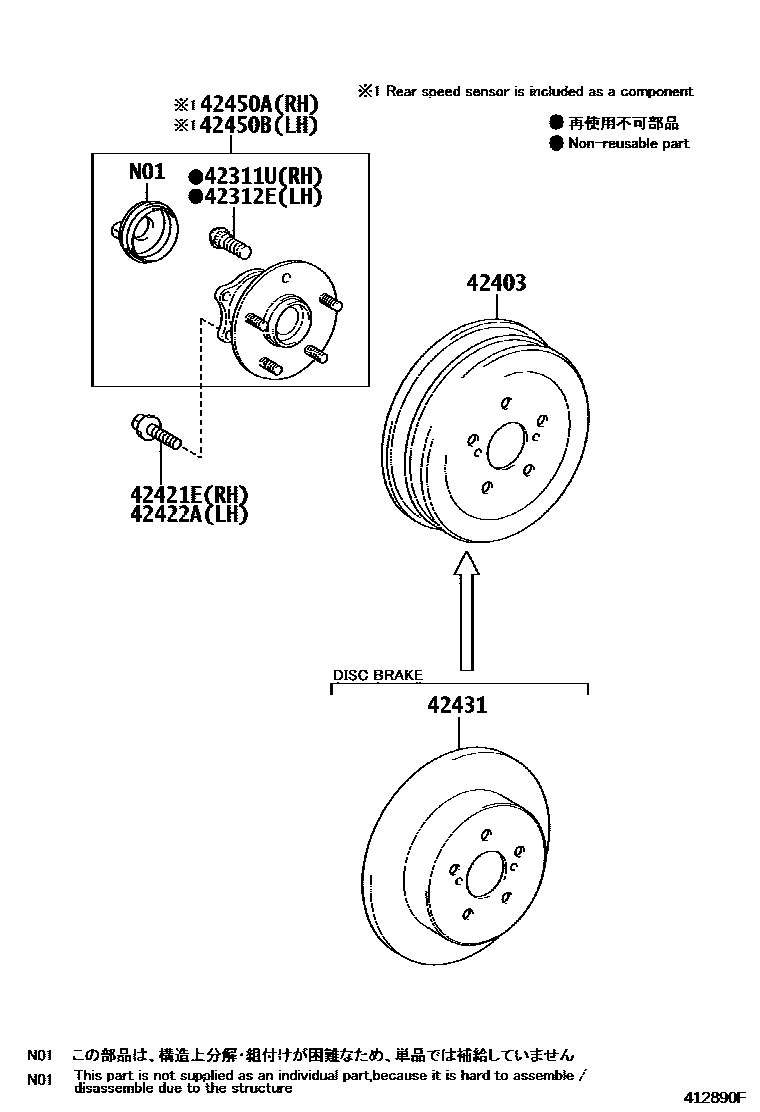

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42403 | Rear brake drum sub-assembly | 42431-12300 |
| 42410 | Rear axle right hub and bearing assembly | 42410-02170 · 42410-02171 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12350 · 90105-T0187 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12350 · 90105-T0187 |
| 42431 | rear brake disc | 42431-02110 · 42431-02240 · 42431-02250 · 42431-02260 · 42431-02280 · 42431-12310 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-02170 · 42410-02171 |
| 42450A | Rear axle right hub and bearing assembly | 42450-02180 · 42450-02190 · 42450-02210 · 42450-02211 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-02180 · 42450-02190 · 42450-02210 · 42450-02211 |
