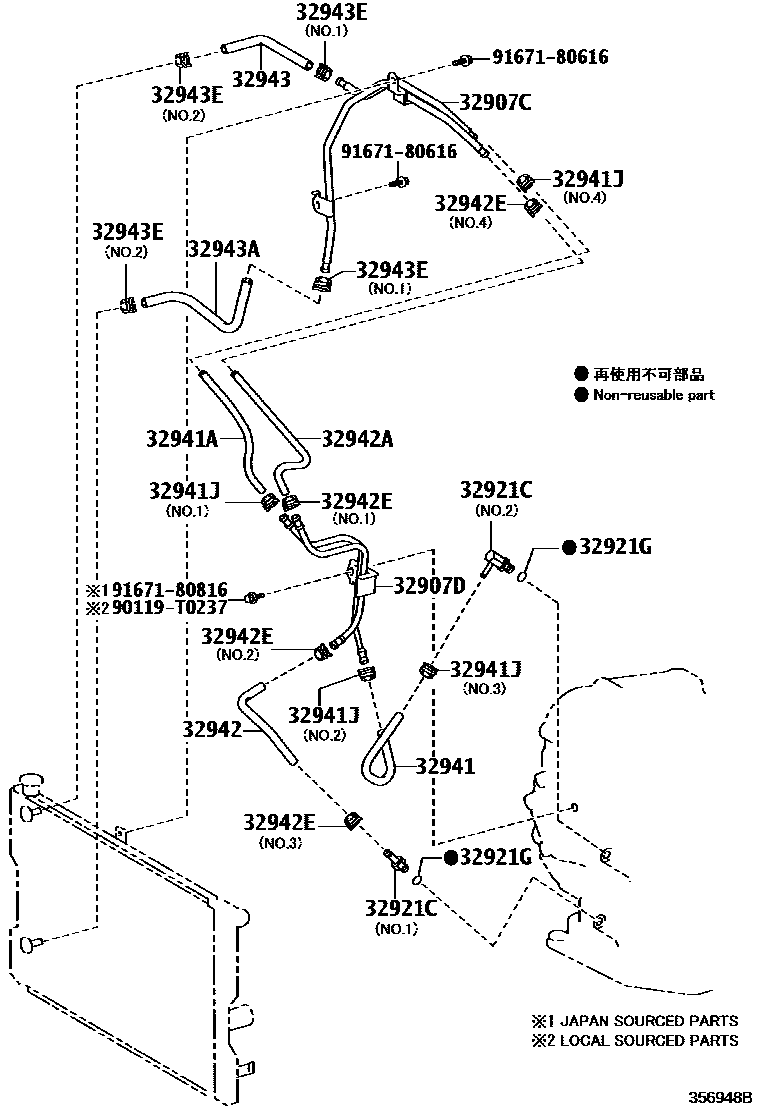

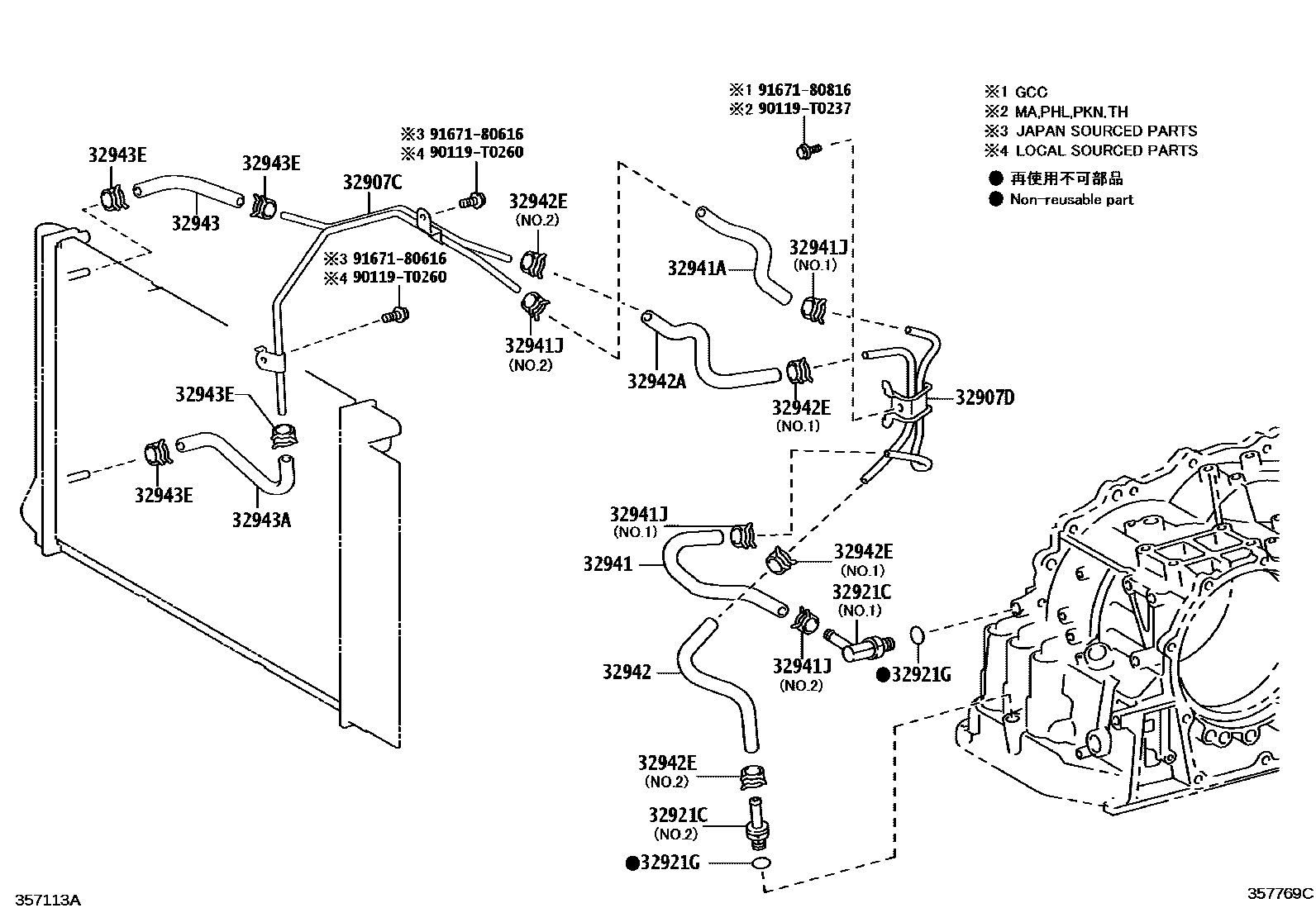

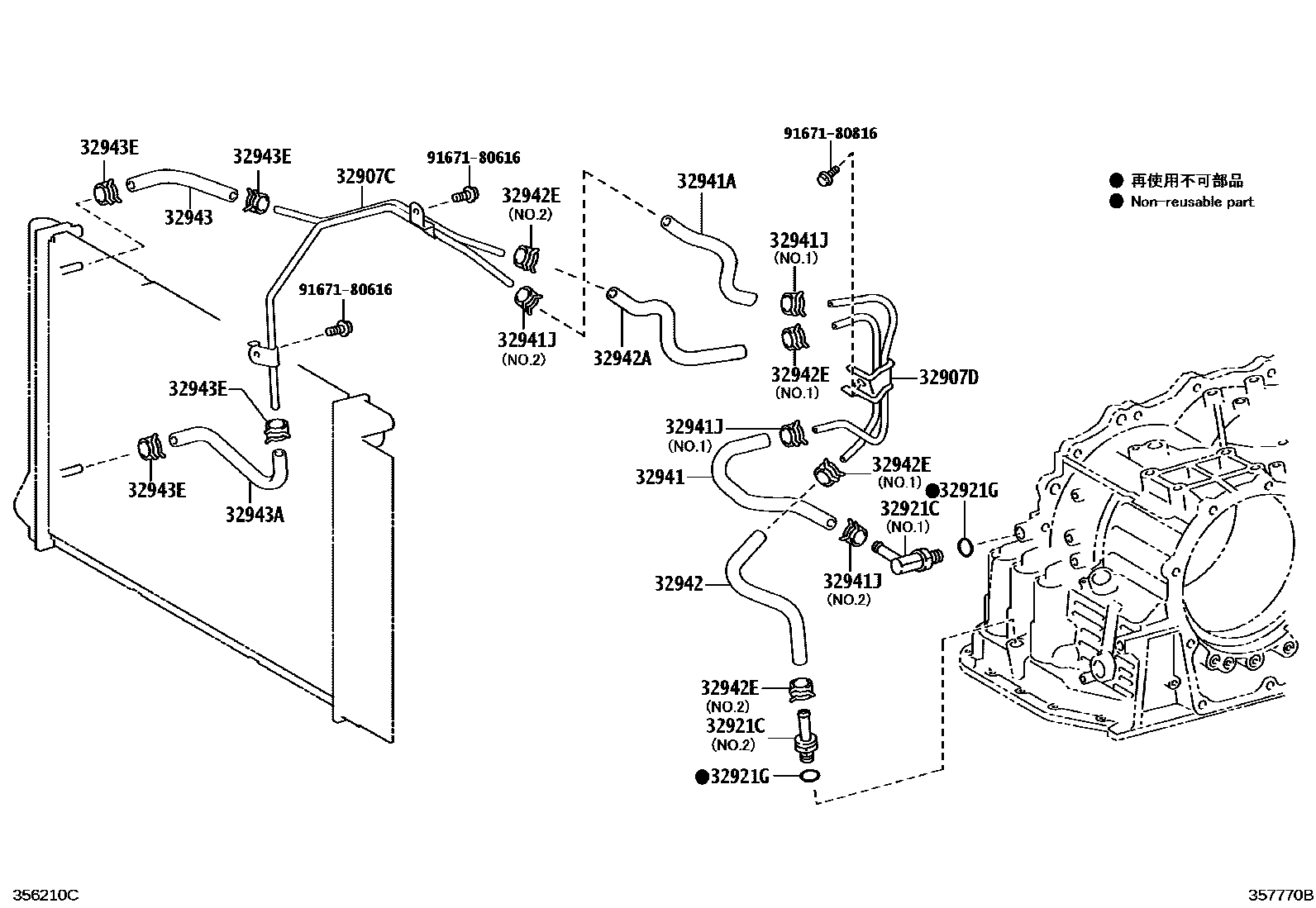

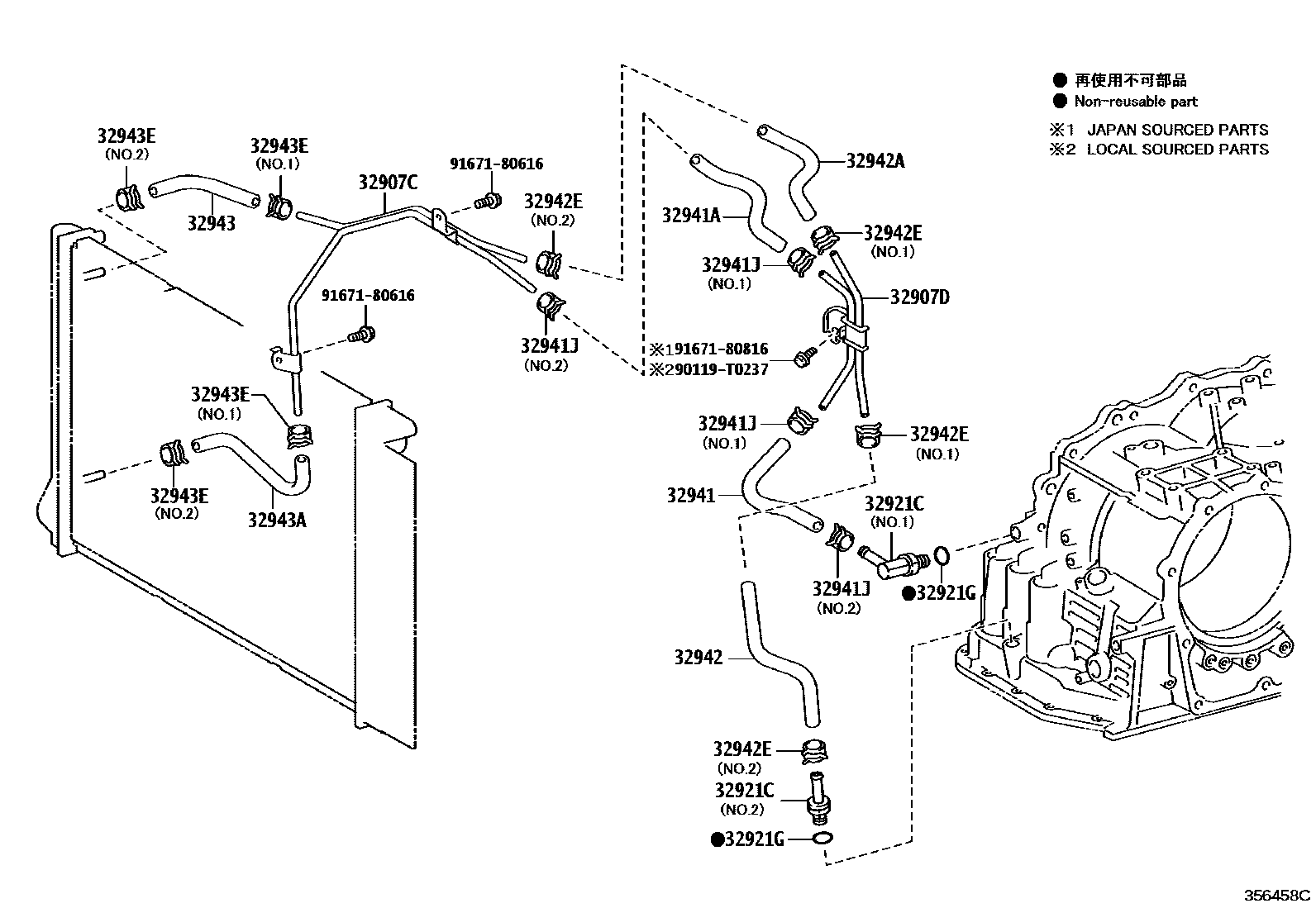

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-02130 · 32907-02150 · 32907-02190 · 32907-02200 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-02140 · 32907-02160 · 32907-02170 · 32907-02180 · 32907-02210 · 32907-02220 · 32907-02230 · 32907-02231 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90404-13005 · 90404-13007 · 90407-13009 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10018 · 90301-10189 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-02210 · 32943-02250 · 32943-02270 · 32943-02290 · 32943-02310 · 32943-02370 · 32943-02390 · 32943-02440 · 32943-12290 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90080-44132 · 90445-15020 · 90445-15046 · 90445-T0009 · 90445-T0020 · 90445-T0021 · 90445-T0025 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90466-T0009 · 90466-T0016 · 90467-16022 · 96135-51300 · 96137-41501 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-02200 · 32943-02240 · 32943-02260 · 32943-02280 · 32943-02300 · 32943-02360 · 32943-02380 · 32943-02430 · 32943-12280 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90080-44132 · 90080-44133 · 90445-15044 · 90445-15054 · 90445-T0008 · 90445-T0020 · 90445-T0022 · 90445-T0026 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90466-T0009 · 90466-T0016 · 90467-16022 · 96135-51300 · 96137-41501 |
| 32943 | No. 1 transmission oil cooler hose | 32943-02180 · 32943-02220 · 32943-02320 · 32943-02340 · 32943-12260 |
| 32943A | No. 2 transmission oil cooler hose | 32943-02190 · 32943-02230 · 32943-02330 · 32943-02350 · 32943-12270 |
| 32943E | Clamp No. 3 (for transmission oil cooler hose) | 90466-16004 · 90466-T0009 · 90467-16022 · 96135-51300 · 96137-41501 |
