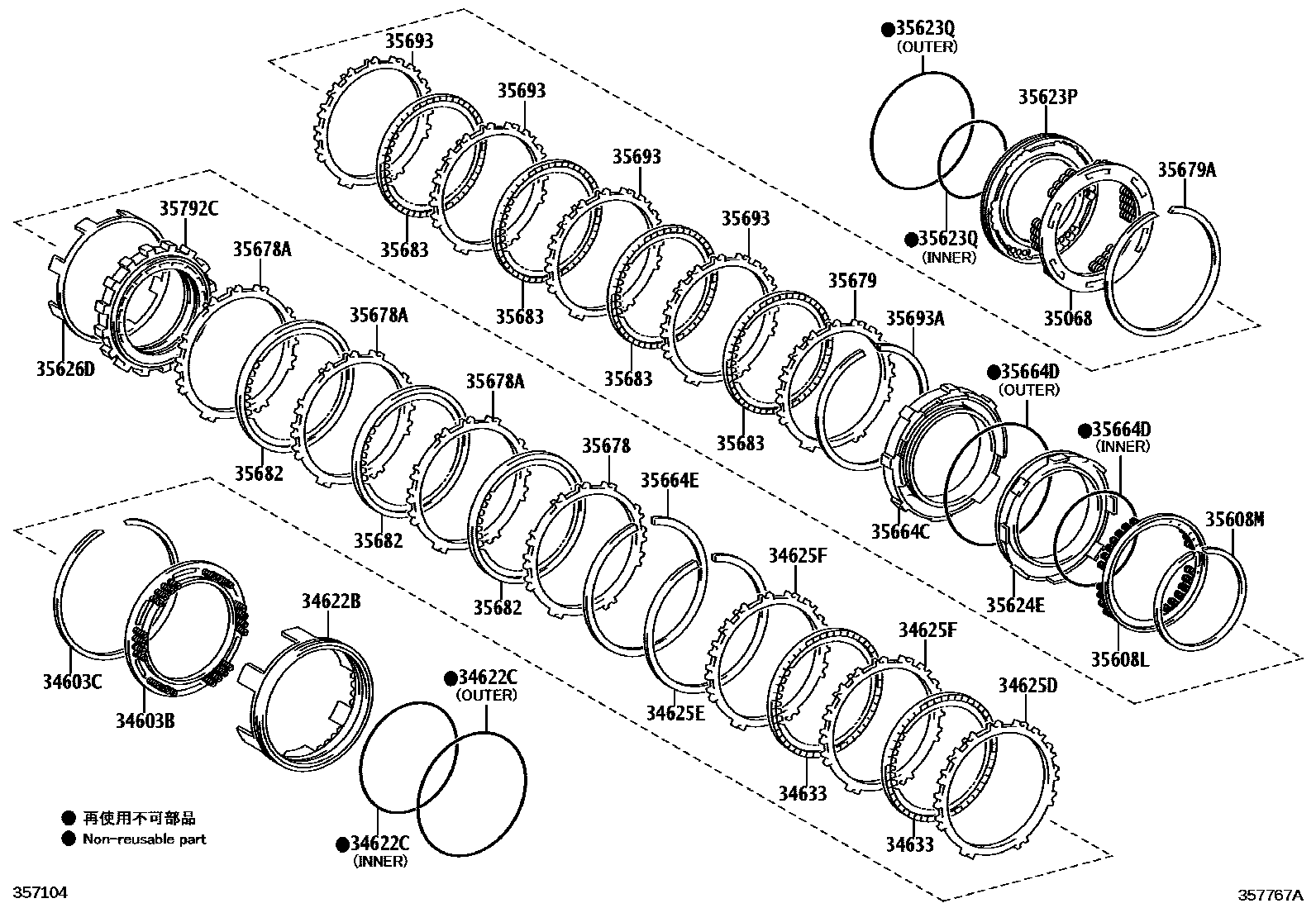

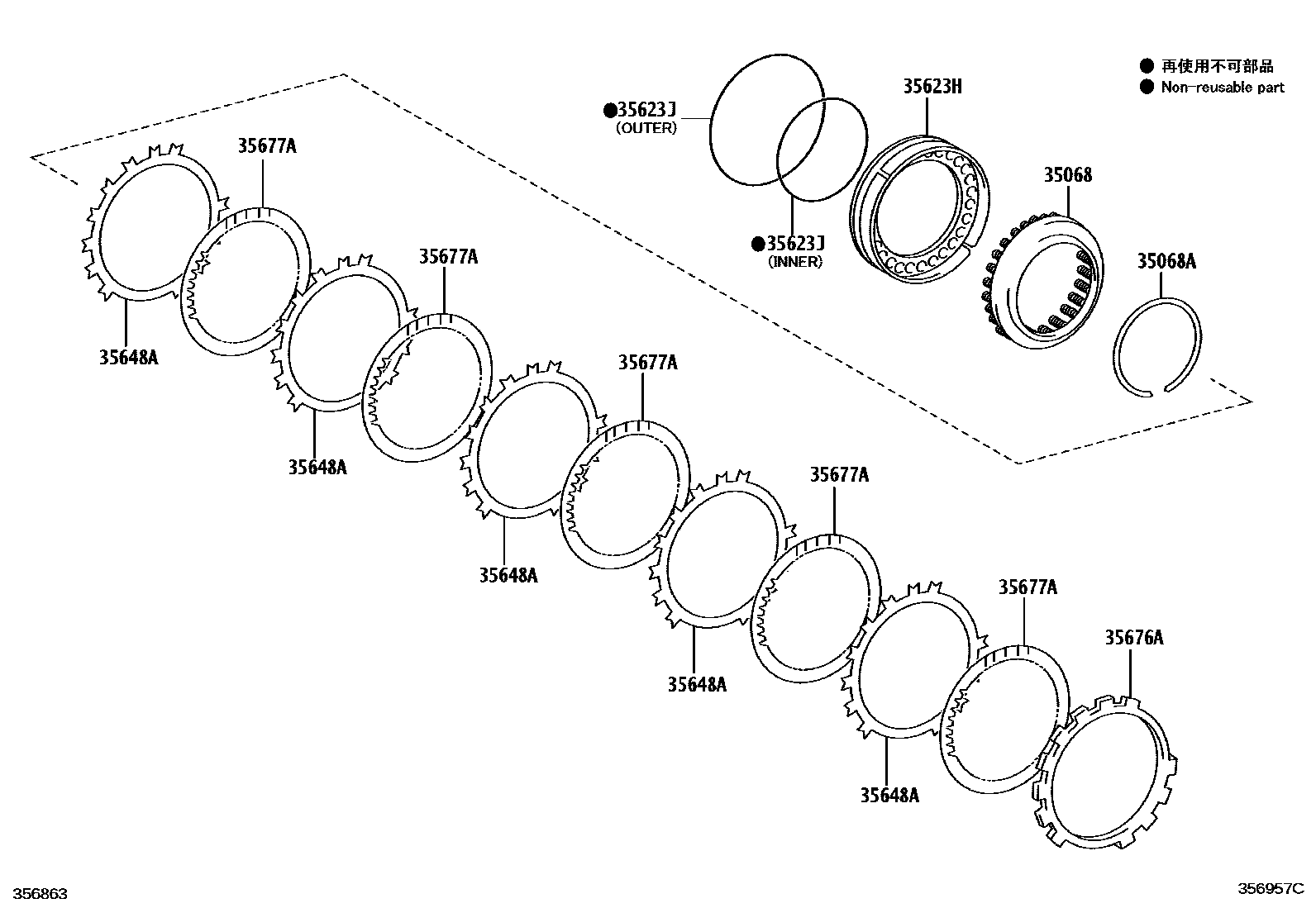

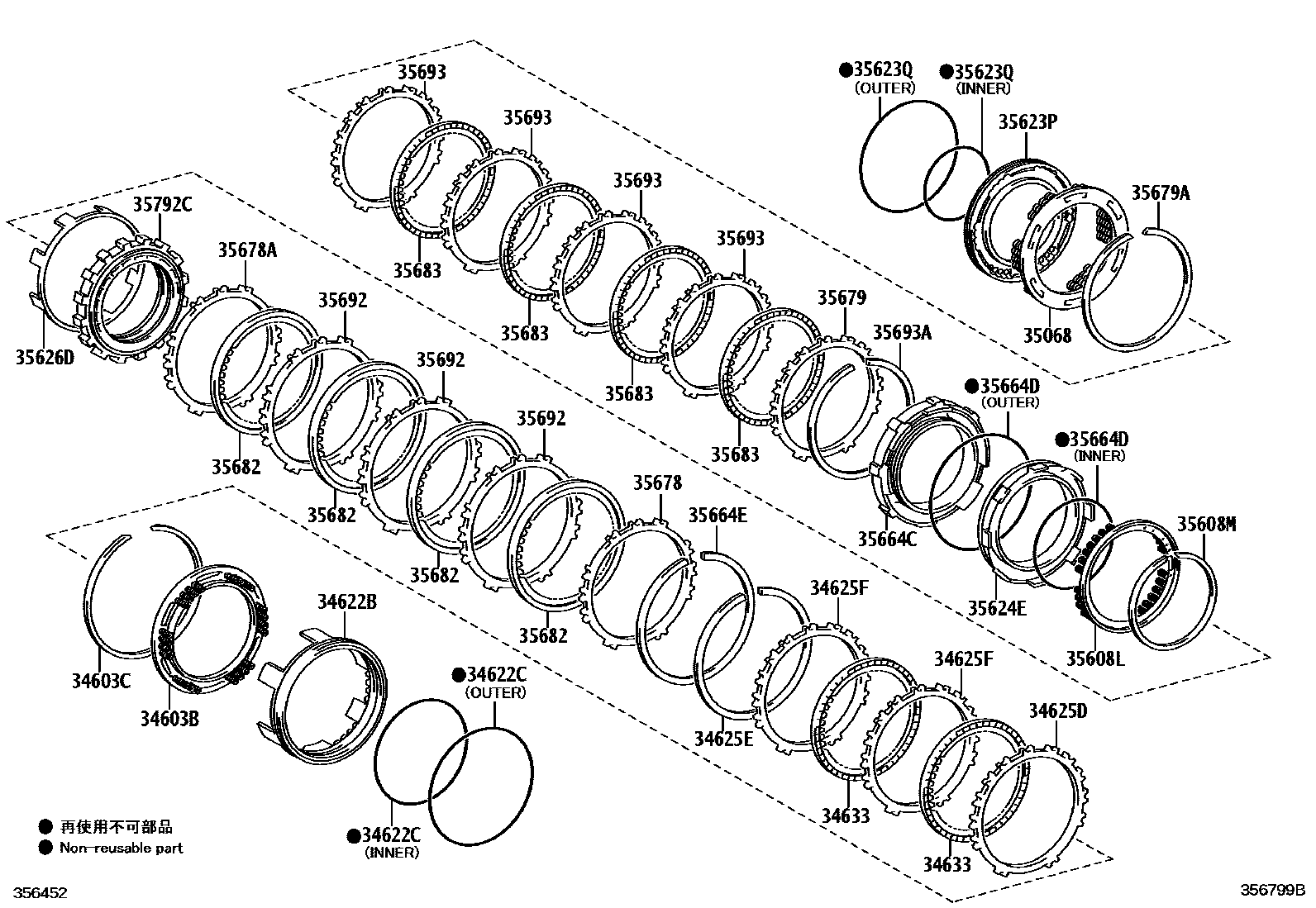

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota COROLLA EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34603B | Overdrive brake return spring sub-assembly | 34603-52020 |
| 34603C | Hole snap ring (for overdrive brake return spring) | 90520-99055 |
| 34622B | Second gear coast and overdrive brake piston | 34622-52021 |
| 34622C | O-ring (for second gear coasting and overdrive) | 90301-99121 · 90301-99122 |
| 34625D | Second gear coast and overdrive brake flange | 34625-52071 · 34625-52081 · 34625-52091 · 34625-52110 |
| 34625E | Hole snap ring (for 2nd gear coast and overdrive brake flange) | 90520-99050 |
| 34625F | No. 2 second gear coast and overdrive brake flange | 34625-52060 |
| 34633 | Second gear coast and overdrive brake disc | 34633-52020 |
| 35068 | First and reverse brake return spring sub-assembly | 35068-21010 · 35068-52030 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-99035 |
| 35608L | Second gear brake piston return spring sub-assembly | 35608-52020 |
| 35608M | Snap ring (for second gear brake piston return spring) | 90520-99048 |
| 35623H | First and reverse brake piston | 35623-48010 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99096 · 90301-99098 |
| 35623P | No. 2 first and reverse brake piston | 35623-52030 |
| 35623Q | O-ring (for No. 2 first and reverse brake piston) | 90301-98002 · 90301-99117 |
| 35624E | Second gear brake piston | 35624-52020 |
| 35626D | Second gear brake piston sleeve | 35626-52010 · 35626-52020 |
| 35648A | Clutch disc (for first and reverse brakes) | 35692-21011 |
| 35664C | Second gear brake cylinder | 35664-52020 |
| 35664D | O-ring (for second gear brake cylinder) | 90301-99118 · 90301-99119 |
| 35664E | Hole snap ring (for second gear brake cylinder) | 90520-99050 |
| 35676A | Brake flange (for first and reverse brakes) | 35678-21010 · 35678-21020 · 35678-21030 · 35678-21040 · 35678-21050 · 35678-21060 · 35678-21070 · 35678-21080 |
| 35677A | Clutch disc (for first and reverse brake) | 35682-21010 |
| 35678 | Brake flange (for second gear brake) | 35678-52020 · 35678-52030 · 35678-52040 · 35678-52050 |
| 35678A | No. 1 brake flange (for second gear brake) | 35678-52020 |
| 35679 | Brake flange (for first and reverse gears) | 35679-52020 · 35679-52030 · 35679-52040 · 35679-52050 |
| 35679A | Hole snap ring (for brake flange) | 90520-99054 |
| 35682 | Brake disc (for second gear brake) | 35682-52020 |
| 35683 | Brake disc (for first and reverse gears) | 35683-52050 · 35683-52060 |
| 35692 | Brake pads (for second gear brake) | 35692-52020 |
| 35693 | Brake pads (for first and reverse gears) | 35693-52030 · 35693-52040 |
| 35693A | Snap ring (for first and reverse brake pads) | 90520-99057 |
| 35792C | No. 2 one-way clutch | 35792-52021 |
