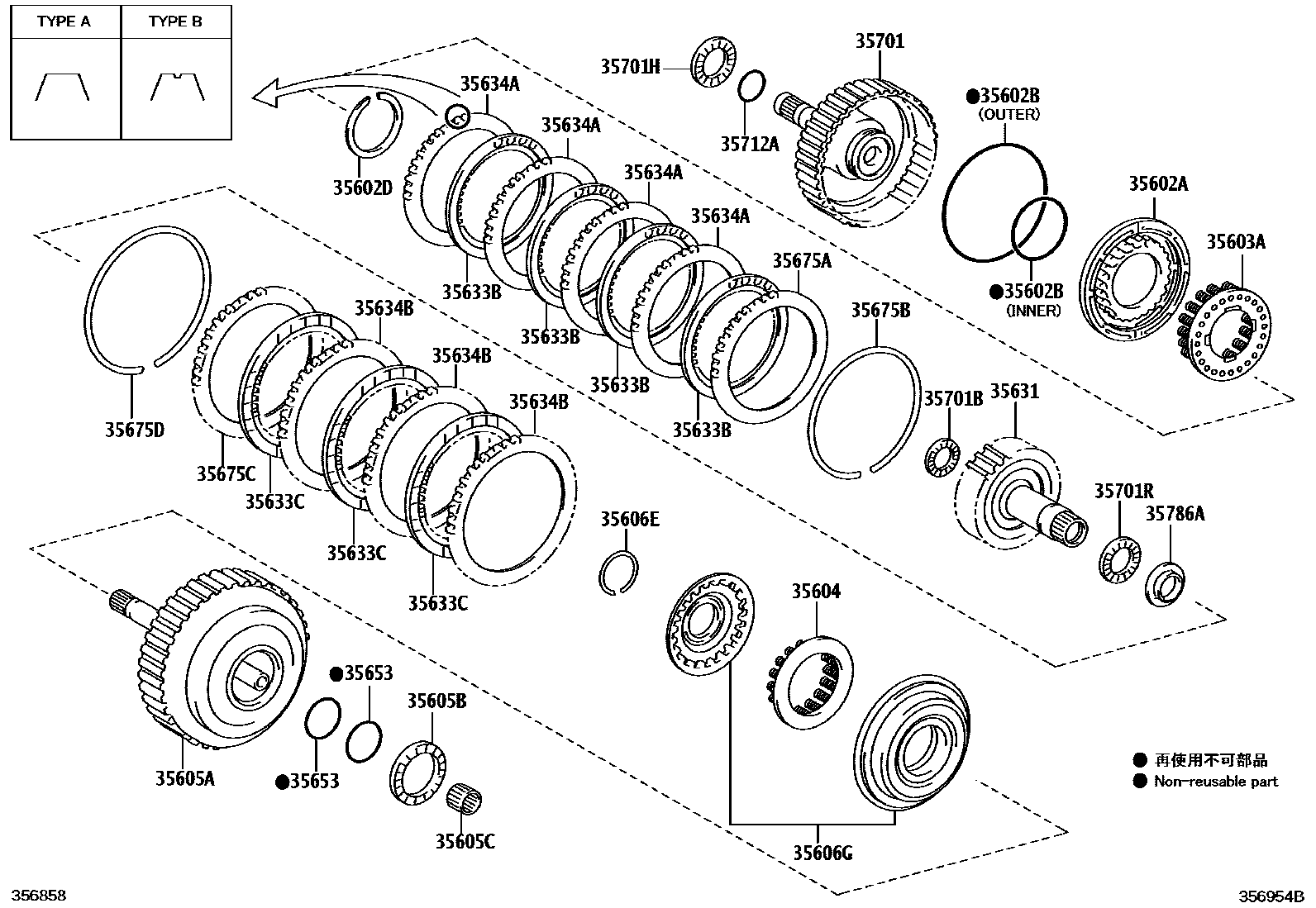

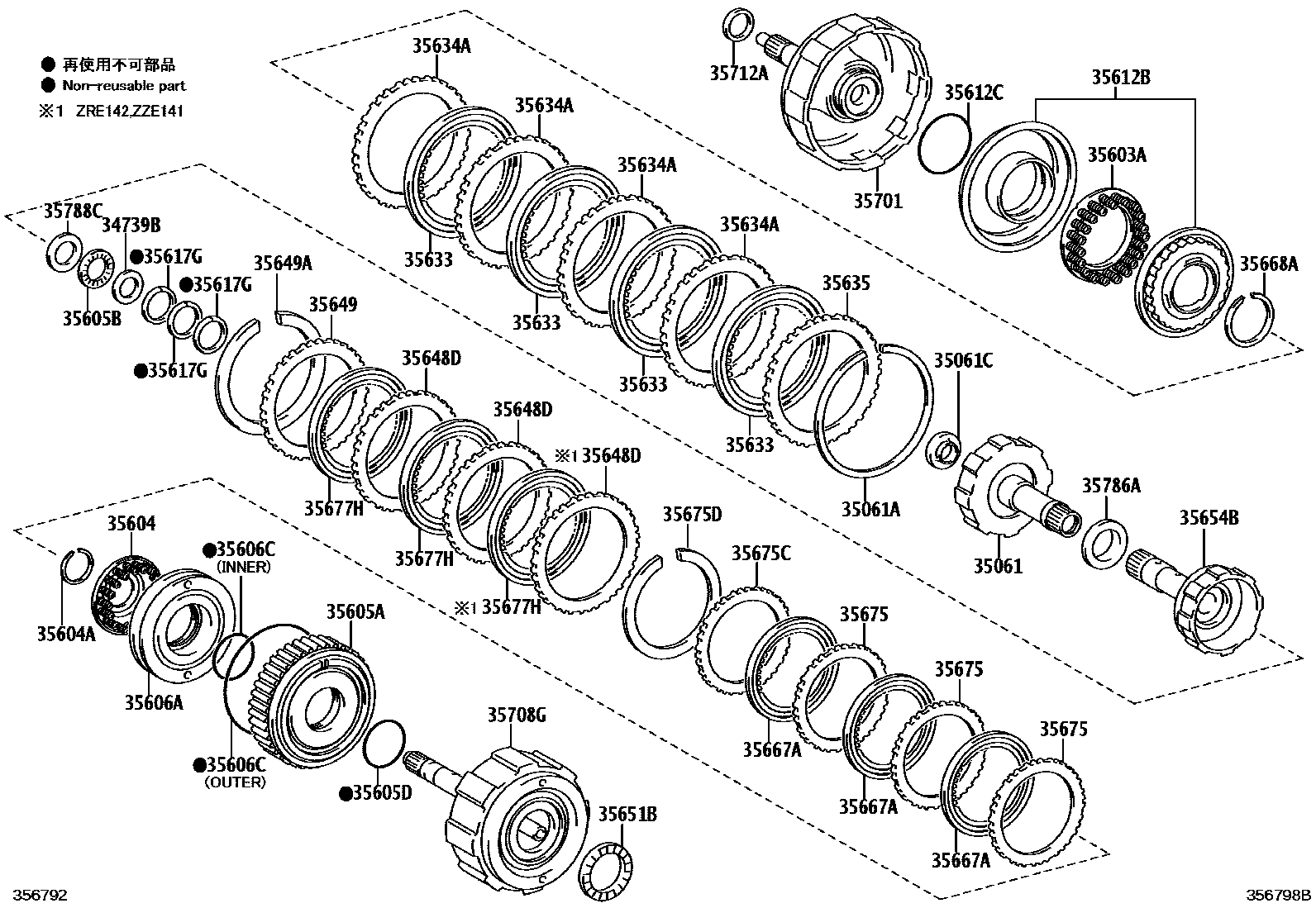

Toyota COROLLA 制动带和多片式离合器(ATM) — Figure 3507
Toyota COROLLA EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34739B | Thrust bearing race (for C2 hub) | 34739-52010 |
| 35061 | Forward gear clutch hub sub-assembly | 35061-52020 |
| 35061A | Hole snap ring (for forward clutch flange) | 90520-99049 |
| 35061C | Thrust needle roller bearing (for forward clutch hub) | 90374-21003 |
| 35602A | Forward gear clutch piston sub-assembly | 35602-21010 |
| 35602B | O-ring (for forward clutch piston) | 90301-64008 · 90301-99104 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-54004 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-21010 · 35603-52020 |
| 35604 | Direct clutch return spring sub-assembly | 35604-21010 · 35604-52020 |
| 35604A | Shaft snap ring (for direct clutch piston) | 90520-31012 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-48010 · 35605-52010 · 35605-52020 |
| 35605B | Thrust needle roller bearing | 90374-22008 · 90374-53001 · 90374-53002 |
| 35605C | Needle roller bearings | 90364-18010 |
| 35605D | O-ring (for direct clutch drum) | 90301-42005 |
| 35606A | Direct clutch piston sub-assembly | 35606-52020 |
| 35606C | O-ring (for direct clutch piston) | 90301-41008 · 90301-99120 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-38019 |
| 35606G | Direct clutch piston assembly | 35606-21010 |
| 35612B | forward clutch piston | 35063-52010 |
| 35612C | O-ring (for forward clutch piston) | 90301-58003 |
| 35617G | Clutch drum oil ring | 35617-52020 |
| 35631 | Clutch hub (for multi-plate clutches) | 35061-33010 |
| 35633 | Clutch disc (for front clutch) | 35633-52020 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-21010 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35667-28030 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-21010 · 35634-33071 · 35634-52020 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-21010 |
| 35635 | forward clutch flange | 35635-52050 · 35635-52060 · 35635-52070 · 35635-52080 |
| 35648D | Clutch plate No. 3 | 35648-52020 |
| 35649 | Reverse clutch flange | 35649-52020 · 35649-52030 · 35649-52040 · 35649-52050 |
| 35649A | Hole snap ring (for reverse clutch flange) | 90520-99052 |
| 35651B | Thrust needle roller bearing (for rear clutch drum) | 90374-43004 · 90374-43005 |
| 35653 | Rear clutch outer oil ring | 35653-33010 |
| 35654B | Direct clutch hub | 35062-52010 |
| 35667A | Direct clutch disc | 35667-52020 |
| 35668A | Snap ring (for clutch balancer) | 90520-39024 |
| 35675 | rear clutch flange | 35675-52040 |
| 35675A | forward clutch flange | 35635-21010 · 35635-21020 · 35635-21030 · 35635-21040 · 35635-21050 · 35635-21060 · 35635-21070 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99025 |
| 35675C | Direct clutch flange | 35675-21010 · 35675-21020 · 35675-21030 · 35675-21040 · 35675-21050 · 35675-21060 · 35675-21080 · 35675-33060 · 35675-52040 · 35675-52050 · 35675-52060 · 35675-52070 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-99028 · 90520-99051 |
| 35677H | Reverse clutch disc | 35677-52050 |
| 35701 | Input shaft sub-assembly | 35701-48010 · 35701-52020 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23002 |
| 35701H | Thrust needle roller bearing (for input shaft) | 90374-34005 |
| 35701R | Thrust needle roller bearing | 90374-37005 |
| 35708G | Intermediate shaft sub-assembly | 35708-52020 · 35708-52030 |
| 35712A | Input shaft oil ring | 35712-21010 · 35712-52020 |
| 35786A | No. 1 thrust bearing race | 35786-21010 · 35786-52010 |
| 35788C | No. 3 thrust bearing race | 35788-52010 |
