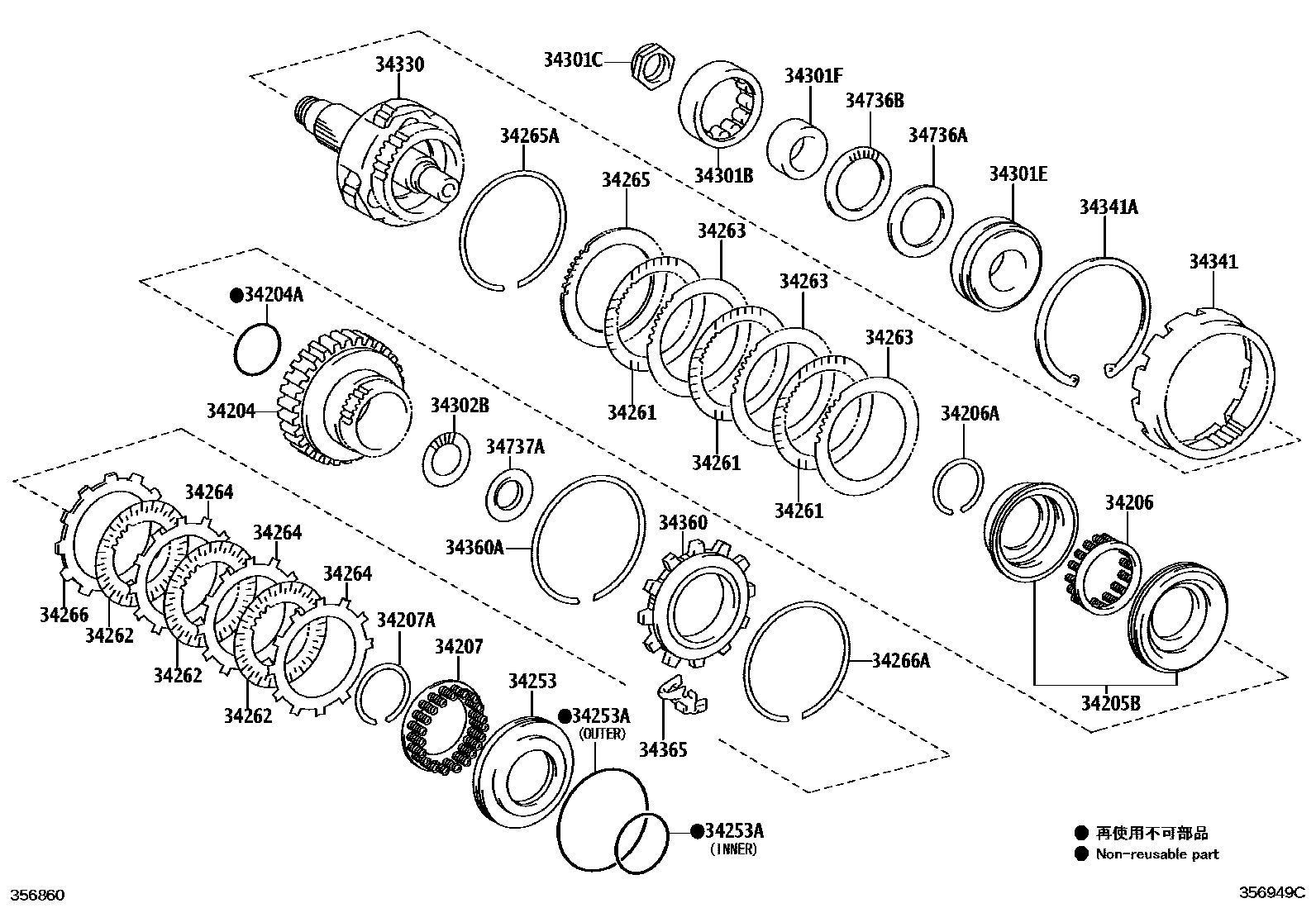

Toyota COROLLA 超速档齿轮(ATM) — Figure 3506
Toyota COROLLA EPC diagram 3506, 超速档齿轮(ATM), with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34204 | Low speed clutch drum sub-assembly | 34204-32010 |
| 34204A | O-ring (for low-speed clutch drum) | 90301-44004 |
| 34205B | Low range clutch piston assembly | 34205-32010 |
| 34206 | Low speed clutch return spring sub-assembly | 34206-32010 |
| 34206A | Shaft snap ring (for low speed return spring) | 90520-46011 |
| 34207 | Low speed brake return spring sub-assembly | 34207-21010 |
| 34207A | Snap ring (for low gear brake return spring) | 90520-59004 |
| 34253 | Low gear brake piston | 34253-21010 |
| 34253A | O-ring (for low-speed brake piston) | 90301-62007 · 90301-99094 |
| 34261 | No. 1 low speed clutch disc | 34261-28040 |
| 34262 | No. 2 low speed clutch disc | 34262-32010 |
| 34263 | No. 1 low speed clutch plate | 34263-32010 |
| 34264 | No. 2 low speed clutch plate | 34264-32010 |
| 34265 | No. 1 low speed clutch flange | 34265-32010 · 34265-32020 · 34265-32030 · 34265-33030 · 34265-33040 · 34265-33050 · 34265-33060 |
| 34265A | Hole snap ring (for No. 1 low-speed clutch flange) | 90520-99041 |
| 34266 | No. 2 low speed clutch flange | 34266-32010 · 34266-32020 · 34266-32030 · 34266-32040 · 34266-32050 |
| 34266A | Hole snap ring (for No. 2 low-speed clutch flange) | 90520-99041 |
| 34301B | No. 1 roller bearing (for low speed gear) | 90365-48001 |
| 34301C | Nut (for low speed input shaft) | 90179-32002 |
| 34301E | Roller tapered bearings (for low speed gears) | 90369-43013 |
| 34301F | Roller bearing inner race | 34733-32011 |
| 34302B | Needle roller bearings (for low-speed planetary gear train sun gear) | 90374-37007 |
| 34330 | Low speed planetary gear assembly | 34330-33030 |
| 34341 | Low speed planetary ring gear | 34341-33010 |
| 34341A | Hole snap ring (for low speed planetary ring gear) | 90521-99121 |
| 34360 | Low speed gear one-way clutch assembly | 34360-32011 |
| 34360A | Shaft snap ring (for low gear one-way clutch) | 90520-99040 |
| 34365 | Outer race retainer | 34365-32011 |
| 34736A | No. 2 thrust bearing low speed gear race | 34736-32010 · 34736-32020 |
| 34736B | Thrust needle roller bearing | 90374-53004 |
| 34737A | No. 3 thrust bearing low speed gear race | 34737-21010 |
