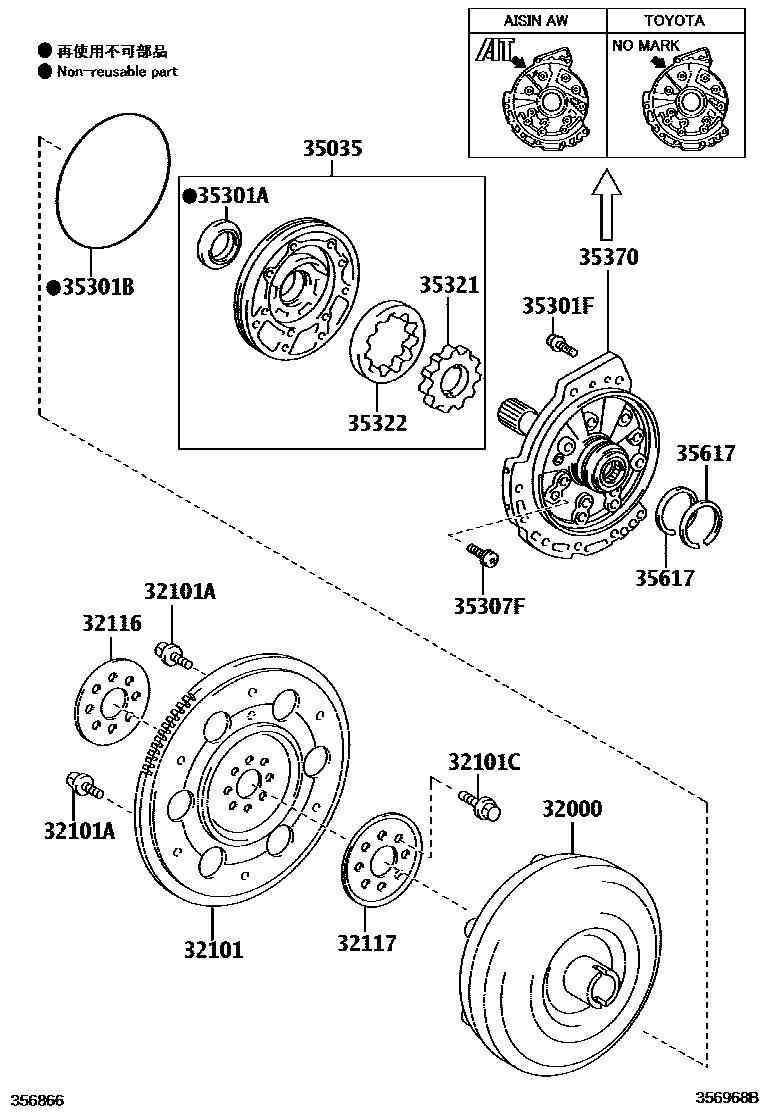

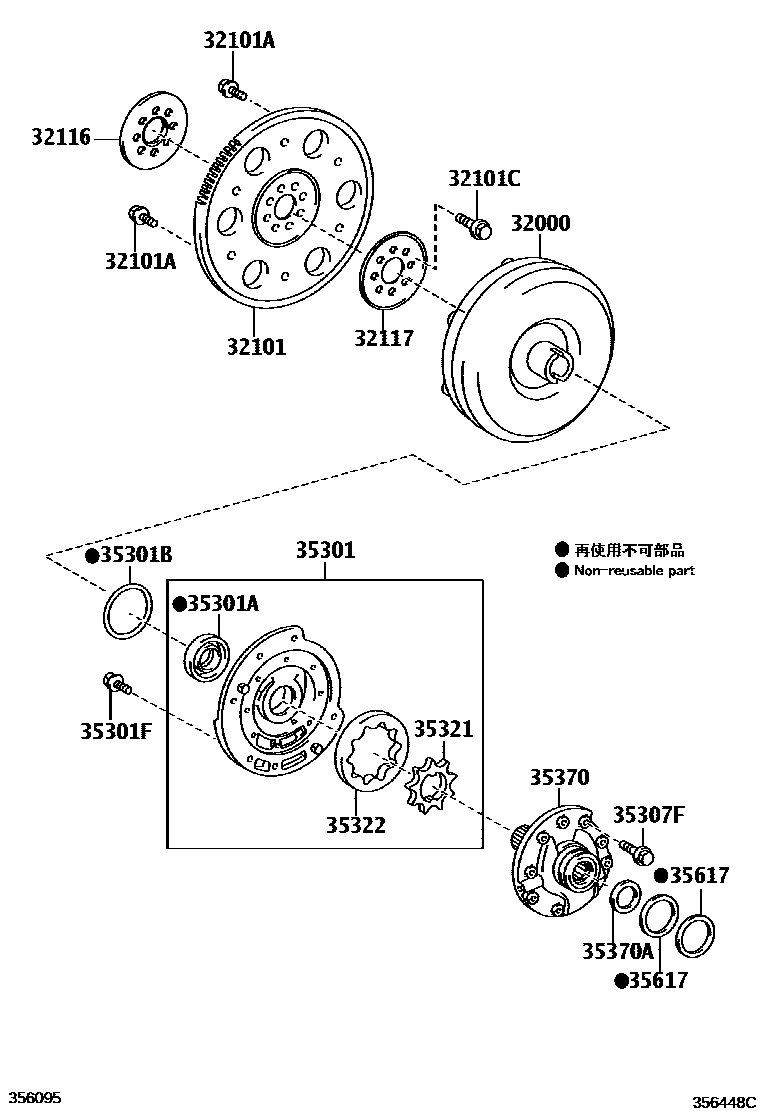

Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12341 · 32000-12420 · 32000-20341 · 32000-52041 · 32000-52052 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-12091 · 32101-12100 · 32101-28050 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08107 · 90109-08113 · 90109-09001 · 90119-08269 · 90119-08498 · 90119-09025 · 90119-T0069 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-A0022 |
| 32116 | Front transmission plate spacer | 32116-12020 · 32116-12030 |
| 32117 | Rear transmission plate spacer | 32117-12030 · 32117-12040 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-21020 · 35035-28010 |
| 35301 | Front oil pump body sub-assembly | 35035-52040 |
| 35301A | Oil seal (for front oil pump) | 90311-38064 · 90311-38083 |
| 35301B | O-ring (for front oil pump body) | 35697-52010 · 90301-99099 · 90301-99124 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08050 · 90105-08301 |
| 35307F | Bolt (for stator shaft) | 90148-60027 |
| 35321 | Front oil pump driving gear | 35321-21060 · 35321-21070 · 35321-21080 · 35321-21090 · 35321-21100 · 35321-28060 · 35321-28070 · 35321-28080 · 35321-28090 · 35321-28100 · 35321-52060 · 35321-52070 · 35321-52080 · 35321-52090 · 35321-52100 |
| 35322 | Front oil pump driven gear | 35322-21060 · 35322-21070 · 35322-21080 · 35322-21090 · 35322-21100 · 35322-28060 · 35322-28070 · 35322-28080 · 35322-28090 · 35322-28100 · 35322-52060 · 35322-52070 · 35322-52080 · 35322-52090 · 35322-52100 |
| 35370 | stator shaft assembly | 35370-21020 · 35370-28010 · 35370-52070 |
| 35370A | Thrust needle roller bearing (for stator shaft) | 90374-26003 |
| 35617 | Clutch drum oil ring | 35613-21010 · 35613-52020 |
