Toyota COROLLA Shift Lever & Retainer — Figure 3312

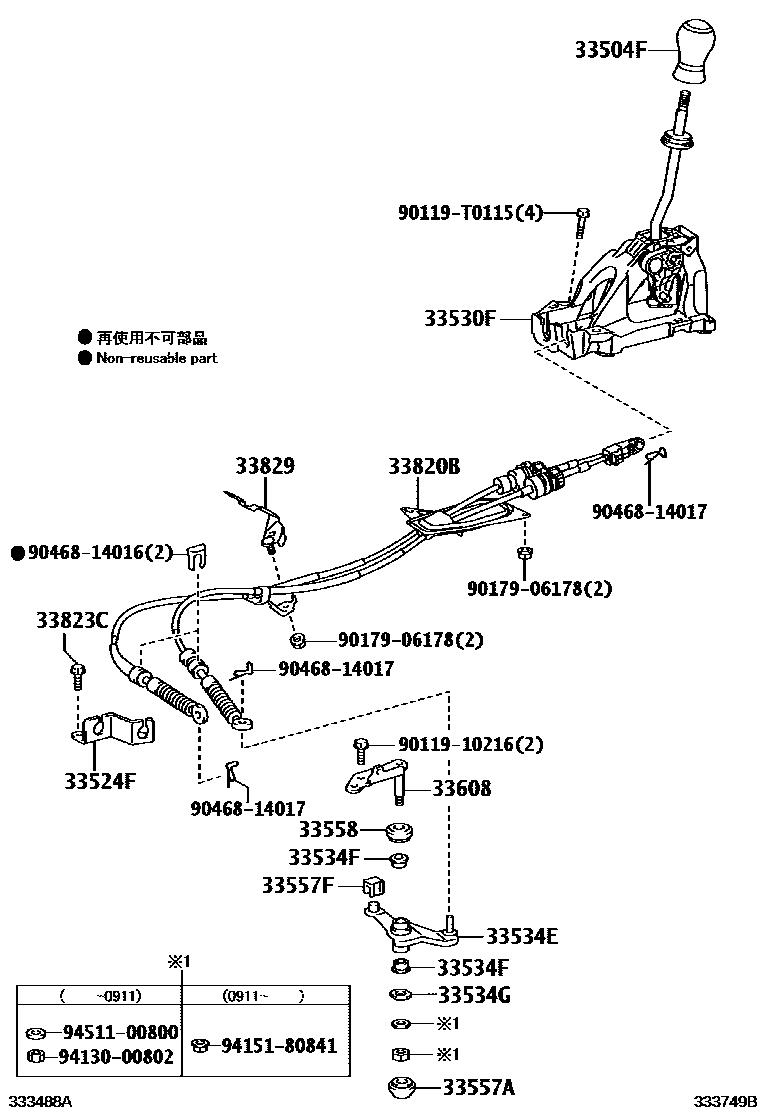

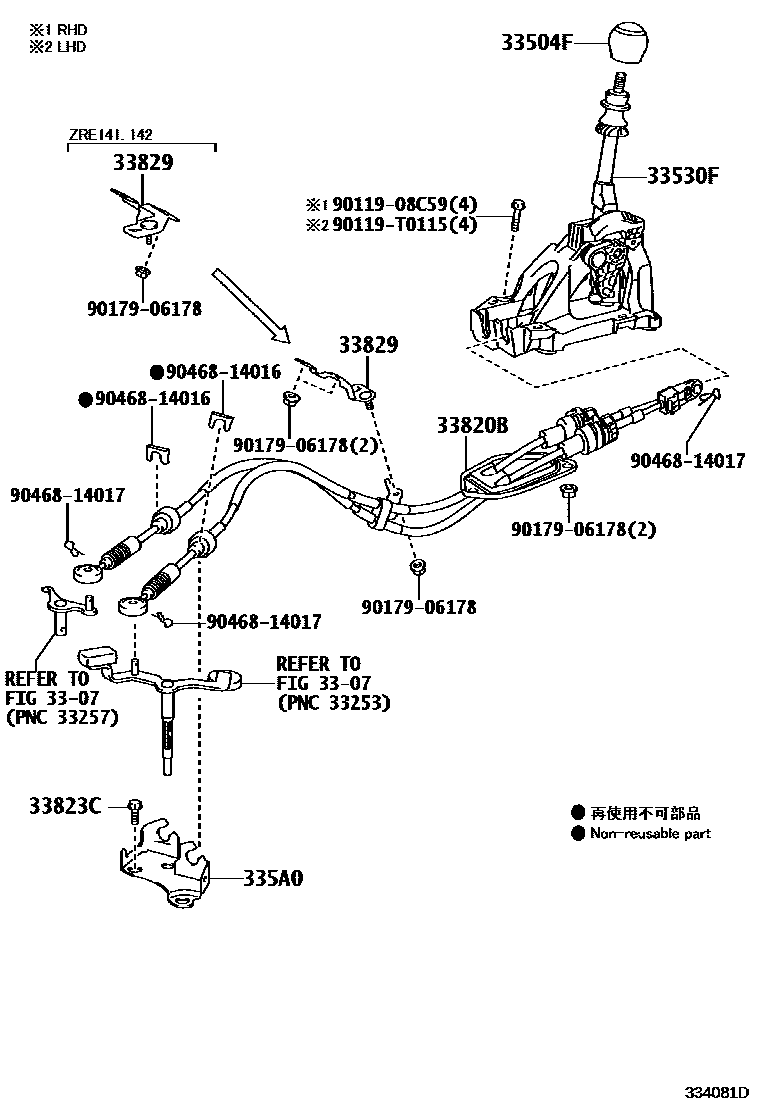

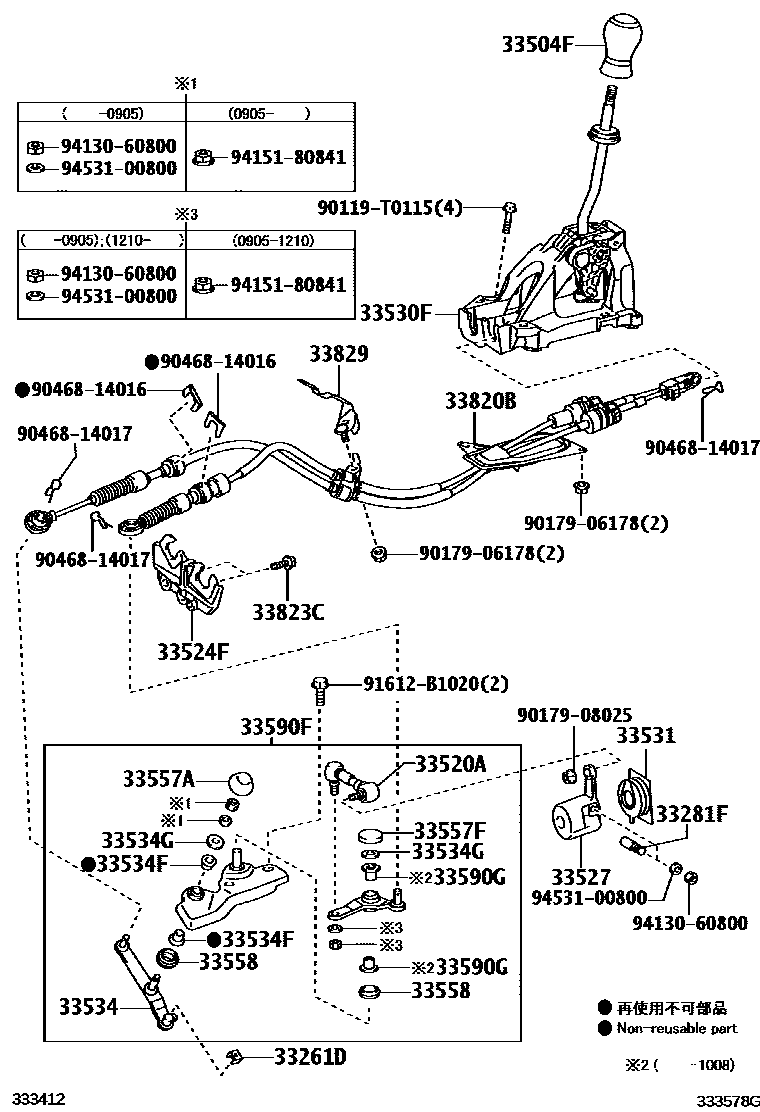

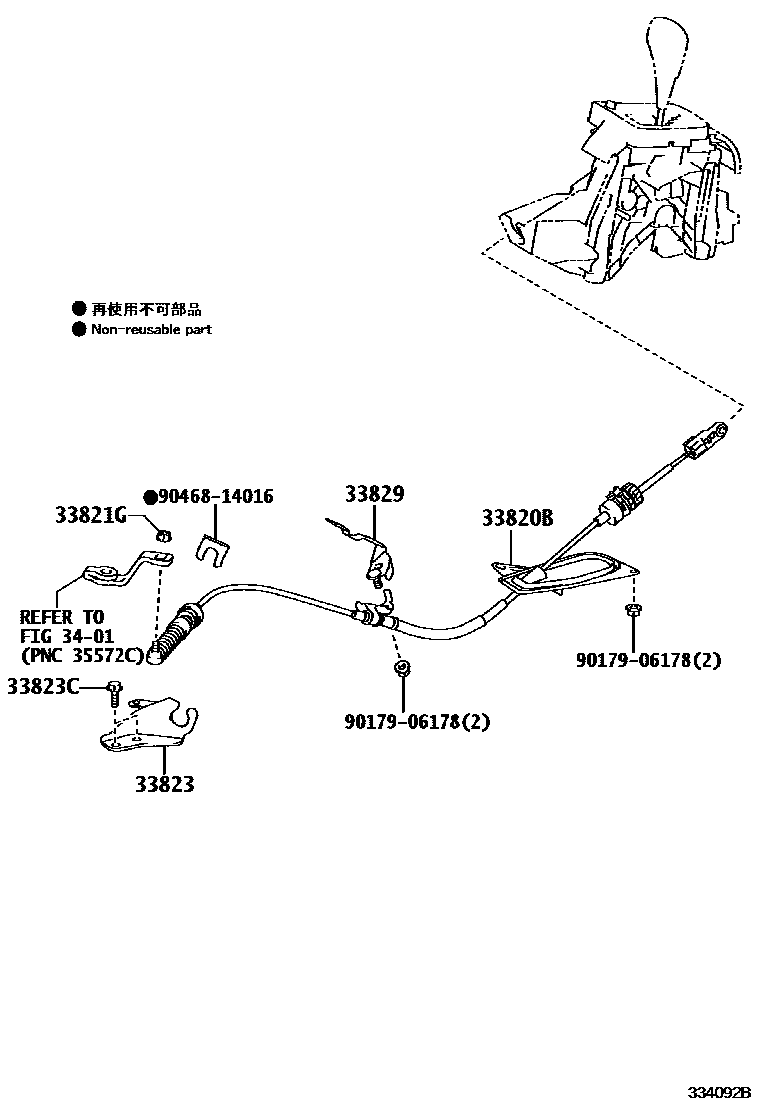

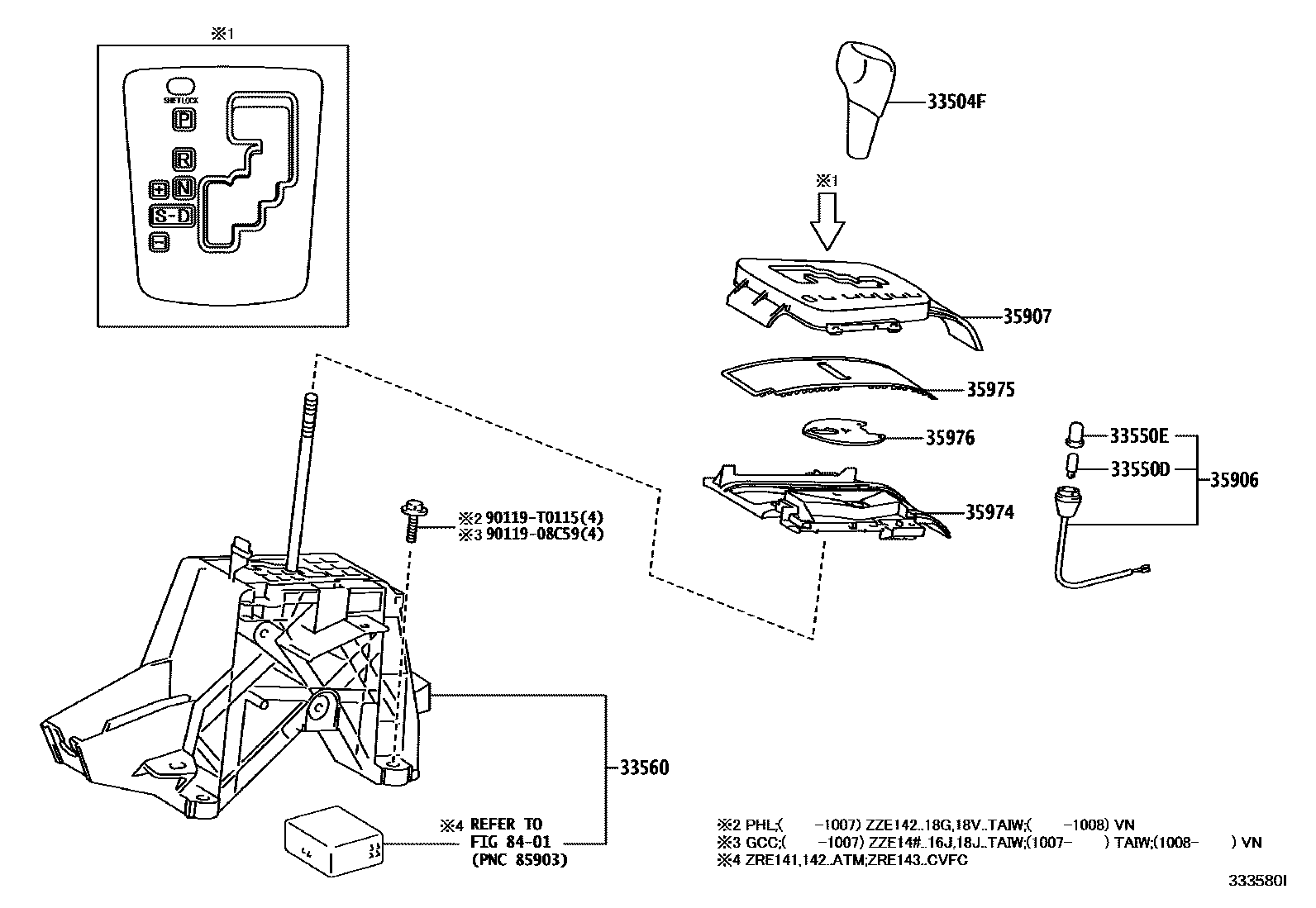

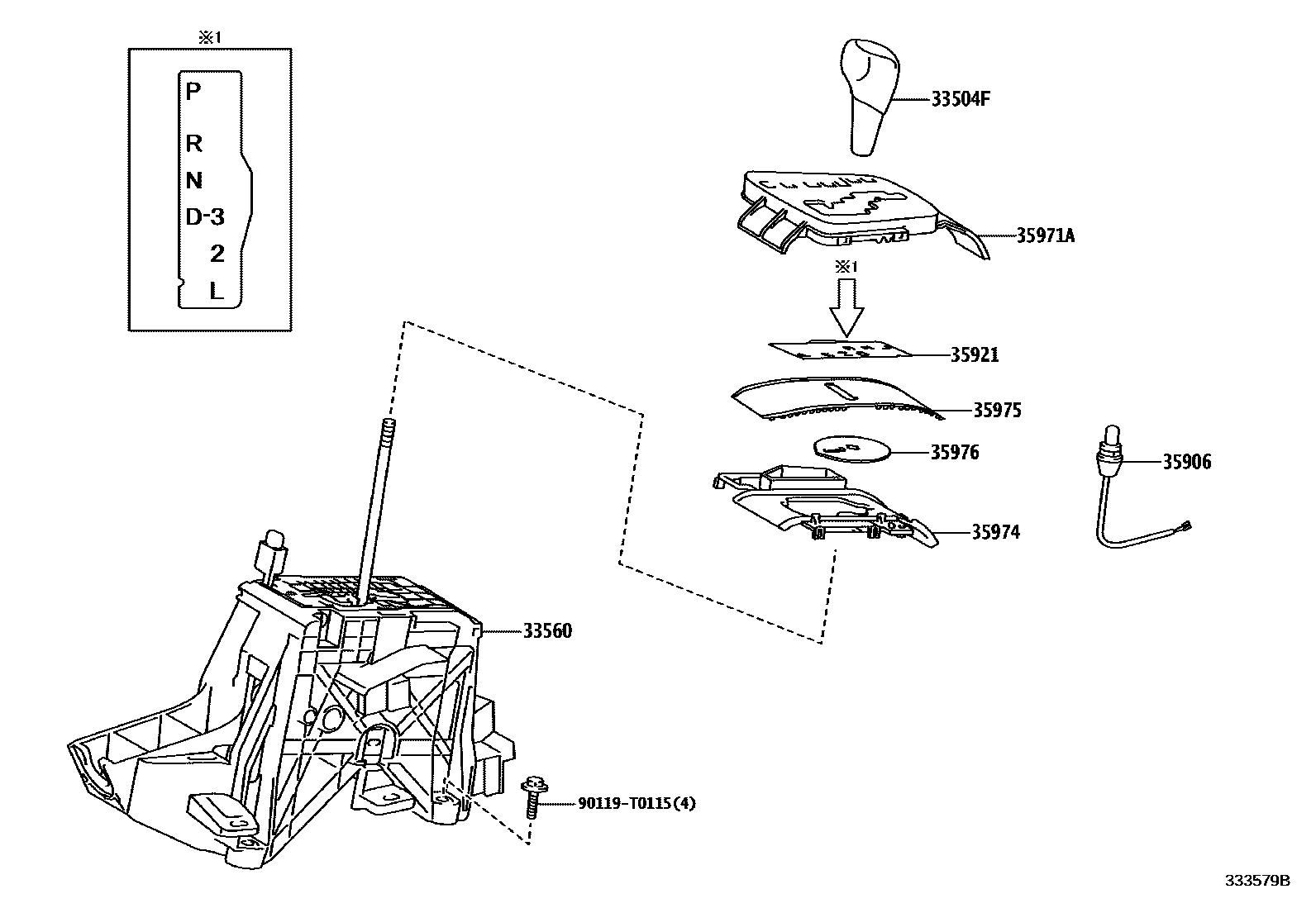

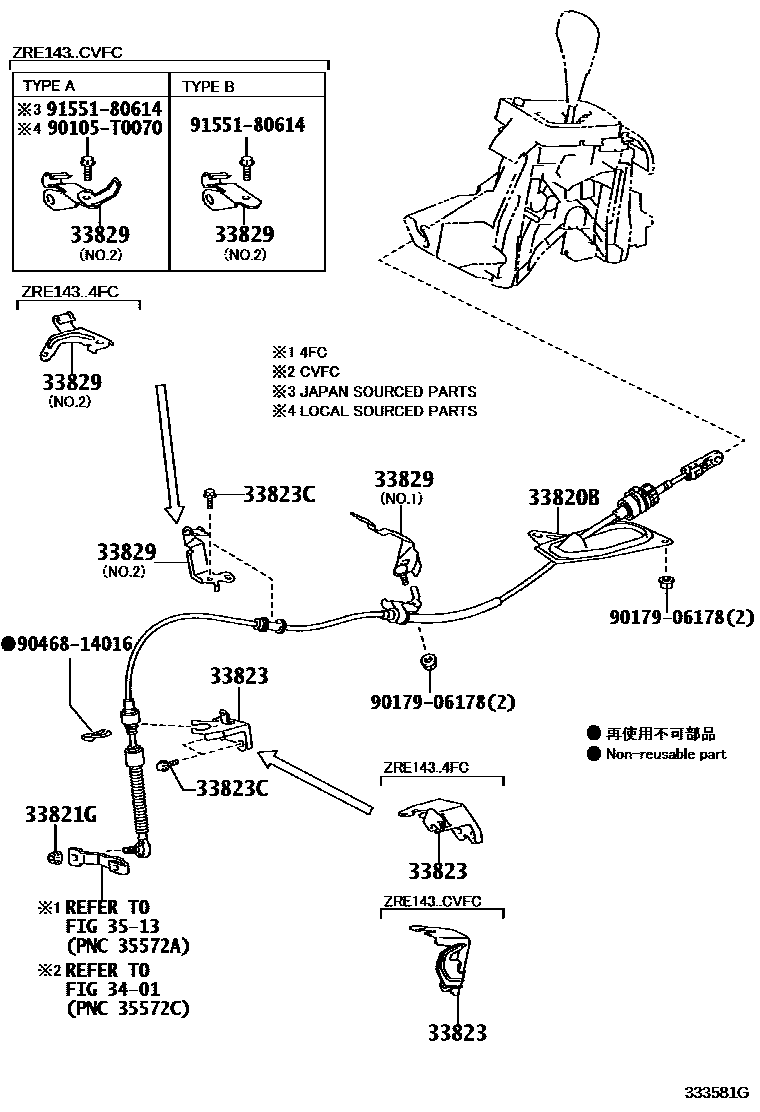

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 · 33524-52050 · 33524-52060 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02220 · 33530-02230 · 33530-02250 · 33530-02260 · 33530-12A71 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-12120 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04071 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 · 33557-33010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-02080 · 33560-02090 · 33560-02100 · 33560-02110 · 33560-12250 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-12070 |
| 33590G | Bushing (for gear selector right-angle lever) | 33546-20020 |
| 335A0 | Control cable bracket assembly | 335A0-12020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33820B | Transmission control cable assembly | 33820-02640 · 33820-02650 · 33820-02690 · 33820-02760 · 33820-02770 · 33820-02780 · 33820-02790 · 33820-02800 · 33820-02820 · 33820-12C40 · 33820-12D20 · 33820-12D30 · 33820-12E80 · 33820-12F20 · 33820-12F30 · 33820-12F40 |
| 33821G | Nut (for transmission control cable) | 90178-T0019 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-02130 · 33823-02140 · 33823-02170 · 33823-02180 · 33823-02210 · 33823-02220 · 33823-02230 · 33823-02240 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-T0029 · 91611-B0816 · 91611-G0820 · 91612-61030 |
| 33829 | Transmission control cable bracket | 33829-02100 · 33829-02110 · 33829-02120 · 33829-02130 · 33829-02170 · 33829-02180 · 33829-02220 · 33829-02231 · 33829-02241 · 33829-02242 · 33829-02250 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02080 · 35906-12270 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-02070 · 35907-02080 · 35907-02130 · 35907-02140 · 35907-02200 · 35907-02210 · 35907-02220 · 35907-12160 |
| 35921 | control position indicator board | 35921-02030 · 35921-02040 · 35921-02050 |
| 35971A | Position indicator light upper shell | 35971-02050 · 35971-02060 · 35971-02080 · 35971-02090 |
| 35974 | Position indicator light lower shell | 35974-02060 · 35974-02070 · 35974-12220 |
| 35975 | Slide cover (for position indicator light) | 35975-02070 · 35975-02080 · 35975-12400 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-02060 · 35976-06070 · 35976-12160 |
