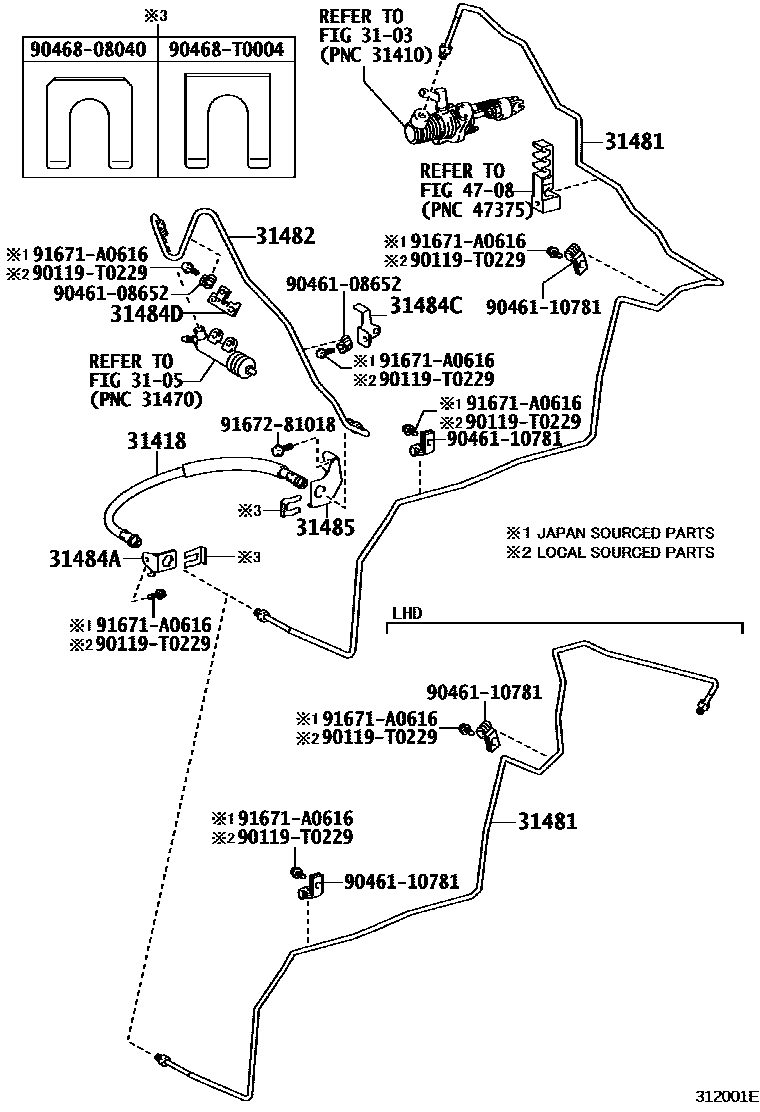

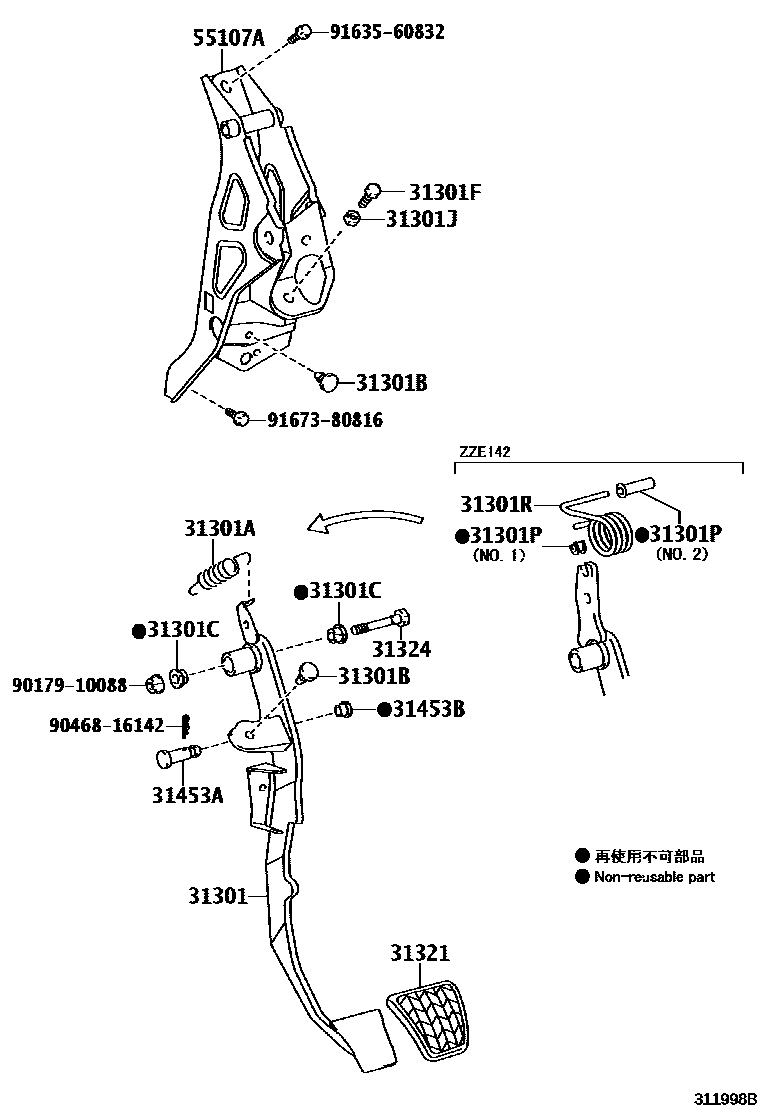

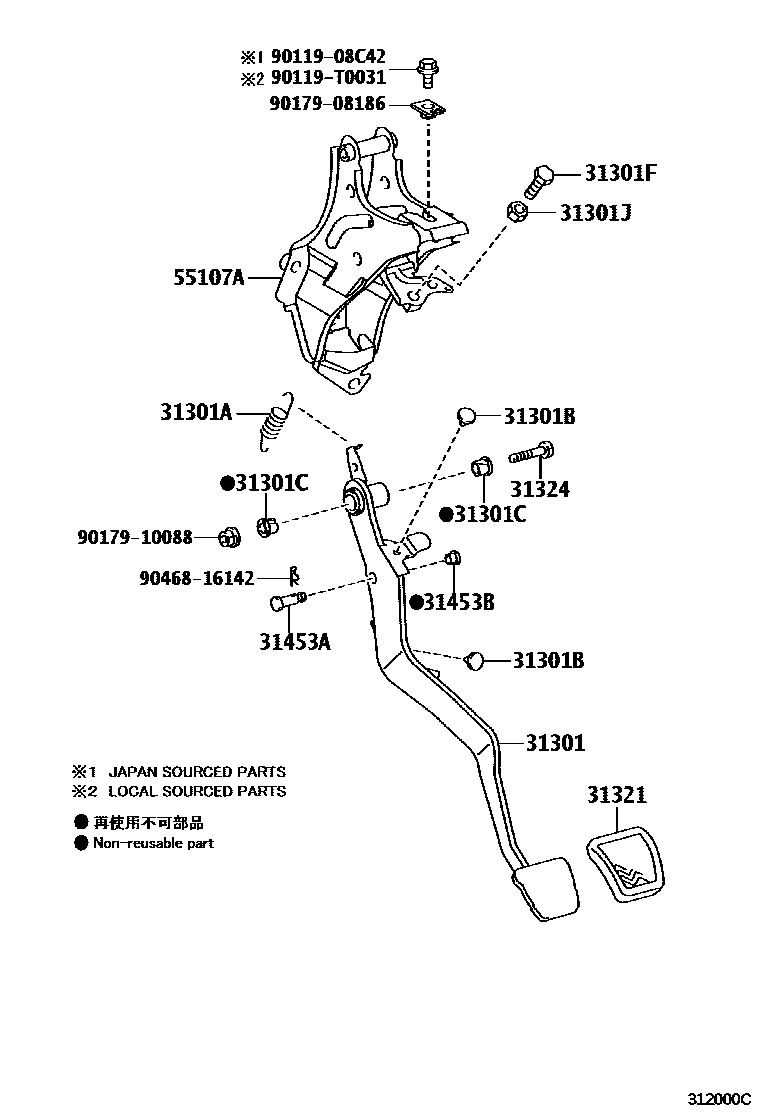

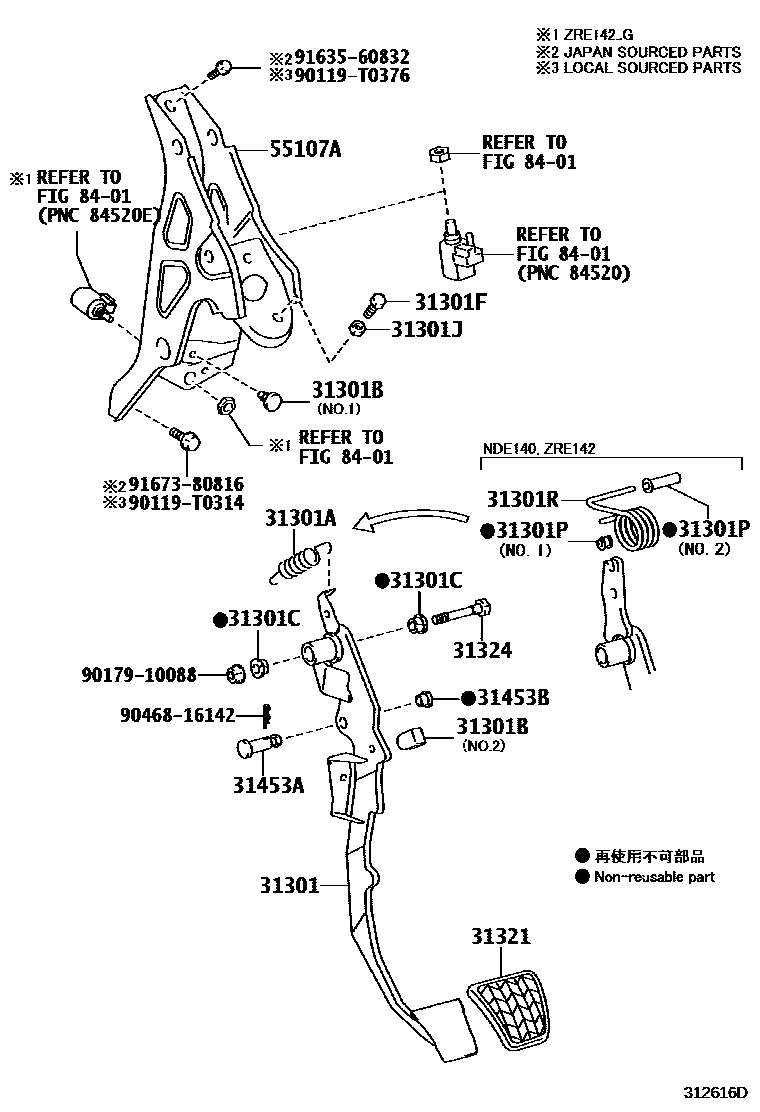

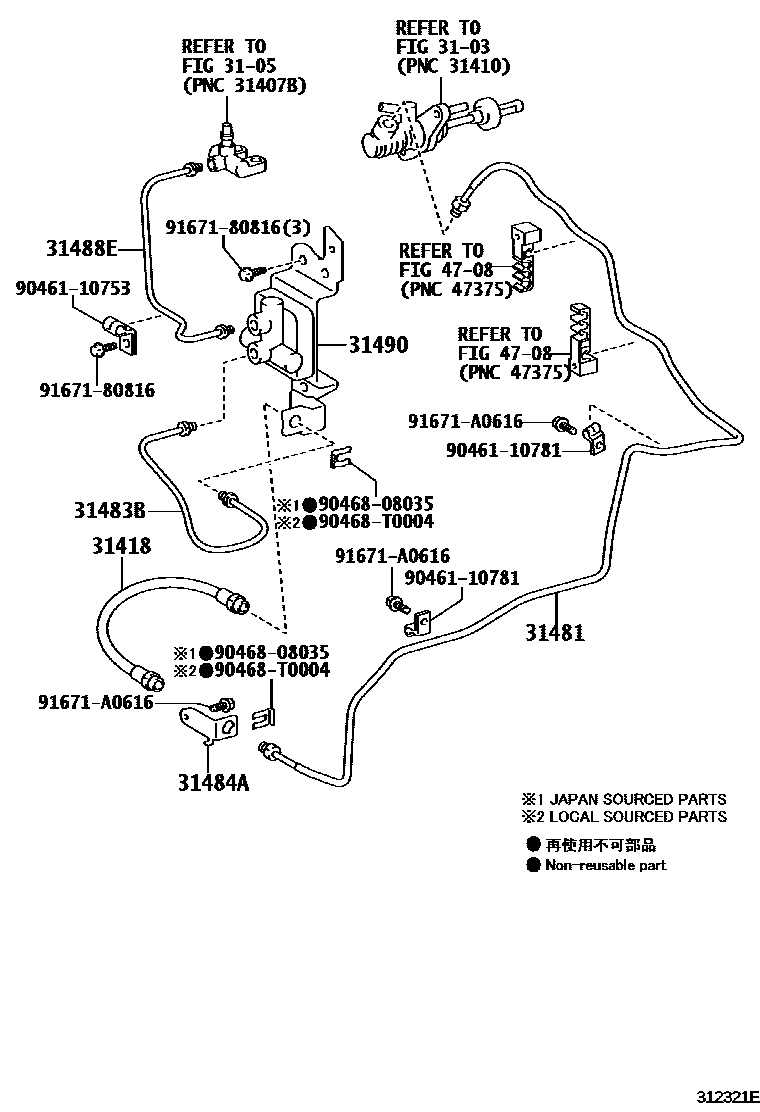

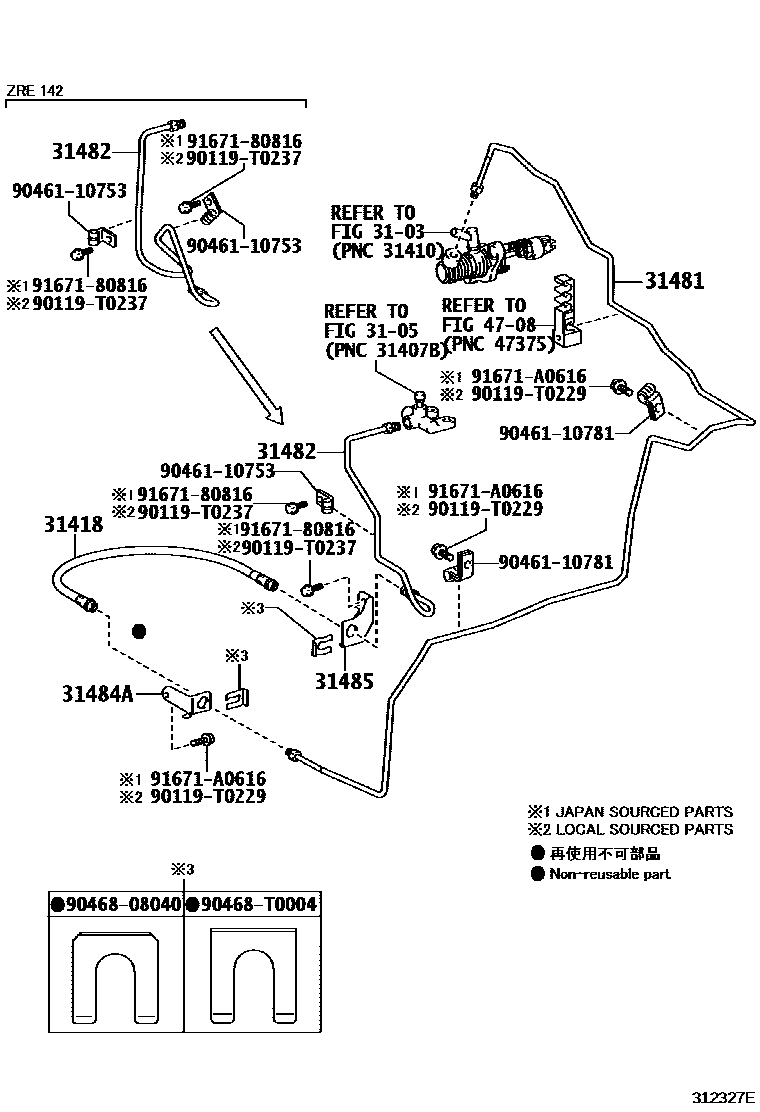

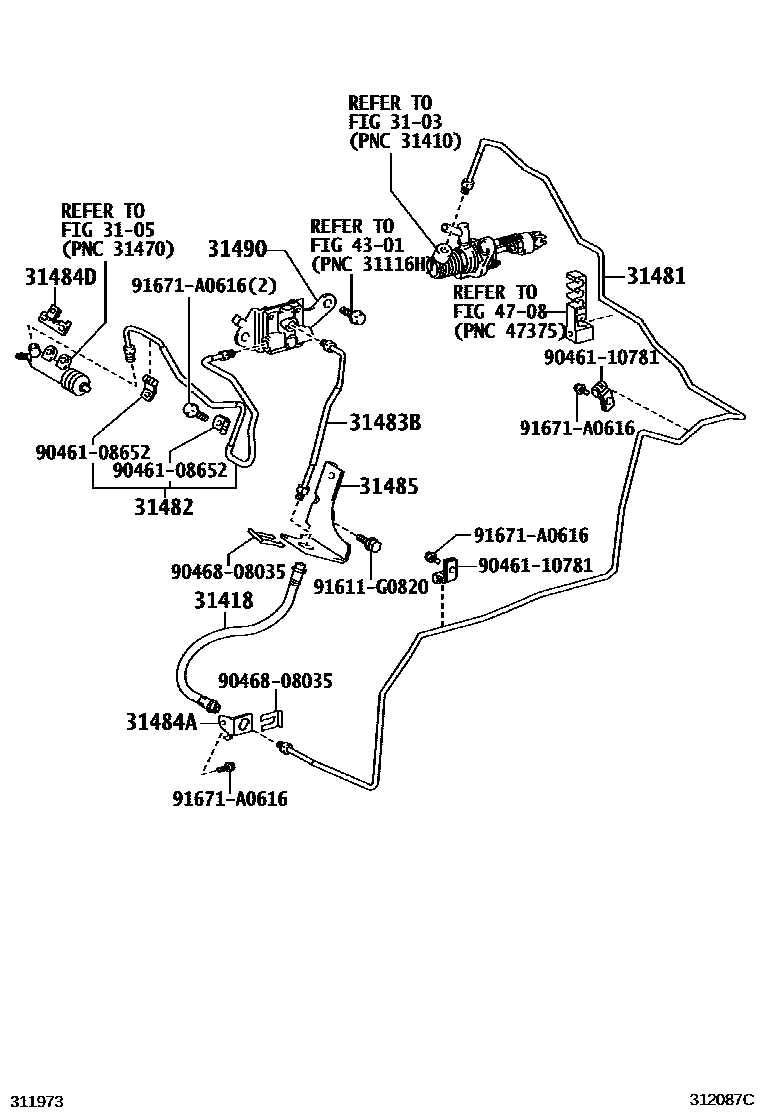

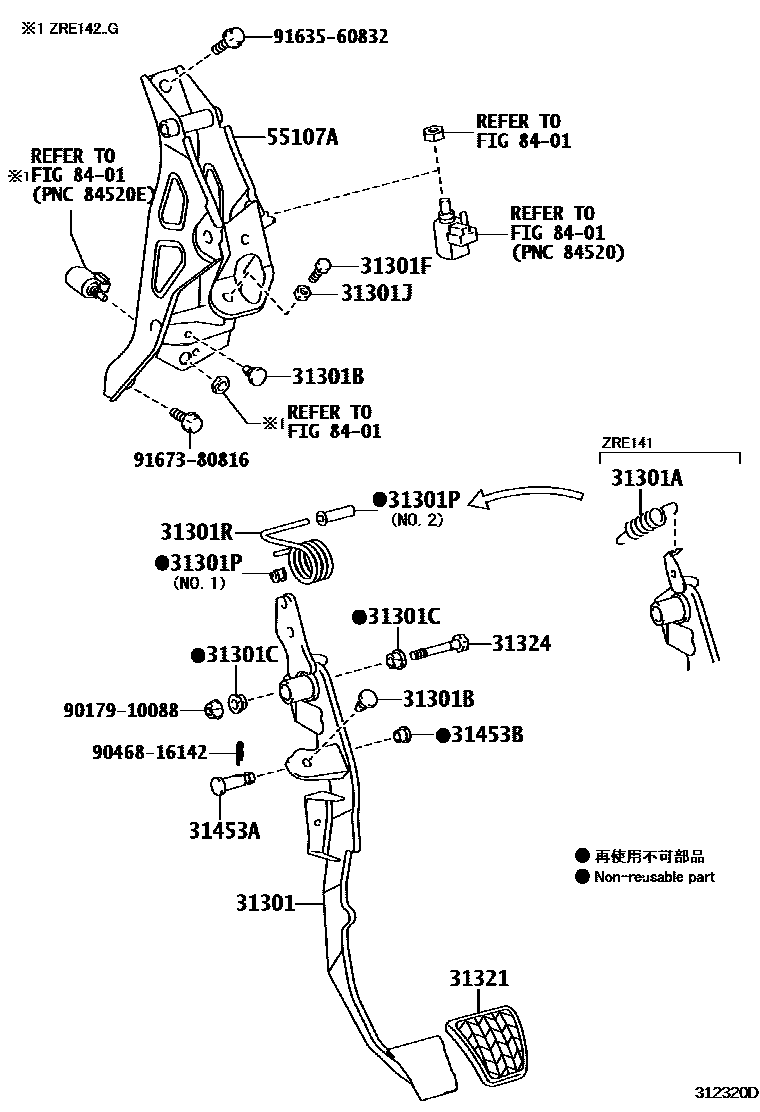

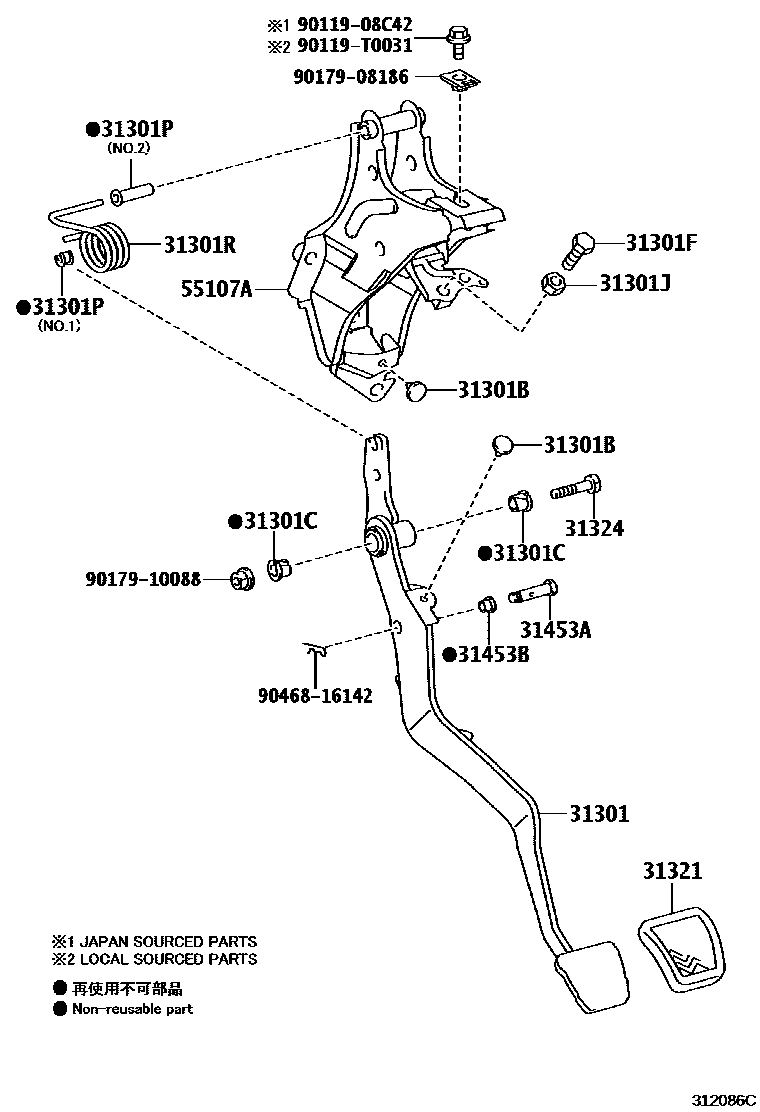

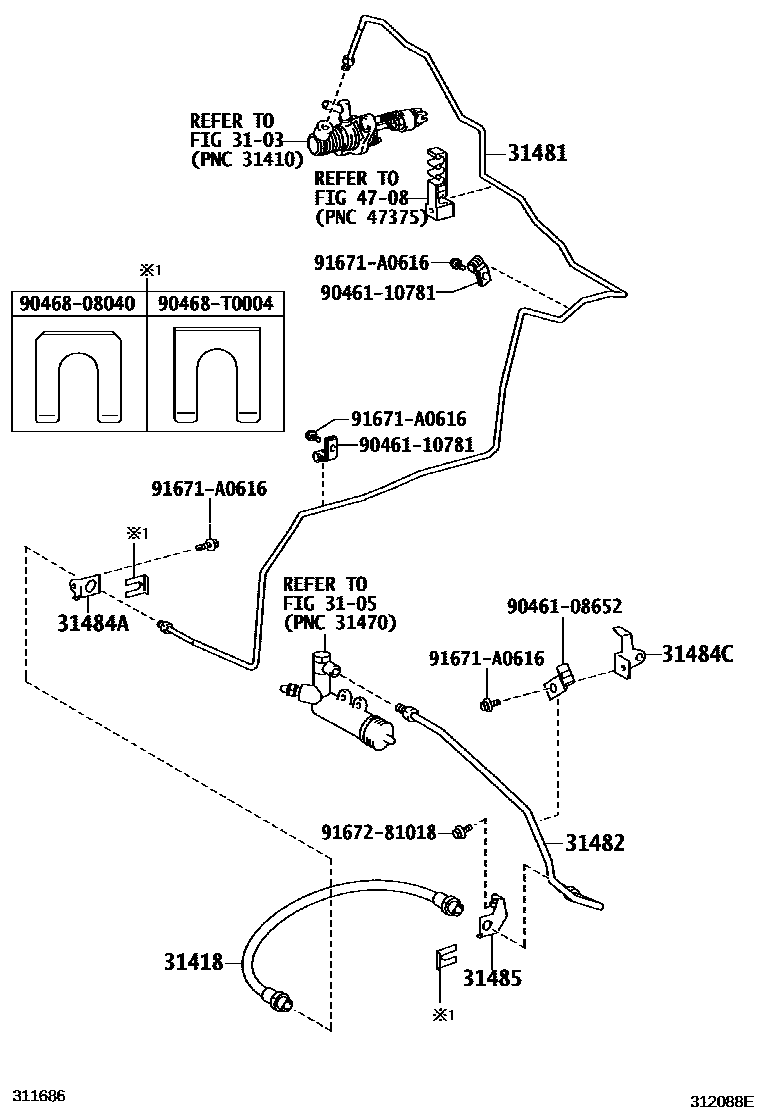

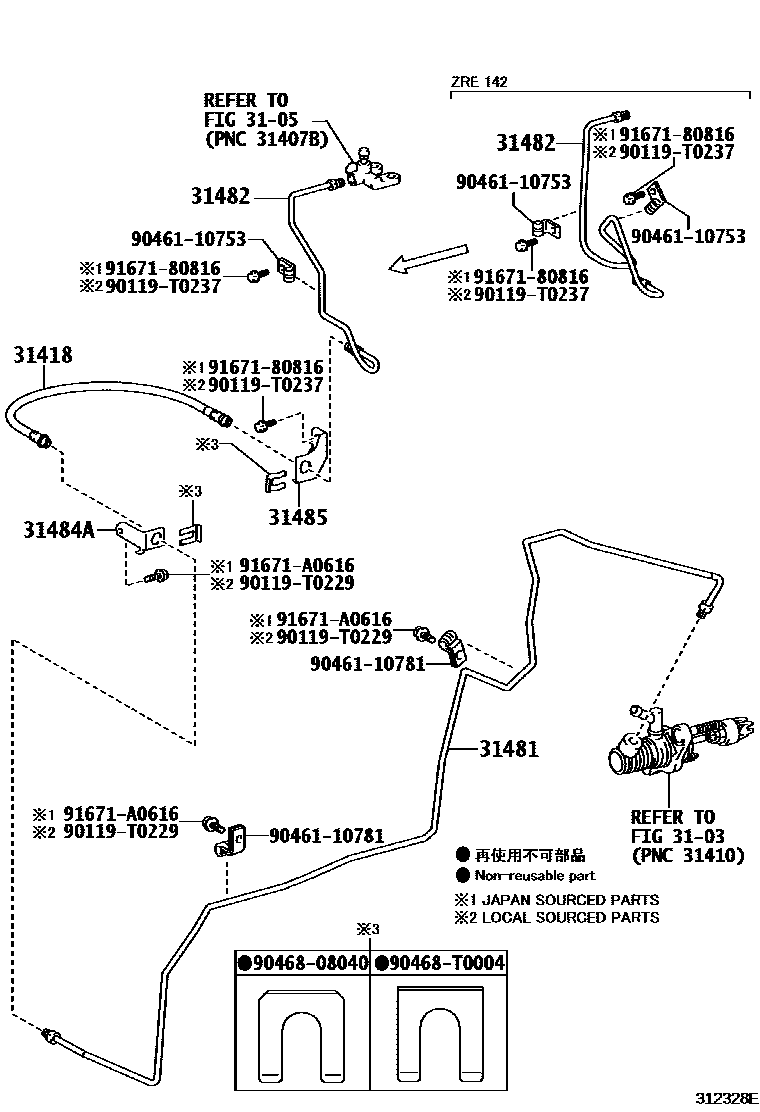

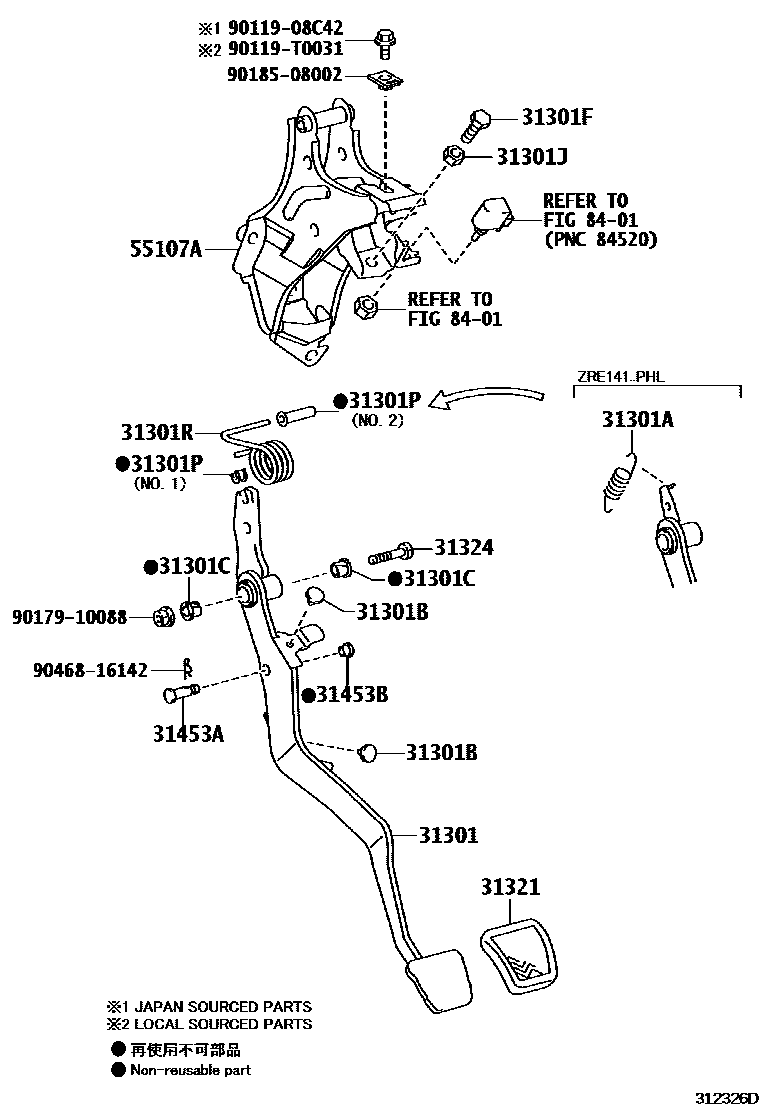

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 12 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02270 · 31301-02271 · 31301-02280 · 31301-02290 · 31301-02320 · 31301-02330 · 31301-02360 · 31301-02380 · 31301-02390 · 31301-02400 · 31301-02410 · 31301-02460 · 31301-02461 · 31301-02550 · 31301-02560 · 31301-02570 · 31301-02580 · 31301-12540 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 · 90541-T0004 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94120-41000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03138 |
| 31321 | clutch pedal pad | 31321-02020 · 31321-02030 · 31321-02090 · 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10167 · 90109-10174 |
| 31418 | clutch hose | 90947-T2039 · 90947-T2040 · 90947-T2057 · 90947-T2058 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02300 · 31481-02310 · 31481-02320 · 31481-02330 · 31481-02380 · 31481-02410 · 31481-02420 · 31481-02430 · 31481-02440 · 31481-02470 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02290 · 31482-02300 · 31482-02320 · 31482-02330 · 31482-02390 · 31482-02400 · 31482-02410 · 31482-02420 · 31482-12350 |
| 31483B | Accumulator to flexible hose pipe | 31482-02380 · 31483-02220 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-02200 · 31484-02201 · 31484-12380 |
| 31484C | No. 1 clutch tube bracket | 31484-52150 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02020 · 31484-02170 · 31484-12550 |
| 31488E | Pipe from bleeder to accumulator | 31488-12020 |
| 31490 | Clutch pressure accumulator assembly | 31490-12020 · 31490-12110 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02220 · 55107-02221 · 55107-02230 · 55107-02240 · 55107-02250 · 55107-02270 · 55107-02280 · 55107-02310 · 55107-02320 · 55107-02330 · 55107-02390 · 55107-02391 · 55107-02440 · 55107-02450 · 55107-02460 · 55107-12320 |
