Toyota COROLLA 废气再循环系统 — Figure 2501

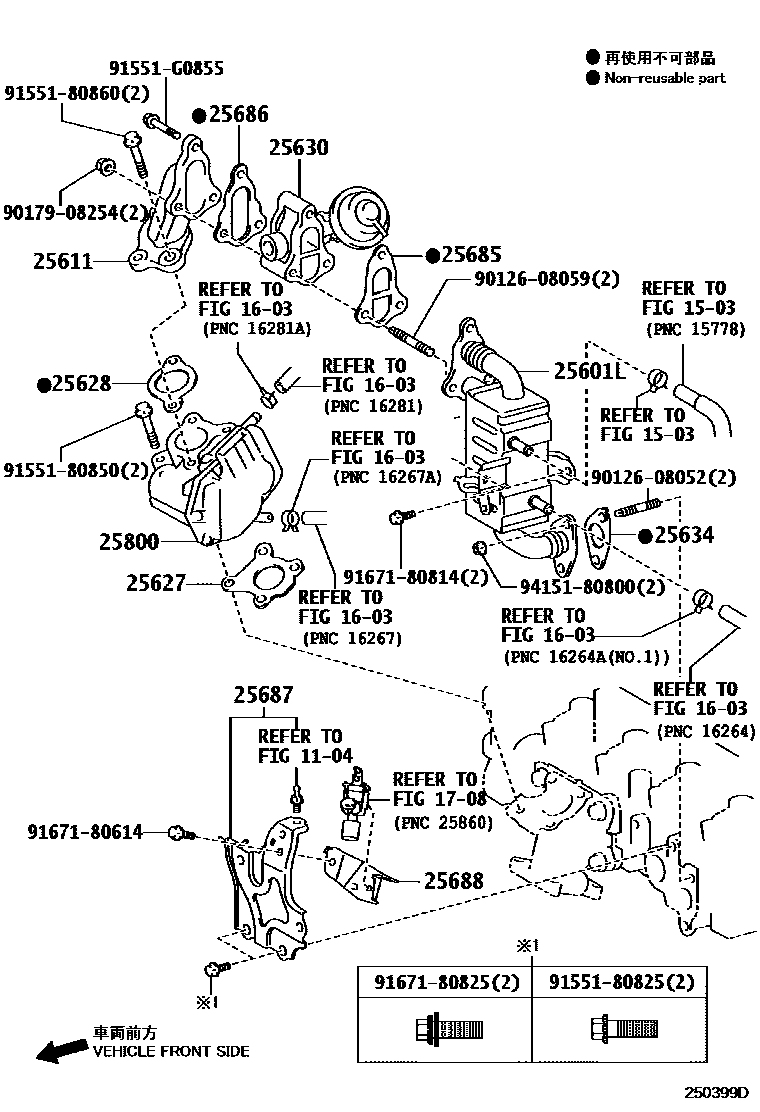

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601L | EGR pipe assembly with cooler | 25601-33060 |
| 25611 | EGR tube connector | 25611-33020 |
| 25627 | EGR valve gasket | 25627-33010 |
| 25628 | EGR air intake gasket | 25628-33040 |
| 25630 | No. 2 EGR valve assembly | 25630-33010 |
| 25634 | EGR tube gasket | 25634-33010 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-33010 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-33010 |
| 25687 | No. 1 EGR cooler bracket | 25687-33010 |
| 25688 | No. 2 EGR cooler bracket | 25688-33010 |
| 25800 | Electronic EGR control valve assembly | 25800-33011 |
