Toyota COROLLA 喷油泵总成 — Figure 2202

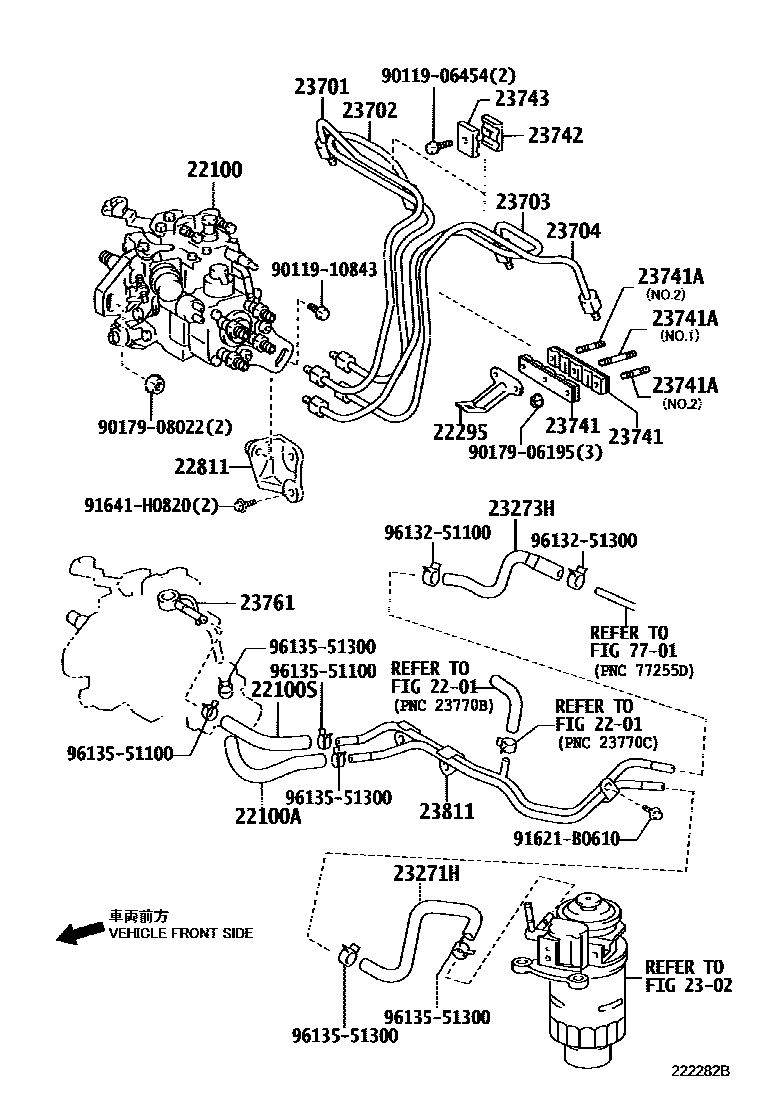

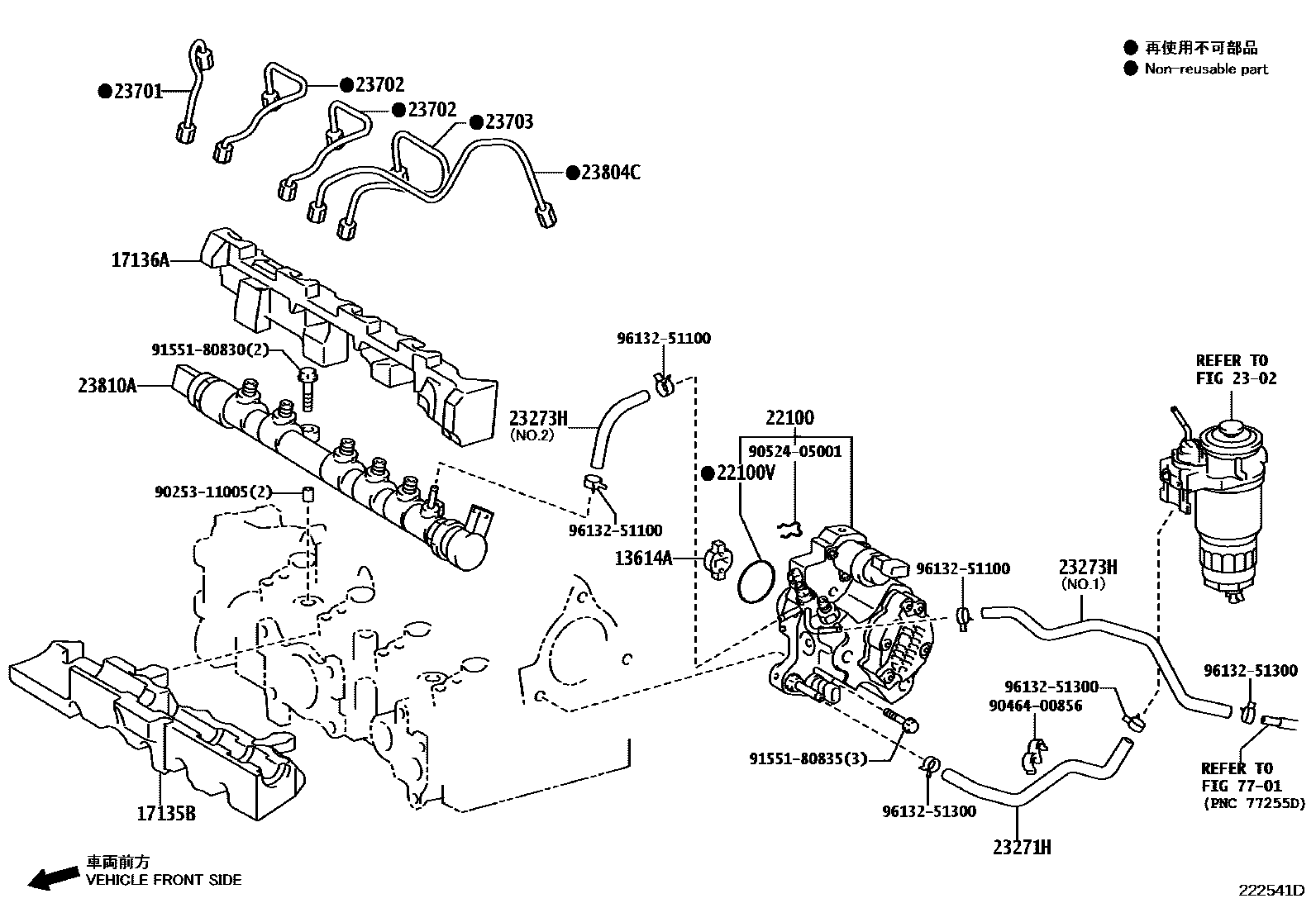

Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13614A | No. 1 oil supply pump active coupling | 13614-33010 |
| 17135B | Intake manifold No. 1 heat shield | 17135-33011 |
| 17136A | Intake manifold No. 2 heat shield | 17136-33010 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0W010 · 22100-33050 · 22100-6E300 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-64030 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 95333-06020 · 95337-06020 |
| 22100V | O-ring (for fuel injection pump) | 96723-35044 |
| 22295 | Fuel injection pump connector bracket | 22295-64011 |
| 22811 | No. 1 fuel injection pump bracket | 22811-64020 |
| 23271H | No. 1 fuel hose | 23271-33120 · 23271-64320 |
| 23273H | No. 2 fuel hose | 23273-33090 · 23273-33160 · 23273-64170 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-33040 · 23701-64110 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-33010 · 23702-64110 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-33010 · 23703-64090 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-64110 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-64011 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 · 92122-60622 |
| 23742 | No. 2 fuel injection pipe clamp | 23741-54010 |
| 23743 | No. 3 fuel injection pipe clamp | 23742-54010 |
| 23761 | No. 1 fuel injector overflow pipe | 23764-64030 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-33020 |
| 23810A | Common rail assembly | 23810-33030 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-64092 |
