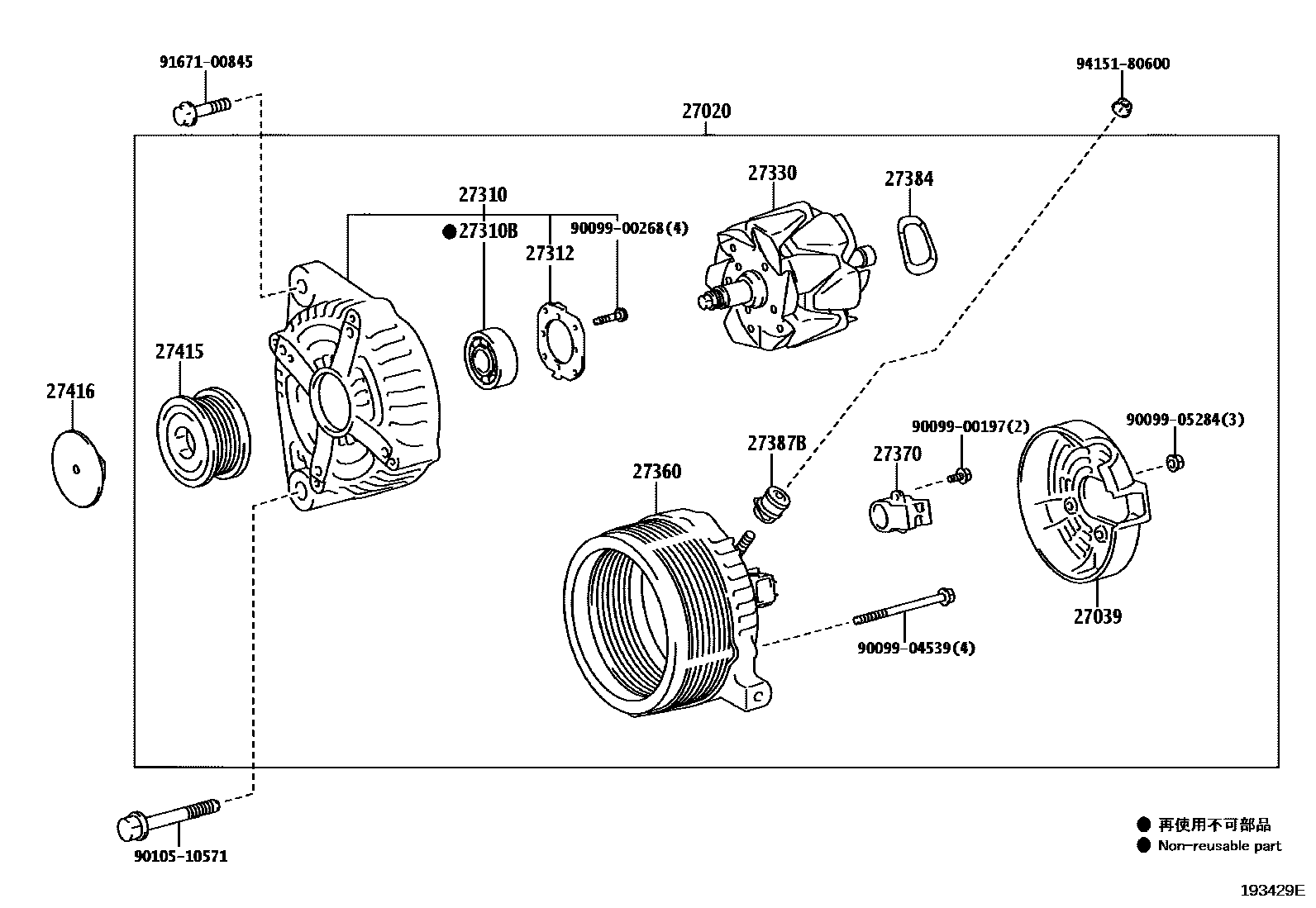

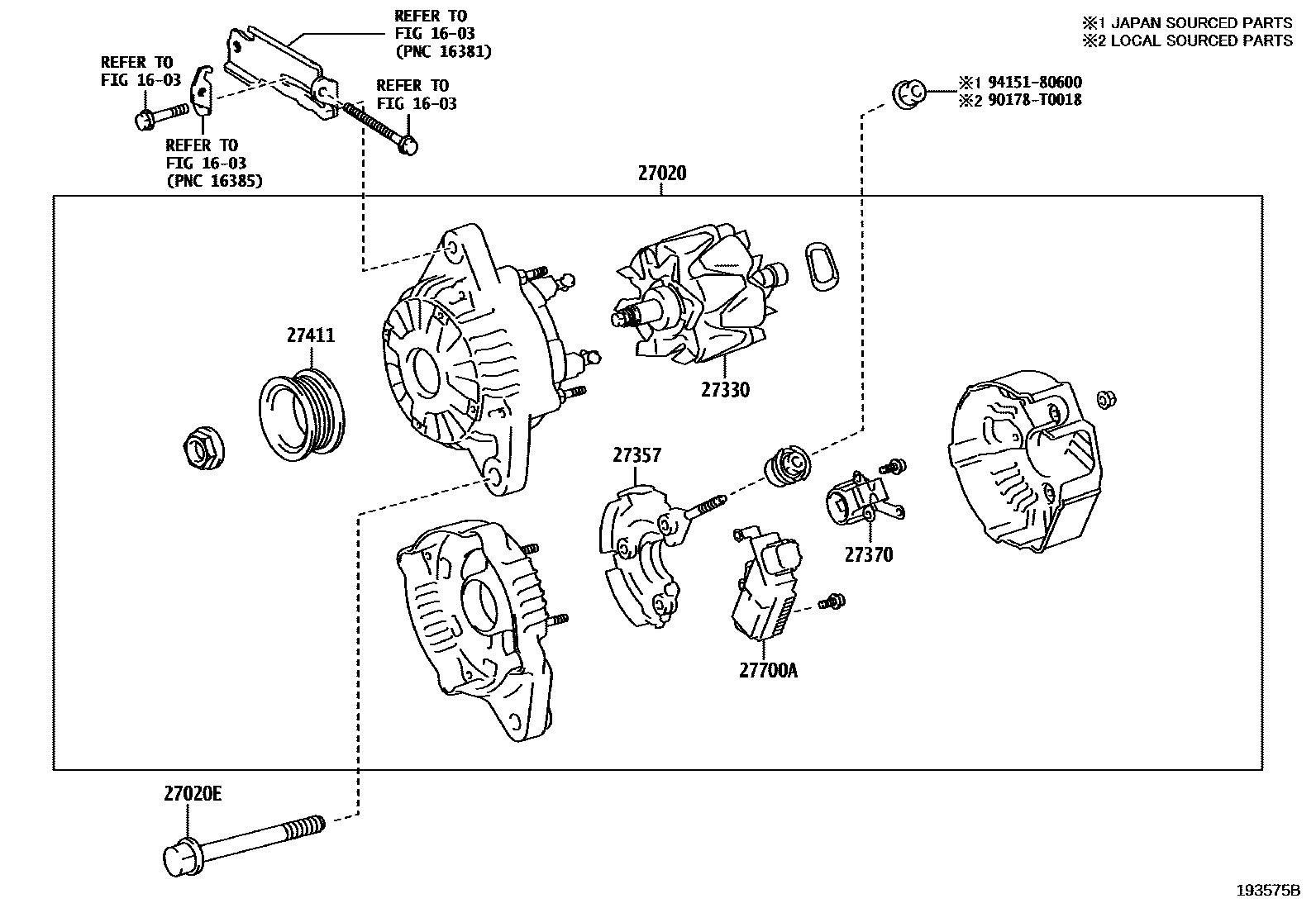

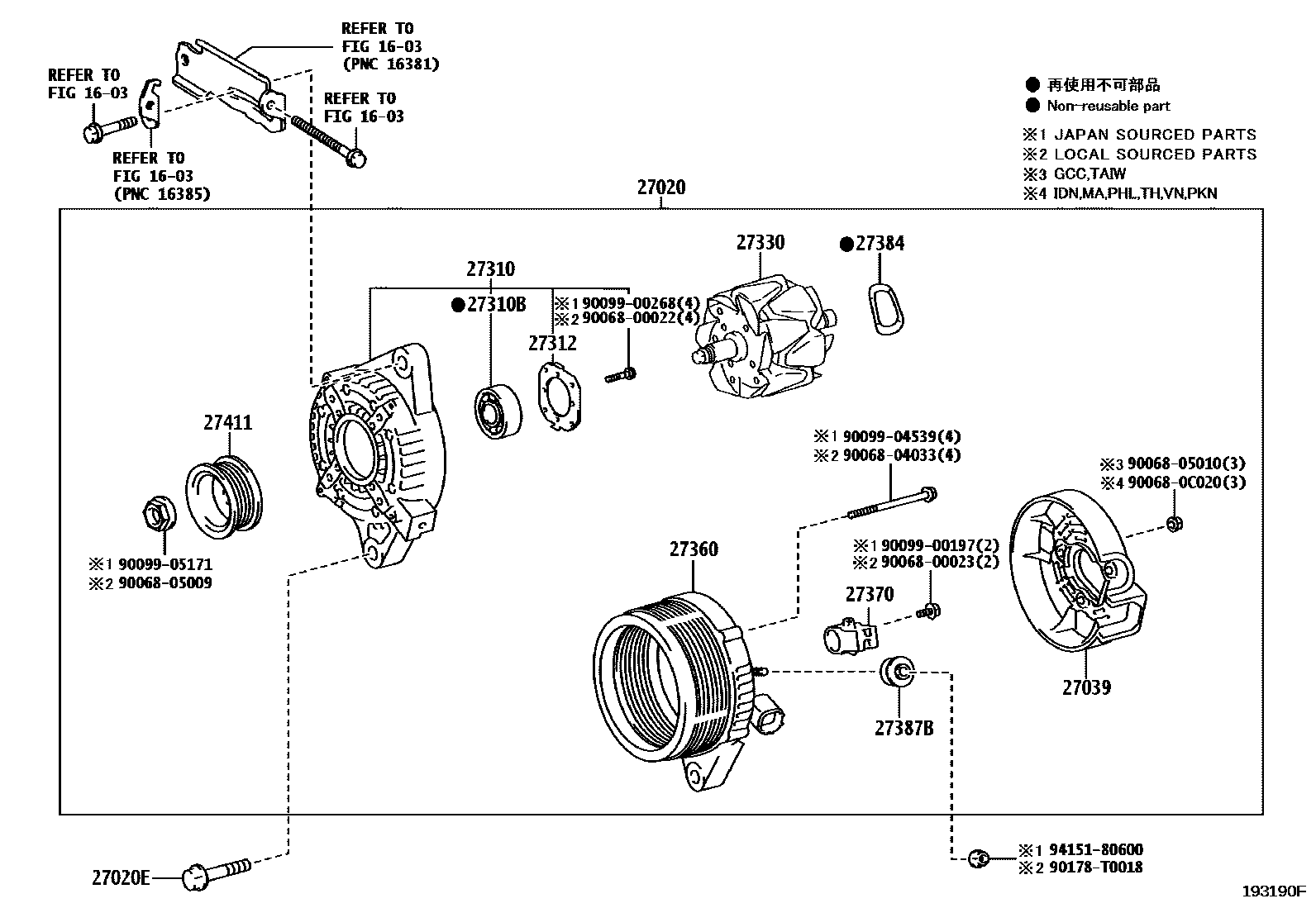

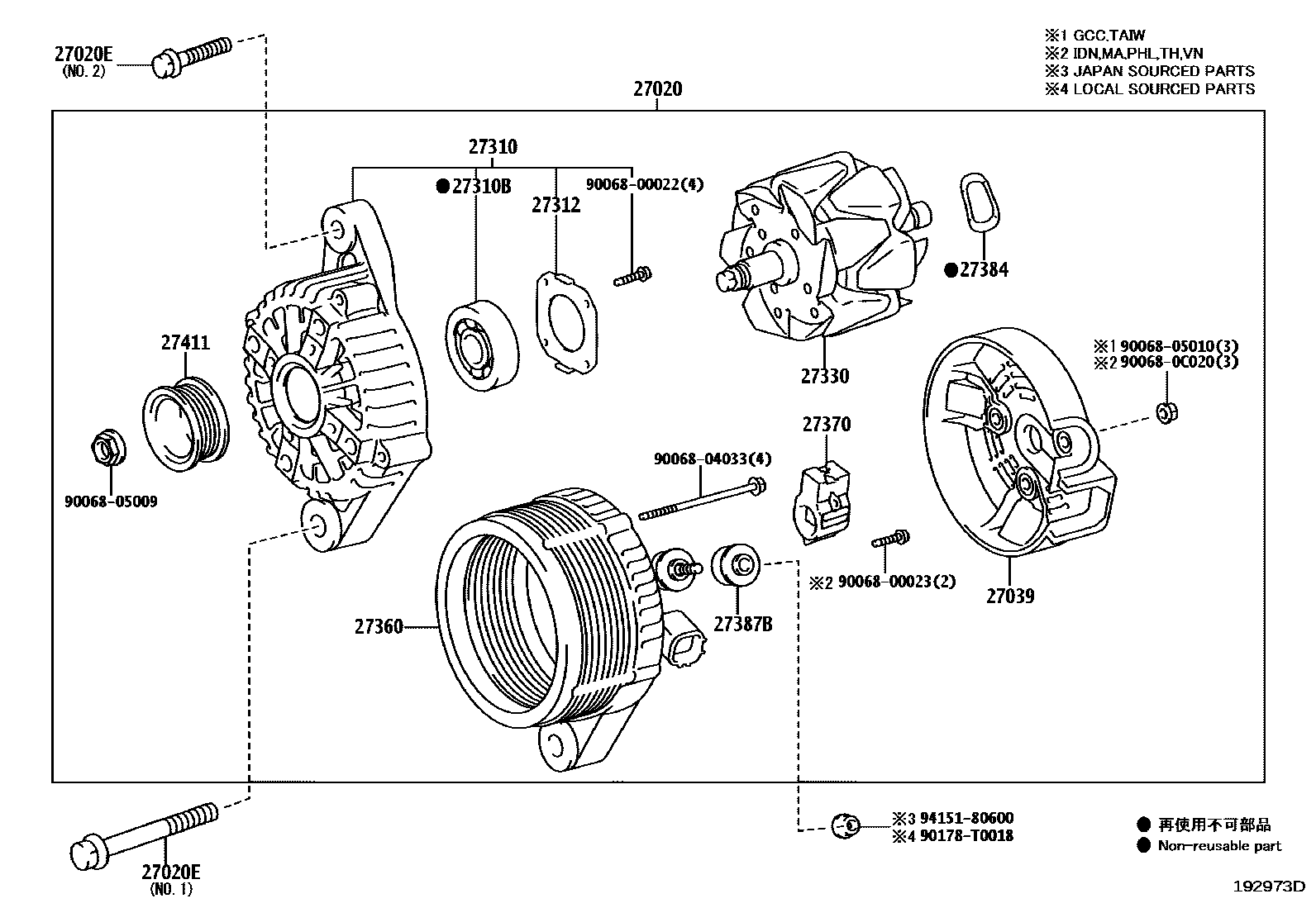

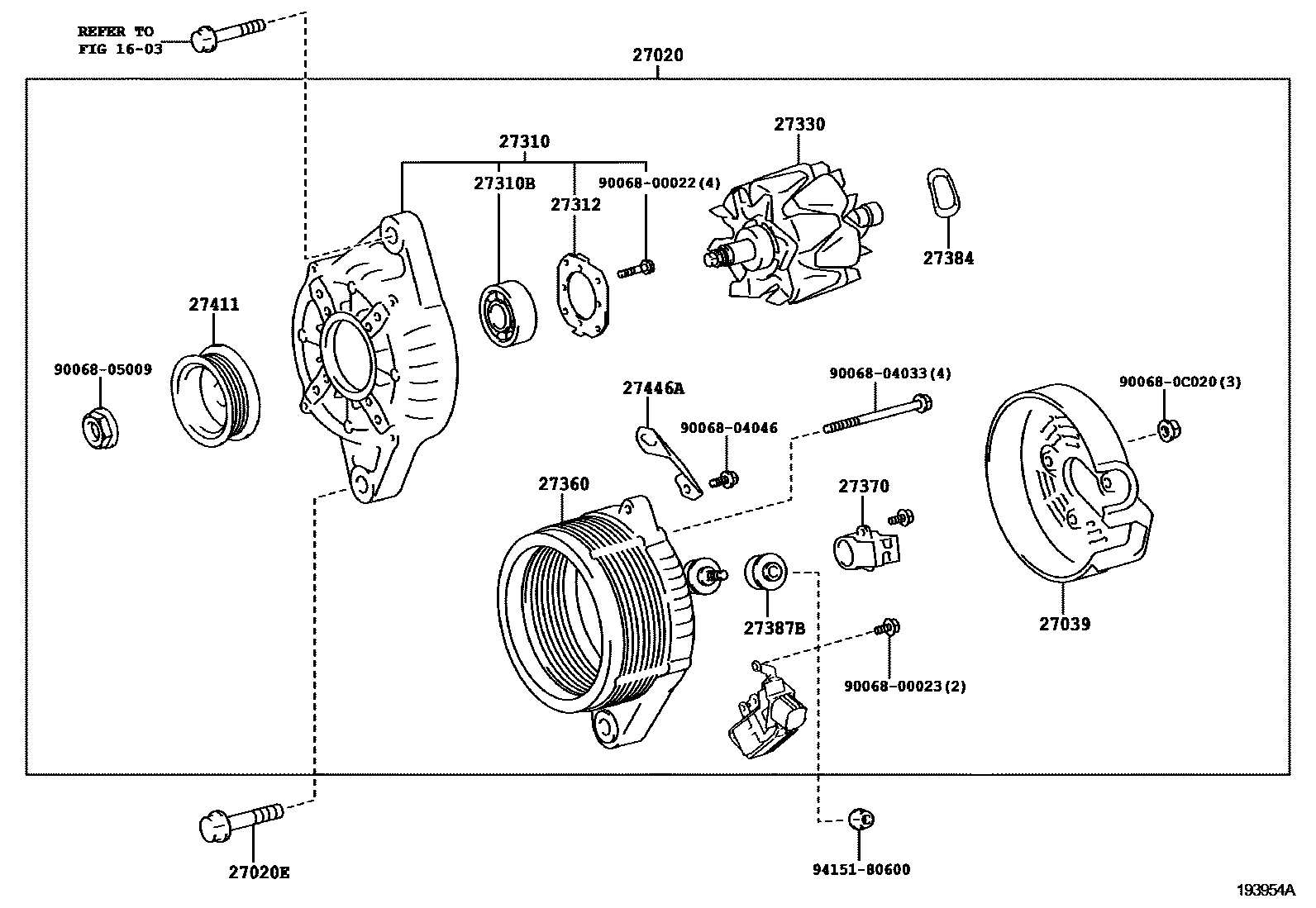

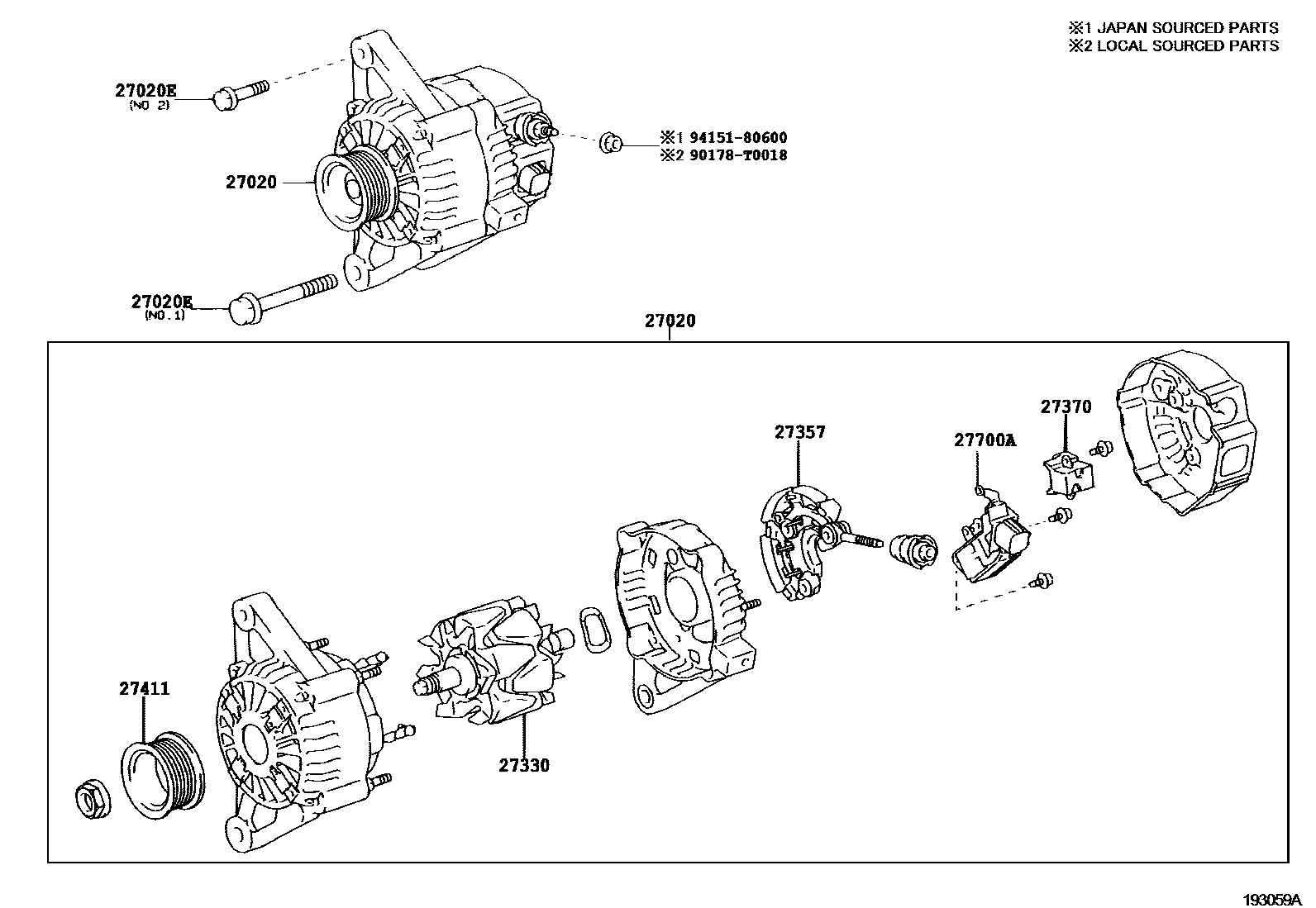

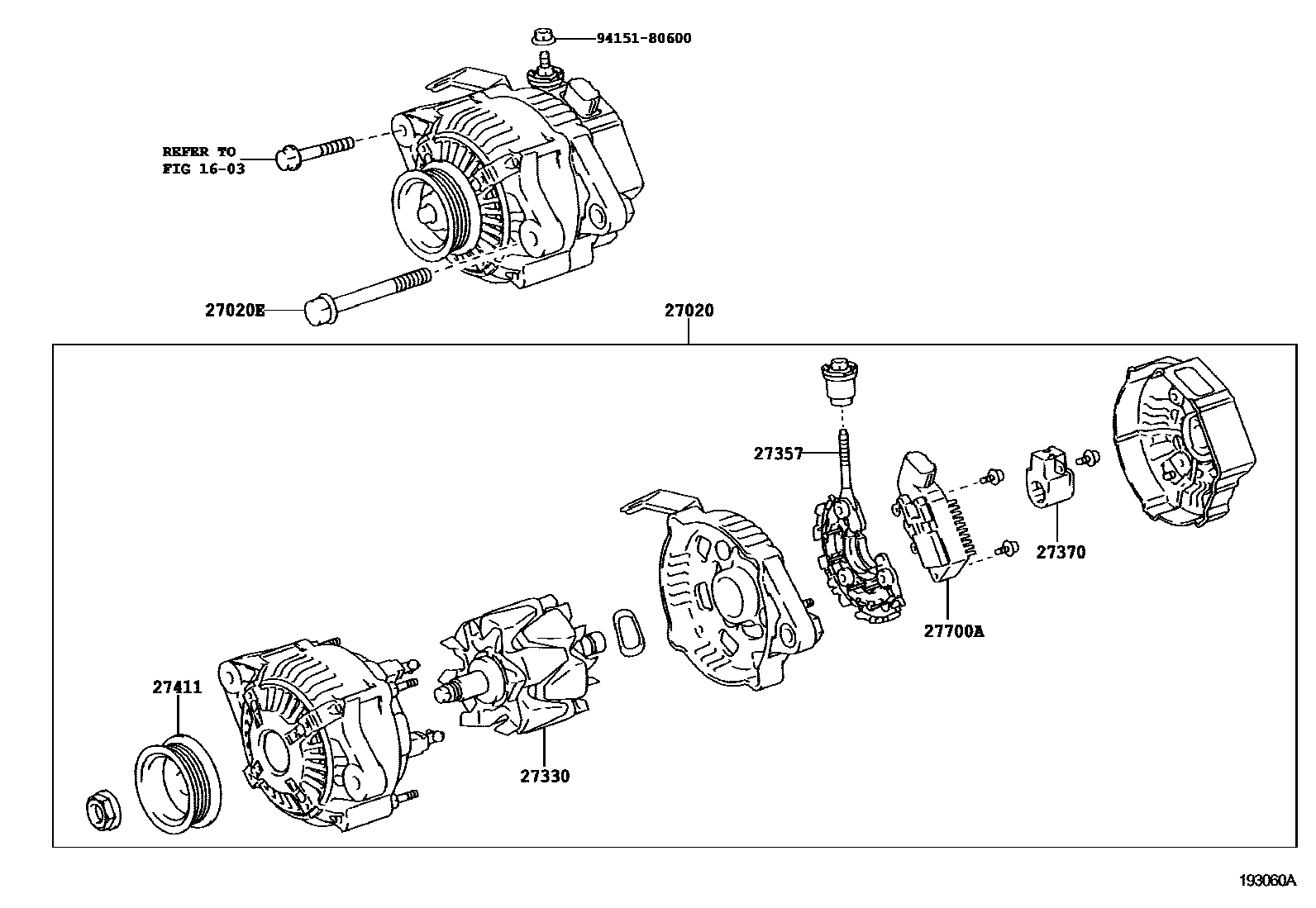

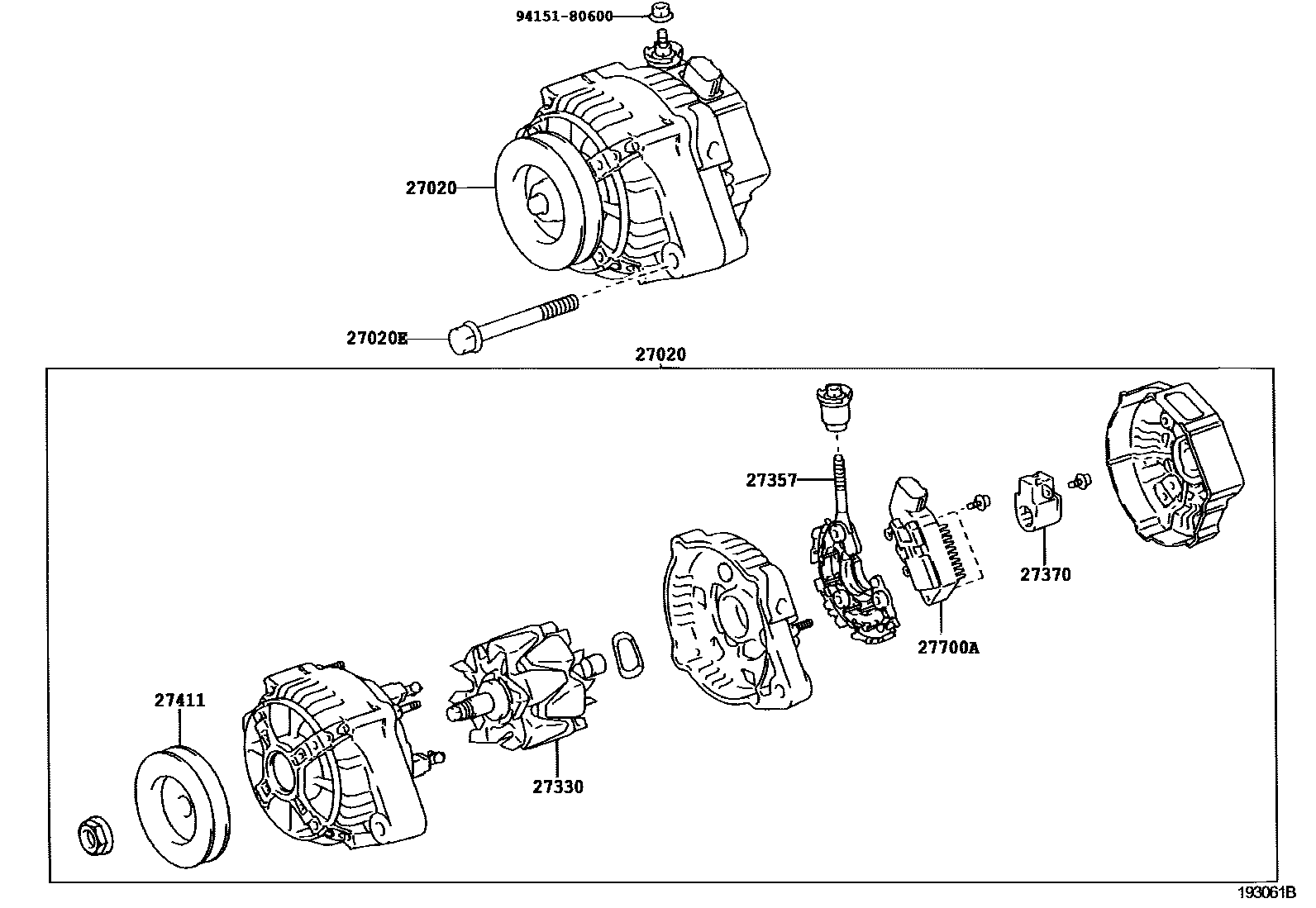

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D250 · 27060-0D260 · 27060-0D270 · 27060-0D271 · 27060-0M040 · 27060-0T100 · 27060-0T110 · 27060-0T120 · 27060-0T121 · 27060-0T140 · 27060-0T141 · 27060-0T150 · 27060-21150 · 27060-21151 · 27060-22230 · 27060-22231 · 27060-33130 · 27060-37090 · 27060-64450 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10307 · 90105-T0012 · 90901-05004 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0H080 · 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D200 · 27310-0M040 · 27310-0T090 · 27310-0T100 · 27310-0T110 · 27310-0T111 · 27310-33180 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90068-10036 · 90099-10231 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0H080 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0C030 · 27330-0H080 · 27330-0L070 · 27330-0M040 · 27330-30070 · 27330-30130 · 27330-62220 |
| 27357 | Generator rectifier frame | 27357-0L070 · 27357-22200 |
| 27360 | Alternator Stator Coil Assembly | 27360-0D200 · 27360-0M040 · 27360-0T090 · 27360-0T100 · 27360-0T130 · 27360-33190 |
| 27370 | Alternator Brush Holder Assembly | 27370-0M040 · 27370-23120 · 27370-31220 · 27370-75060 |
| 27384 | Washer | 27384-0C020 · 27384-0H080 · 27384-16380 · 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0H080 · 27387-20130 |
| 27411 | Alternator Pulley | 27411-0D200 · 27411-0D220 · 27411-0M040 · 27411-0M070 · 27411-22080 · 27411-22210 · 27411-64660 · 27411-70140 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-33070 |
| 27416 | Generator pulley cover | 27416-27010 |
| 27446A | card holder | 27446-0M040 |
| 27700A | Generator voltage regulator assembly | 27700-0D040 · 27700-21050 · 27700-22050 |
