Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 31 PNC and OE references.

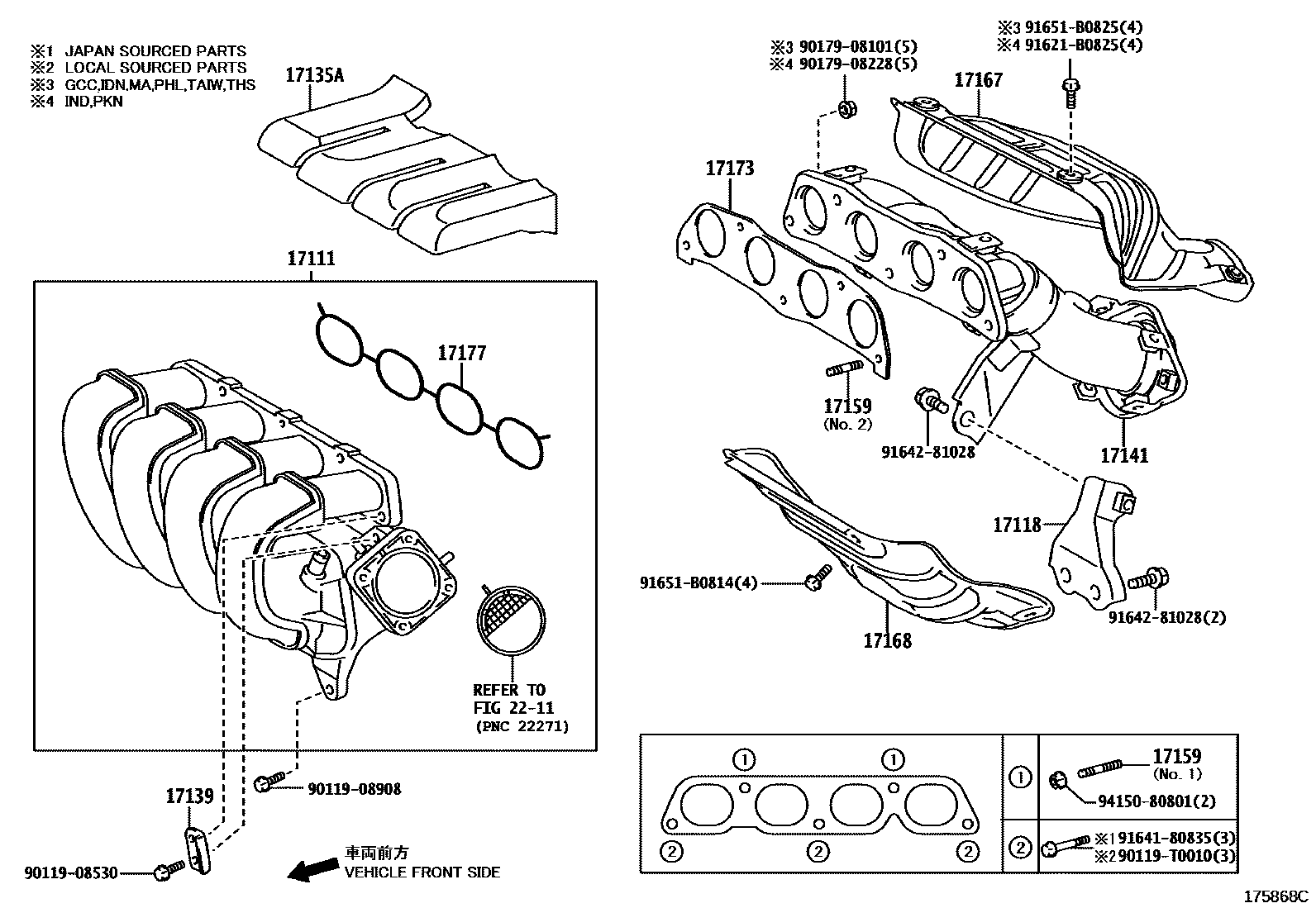

Toyota COROLLA Manifold EPC diagram — 175868C — Manifold — 175868C (200712 – 999999)

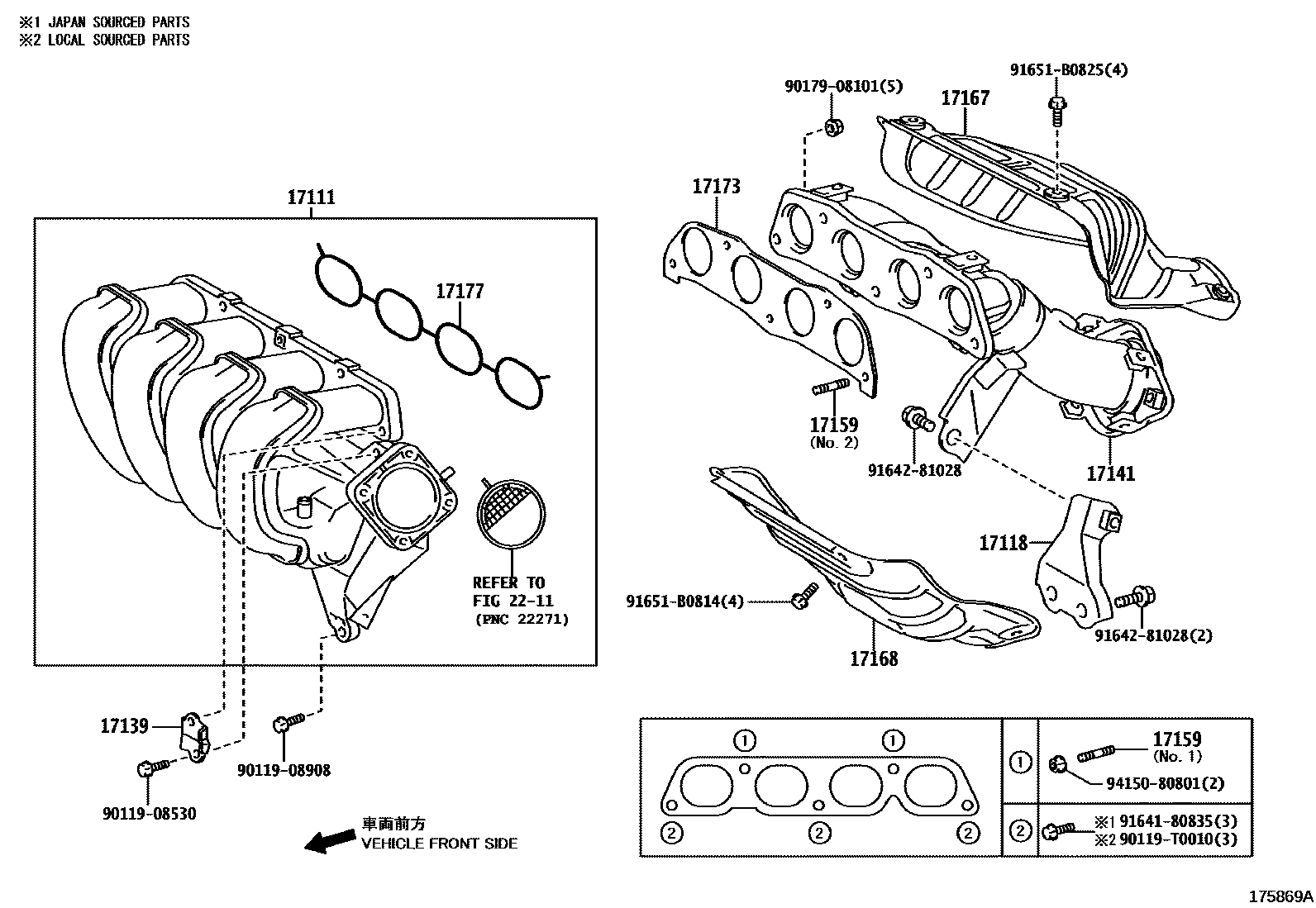

Toyota COROLLA Manifold EPC diagram — 175869A — Manifold — 175869A (200712 – 999999)

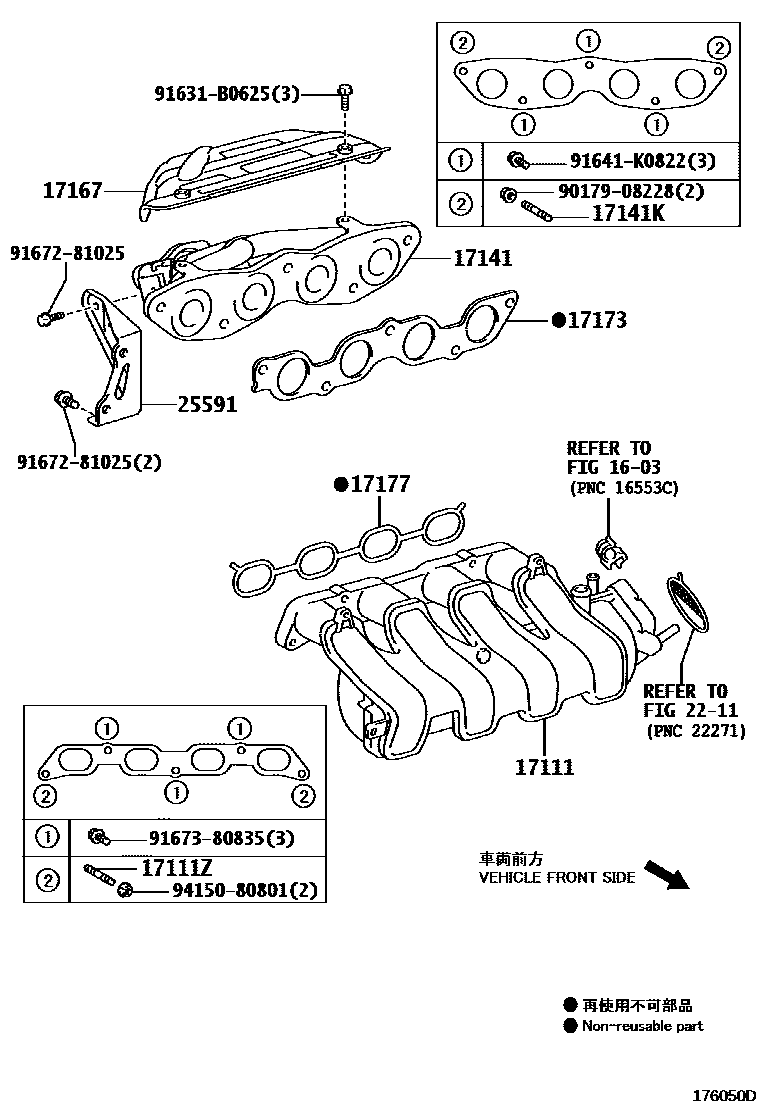

Toyota COROLLA Manifold EPC diagram — 176050D — Manifold — 176050D (200808 – 999999)

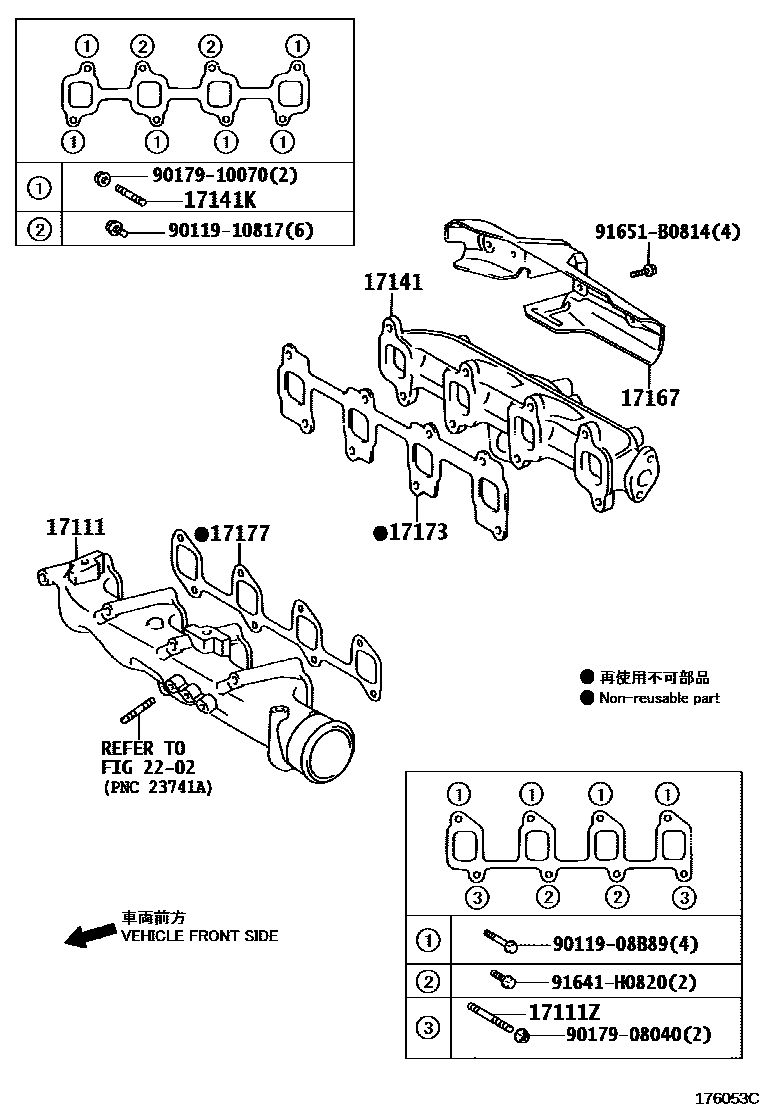

Toyota COROLLA Manifold EPC diagram — 176053C — Manifold — 176053C (200808 – 999999)

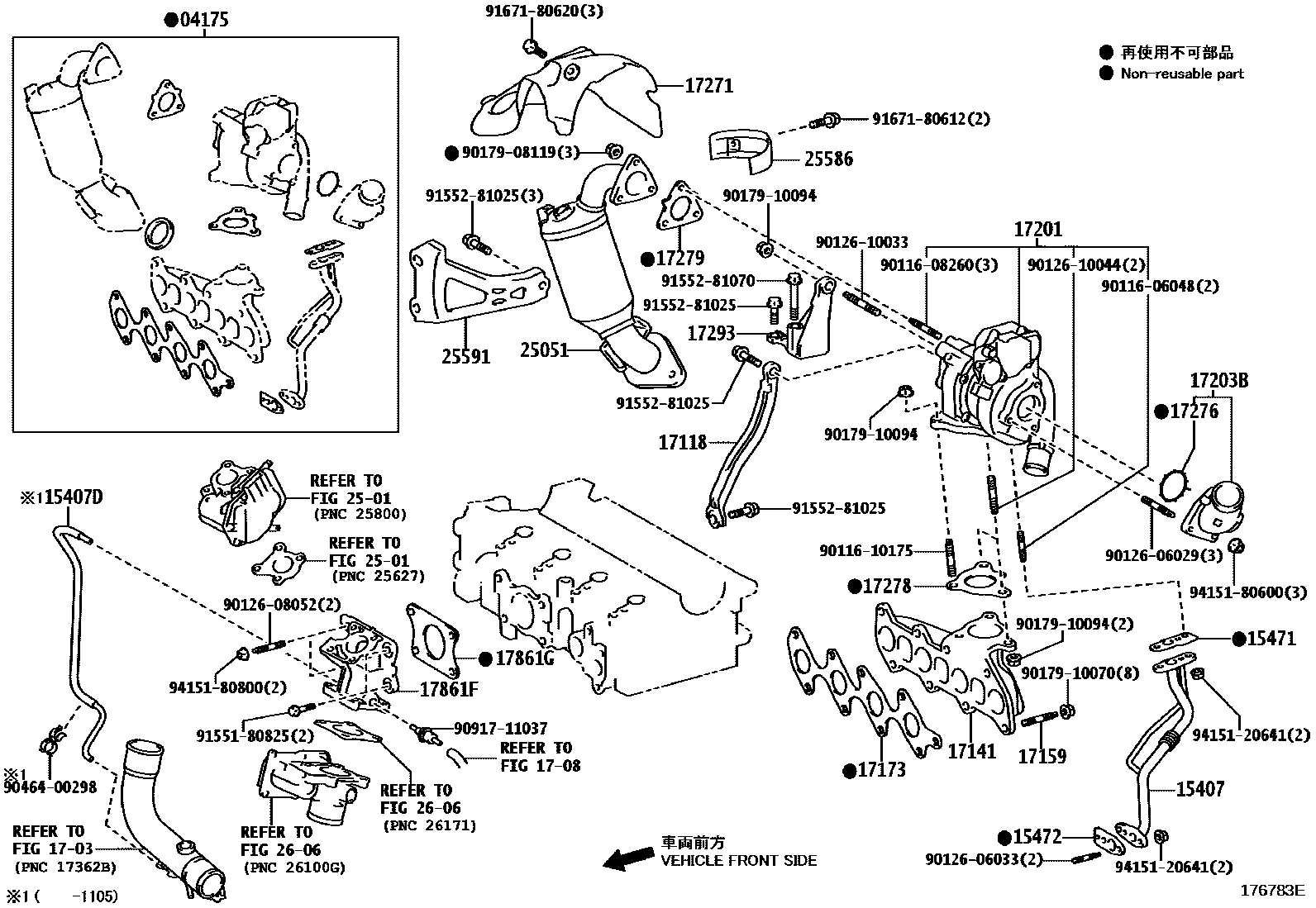

Toyota COROLLA Manifold EPC diagram — 176783E — Manifold — 176783E (201006 – 999999)

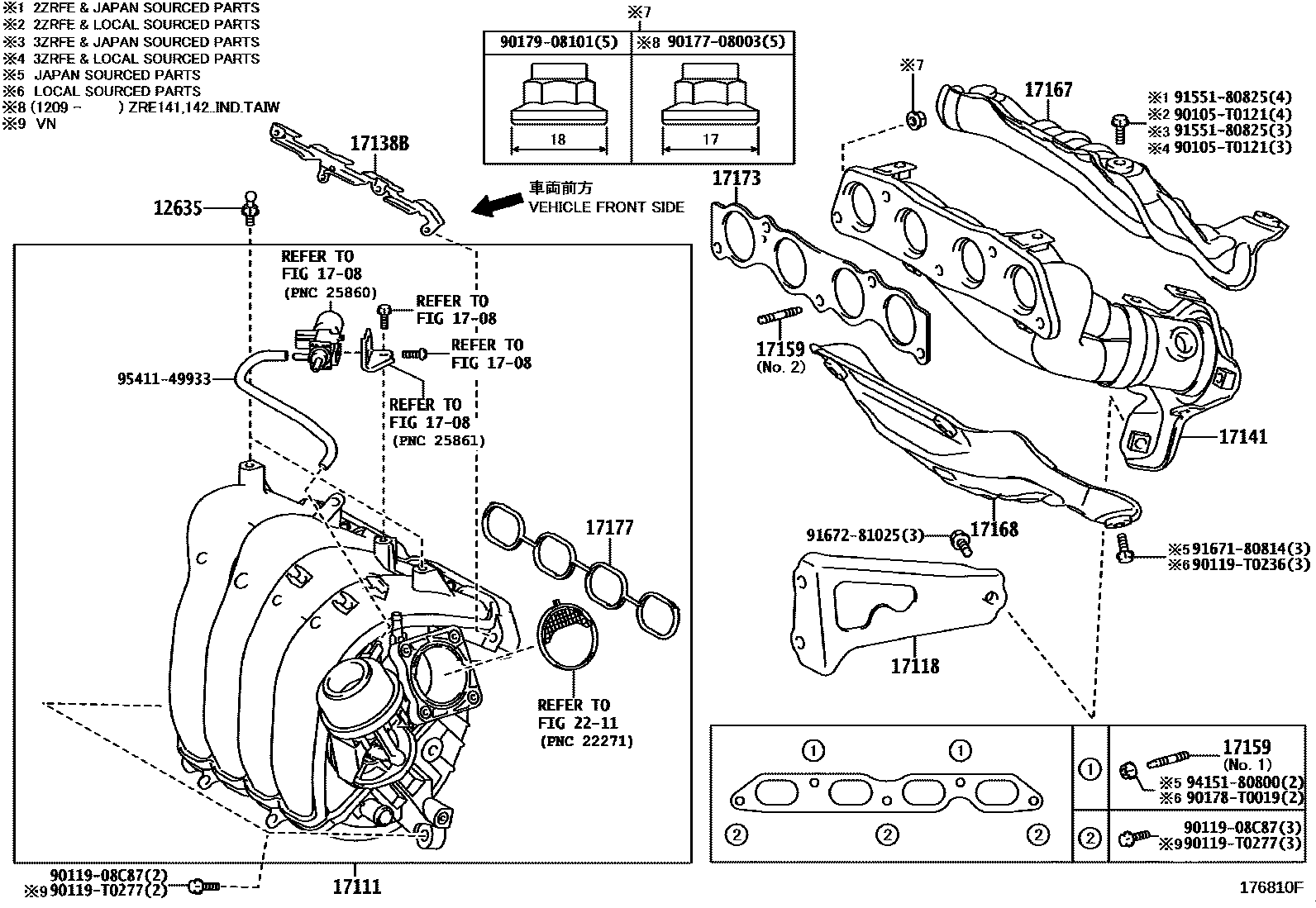

Toyota COROLLA Manifold EPC diagram — 176810F — Manifold — 176810F (201007 – 999999)

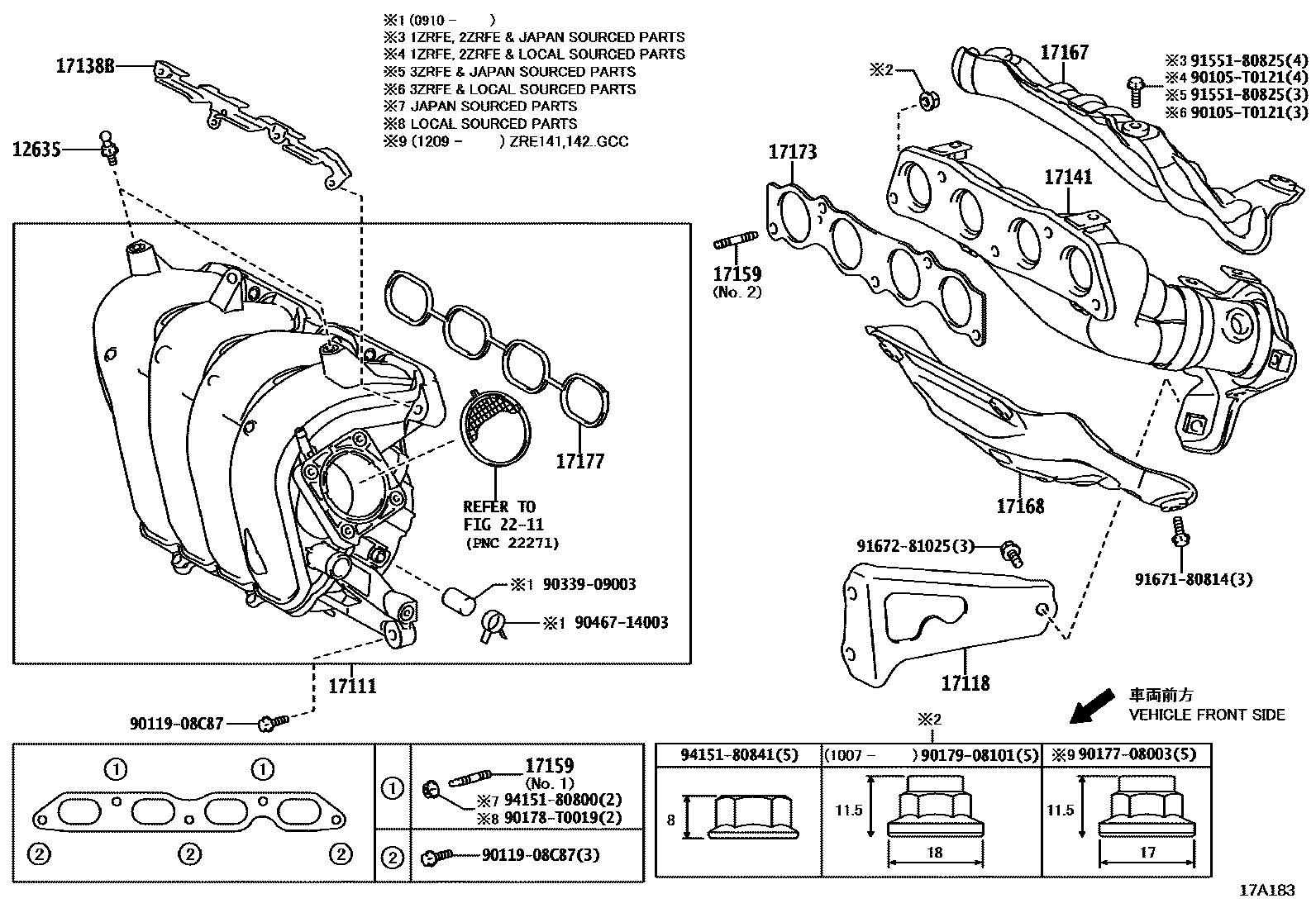

Toyota COROLLA Manifold EPC diagram — 17A183 — Manifold — 17A183 (200811 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-33070
12635	hood connector	90109-06385
15407	Turbine oil inlet pipe sub-assembly	15407-33020 · 15407-33021
15407D	No. 1 oil hose	12109-33020
15471	Turbine oil inlet pipe gasket	15471-33010
15472	No. 1 turbine oil outlet pipe gasket	15472-33020
17111	Intake Manifold	17101-21090 · 17111-64150 · 17120-0D070 · 17120-0T090 · 17120-0T100 · 17120-22070 · 17120-37022 · 17120-37030 · 17120-37031 · 17120-37070
17111Z	Stud bolts (for intake manifold to cylinder head)	90126-08026 · 92122-60820
17118	Manifold stays	17118-0D040 · 17118-0T040 · 17118-22020 · 17118-33040 · 17118-37010 · 17118-37050
17135A	Intake manifold No. 1 heat shield	17135-22010
17138B	Intake manifold stay	17138-37010 · 17138-37011
17139	No. 2 manifold stay	17139-22030 · 17139-22050
17141	exhaust manifold	17104-22100 · 17141-0T010 · 17141-0T090 · 17141-21140 · 17141-33050 · 17141-37051 · 17141-37080 · 17141-37130 · 17141-37140 · 17141-64310
17141K	Stud bolts (for exhaust manifold to cylinder head)	90126-08037 · 90126-10017
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08043 · 90126-08052 · 90126-10033 · 90126-T0003
17167	Exhaust manifold No. 1 heat shield	17167-21130 · 17167-22080 · 17167-37011 · 17167-37050 · 17167-37110 · 17167-64120
17168	Exhaust manifold No.2 insulation pad	17168-0T110 · 17168-22080 · 17168-37070 · 17168-37100
17173	Gasket (exhaust manifold to cylinder head)	17173-0T041 · 17173-21020 · 17173-22010 · 17173-33030 · 17173-37010 · 17173-64060
17177	No. 1 gasket (intake manifold to cylinder head)	17171-0D030 · 17171-22030 · 17177-21020 · 17177-21030 · 17177-37030 · 17177-64020
17201	Turbocharger sub-assembly	17201-0N042
17203B	Compressor oil inlet elbow sub-assembly	17203-33010
17271	No. 1 turbine vibration isolation pad	17271-33060
17276	Compressor oil inlet gasket	17276-33010
17278	Gasket (turbo to exhaust manifold)	17278-33010
17279	Turbine outlet elbow gasket	17279-27020
17293	Turbocharger stay	17293-33010
17861F	Intake connecting pipe	17861-33040 · 17861-33070
17861G	Intake connecting pipe gasket	26171-33050
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-33060
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-33010
25591	Manifold bracket	25591-21060 · 25591-33030
