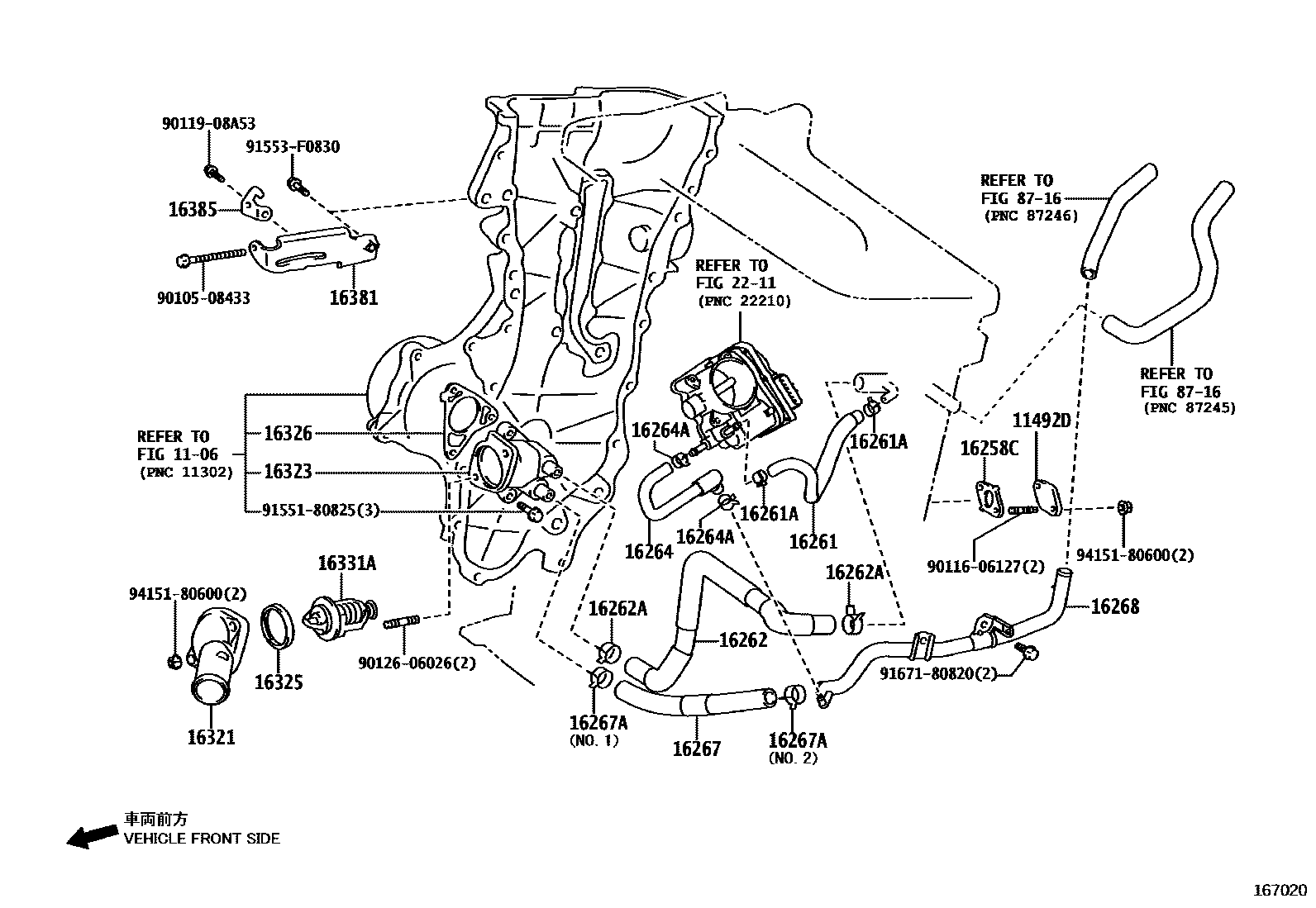

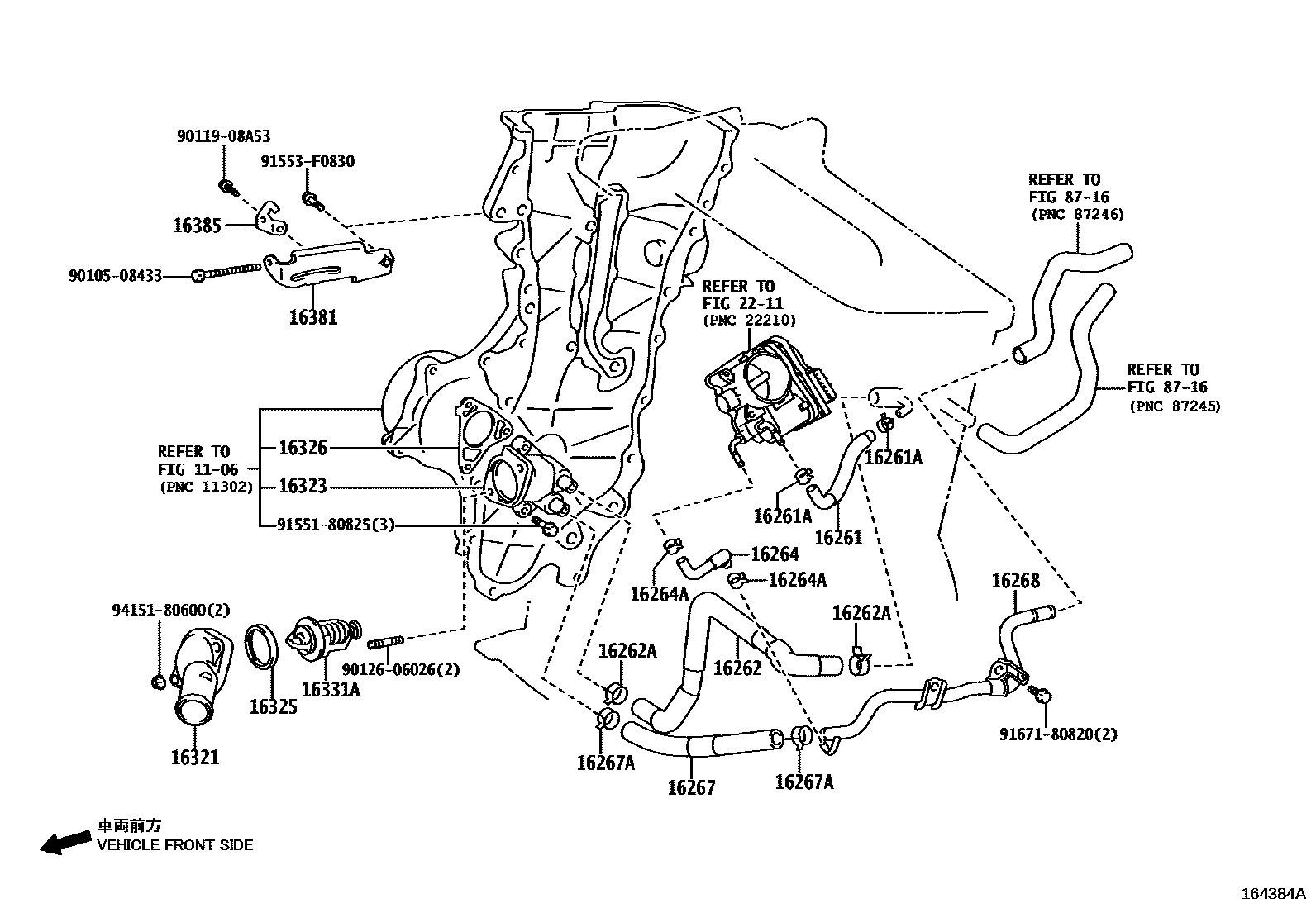

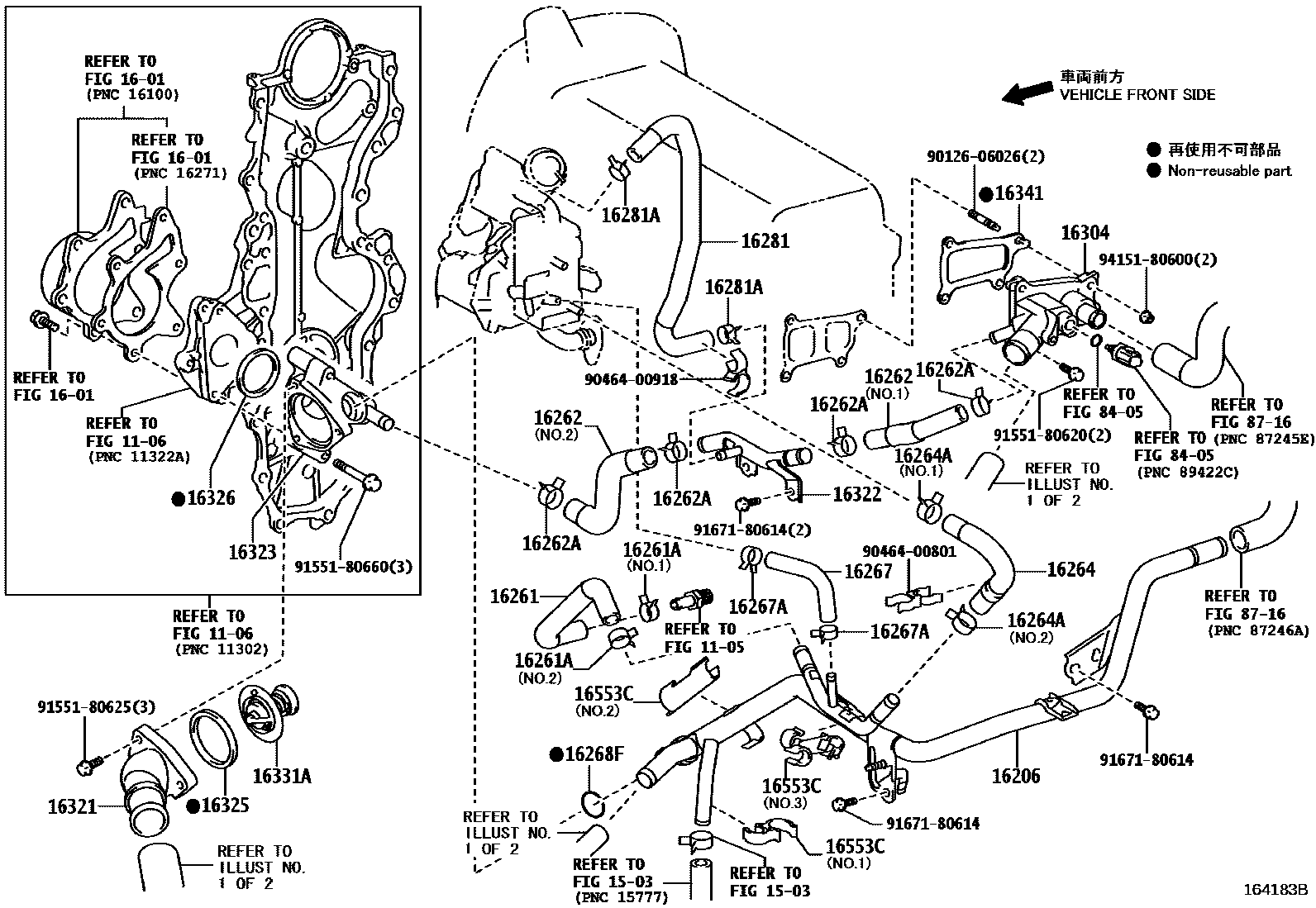

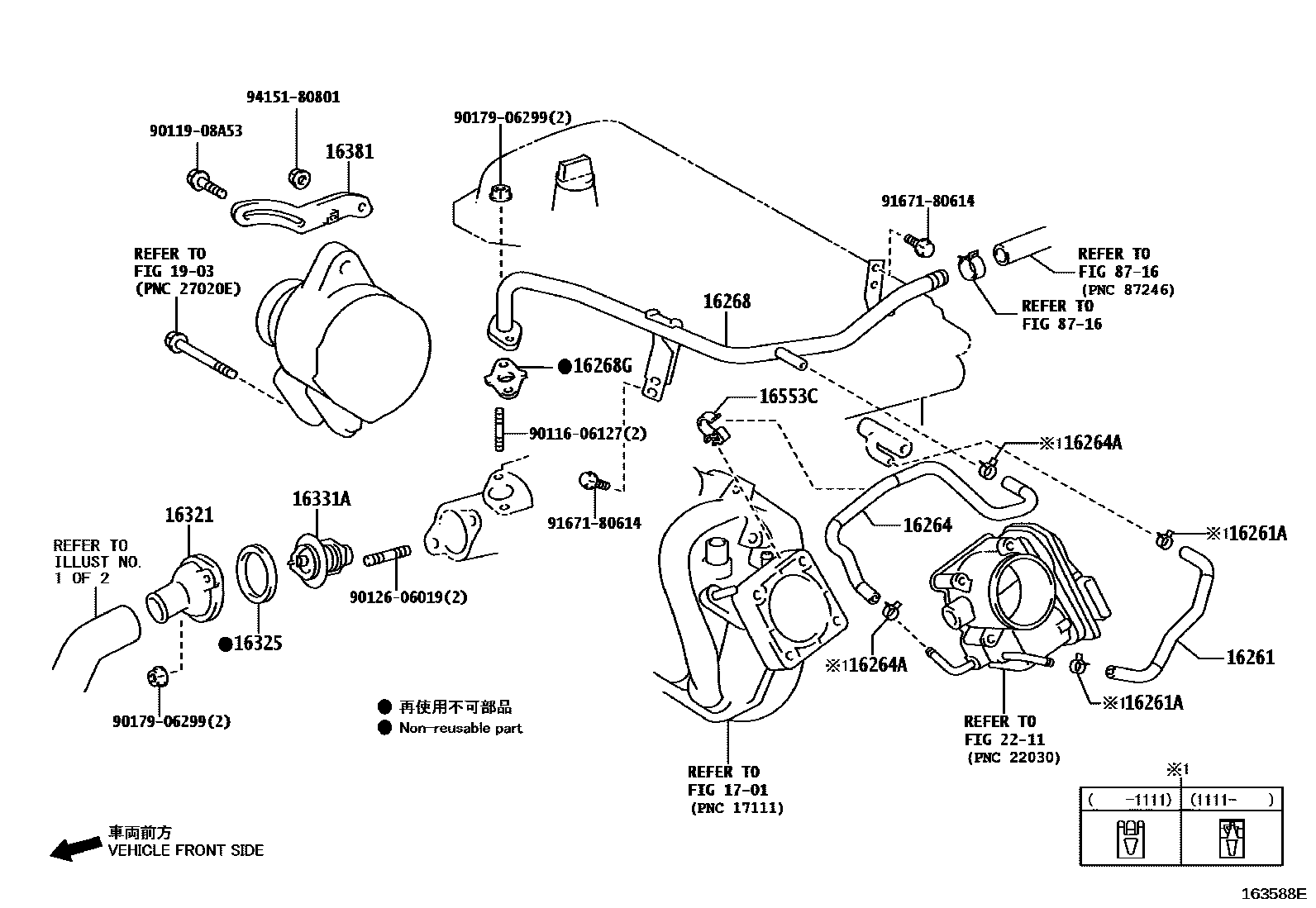

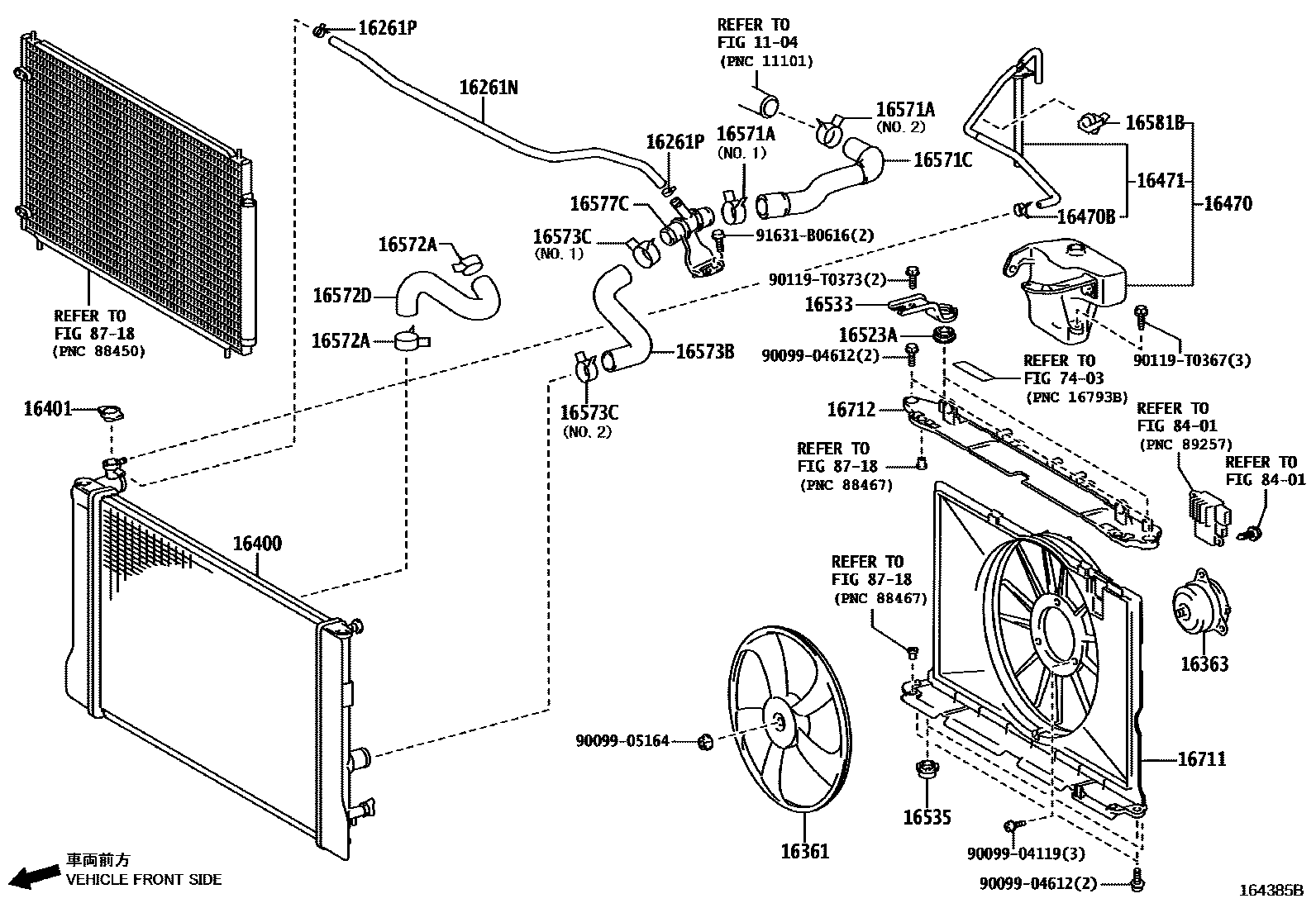

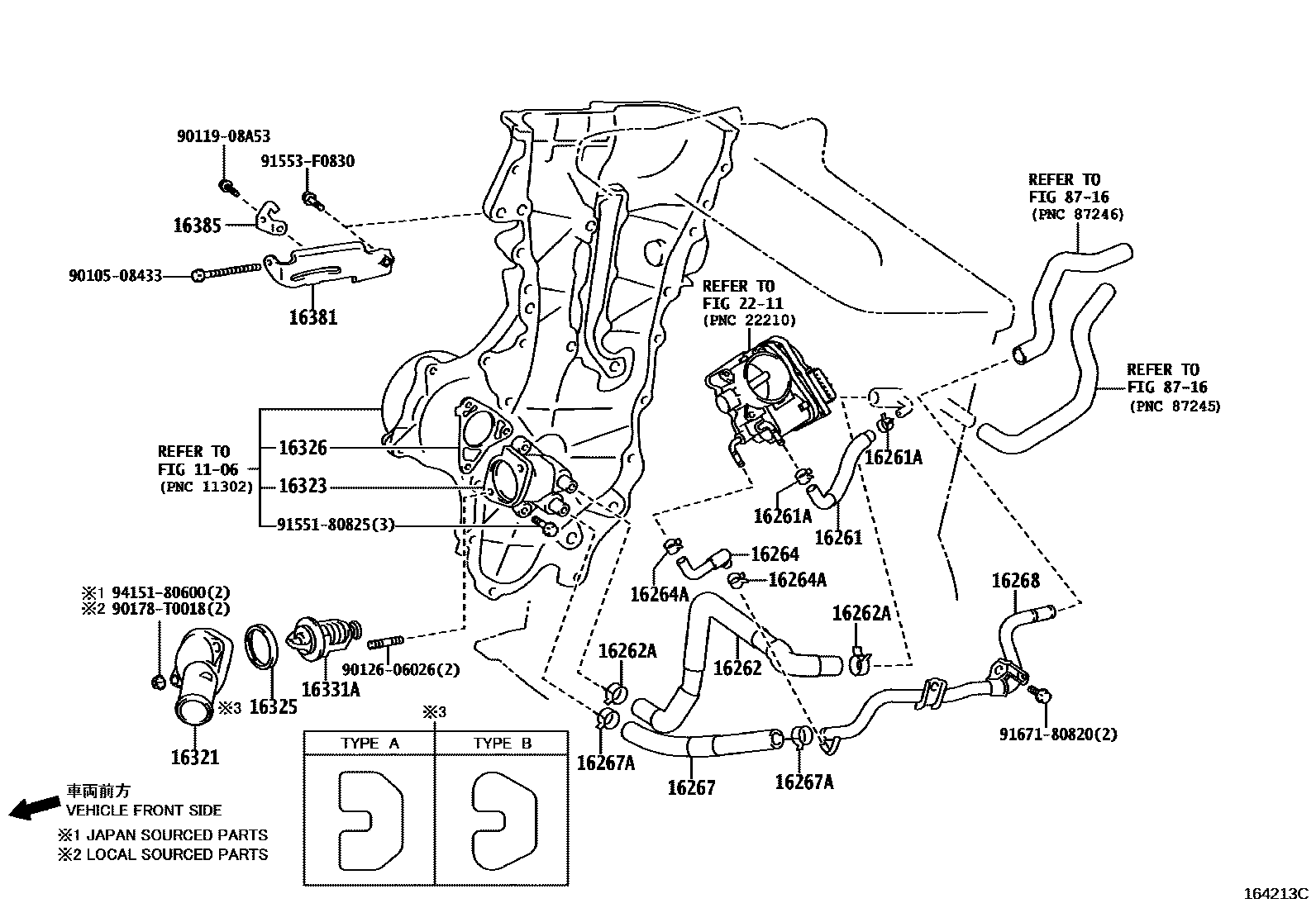

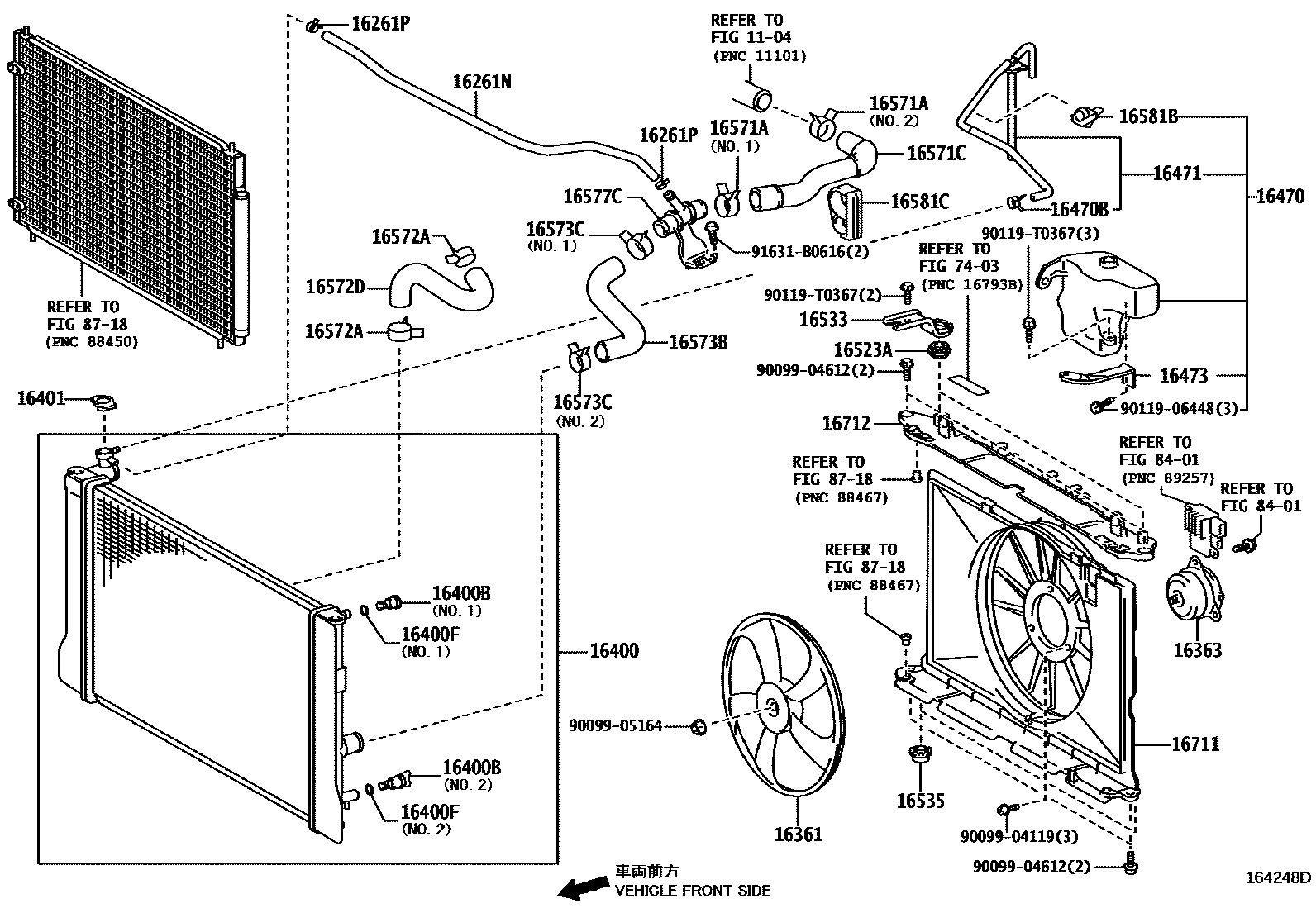

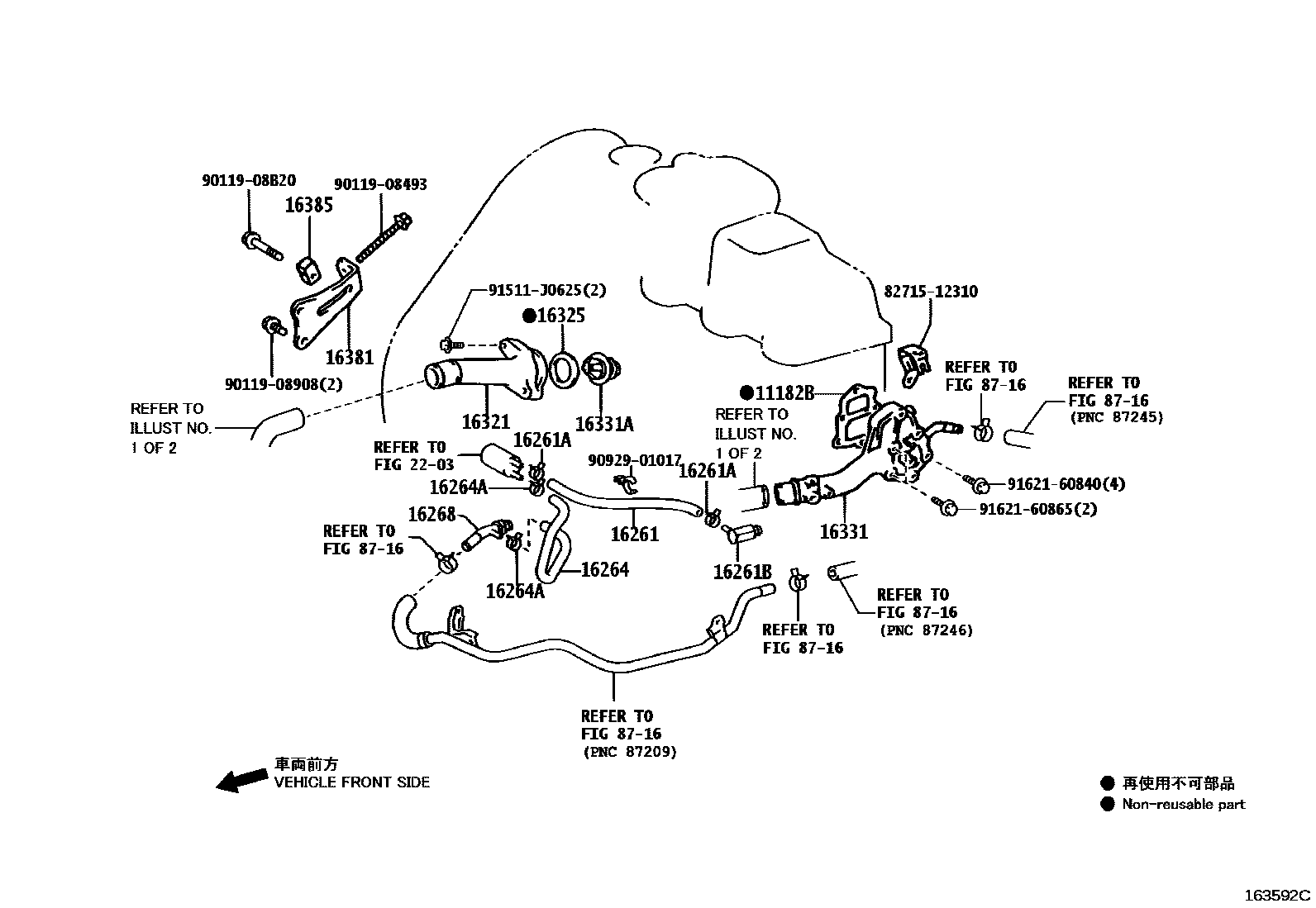

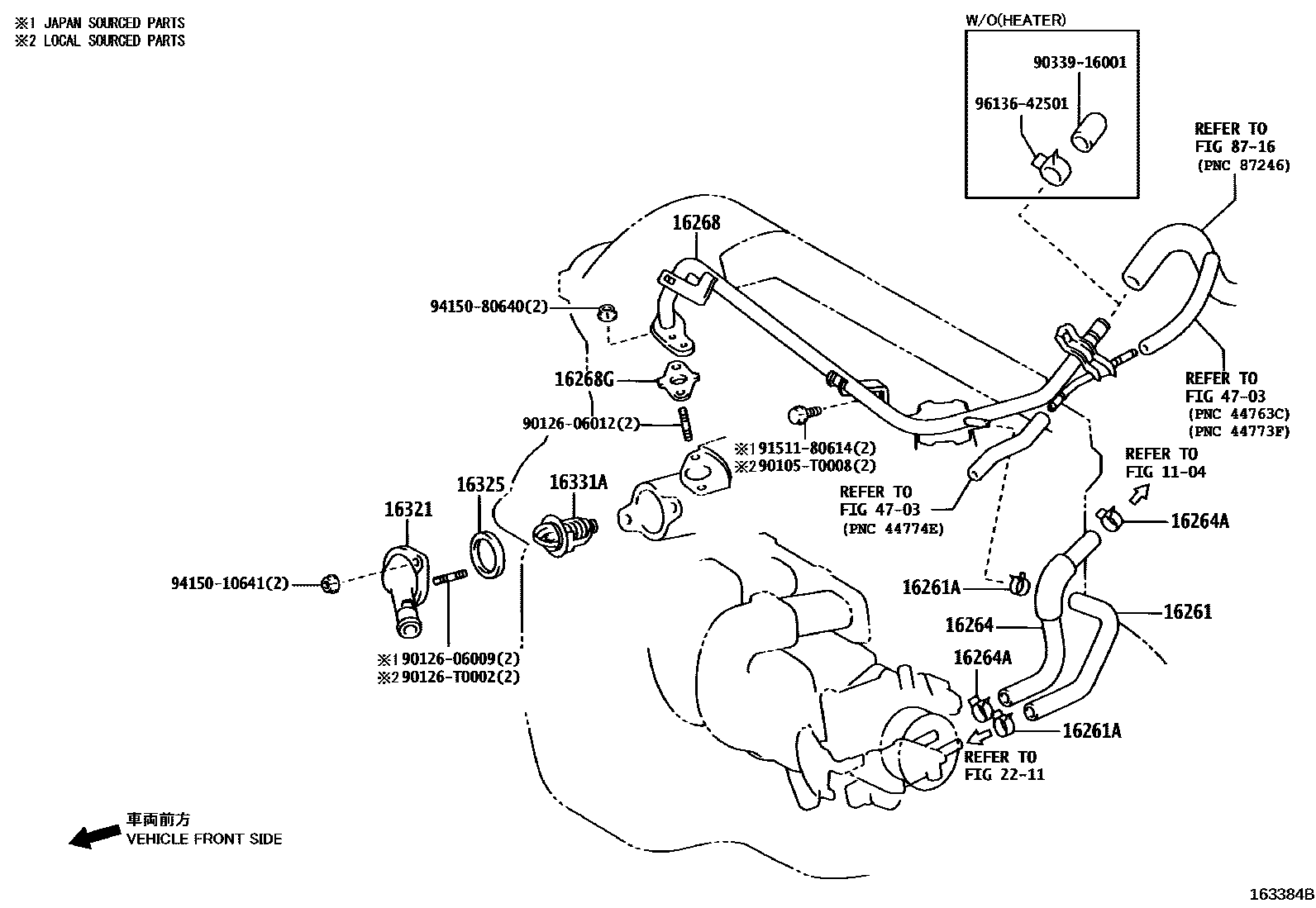

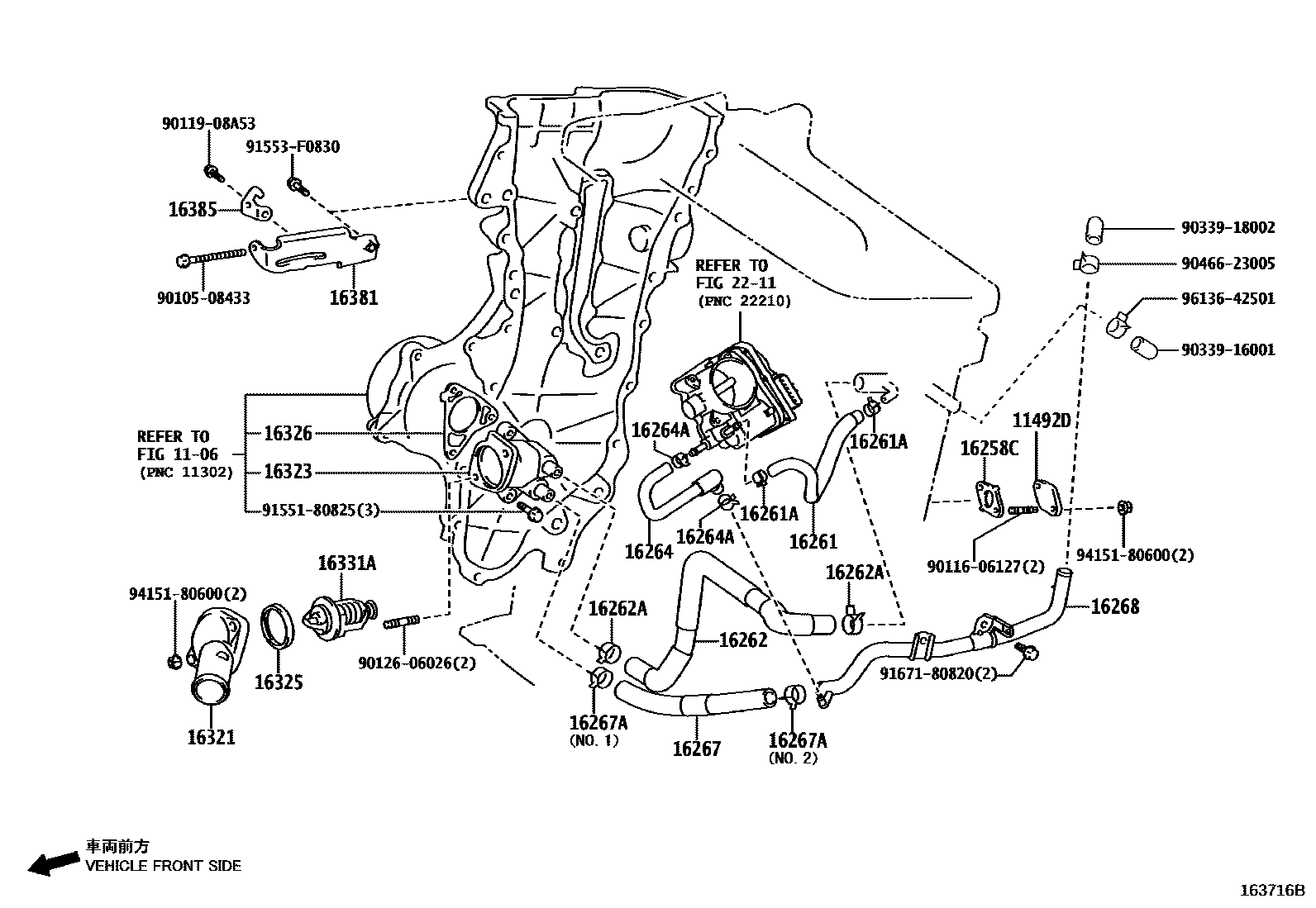

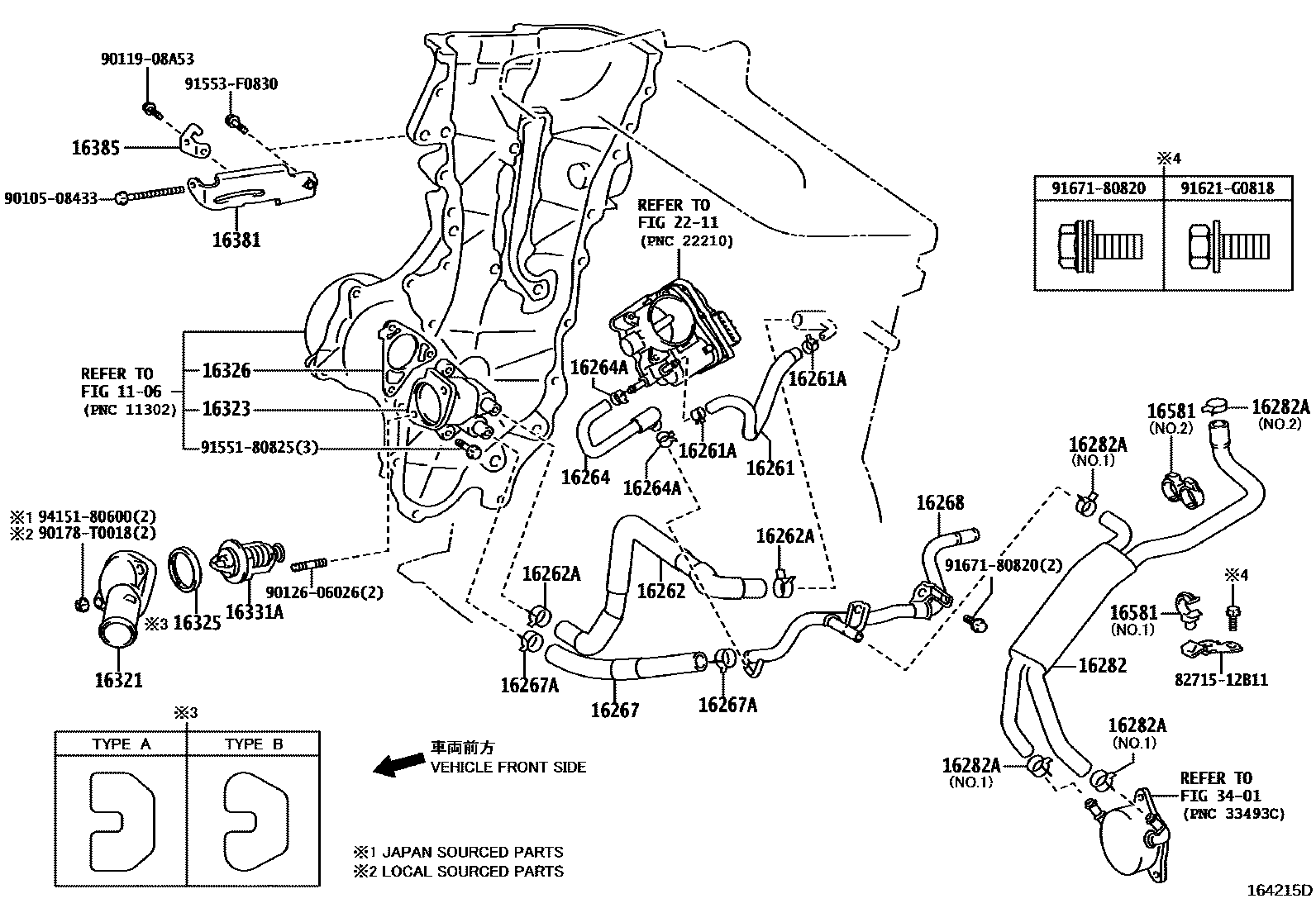

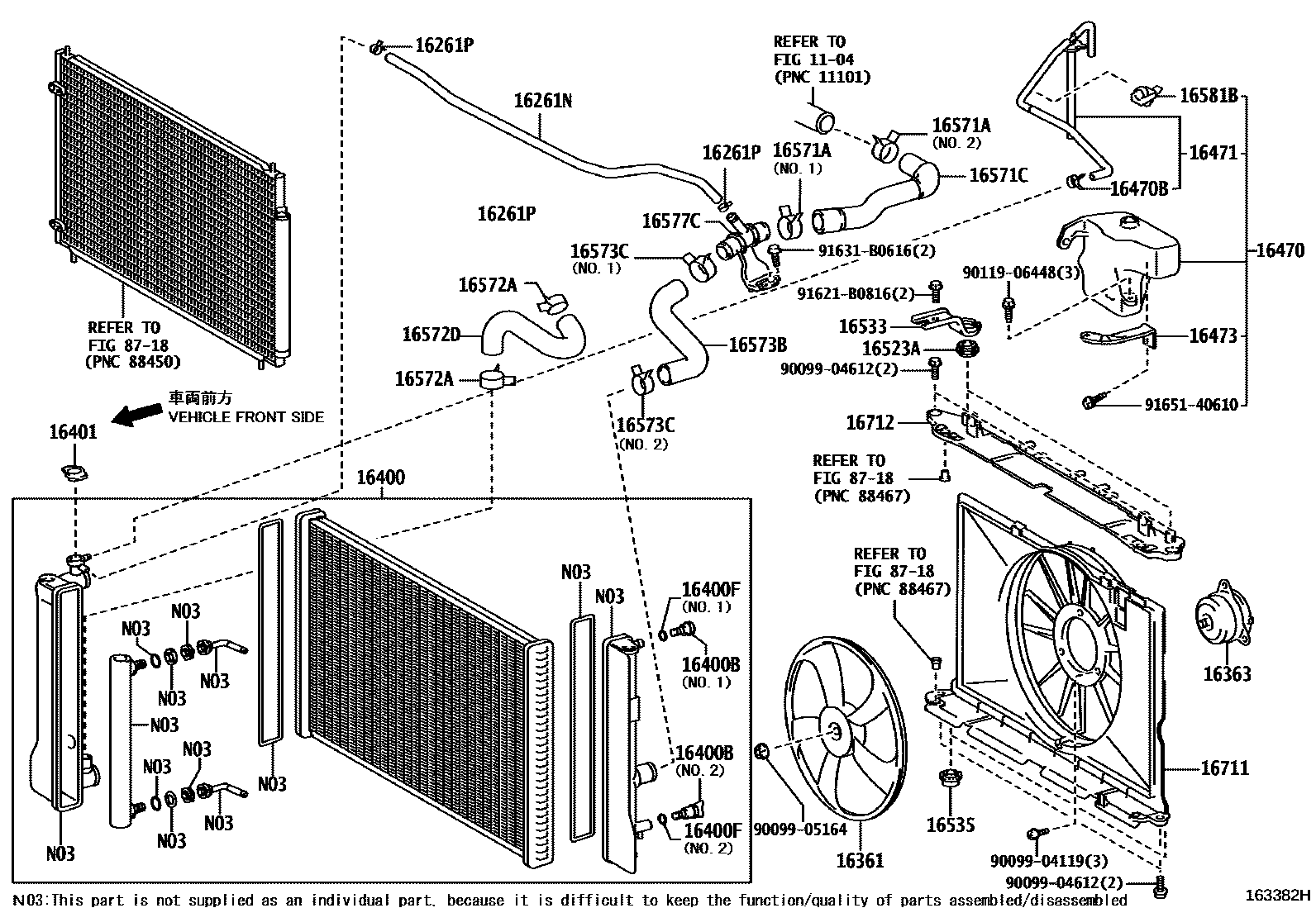

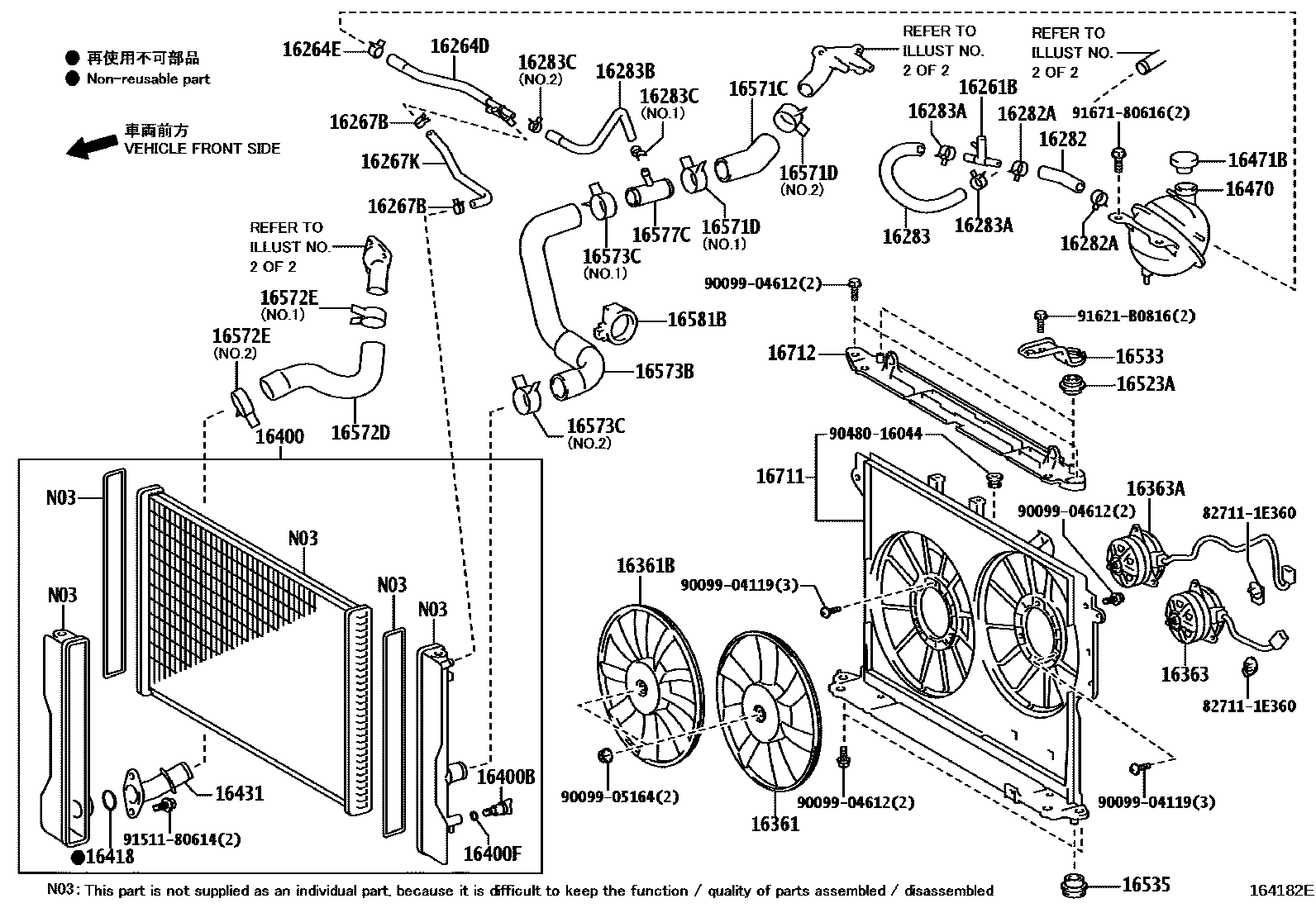

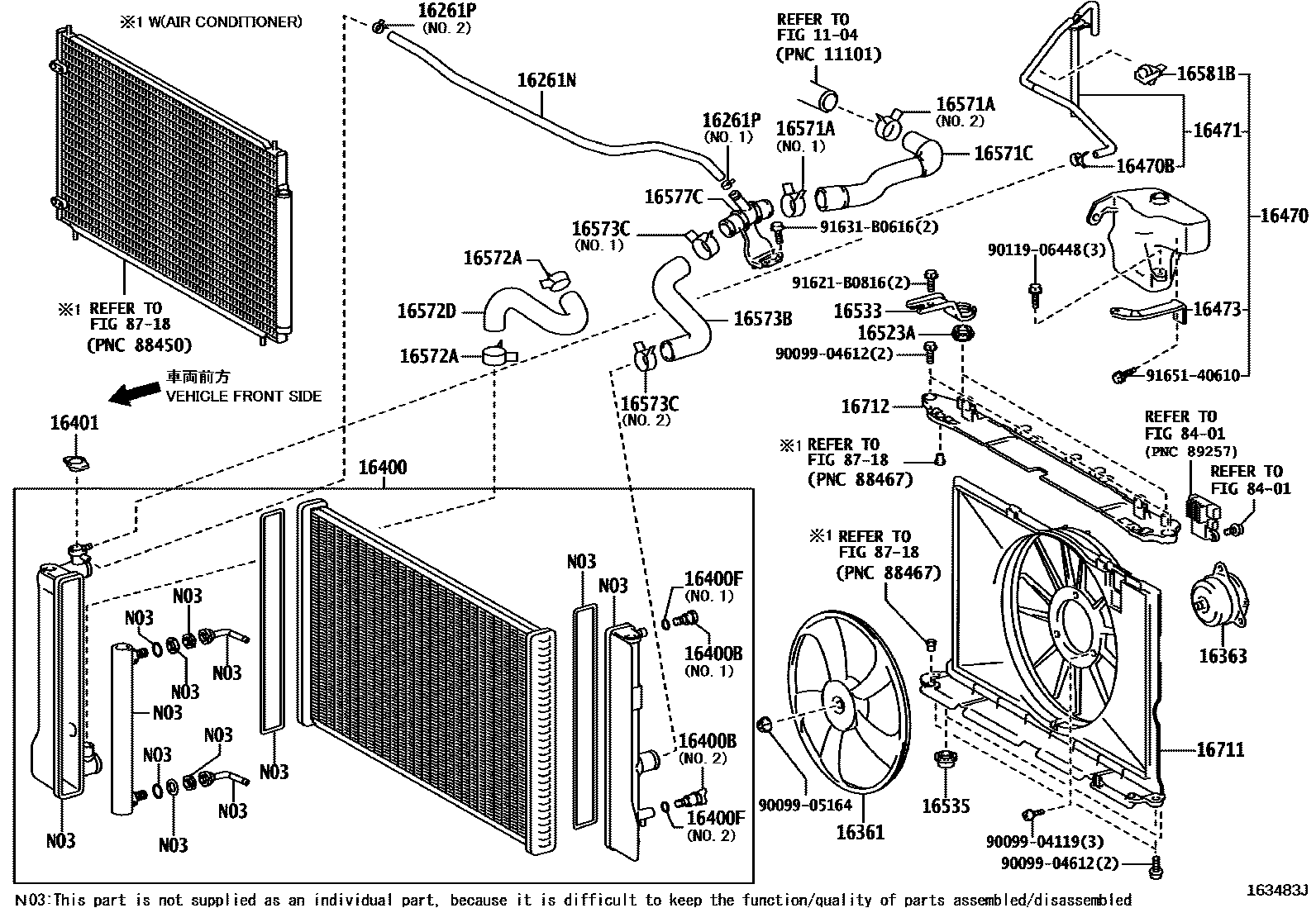

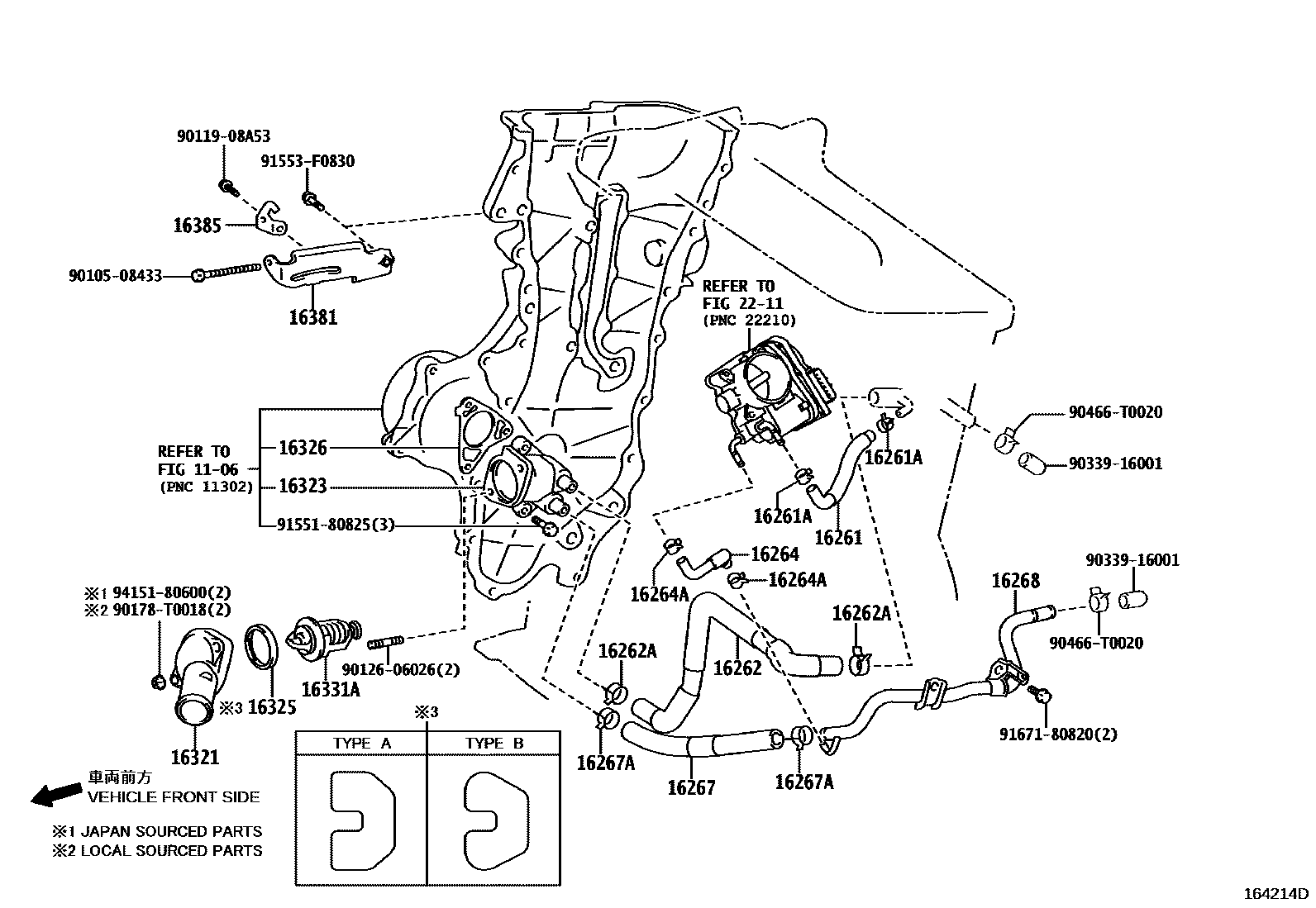

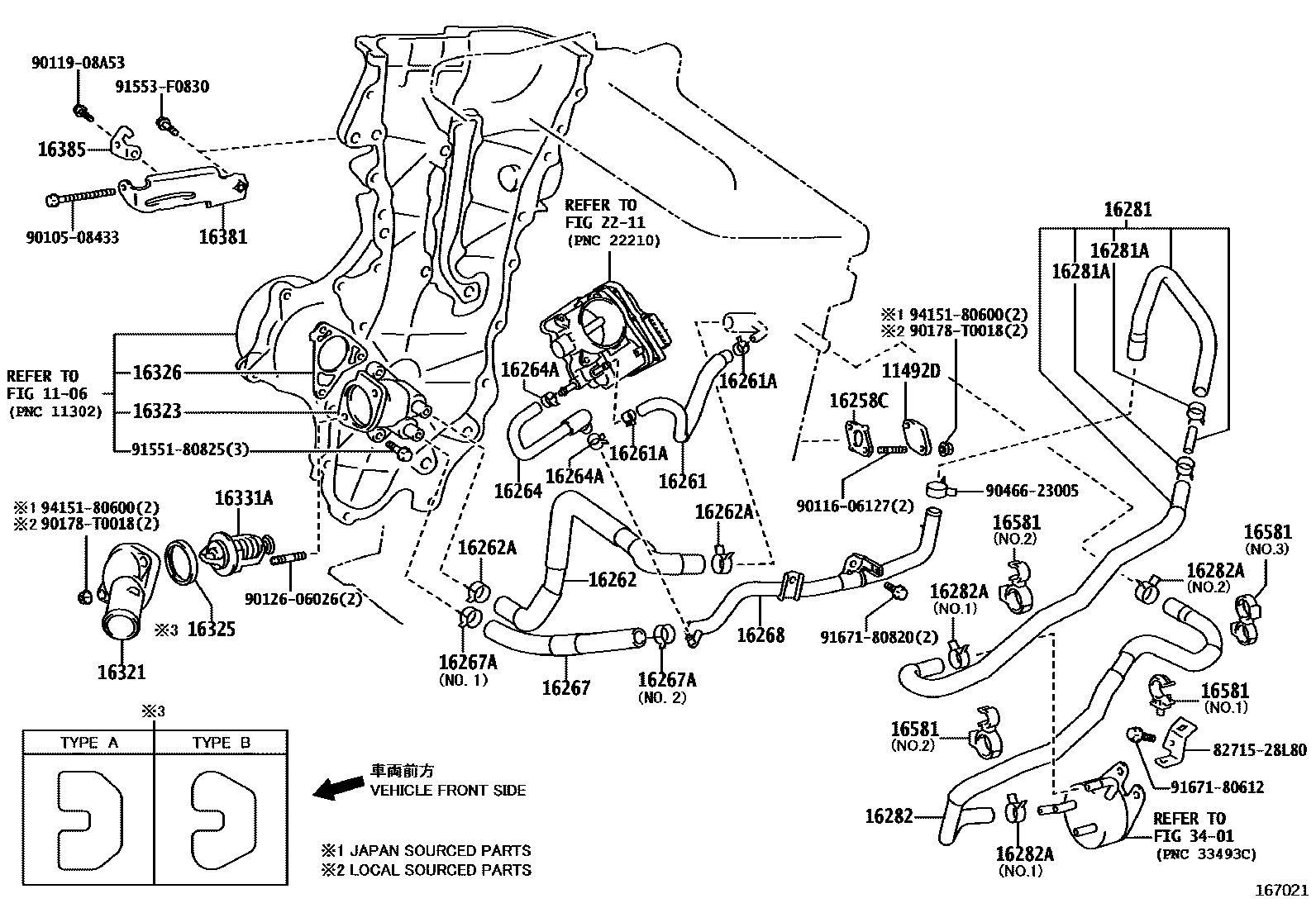

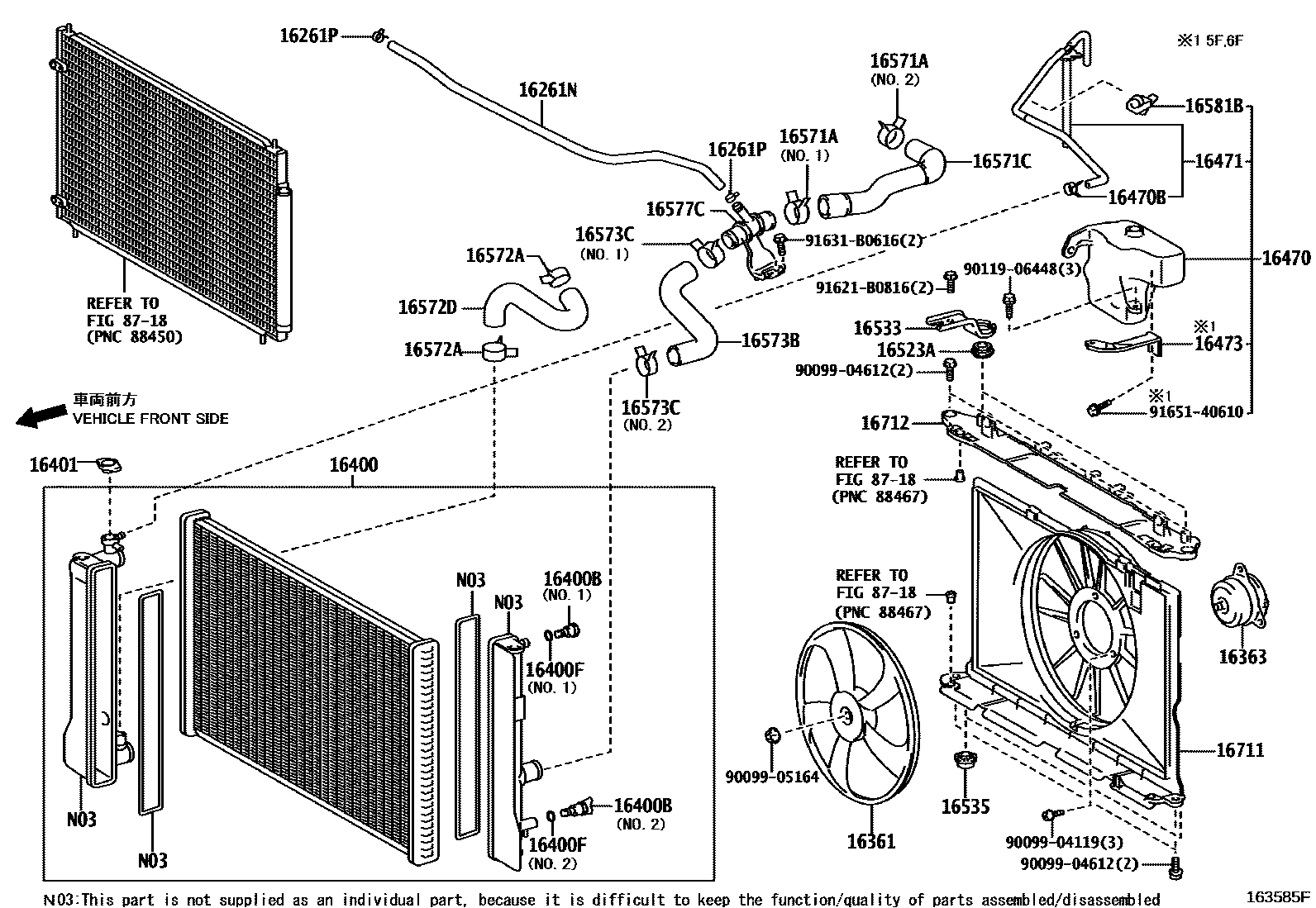

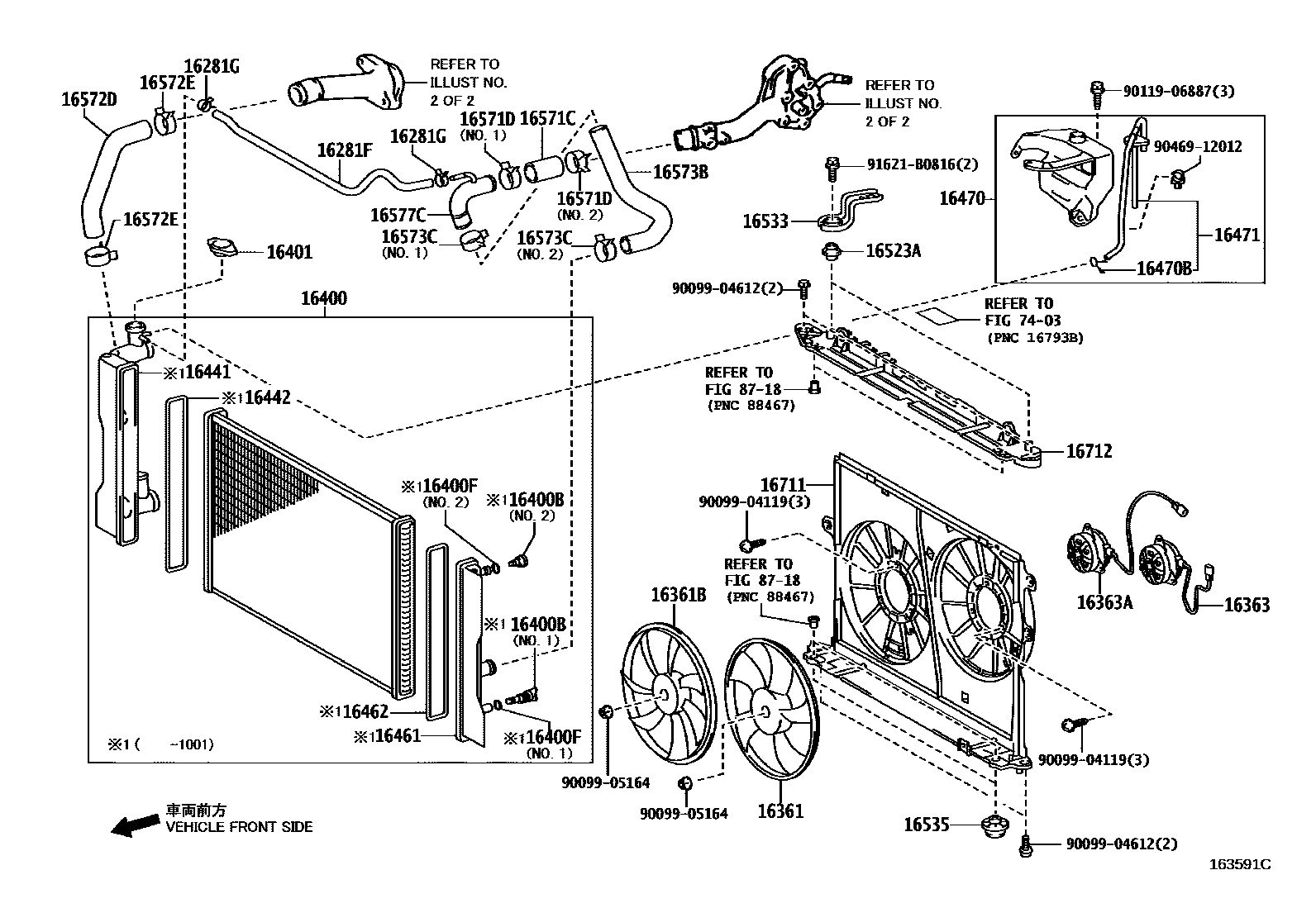

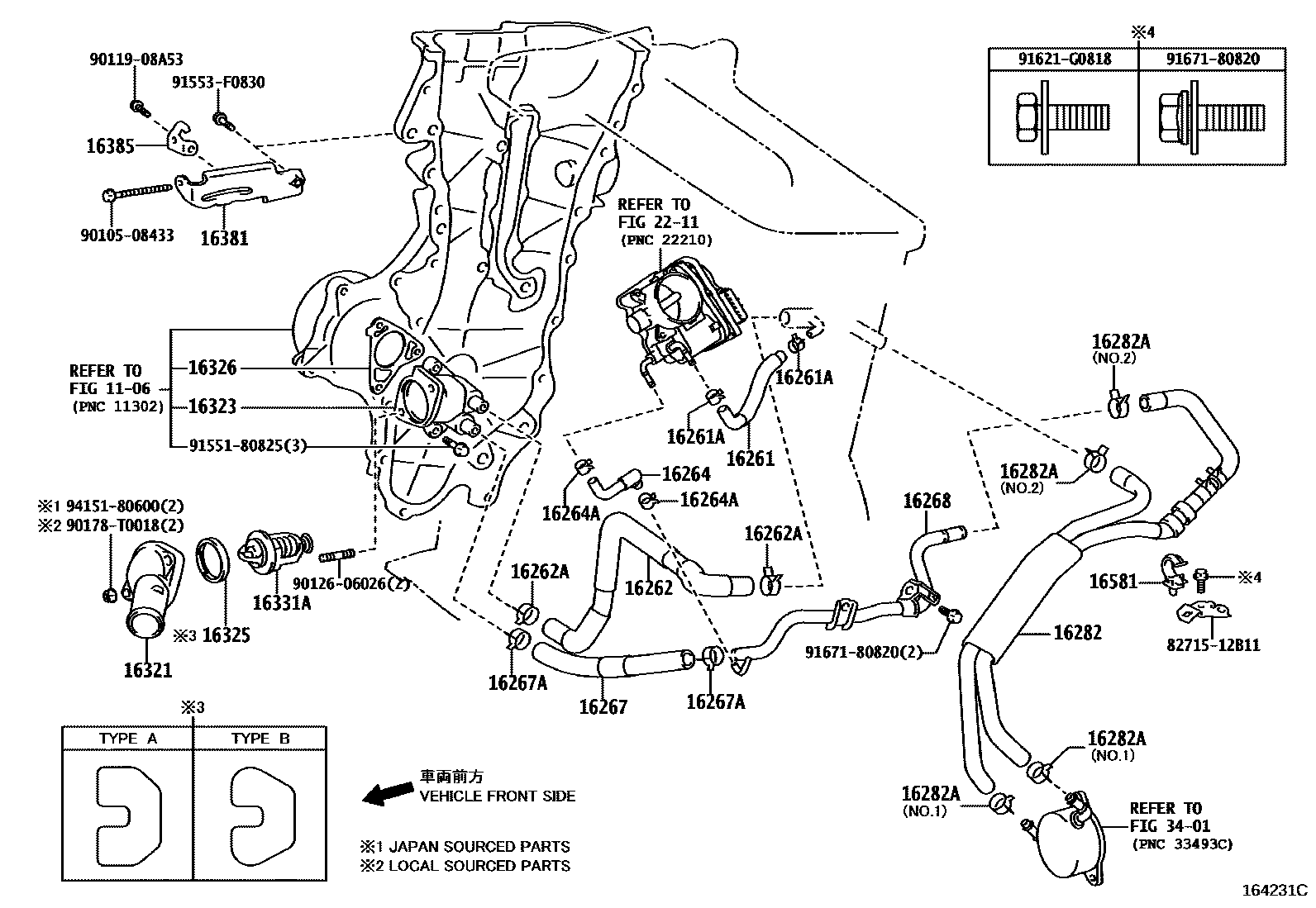

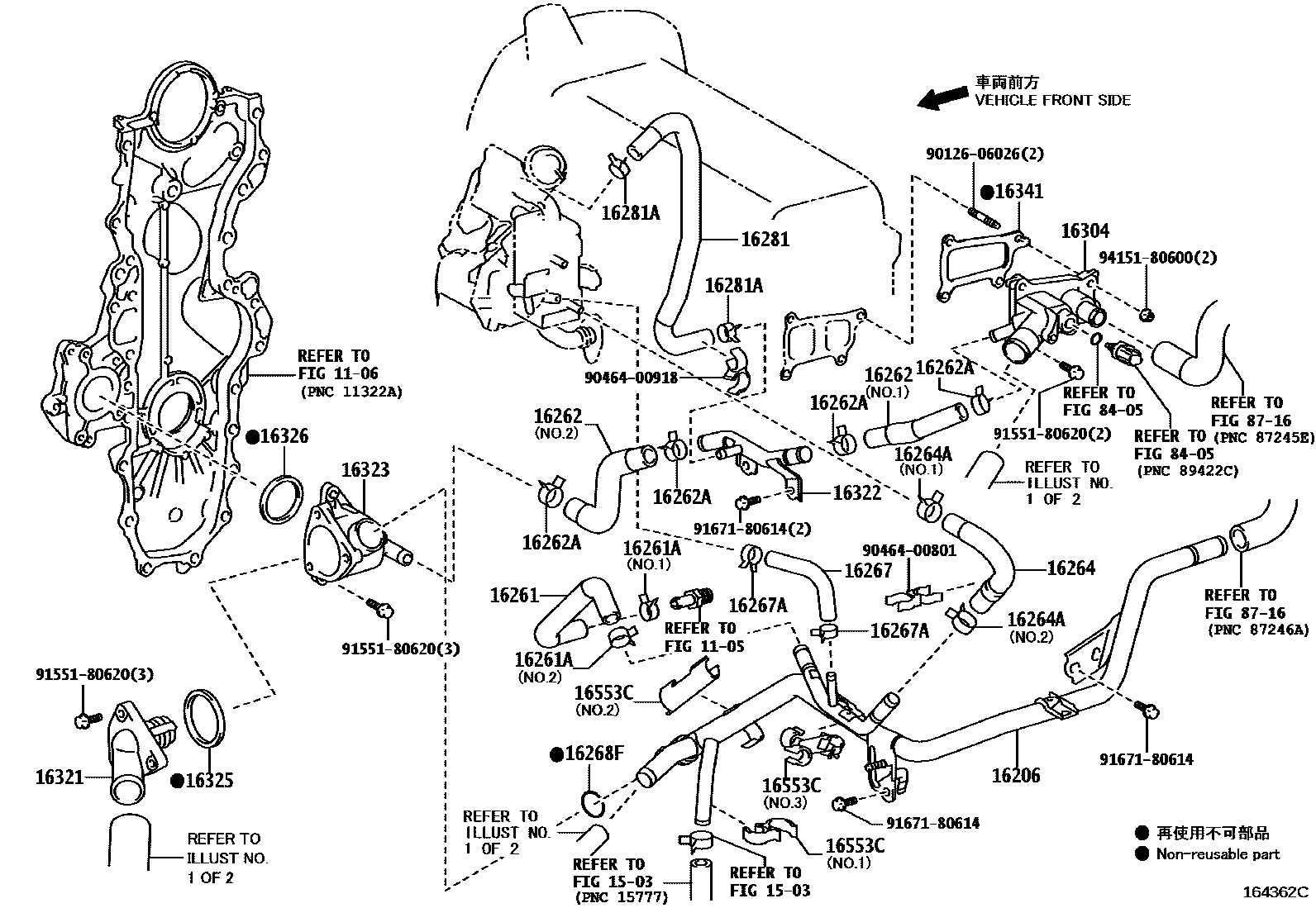

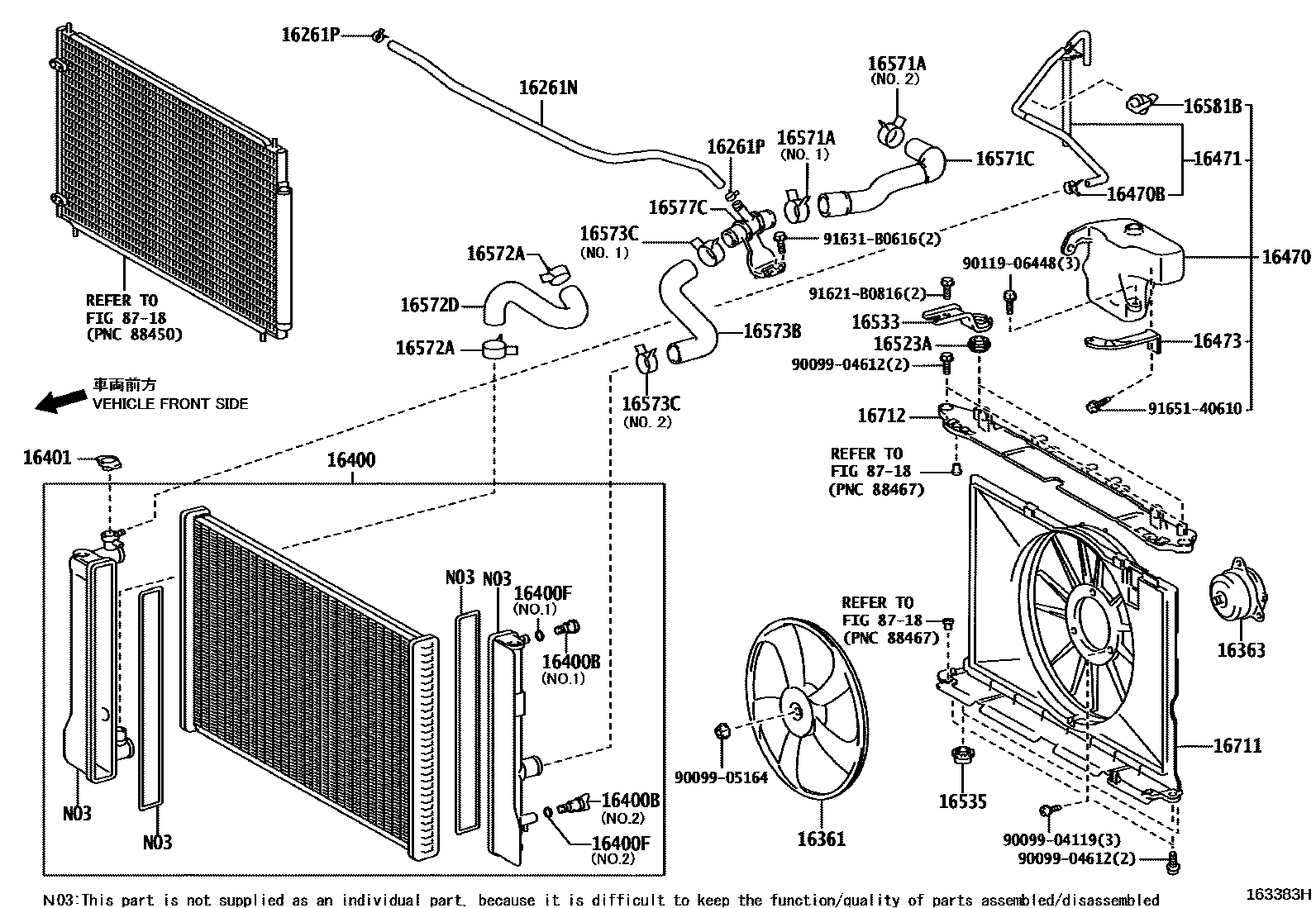

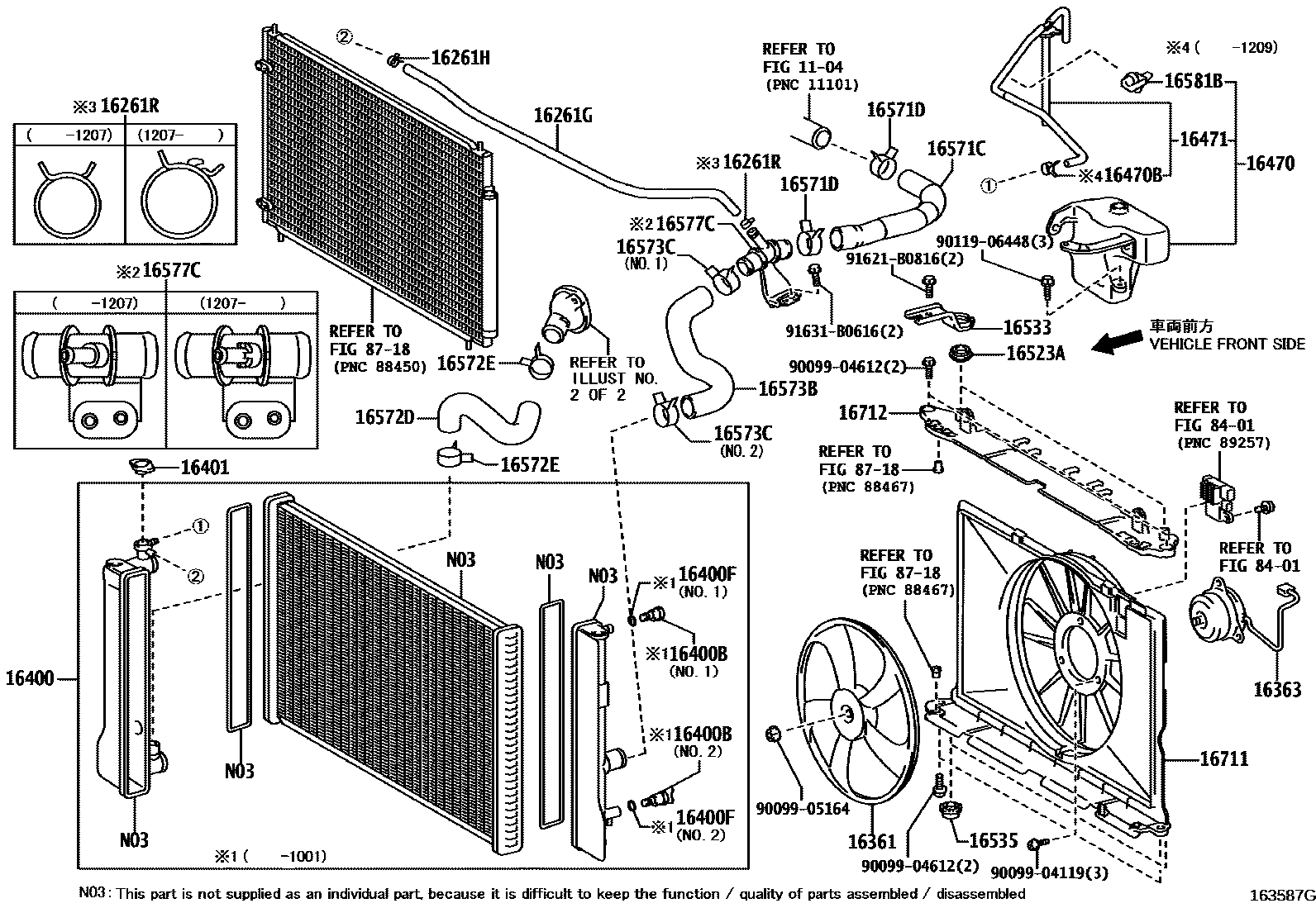

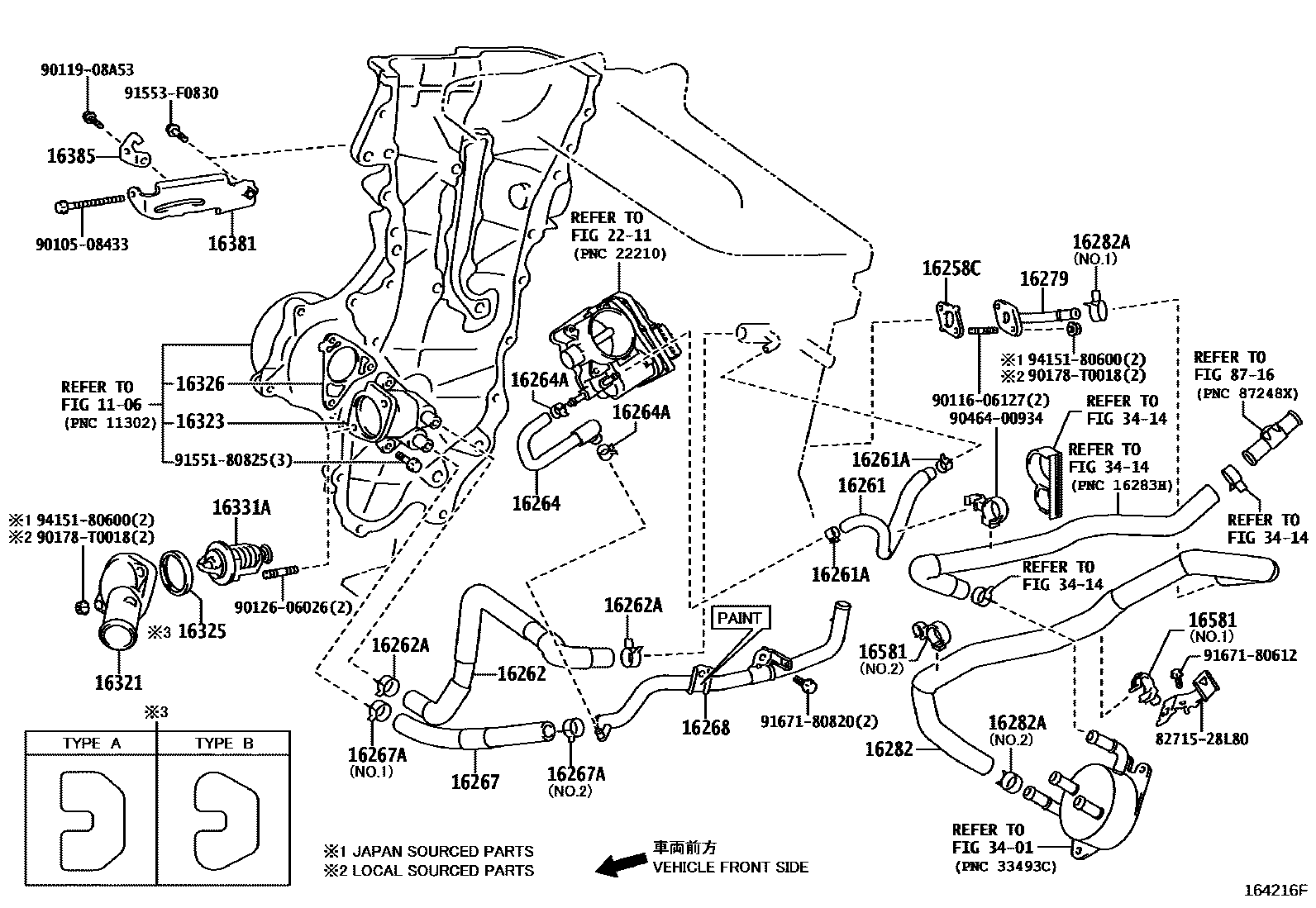

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 24 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 11492D | No. 1 sealing plate | 11492-37010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-33040 · 16206-33041 |
| 16258C | Gasket (for water bypass pipe) | 16258-28040 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D210 · 16261-0T110 · 16261-0T111 · 16261-0T120 · 16261-0T121 · 16261-21090 · 16261-22142 · 16261-33050 · 16261-37021 · 16261-37022 · 16261-37051 · 16261-37052 · 16261-64060 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 · 90467-15022 · 96135-51300 · 96136-41501 · 96137-41501 · 96137-41701 · 96137-41901 |
| 16261B | Connector (for water bypass hose) | 87251-17010 · 90404-53075 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-22110 · 16261-22111 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0D180 · 16261-0D181 · 16261-0D200 · 16261-0D220 · 16261-22110 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96136-41901 |
| 16261R | Clip or clip (for water bypass hose) | 90467-15022 · 96136-41901 |
| 16262 | water inlet hose | 16262-0T020 · 16262-33010 · 16262-33011 · 16262-37010 · 16263-33010 · 16263-33030 |
| 16262A | Clamp (for water inlet hose) | 90466-T0020 · 96136-42501 · 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D160 · 16264-0T070 · 16264-0T071 · 16264-0T080 · 16264-0T081 · 16264-21070 · 16264-22123 · 16264-33030 · 16264-37021 · 16264-37022 · 16264-37041 · 16264-37042 · 16264-64090 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 · 90467-15022 · 96135-51300 · 96136-41501 · 96137-41501 · 96137-41701 · 96137-41901 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-33060 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96136-52101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T040 · 16267-0T050 · 16267-33030 · 16267-37010 · 16267-37020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0020 · 96136-41501 · 96136-42501 · 96136-52701 |
| 16267B | Clip (for water bypass hose) | 90467-15022 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-33050 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D090 · 16268-0D091 · 16268-21022 · 16268-22160 · 16268-22161 · 16268-37021 · 16268-37031 · 16268-37041 · 16268-64061 |
| 16268F | O-ring (for water bypass pipe) | 90301-20016 · 96761-24021 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-21021 · 16258-22010 · 16258-28030 |
| 16279 | No. 3 water bypass pipe | 16279-37010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T090 · 16281-33030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-41501 · 96136-42501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-64020 · 16281-64021 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-0T020 · 16260-37010 · 16282-0T040 · 16282-33060 · 16282-37040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-T0020 · 96134-41900 · 96136-42101 · 96136-42501 · 96136-52201 · 96136-52501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-33030 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-52501 |
| 16283B | HOSE, WATER BY-PASS | 16281-33090 |
| 16283C | Clip or clip (for water bypass hose) | 90467-15022 · 96136-51901 |
| 16304 | Water outlet sub-assembly | 16304-33010 · 16304-33011 |
| 16321 | water inlet | 16321-21020 · 16321-22070 · 16321-33020 · 16321-33050 · 16321-37010 · 16321-64020 |
| 16322 | PIPE, WATER INLET | 16322-33010 |
| 16323 | HOUSING, WATER INLET | 16323-0T060 · 16323-33010 · 16323-33030 · 16323-37020 · 16323-37021 · 16323-37030 · 16323-37031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-28010 · 16325-33010 · 16325-62010 · 16325-63011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-33010 · 16326-33030 · 16326-37010 |
| 16331 | Water outlet | 16331-64150 |
| 16331A | thermostat | 90916-03046 · 90916-03093 · 90916-03125 · 90916-03129 · 90916-03143 · 90916-03144 · 90916-03145 |
| 16341 | GASKET, WATER OUTLET | 16341-33010 |
| 16361 | Fan | 16361-0D200 · 16361-0D201 · 16361-0D230 · 16361-0D231 · 16361-0D270 · 16361-21110 · 16361-28320 · 16361-37010 |
| 16361B | Fan No. 2 | 16361-28330 · 16361-28360 |
| 16363 | cooling fan motor | 16363-0D160 · 16363-0M010 · 16363-0T100 · 16363-0T140 · 16363-22120 · 16363-28150 · 16363-28200 · 16363-33030 · 16363-64220 |
| 16363A | Cooling fan motor No. 2 | 16363-33040 · 16363-64250 |
| 16381 | Fan belt adjustment lever | 16381-21020 · 16381-37020 · 16381-37030 · 16381-37040 · 16381-64080 |
| 16385 | Fan belt adjustment slider | 16385-37010 · 16385-64011 |
| 16400 | Radiator assembly | 16400-0N090 · 16410-0B050 · 16410-0B051 · 16410-0D390 · 16410-0D410 · 16410-0D420 · 16410-0D430 · 16410-0D450 · 16410-0D480 · 16410-0D481 · 16410-0D510 · 16410-0D520 · 16410-0T060 · 16410-22150 · 16410-22160 · 16410-64640 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-21280 · 16417-28530 |
| 16400F | Seal (for radiator drain switch) | 16418-20290 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-05040 · 16401-0T010 · 16401-20353 · 16401-72090 · 16401-7A020 |
| 16418 | Seals | 16492-31480 |
| 16431 | Radiator water inlet | 16431-33010 |
| 16441 | Radiator water tank | 16441-64A00 |
| 16442 | O-ring (for radiator tank) | 16462-6A300 |
| 16461 | Radiator lower tank | 16461-22290 |
| 16462 | O-ring (for radiator lower tank) | 16462-6A300 |
| 16470 | Radiator reservoir assembly | 16470-0B020 · 16470-0D050 · 16470-0D060 · 16470-0D100 · 16480-27021 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90466-11003 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0D100 · 16405-0D110 · 16405-64130 |
| 16471B | Reservoir tank cover | 16475-51010 |
| 16473 | Bracket (for radiator reservoir) | 16473-64260 |
| 16523A | Radiator bracket cushion | 16523-0D060 · 16523-0D070 · 16523-21050 |
| 16533 | Radiator upper bracket | 16533-0D060 · 16533-0D070 · 16533-22070 |
| 16535 | Radiator lower support | 16535-0D140 · 16535-0D150 · 16535-74230 |
| 16553C | hose clamp | 16581-21010 · 16581-33040 · 16581-33050 · 16581-33130 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-0D270 · 16571-0D280 · 16571-0D300 · 16571-0T090 · 16571-0T100 · 16571-0T160 · 16571-0T170 · 16571-0T180 · 16571-0T230 · 16571-0T240 · 16571-21150 · 16571-22200 · 16571-33100 · 16571-64360 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 90467-33006 · 96136-43901 · 96136-44301 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0D220 · 16572-0D230 · 16572-0D250 · 16572-0N070 · 16572-0T070 · 16572-0T080 · 16572-0T120 · 16572-0T130 · 16572-0T140 · 16572-21110 · 16572-22150 · 16572-64360 |
| 16572E | No. 2 radiator hose clip | 96136-43901 · 96136-44301 |
| 16573B | Radiator hose No. 3 | 16573-0D080 · 16573-0D100 · 16573-0D120 · 16573-21070 · 16573-22040 · 16573-33030 · 16573-64110 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 90467-33006 · 96136-44301 |
| 16577C | radiator pipe | 16577-0D030 · 16577-0D040 · 16577-21030 · 16577-21031 · 16577-22030 · 16577-22031 · 16577-22040 · 16577-33020 · 16577-64050 |
| 16581 | Hose clamp (for water hose) | 16581-21030 · 16581-21060 · 16581-37010 · 16581-37050 · 16581-37110 |
| 16581B | Hose clamp (for radiator hose) | 16581-22130 · 16581-28070 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-22070 |
| 16711 | fan cover | 16711-0B030 · 16711-0D260 · 16711-0D290 · 16711-0D320 · 16711-0D321 · 16711-0D340 · 16711-0D350 · 16711-0M080 · 16711-0N080 · 16711-0T100 · 16711-0T101 · 16711-0T110 · 16711-0T111 · 16711-22171 · 16711-64560 |
| 16712 | No. 2 fan cover | 16712-0B010 · 16712-0D150 · 16712-0D180 · 16712-0D200 · 16712-0D210 · 16712-0M020 · 16712-0N040 · 16712-64270 |
