Toyota COROLLA Water Pump — Figure 1601

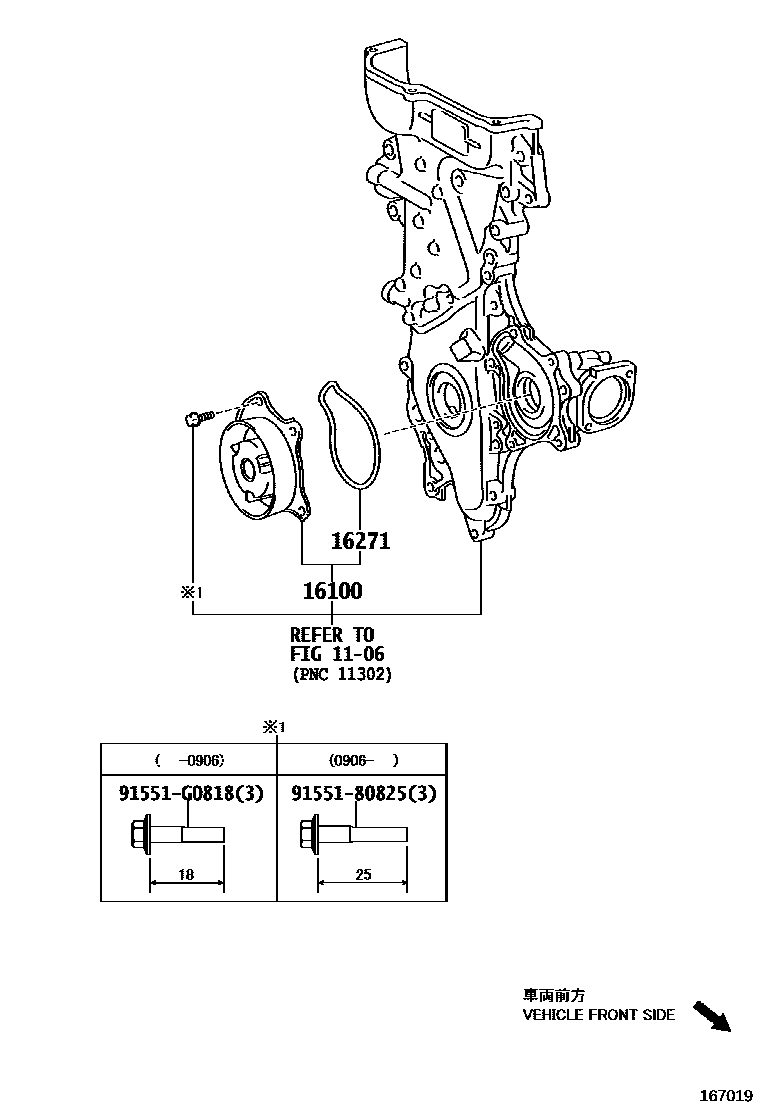

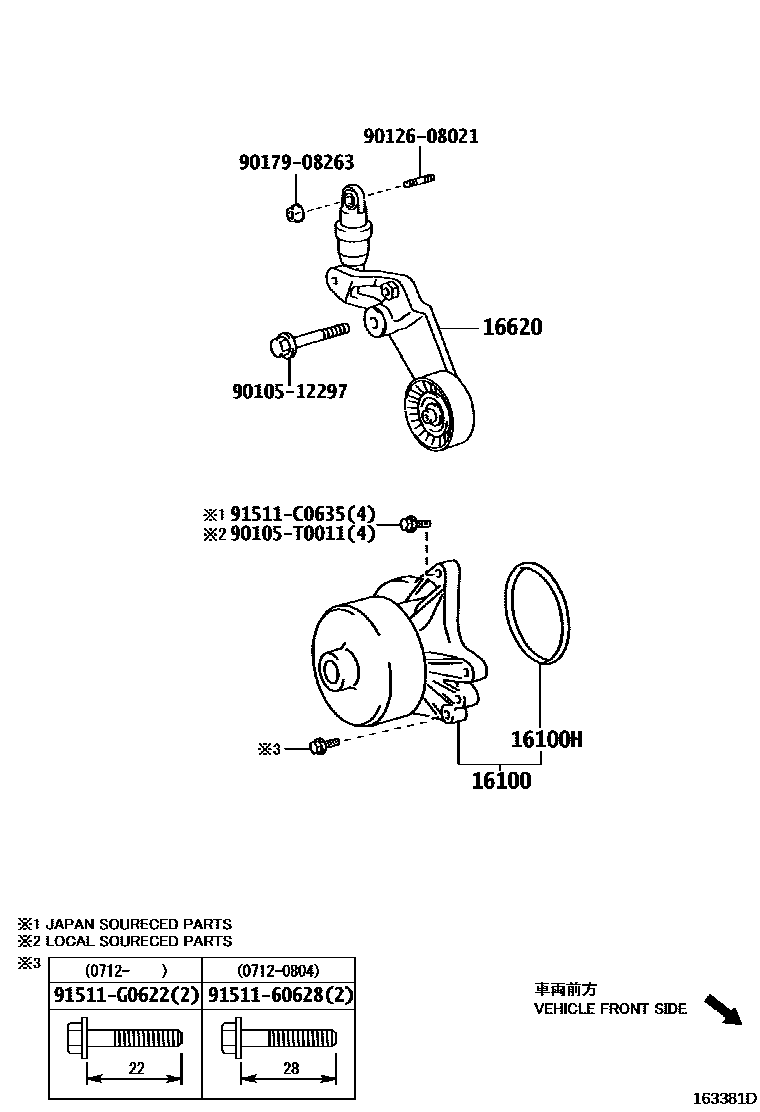

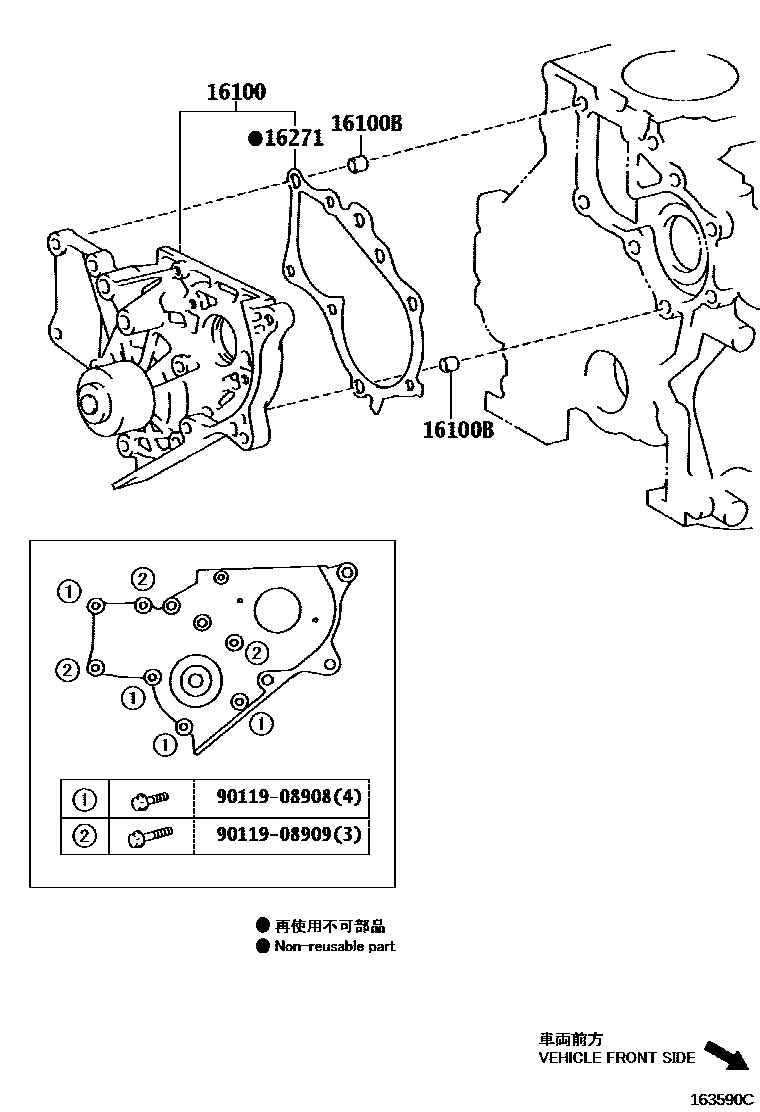

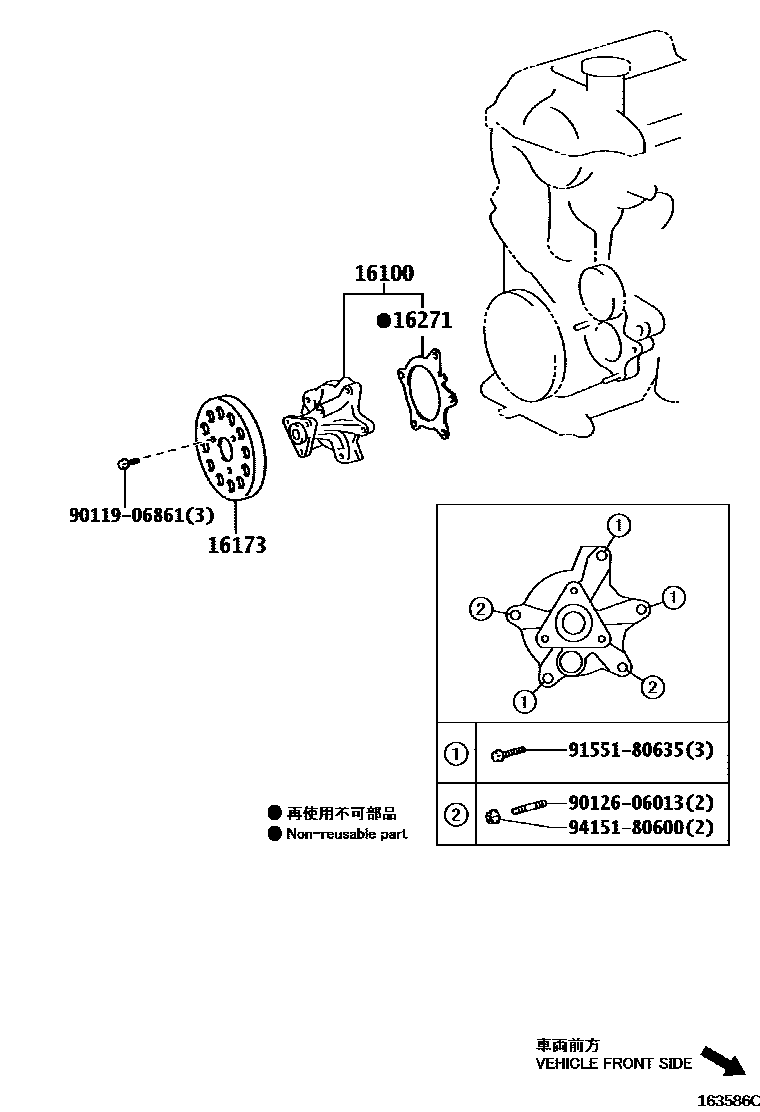

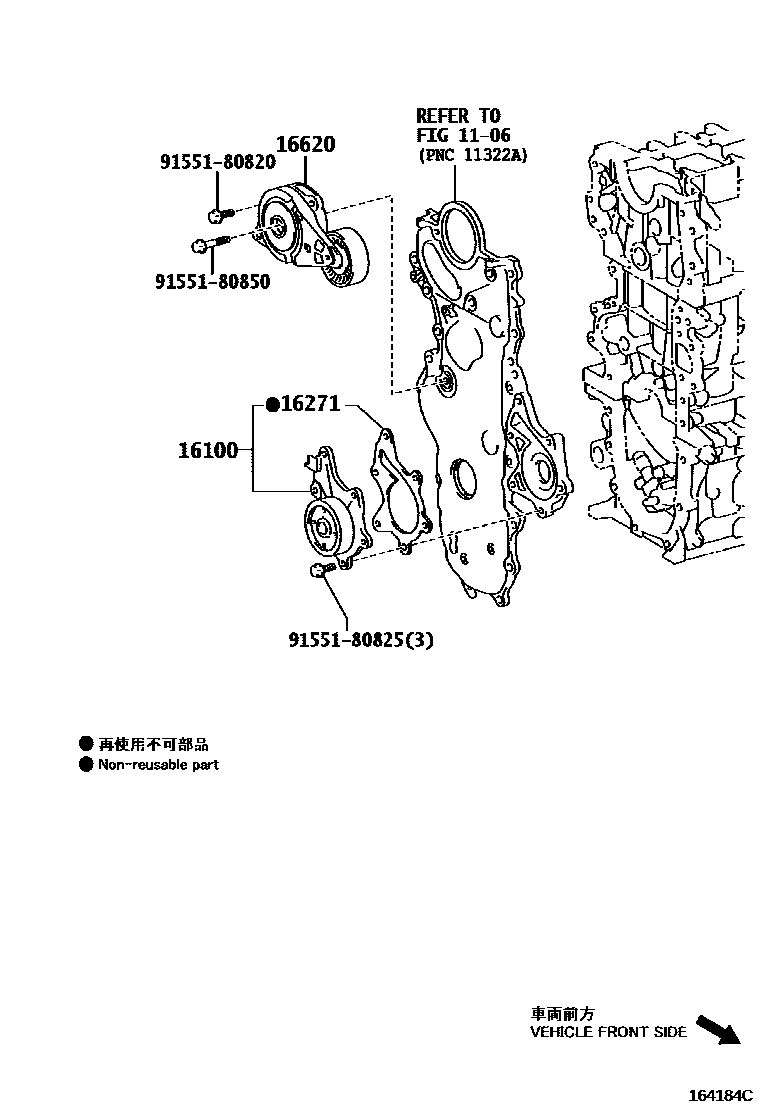

Toyota COROLLA EPC diagram 1601, Water Pump, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09150 · 16100-09151 · 16100-09570 · 16100-29156 · 16100-29157 · 16100-29415 · 16100-39465 · 16100-39466 · 16100-39525 · 16100-69435 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 90301-69006 |
| 16173 | water pump pulley | 16173-21020 |
| 16271 | water pump gasket | 16271-21020 · 16271-21021 · 16271-33030 · 16271-37010 · 16271-64031 |
| 16620 | Poly V-belt tensioner assembly | 16620-0W093 · 16620-22013 · 16620-33020 · 16620-33021 |
