Toyota COROLLA Engine Oil Cooler — Figure 1503

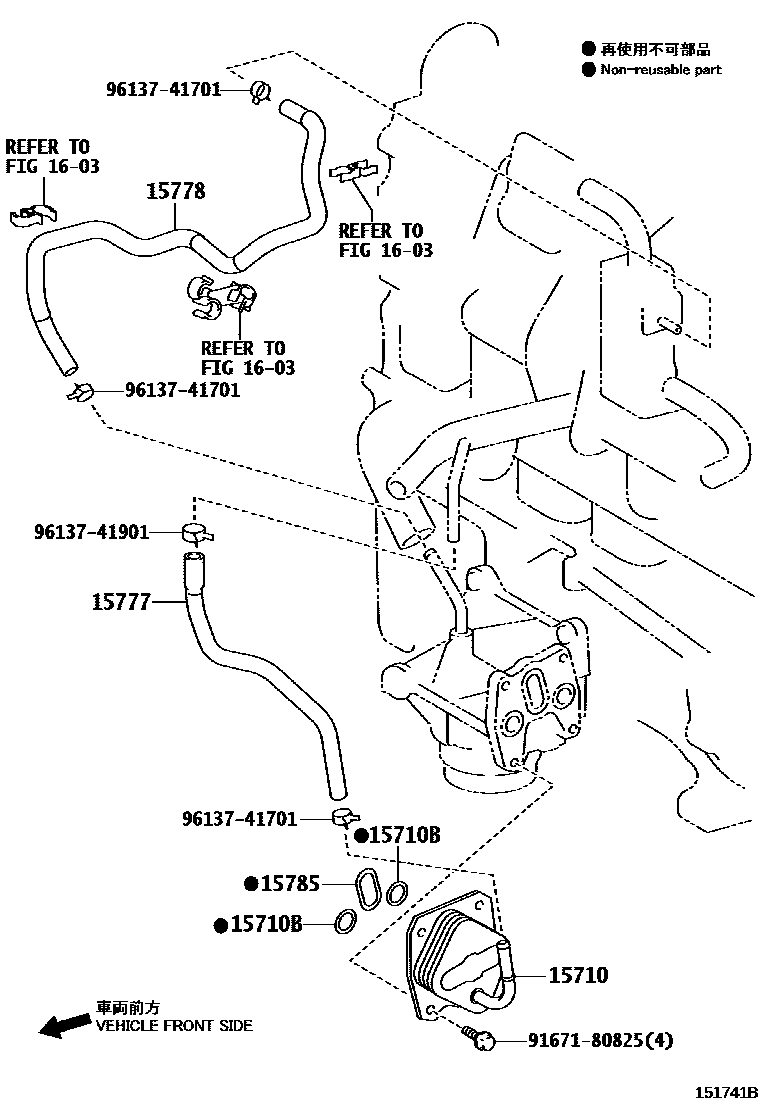

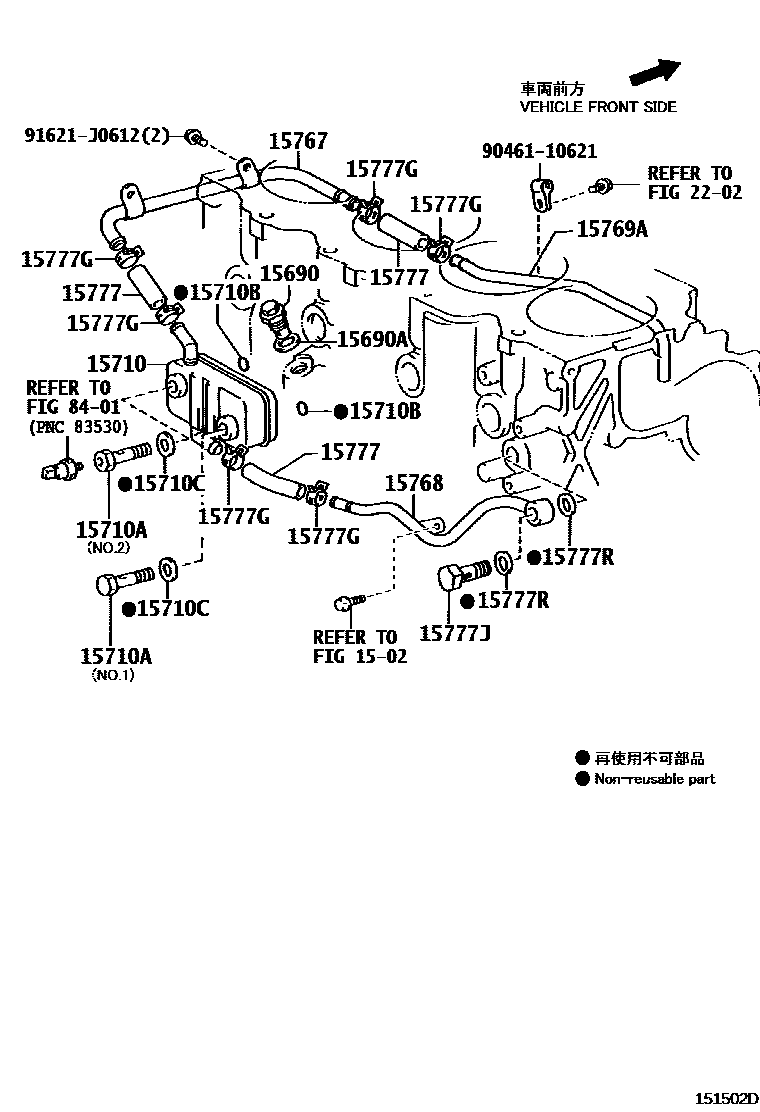

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-64010 · 15690-64011 |
| 15690A | Gasket (for oil cooler pressure reducing valve) | 90430-22003 |
| 15710 | Oil cooler assembly | 15710-33070 · 15710-64010 |
| 15710A | Connector bolt (for oil cooler) | 90401-18009 · 90401-18011 |
| 15710B | O-ring (for transmission oil cooler) | 90301-22004 · 96723-35024 |
| 15710C | Gasket (for transmission oil cooler) | 90430-18021 |
| 15767 | oil cooler pipe | 15767-64011 |
| 15768 | No. 1 oil cooler pipe | 15768-64071 |
| 15769A | No. 2 oil cooler pipe | 15769-64011 |
| 15777 | oil cooler hose | 15777-33040 · 90445-21006 |
| 15777G | Hose clips or clips | 96134-41900 |
| 15777J | Connector bolt (for oil cooler pipe) | 90401-20004 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 90430-20014 |
| 15778 | No. 2 oil cooler hose | 15778-33060 |
| 15785 | oil cooler gasket | 15785-33010 |
