Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 5 images and 16 PNC and OE references.

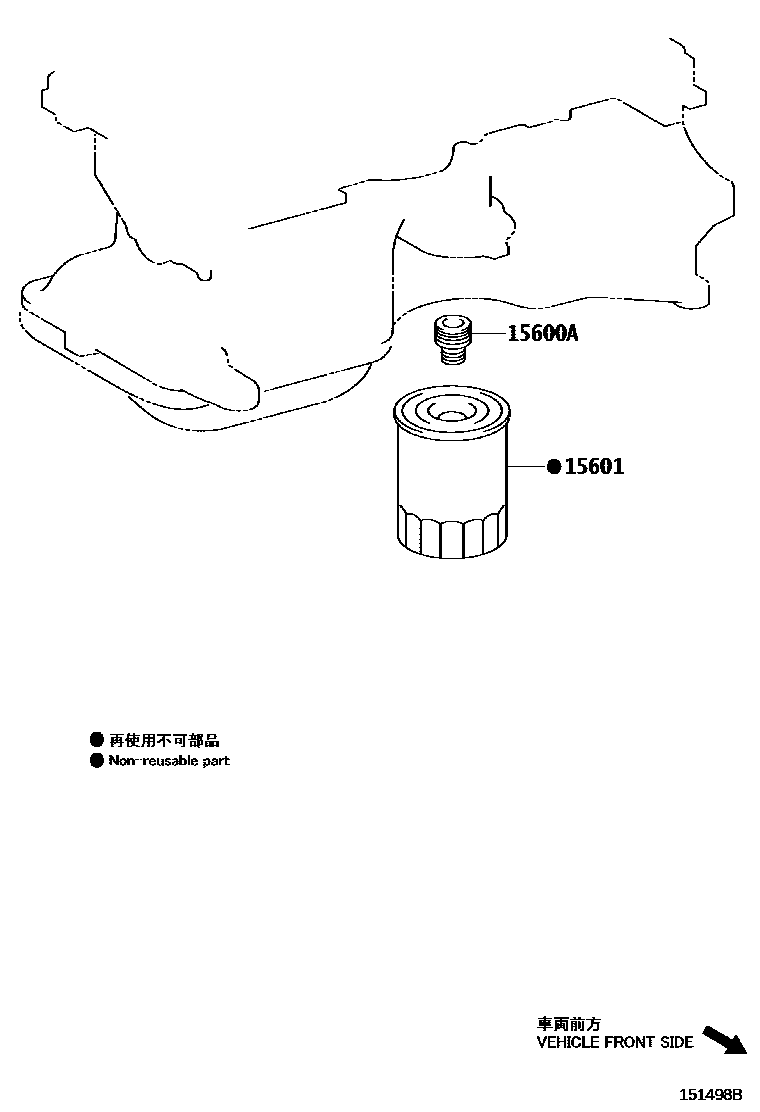

Toyota COROLLA Oil Filter EPC diagram — 151498B
Oil Filter — 151498B (200808 – 999999)

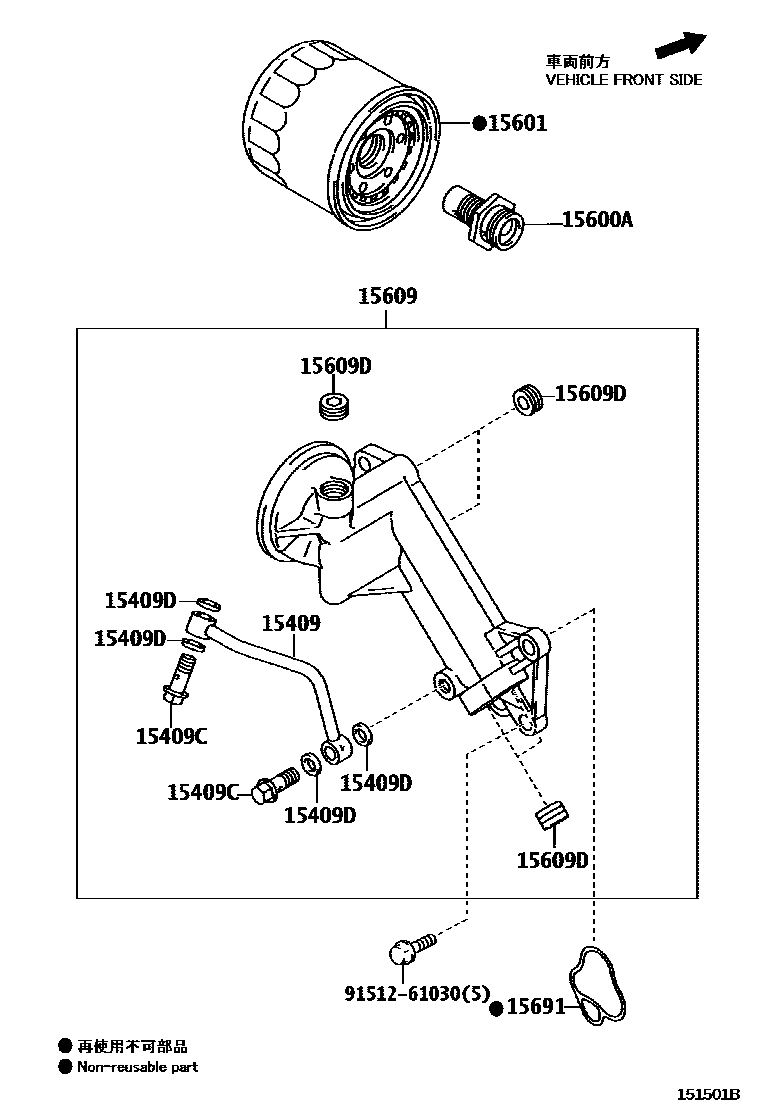

Toyota COROLLA Oil Filter EPC diagram — 151501B
Oil Filter — 151501B (200808 – 999999)

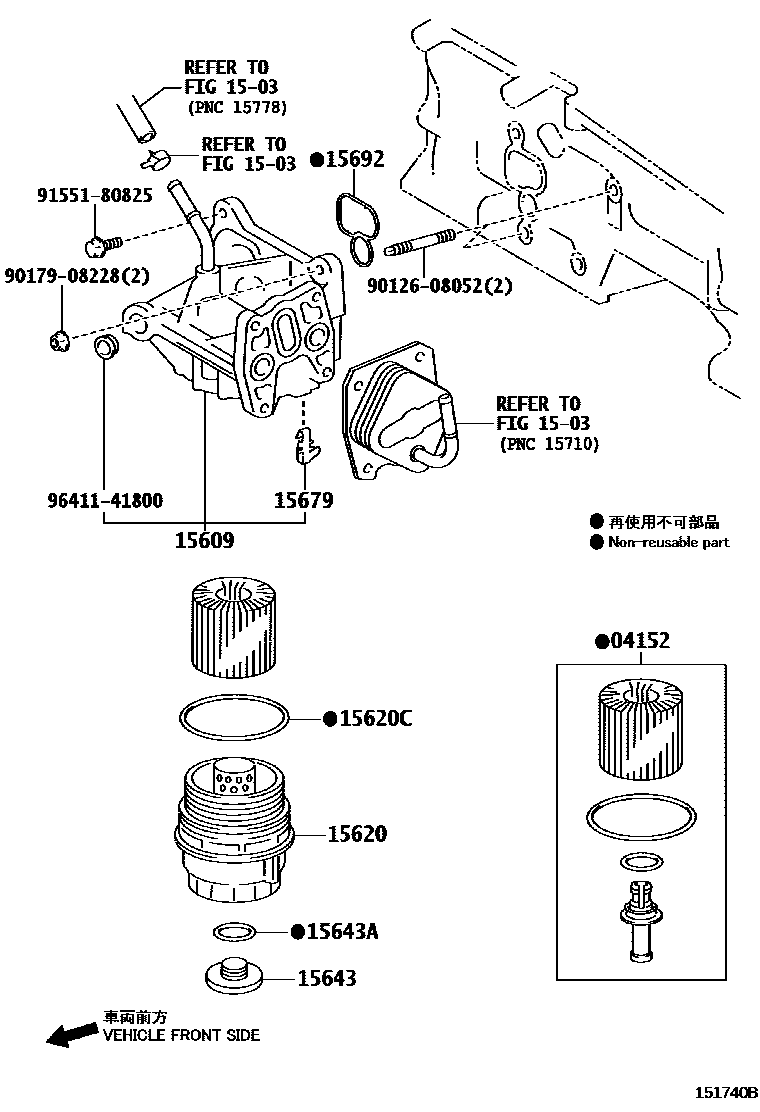

Toyota COROLLA Oil Filter EPC diagram — 151740B
Oil Filter — 151740B (201006 – 999999)

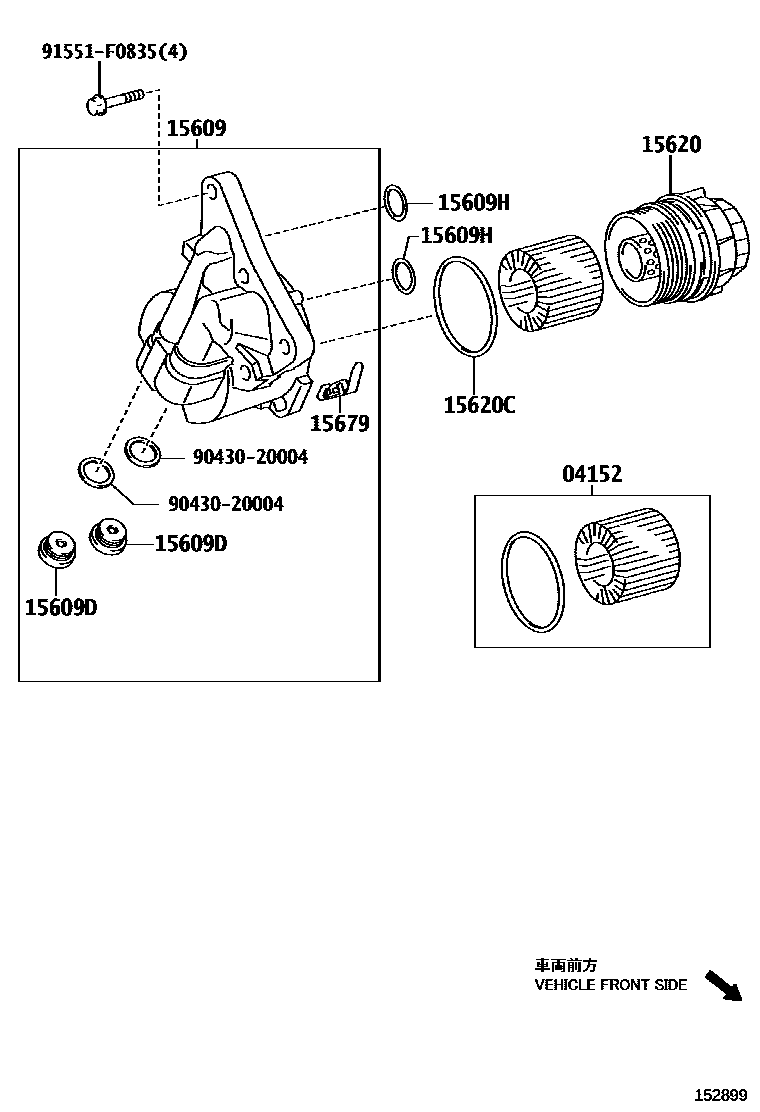

Toyota COROLLA Oil Filter EPC diagram — 152899
Oil Filter — 152899 (200811 – 999999)

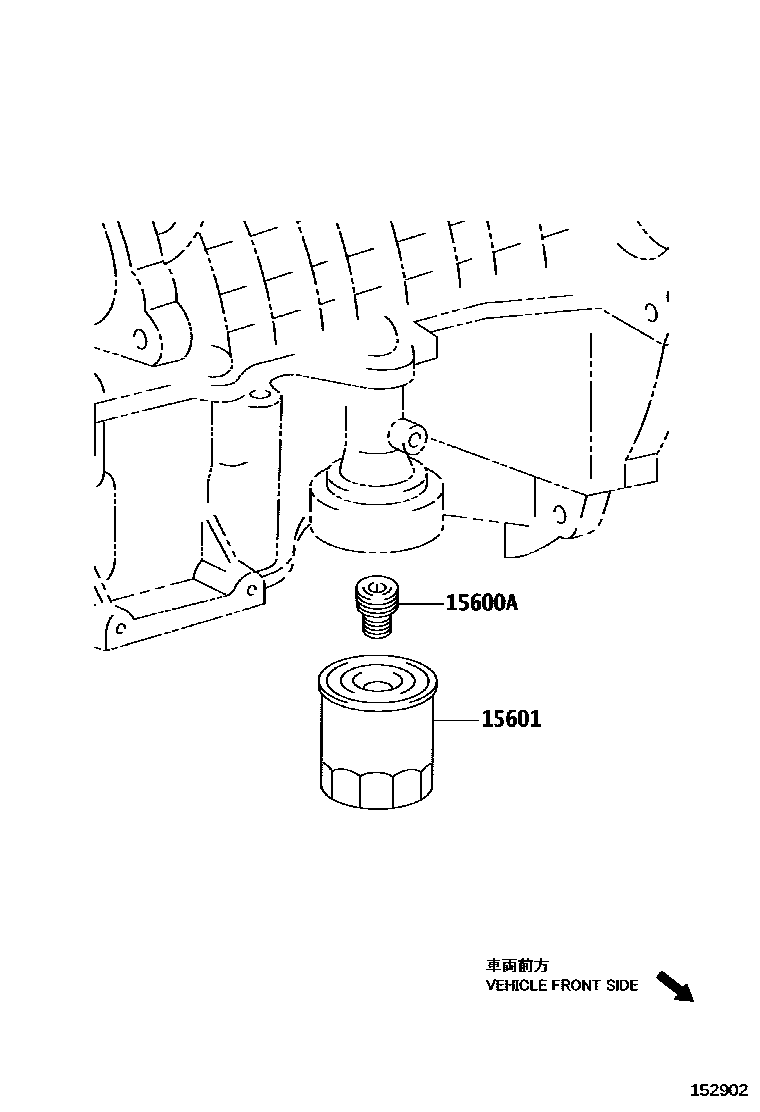

Toyota COROLLA Oil Filter EPC diagram — 152902
Oil Filter — 152902 (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31090 · 04152-37010
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)15116-54021 · 90904-04002 · 90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-30003 · 90915-TA001
15609Oil filter bracket sub-assembly15608-64042 · 15609-33050 · 15609-37040 · 15609-37041
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90344-53002
15609HO-ring (for oil filter bracket)90301-T0041 · 96723-24020
15620Oil filter cover assembly15620-36020 · 15620-37010
15620CGasket (for oil filter cover)90301-69011 · 90301-79006
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15679Oil filter bracket clip15679-37010
15691oil filter gasket15691-64041
15692Oil filter holder gasket15692-33010
