Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 7 images and 7 PNC and OE references.

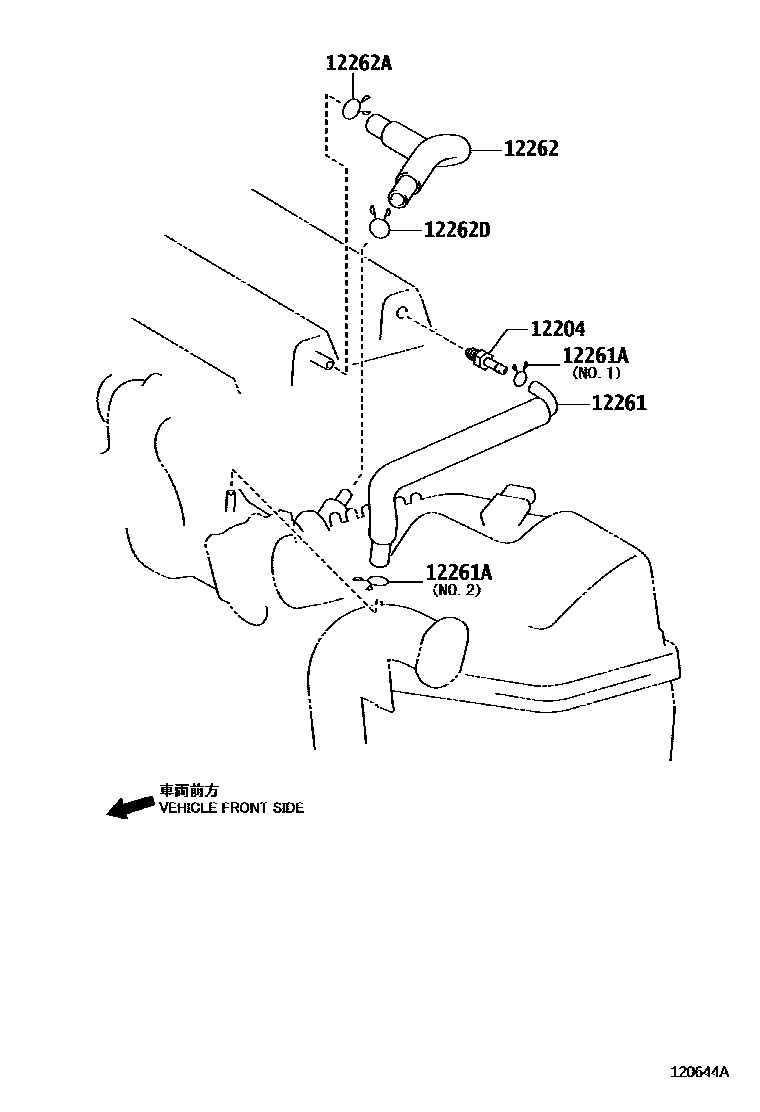

Toyota COROLLA Ventilation Hose EPC diagram — 120644A
Ventilation Hose — 120644A (200808 – 999999)

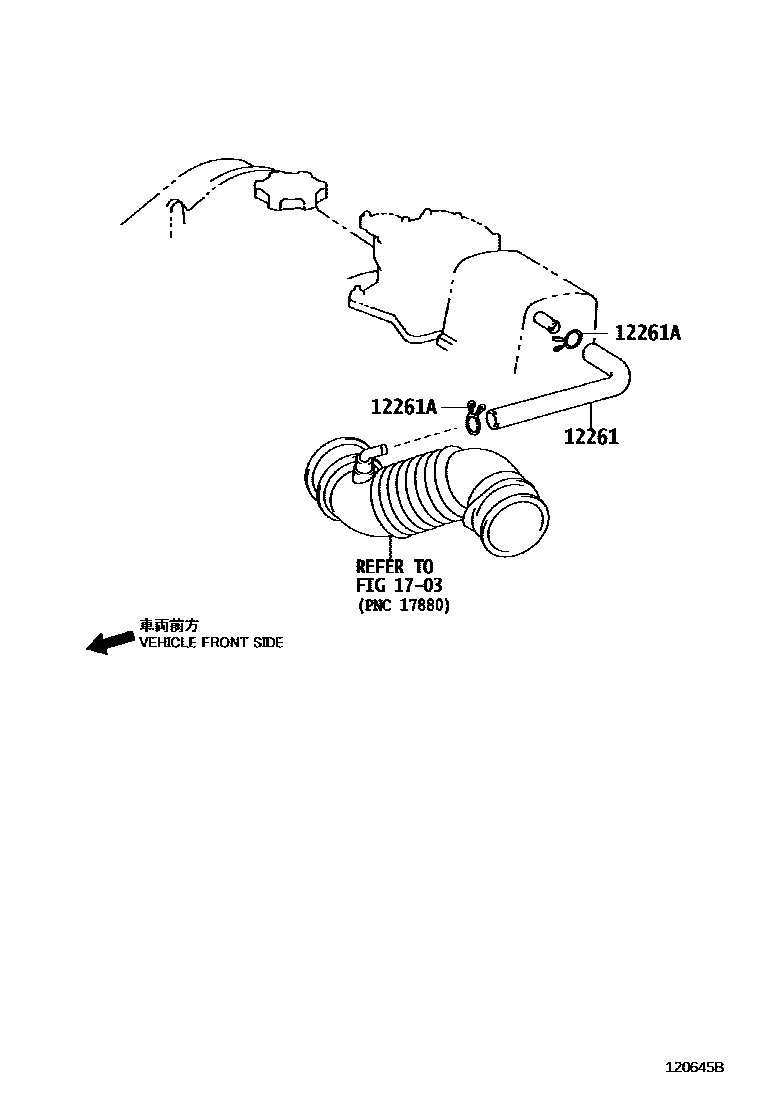

Toyota COROLLA Ventilation Hose EPC diagram — 120645B
Ventilation Hose — 120645B (200808 – 999999)

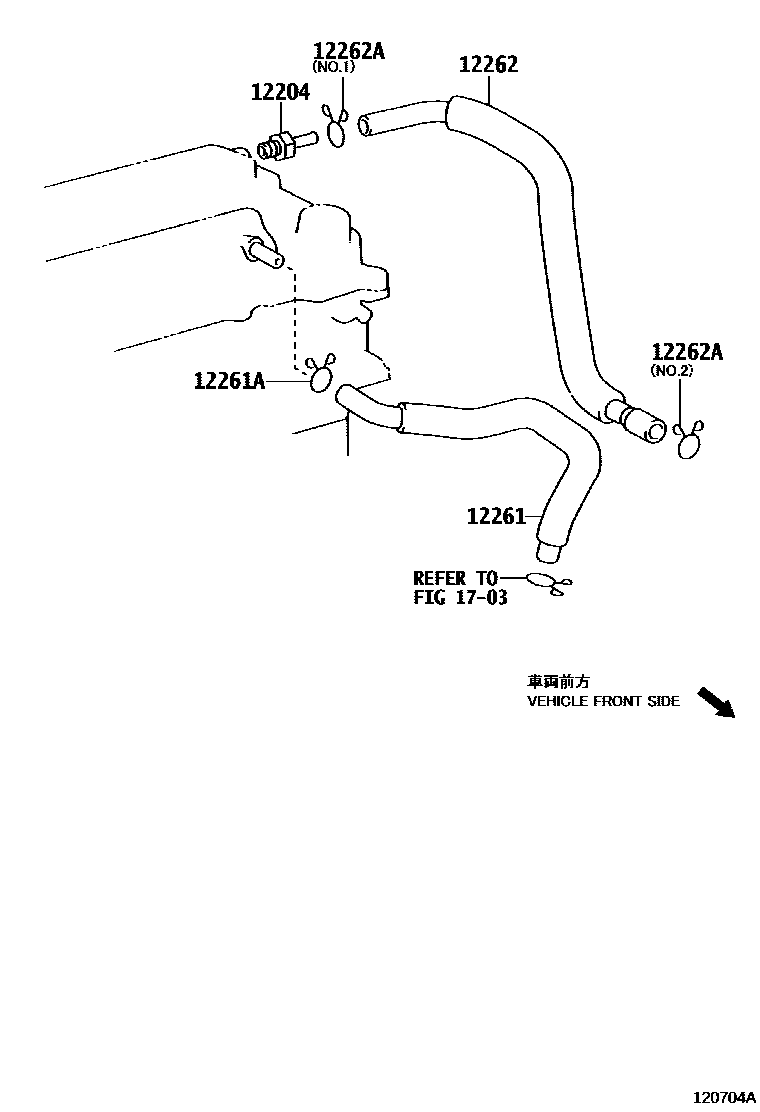

Toyota COROLLA Ventilation Hose EPC diagram — 120704A
Ventilation Hose — 120704A (200712 – 999999)

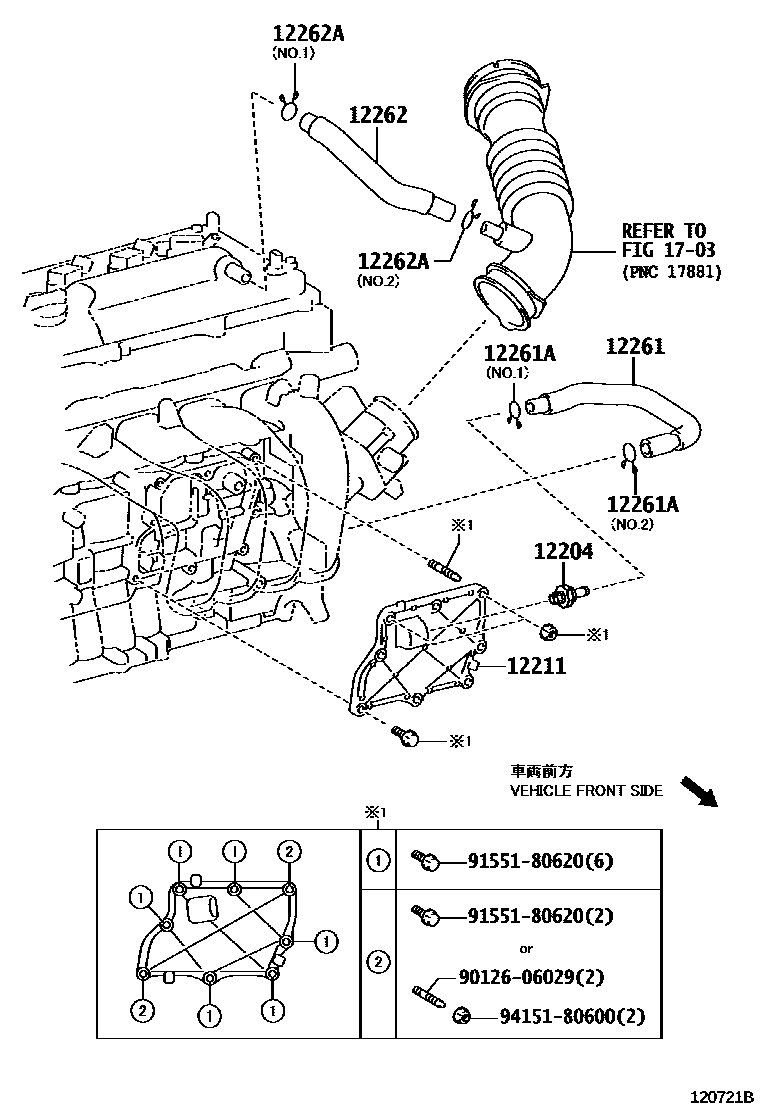

Toyota COROLLA Ventilation Hose EPC diagram — 120721B
Ventilation Hose — 120721B (200811 – 201010)

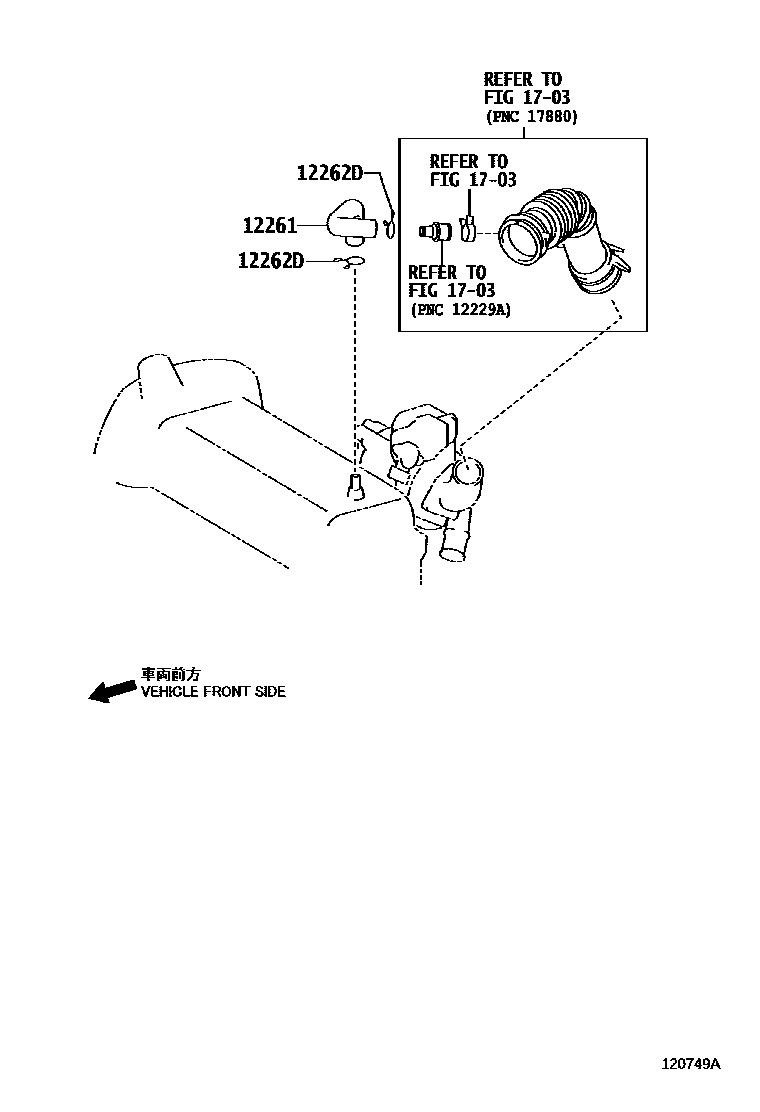

Toyota COROLLA Ventilation Hose EPC diagram — 120749A
Ventilation Hose — 120749A (201006 – 999999)

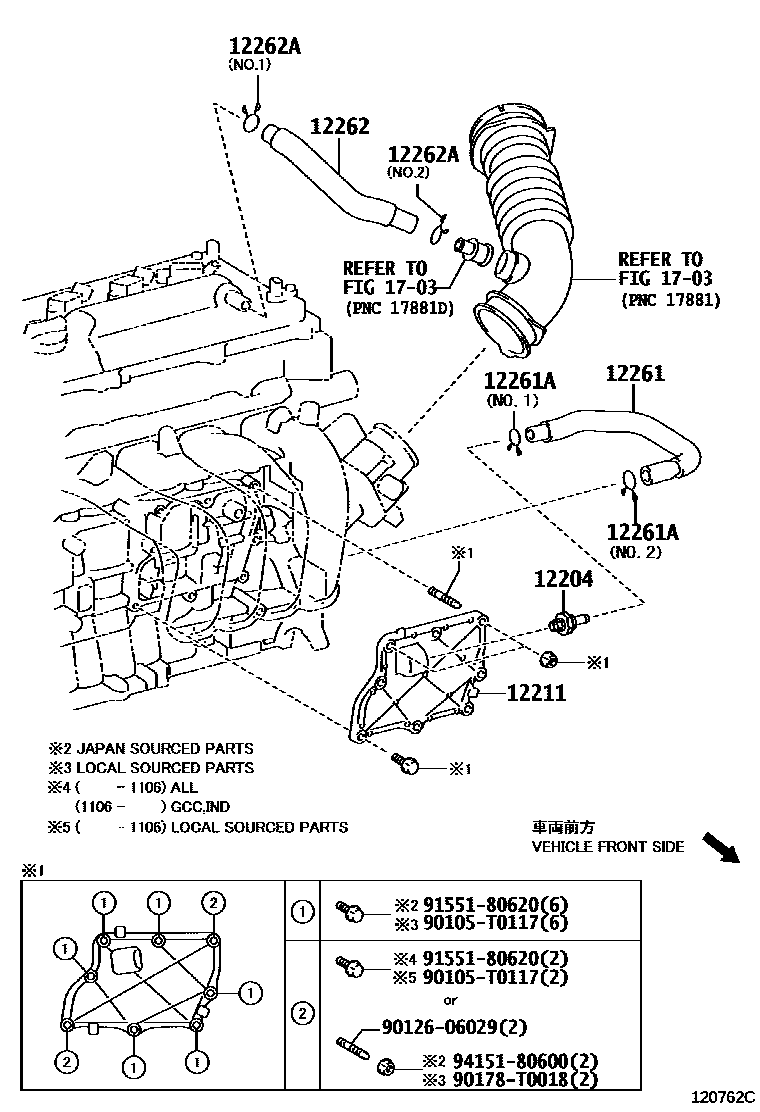

Toyota COROLLA Ventilation Hose EPC diagram — 120762C
Ventilation Hose — 120762C (201007 – 999999)

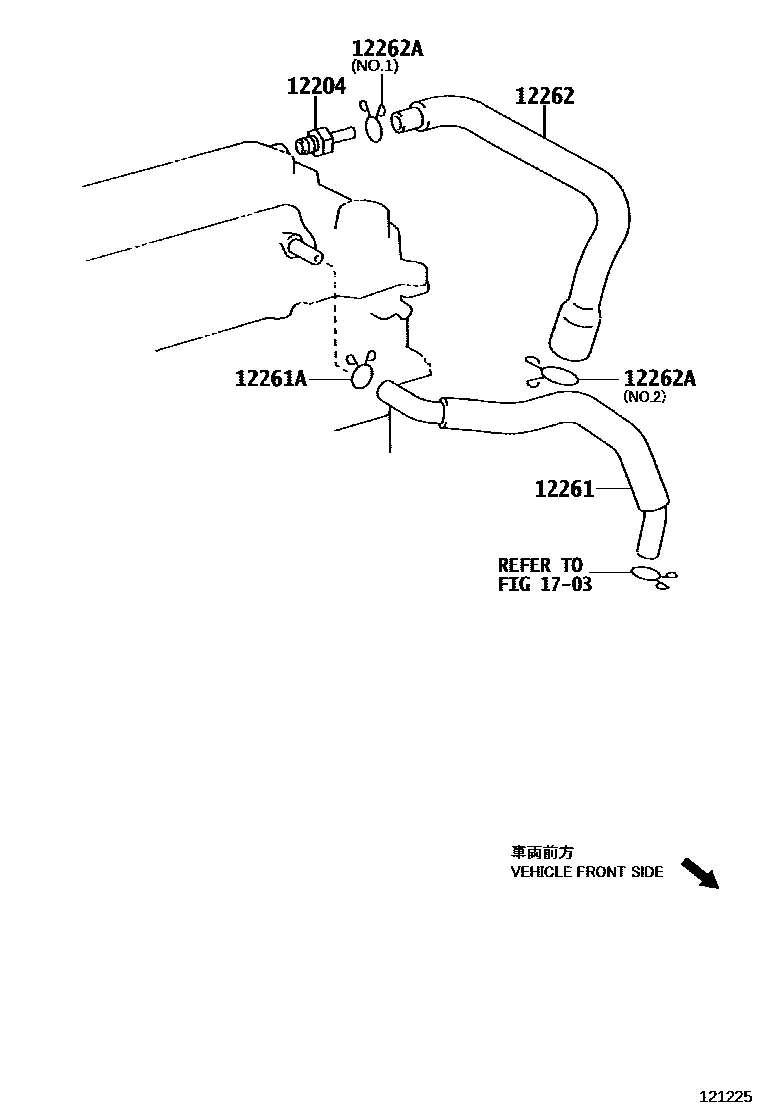

Toyota COROLLA Ventilation Hose EPC diagram — 121225
Ventilation Hose — 121225 (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21012 · 12204-21013 · 12204-22051 · 12204-37010 · 12204-37040
12211Ventilation box No. 112211-37010
12261Ventilation Hose12261-0D100 · 12261-0D120 · 12261-0D130 · 12261-0D140 · 12261-0T050 · 12261-0T060 · 12261-21030 · 12261-33120 · 12261-37040 · 12261-37050 · 12261-37080 · 12261-64330
12261AClip or clip (for vent hose)90466-22005 · 90466-23003 · 90466-T0032 · 90467-15120 · 90467-18003 · 90467-21152 · 90467-23002 · 90467-24038
12262Ventilation hose No. 212262-0D120 · 12262-0D130 · 12262-0T040 · 12262-0T050 · 12262-21100 · 12262-22130 · 12262-22150 · 12262-37020 · 12262-37030
12262AClamp (for vent hose No. 2)16581-21050 · 90466-18002 · 90466-T0027 · 90467-13103 · 90467-21004
12262DClamp (for vent hose No. 2)90466-T0027 · 90467-21004
