Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 10 images and 14 PNC and OE references.

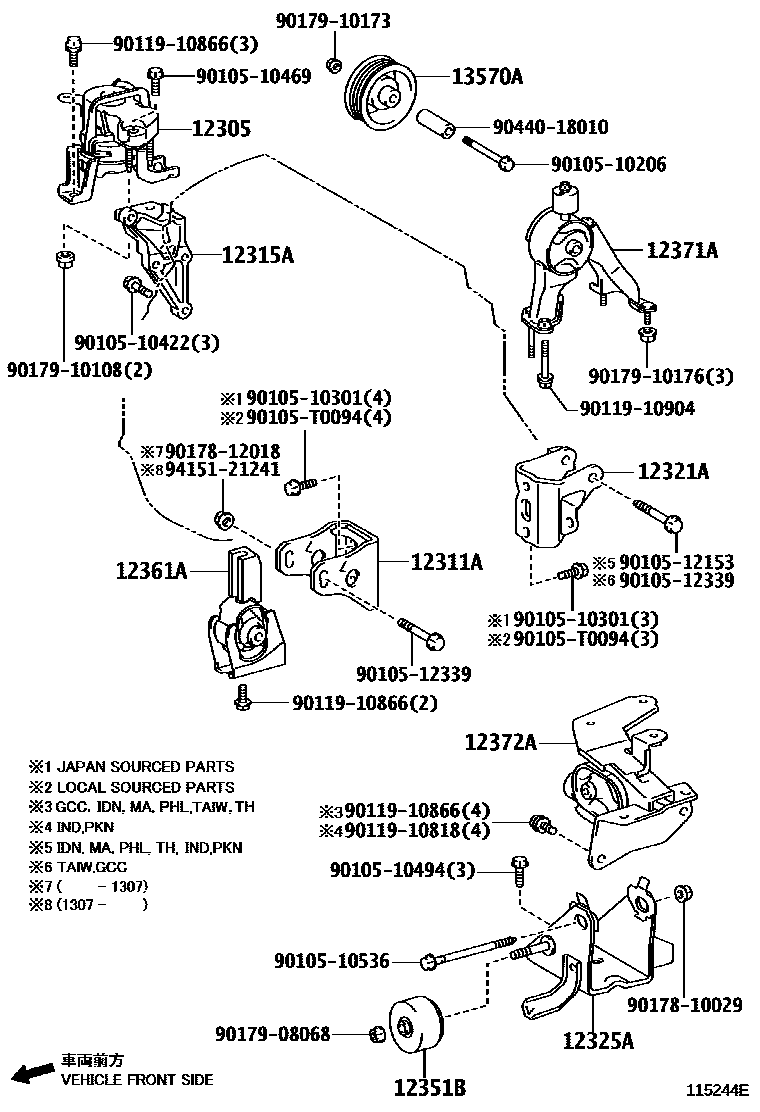

Toyota COROLLA Engine Mounting EPC diagram — 115244E — Engine Mounting — 115244E (200712 – 999999)

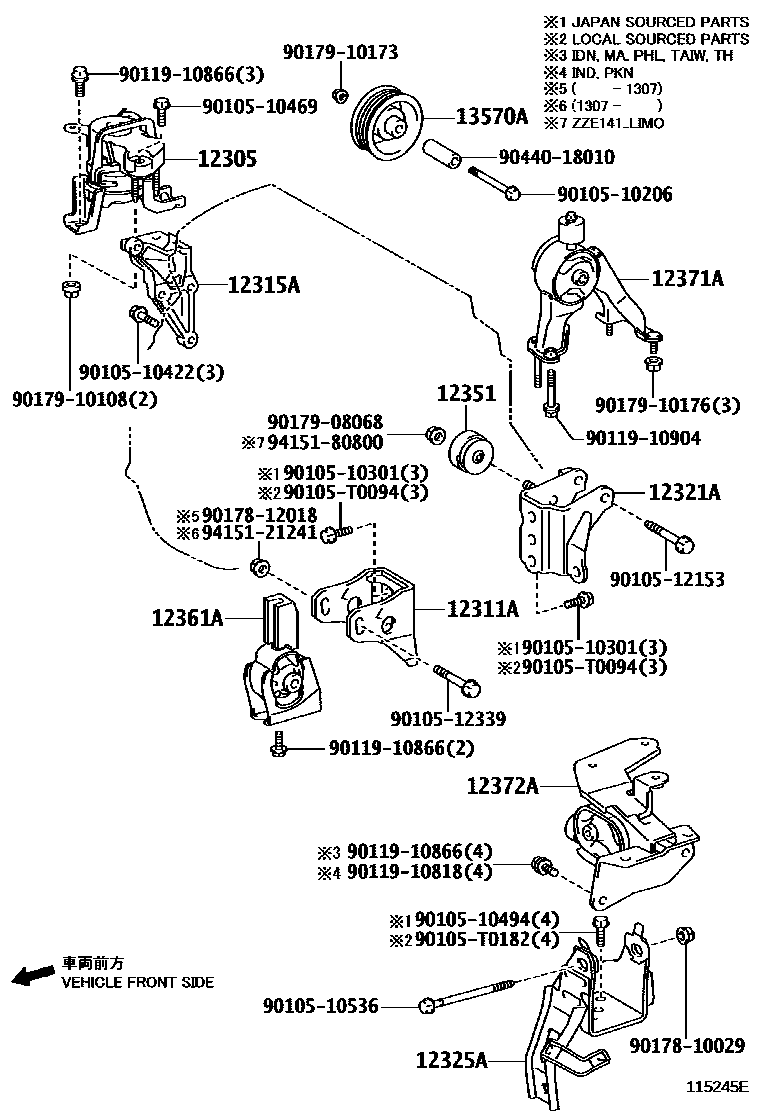

Toyota COROLLA Engine Mounting EPC diagram — 115245E — Engine Mounting — 115245E (200801 – 999999)

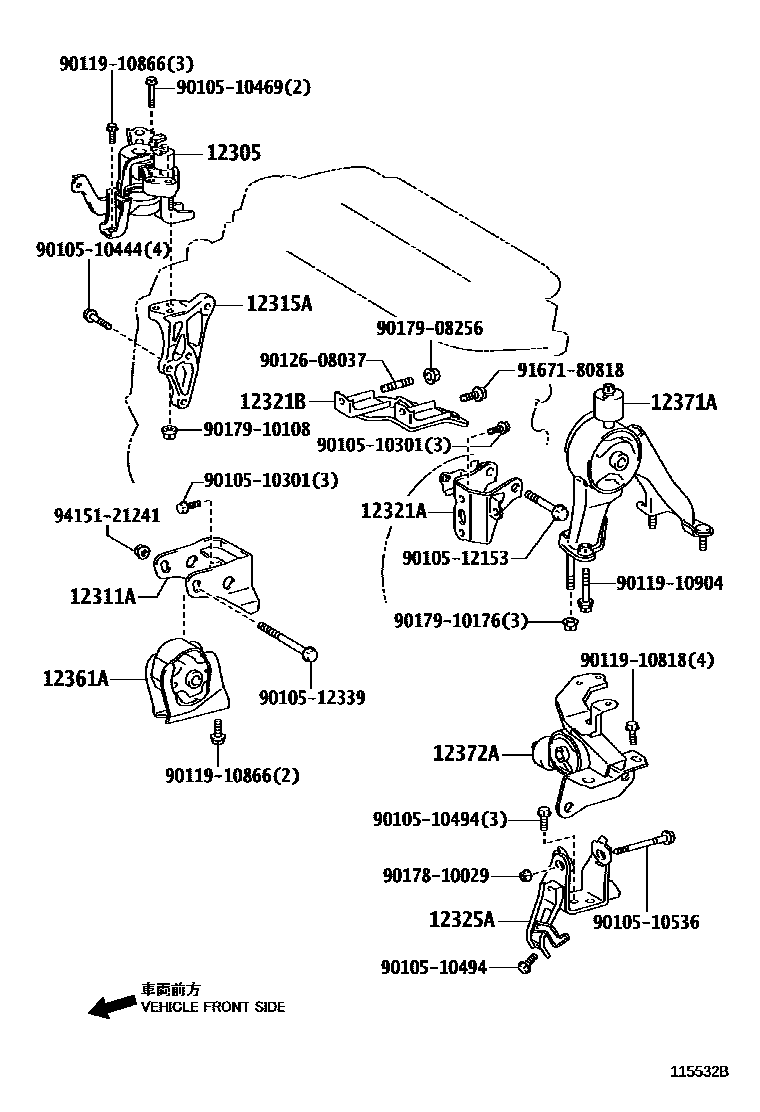

Toyota COROLLA Engine Mounting EPC diagram — 115532B — Engine Mounting — 115532B (200808 – 999999)

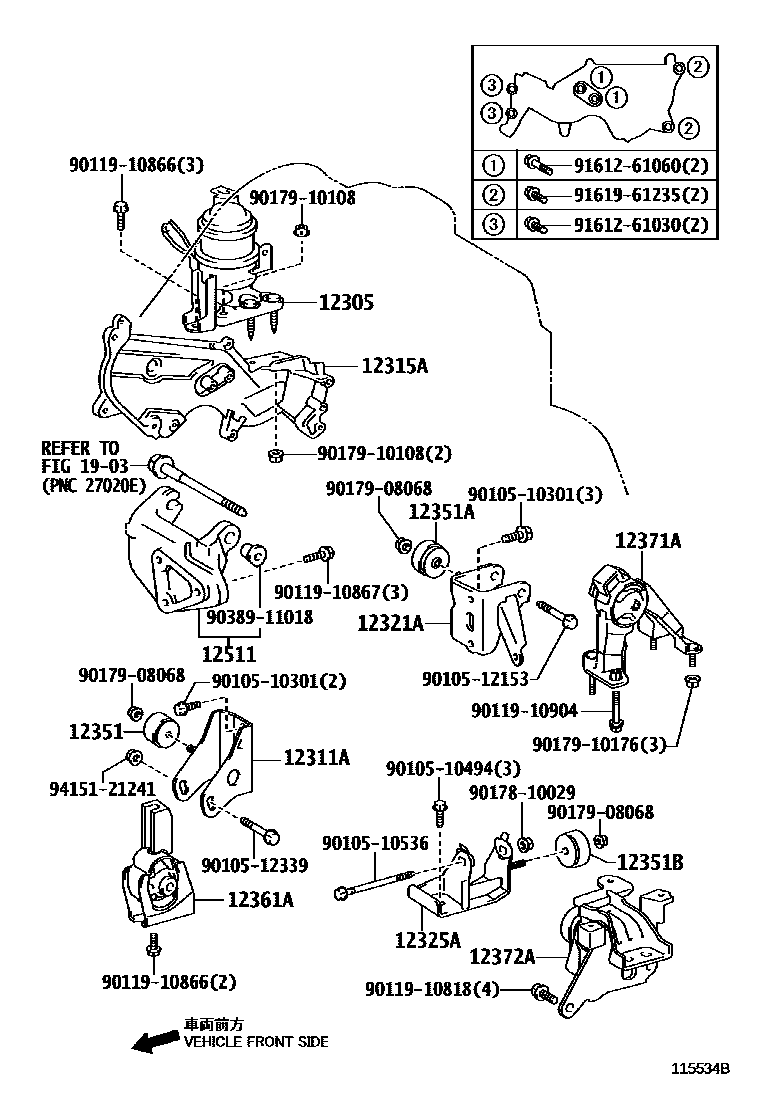

Toyota COROLLA Engine Mounting EPC diagram — 115534B — Engine Mounting — 115534B (200808 – 999999)

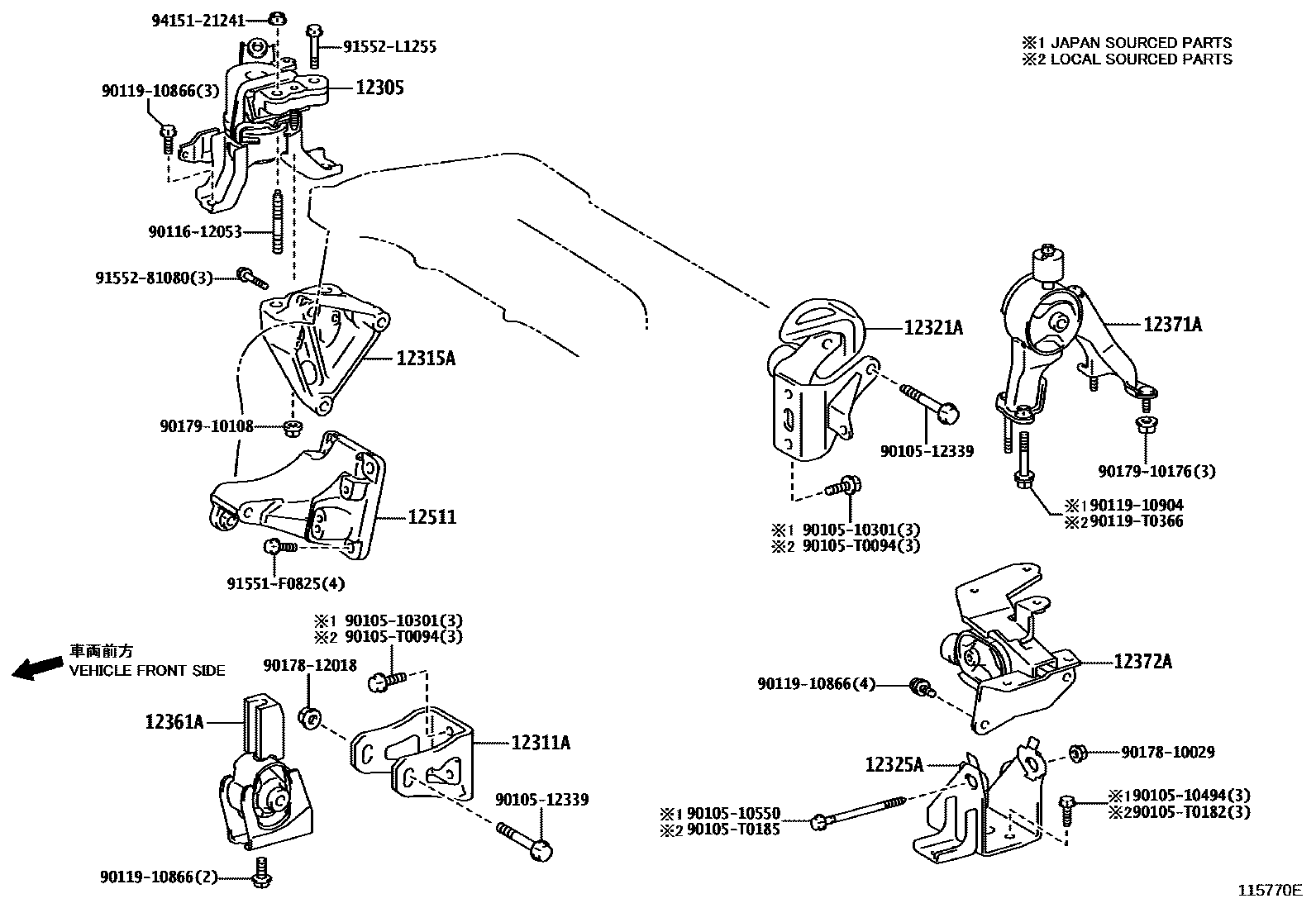

Toyota COROLLA Engine Mounting EPC diagram — 115770E — Engine Mounting — 115770E (200811 – 999999)

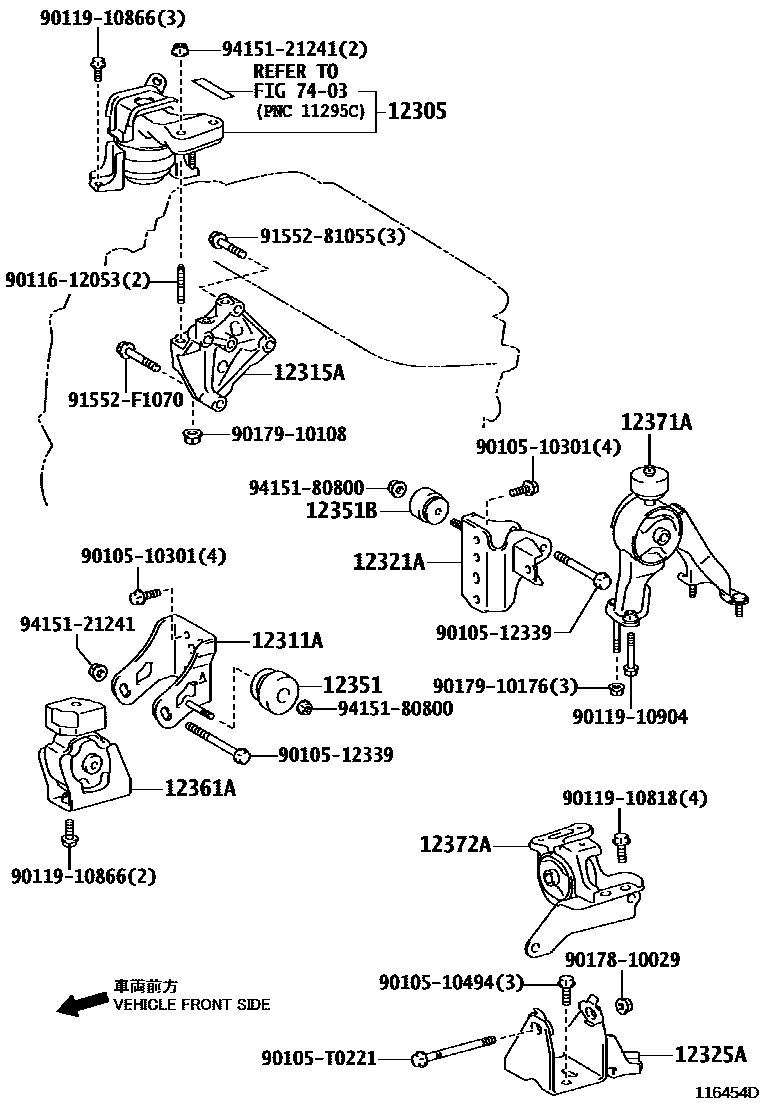

Toyota COROLLA Engine Mounting EPC diagram — 116454D — Engine Mounting — 116454D (201006 – 999999)

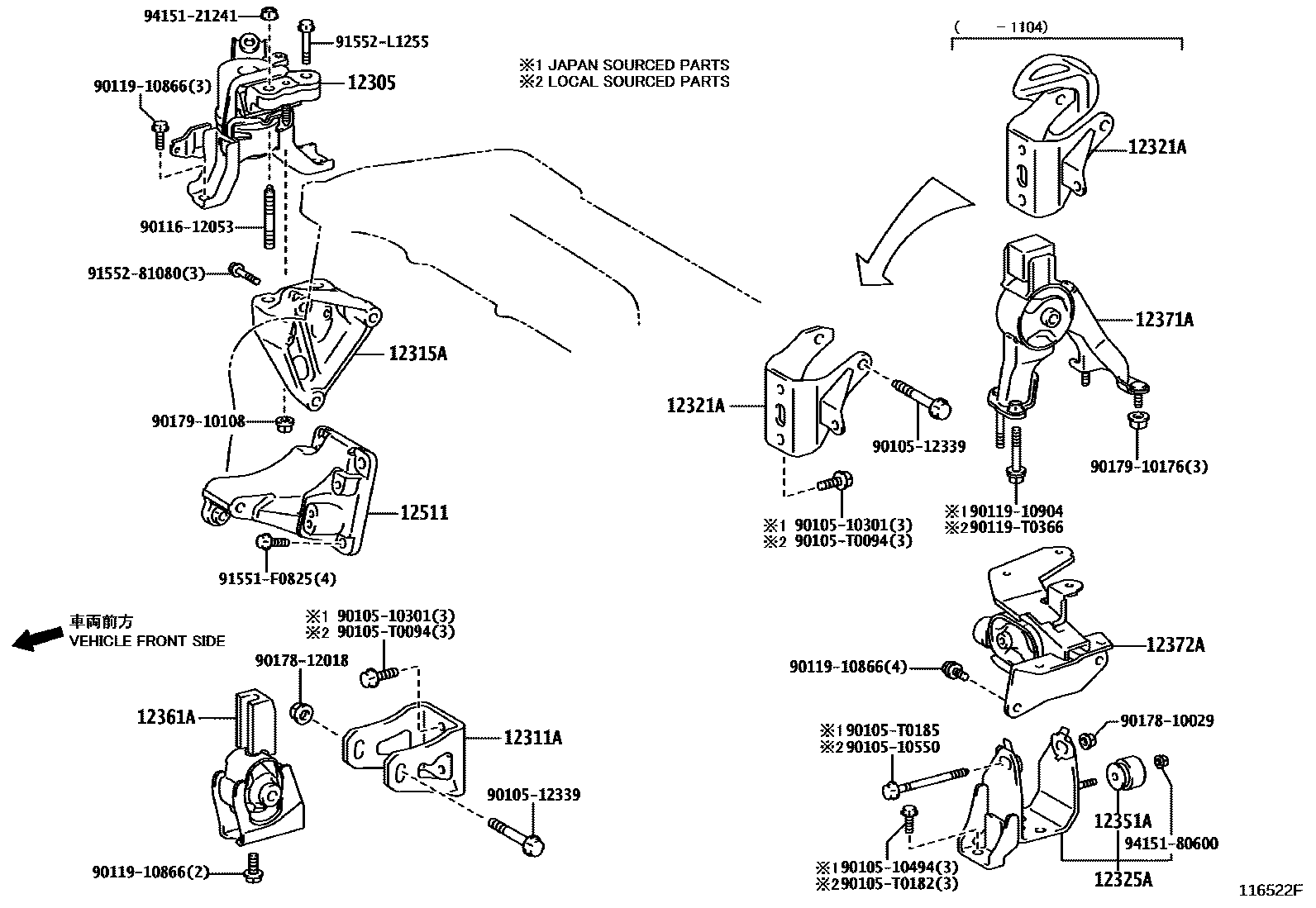

Toyota COROLLA Engine Mounting EPC diagram — 116522F — Engine Mounting — 116522F (201007 – 999999)

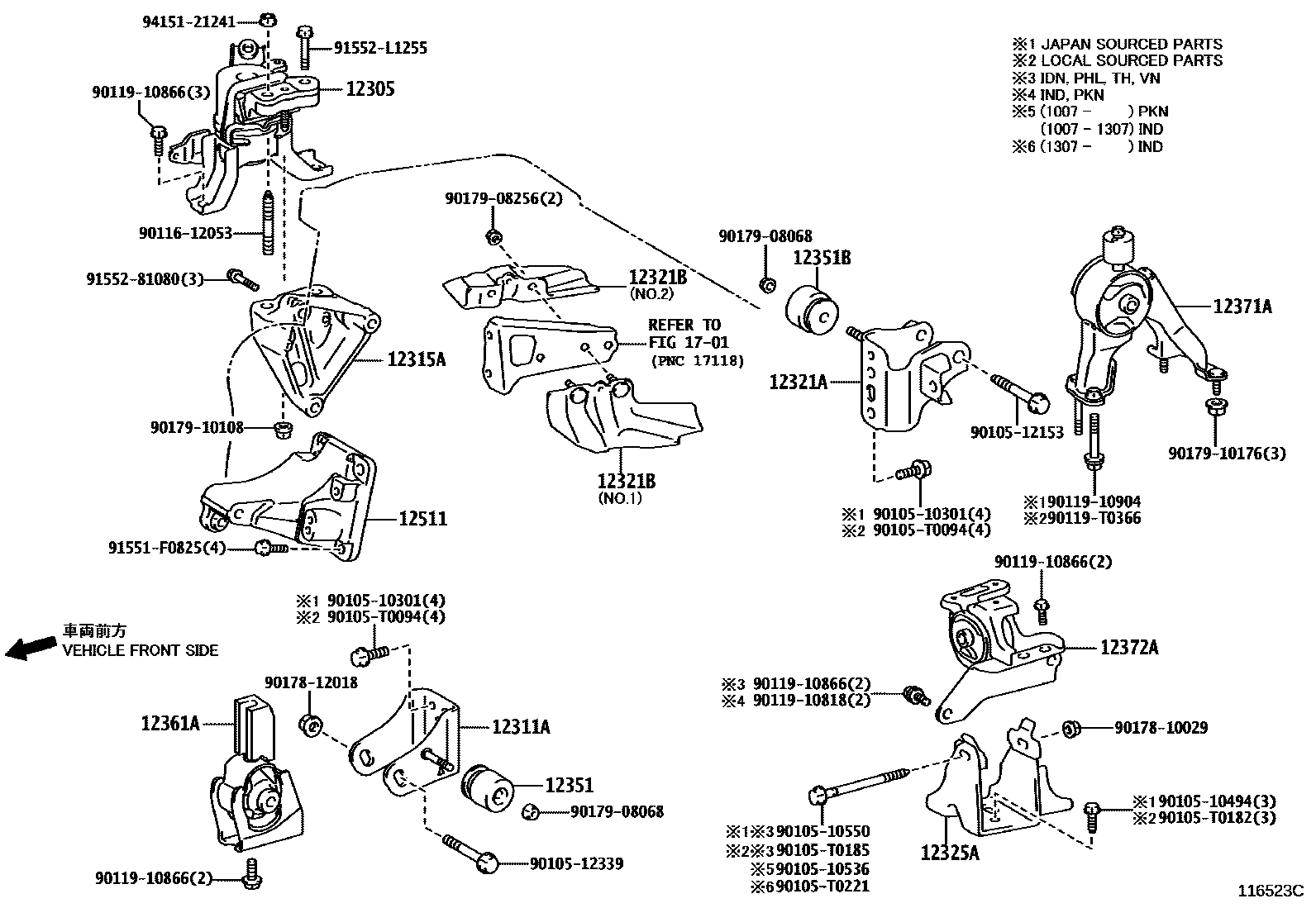

Toyota COROLLA Engine Mounting EPC diagram — 116523C — Engine Mounting — 116523C (201007 – 999999)

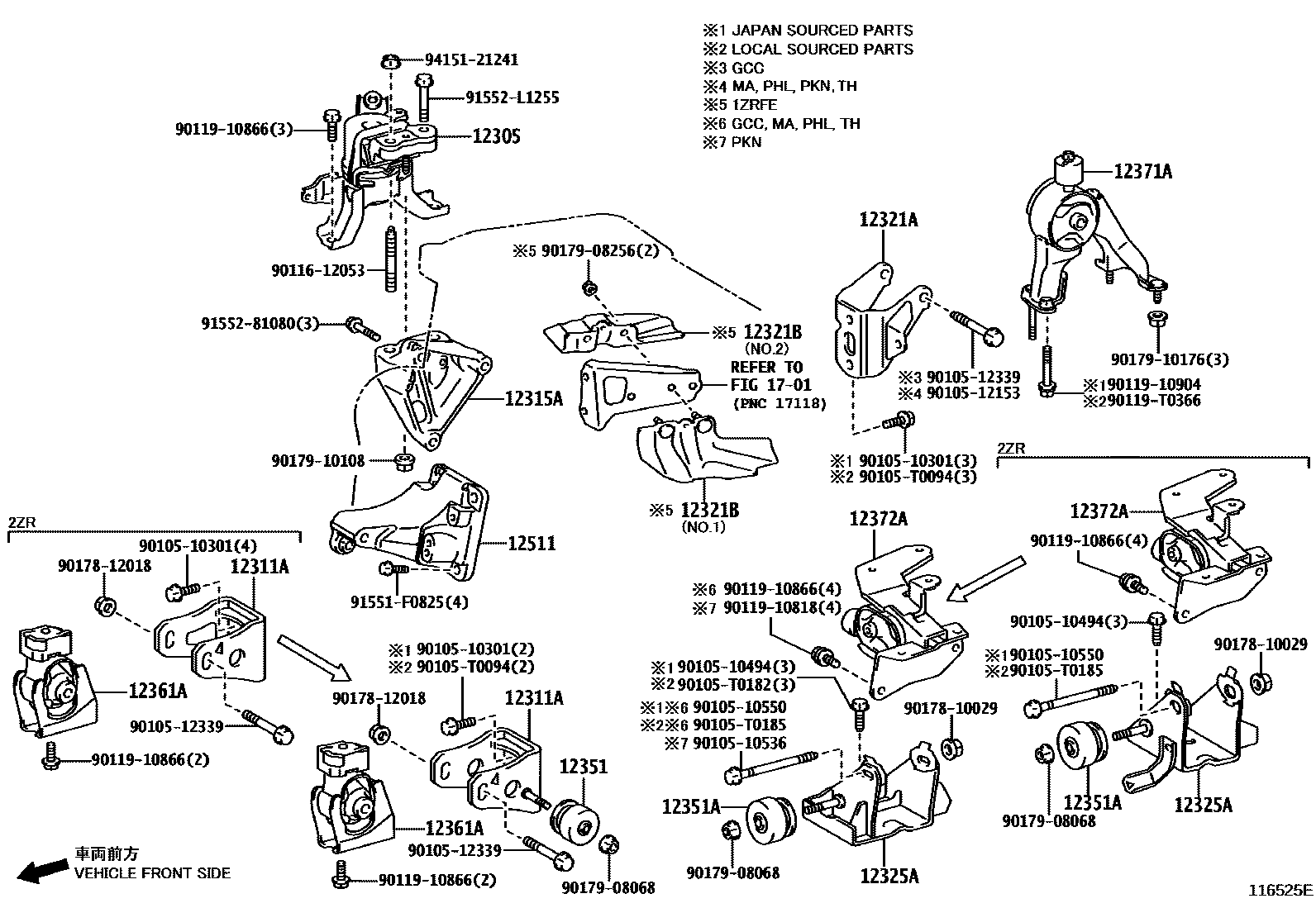

Toyota COROLLA Engine Mounting EPC diagram — 116525E — Engine Mounting — 116525E (201007 – 999999)

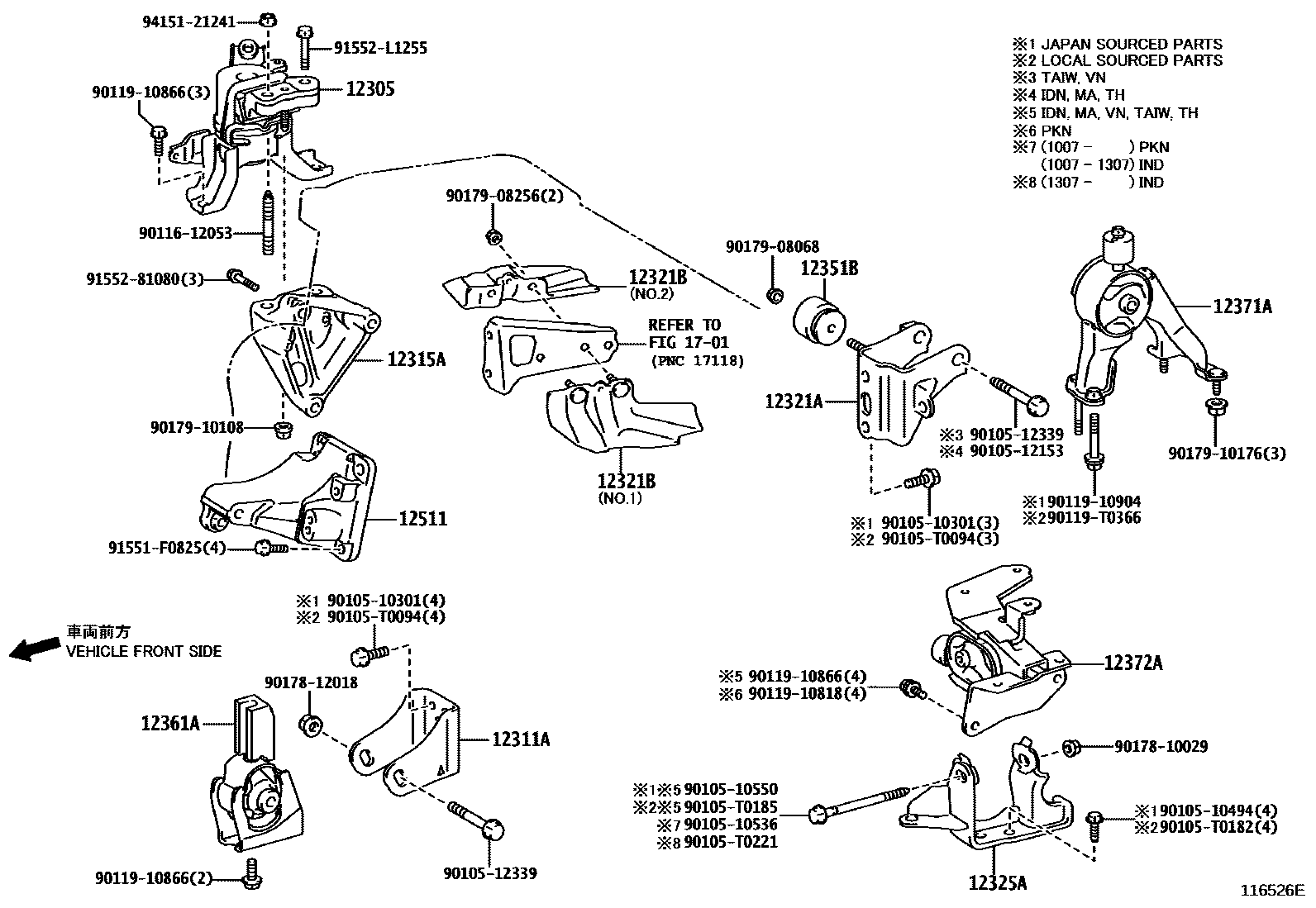

Toyota COROLLA Engine Mounting EPC diagram — 116526E — Engine Mounting — 116526E (201007 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12305	Engine right side mounting vibration isolation pad sub-assembly	12305-0D130 · 12305-0D140 · 12305-0D150 · 12305-0T090 · 12305-0T091 · 12305-0T120 · 12305-0T130 · 12305-21320 · 12305-21550 · 12305-33160 · 12305-37200 · 12305-37201 · 12305-64200
12311A	Engine front mounting bracket (for transverse engine)	12311-0B030 · 12311-0D190 · 12311-0D200 · 12311-0D210 · 12311-0D220 · 12311-0D230 · 12311-0M010 · 12311-0T130 · 12311-0T200 · 12311-0T210 · 12311-0T230 · 12311-0T250 · 12311-0T260 · 12311-0T300 · 12311-0T310 · 12311-0T320 · 12311-33050
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-0D060 · 12315-0D090 · 12315-0M020 · 12315-22050 · 12315-33050 · 12315-37030 · 12315-64141
12321A	Rear engine mounting bracket (for transverse engine)	12321-0B030 · 12321-0D080 · 12321-0D081 · 12321-0D170 · 12321-0D270 · 12321-0D290 · 12321-0T160 · 12321-0T240 · 12321-0T250 · 12321-0T260 · 12321-0T270 · 12321-0T280 · 12321-0T290 · 12321-0T291 · 12321-0T340 · 12321-0T341 · 12321-0T370 · 12321-22260 · 12321-22261 · 12321-33020 · 12321-64360
12321B	Drive shaft heat insulation pad sub-assembly	43409-12060 · 43409-52020 · 43498-12051
12325A	Engine left side mounting bracket (for transversely mounted engine)	12304-0T130 · 12325-0D100 · 12325-0D110 · 12325-0D120 · 12325-0T240 · 12325-0T250 · 12325-0T260 · 12325-0T270 · 12325-0T280 · 12325-0T290 · 12325-0T340 · 12325-21200 · 12325-33070 · 12325-64220
12351	engine mount shock absorber	12351-11130 · 12351-22080 · 12351-26010 · 12351-27050 · 12351-37120
12351A	Engine mount shock absorber (for vibration isolation pad)	12351-0D090 · 12351-0T170 · 12351-11023 · 12351-11072 · 12351-28070
12351B	engine mount shock absorber	12351-0D090 · 12351-22060 · 12351-27050 · 12351-37120
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-0D210 · 12361-0D220 · 12361-0D230 · 12361-0D231 · 12361-0D232 · 12361-0T090 · 12361-0T091 · 12361-0T092 · 12361-0T130 · 12361-0T140 · 12361-0T141 · 12361-21080 · 12361-33040 · 12361-64410
12371A	Engine rear mount vibration isolation pad	12371-0D210 · 12371-0D220 · 12371-0D230 · 12371-0D231 · 12371-0T150 · 12371-0T160 · 12371-0T170 · 12371-0T180 · 12371-21240 · 12371-33080 · 12371-37110 · 12371-64350
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-0D170 · 12372-0D171 · 12372-0D180 · 12372-0D190 · 12372-0D191 · 12372-0T140 · 12372-0T200 · 12372-0T201 · 12372-0T210 · 12372-0T211 · 12372-0T220 · 12372-0T230 · 12372-21230 · 12372-21440 · 12372-33100 · 12372-64330
12511	No. 1 generator bracket	12511-0T050 · 12511-37010 · 12511-64060
13570A	No. 1 poly-ribbed belt idler assembly	13570-22010
