Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 19 PNC and OE references.

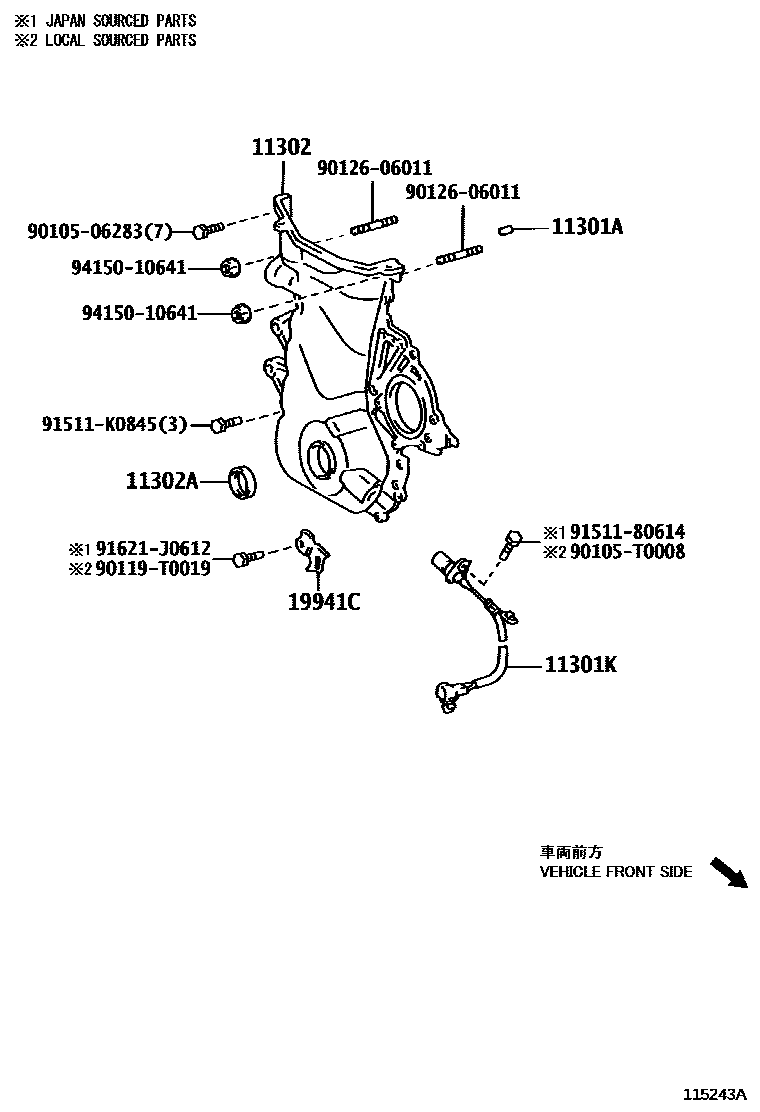

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 115243A
Timing Gear Cover & Rear End Plate — 115243A (200712 – 999999)

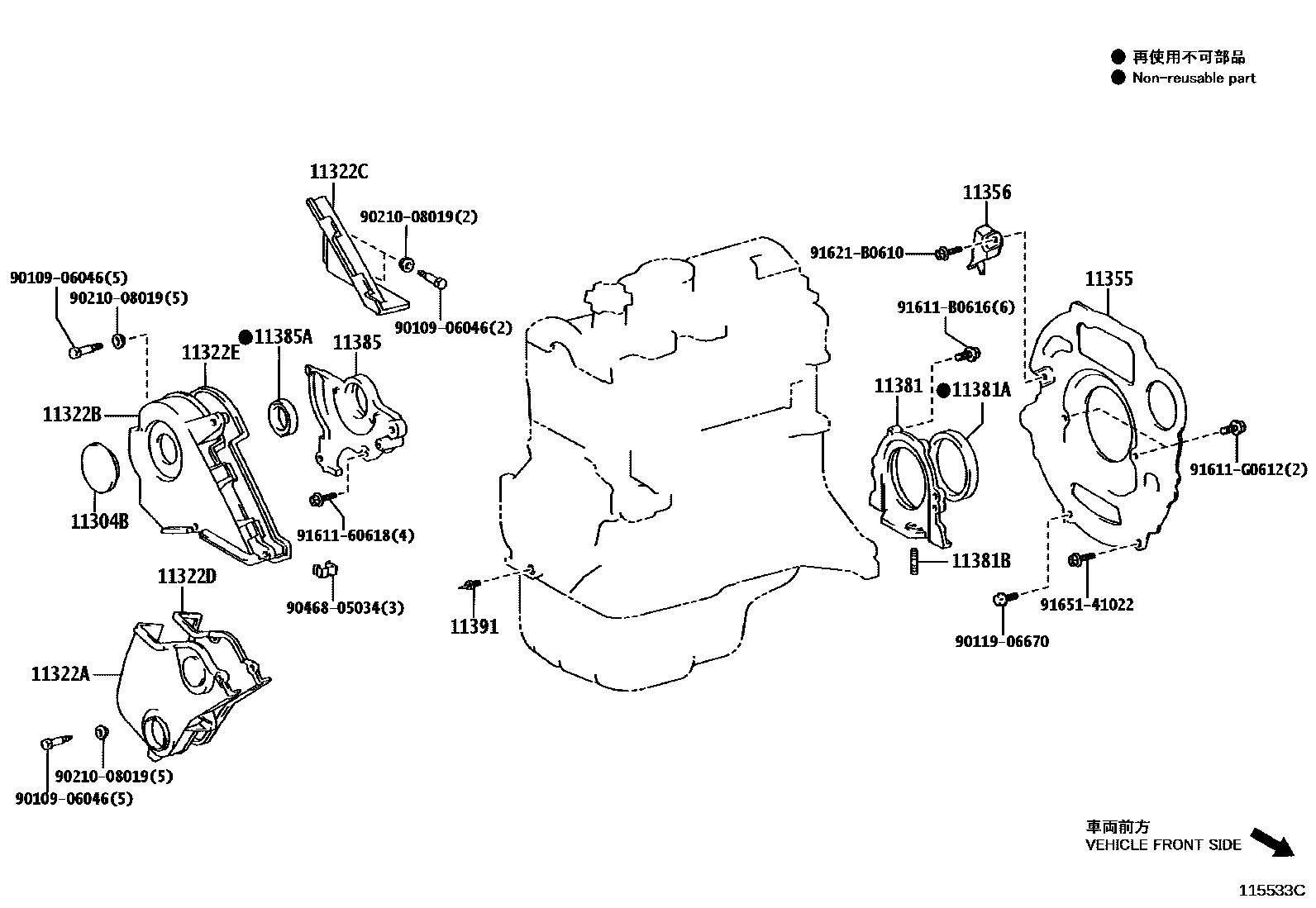

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 115533C
Timing Gear Cover & Rear End Plate — 115533C (200808 – 999999)

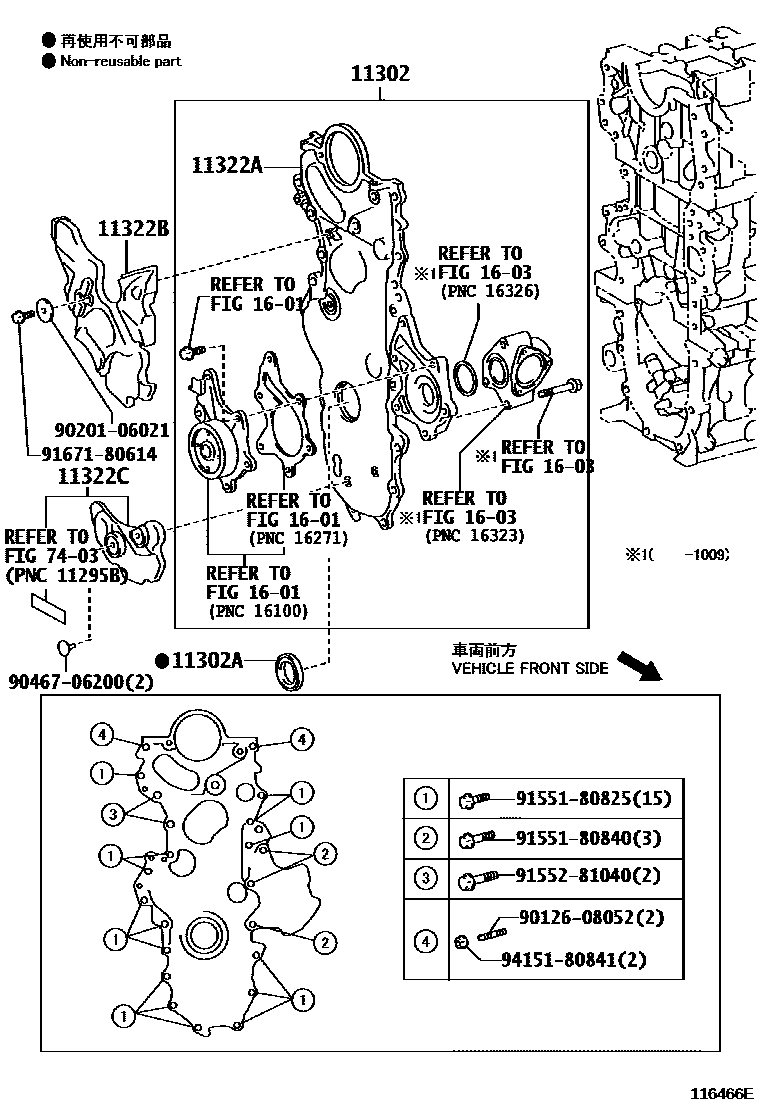

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 116466E
Timing Gear Cover & Rear End Plate — 116466E (201006 – 999999)

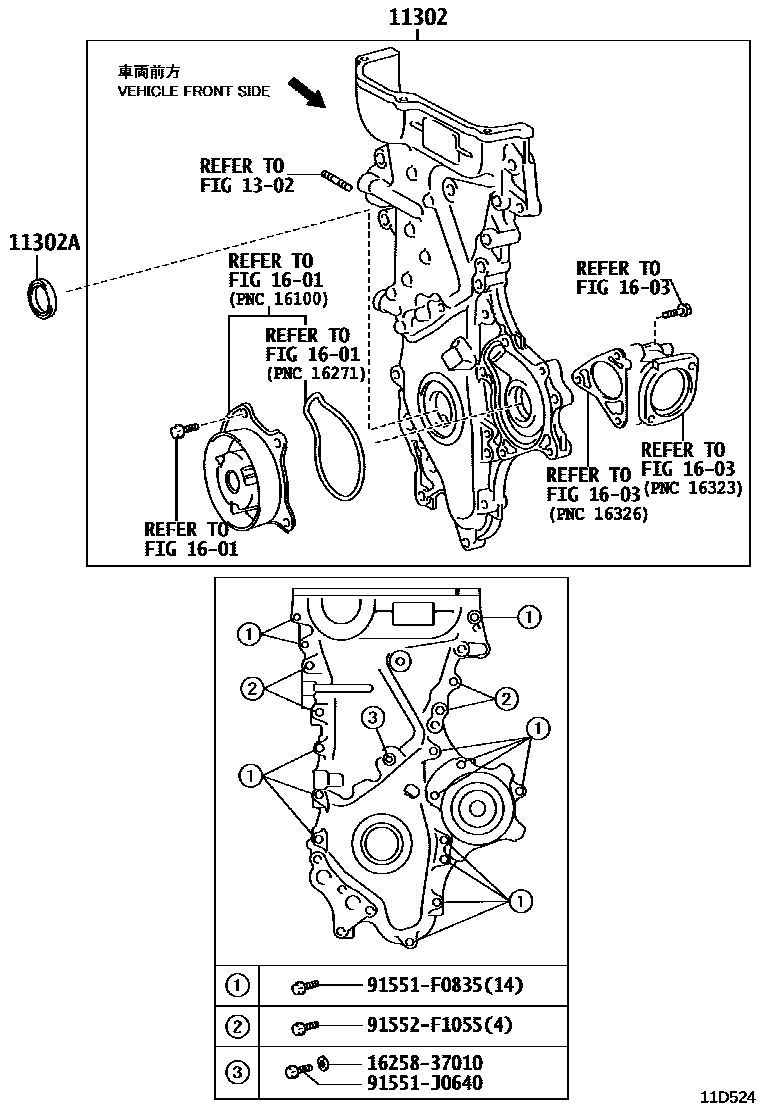

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D524
Timing Gear Cover & Rear End Plate — 11D524 (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T020 · 11310-33010 · 11310-33011 · 11310-37010 · 11310-37011 · 11310-37031 · 11310-37032 · 11321-0D030 · 11321-0D050 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90080-31083 · 90311-38059 · 90311-38089 · 90311-38096 · 90311-40033 · 90311-40040 · 90311-T0048
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11322ANo. 1 timing belt cover11321-33020 · 11321-64070
11322BNo. 2 timing belt cover11322-33020 · 11322-64010
11322CNo. 3 timing belt cover11323-33010 · 11323-64011
11322DNo. 1 timing belt cover gasket11328-64070
11322ENo. 2 timing belt cover gasket11329-64020
11355rear end plate11355-64052
11356No. 2 rear end plate11356-64040
11381RETAINER, ENGINE REAR OIL SEAL11381-64020
11381ASEAL, ENGINE REAR OIL90311-90008
11381BStud bolts (for engine rear oil seal race)90116-06134
11385Camshaft oil seal race11382-64011
11385AOil seal (for camshaft)90311-38081
11391Timing pointer11391-64010
19941CWire clamp (for crankshaft position sensor)19941-22010
