Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 16 images and 2 PNC and OE references.

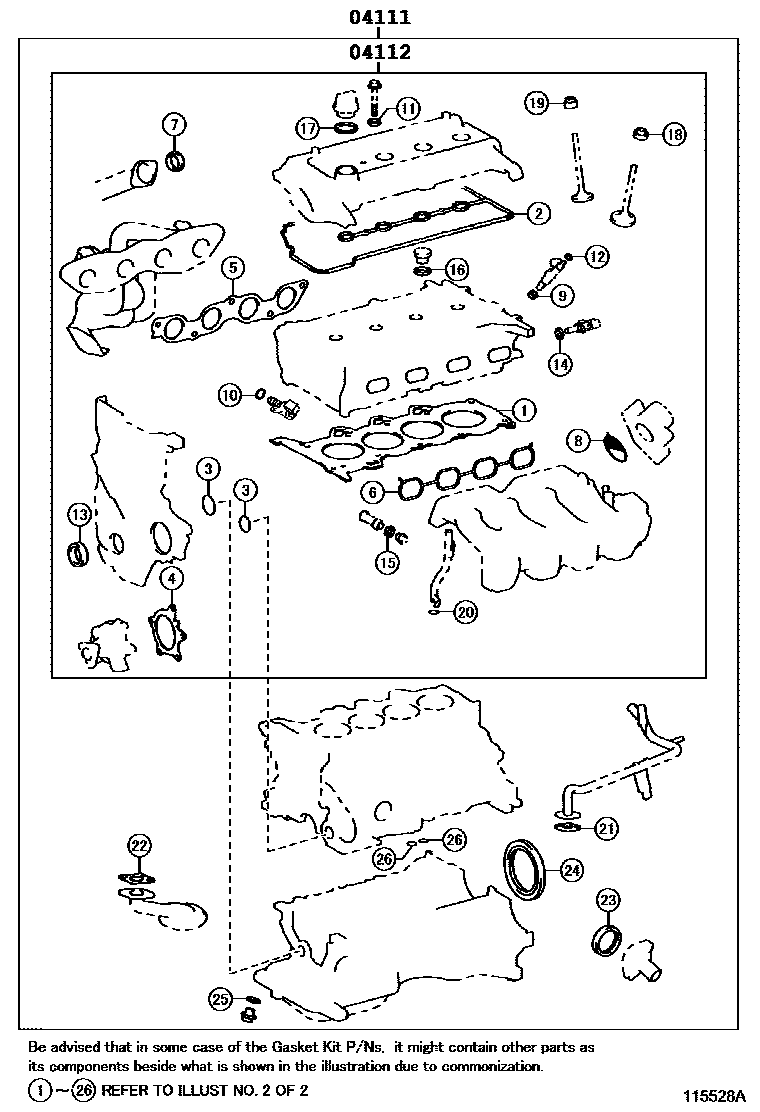

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115528A
Engine Overhaul Gasket Kit — 115528A (200808 – 999999)

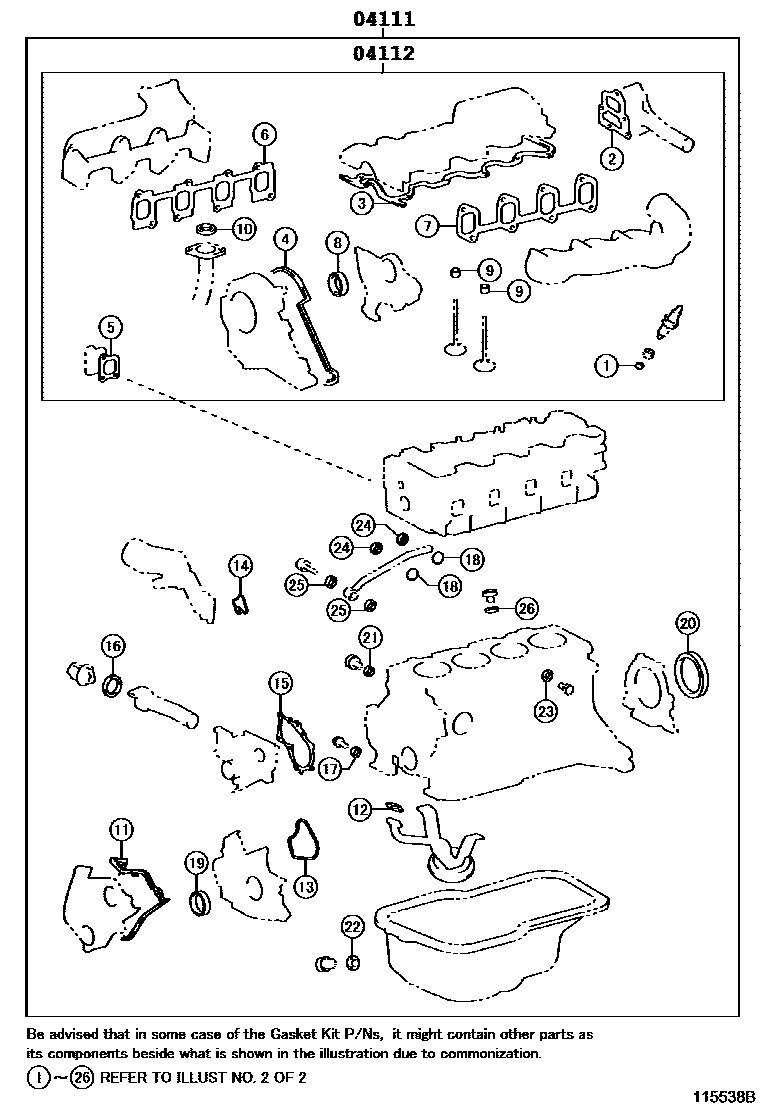

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115538B
Engine Overhaul Gasket Kit — 115538B (200808 – 999999)

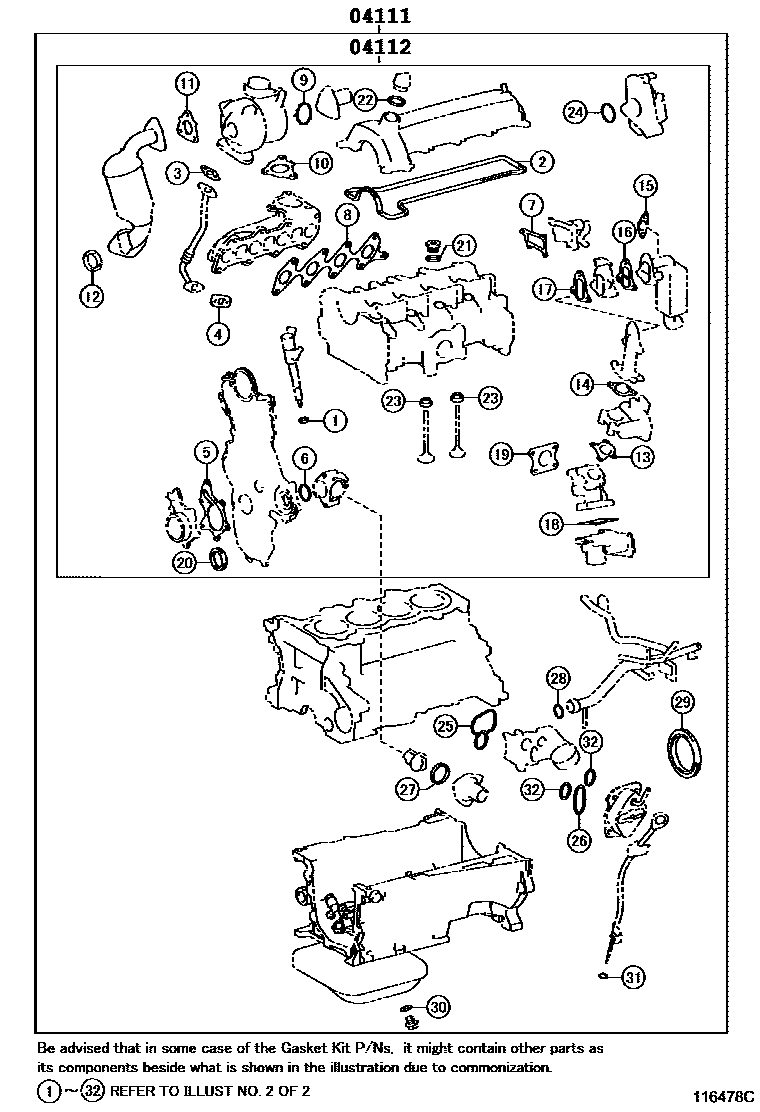

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 116478C
Engine Overhaul Gasket Kit — 116478C (201006 – 999999)

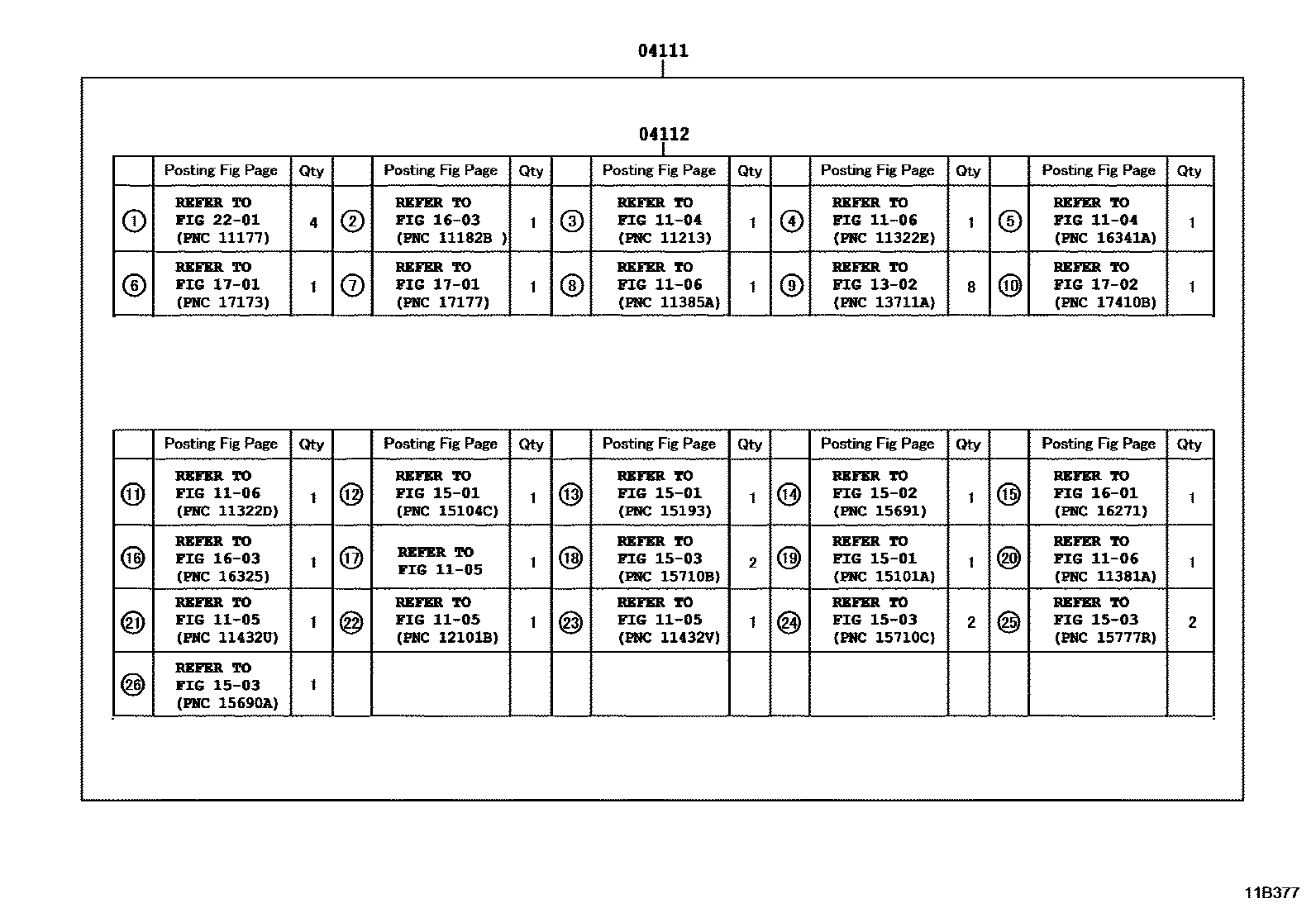

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B377
Engine Overhaul Gasket Kit — 11B377 (200808 – 999999)

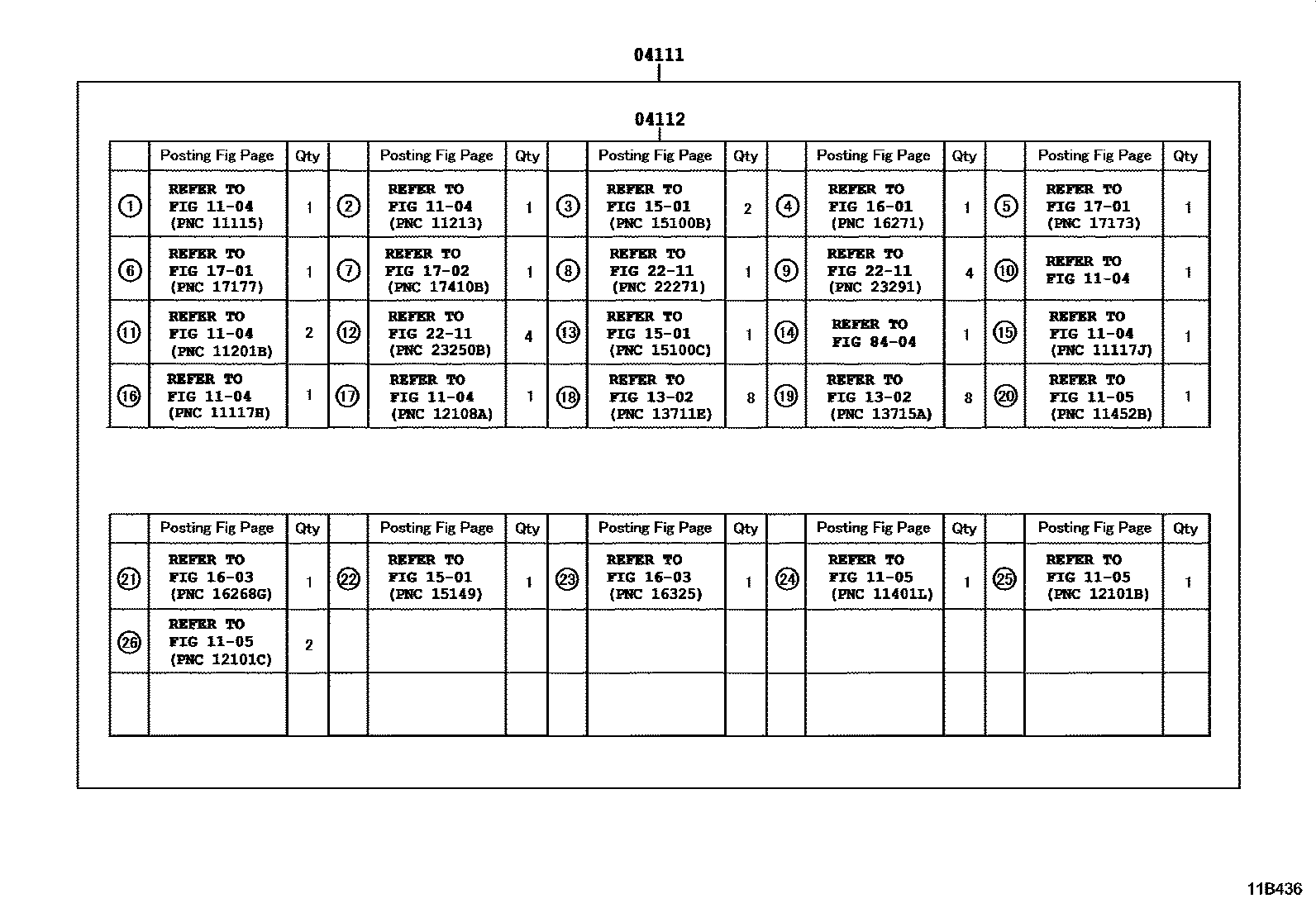

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B436
Engine Overhaul Gasket Kit — 11B436 (200808 – 999999)

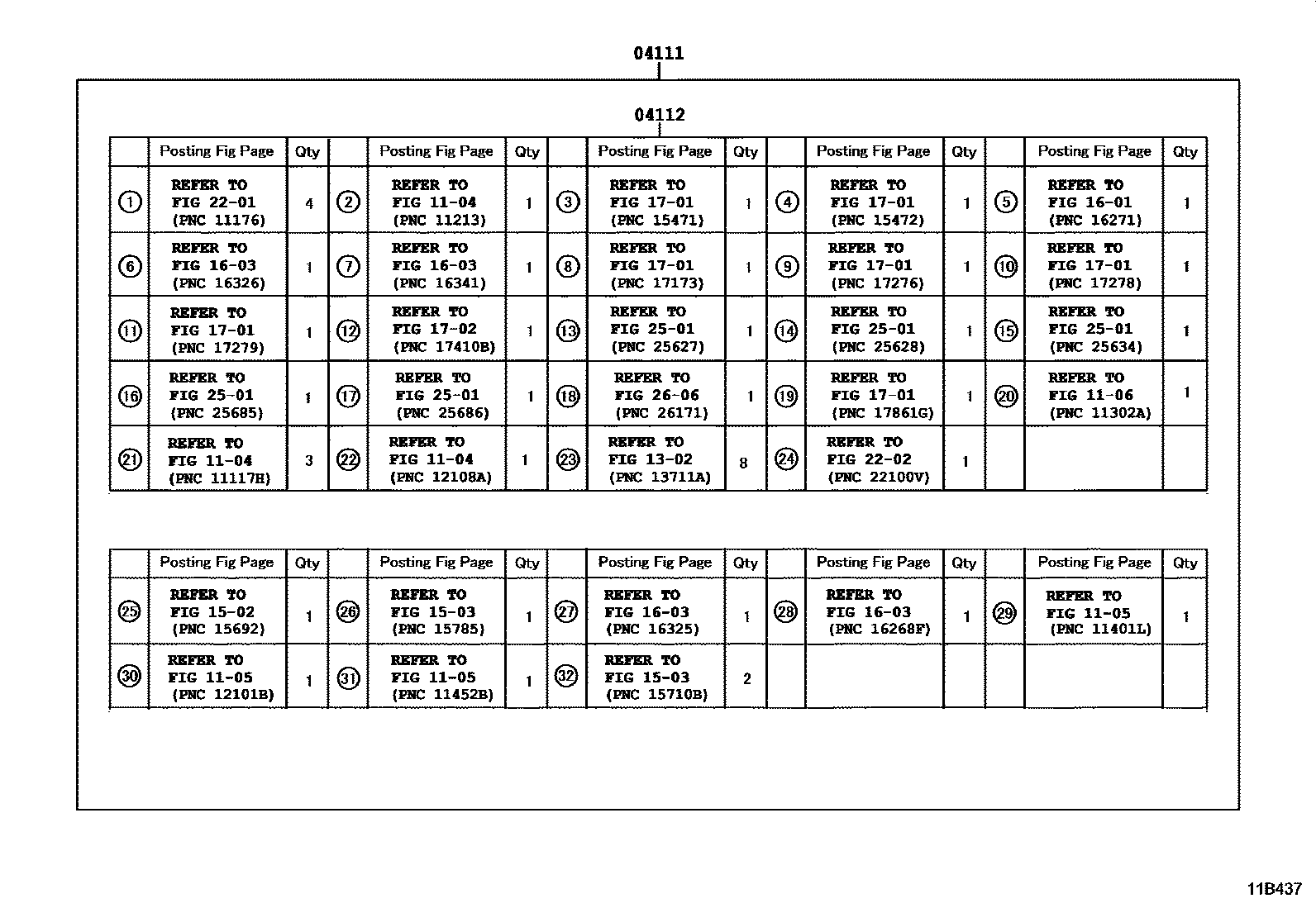

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B437
Engine Overhaul Gasket Kit — 11B437 (201006 – 999999)

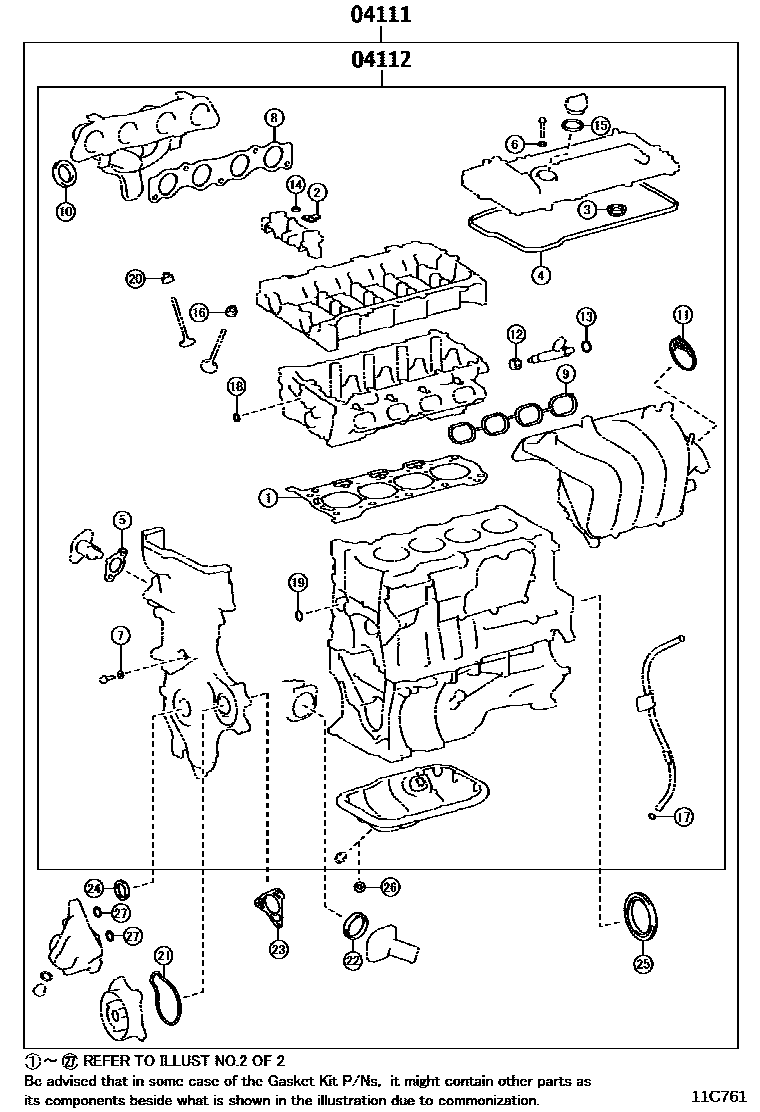

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C761
Engine Overhaul Gasket Kit — 11C761 (201007 – 201407)

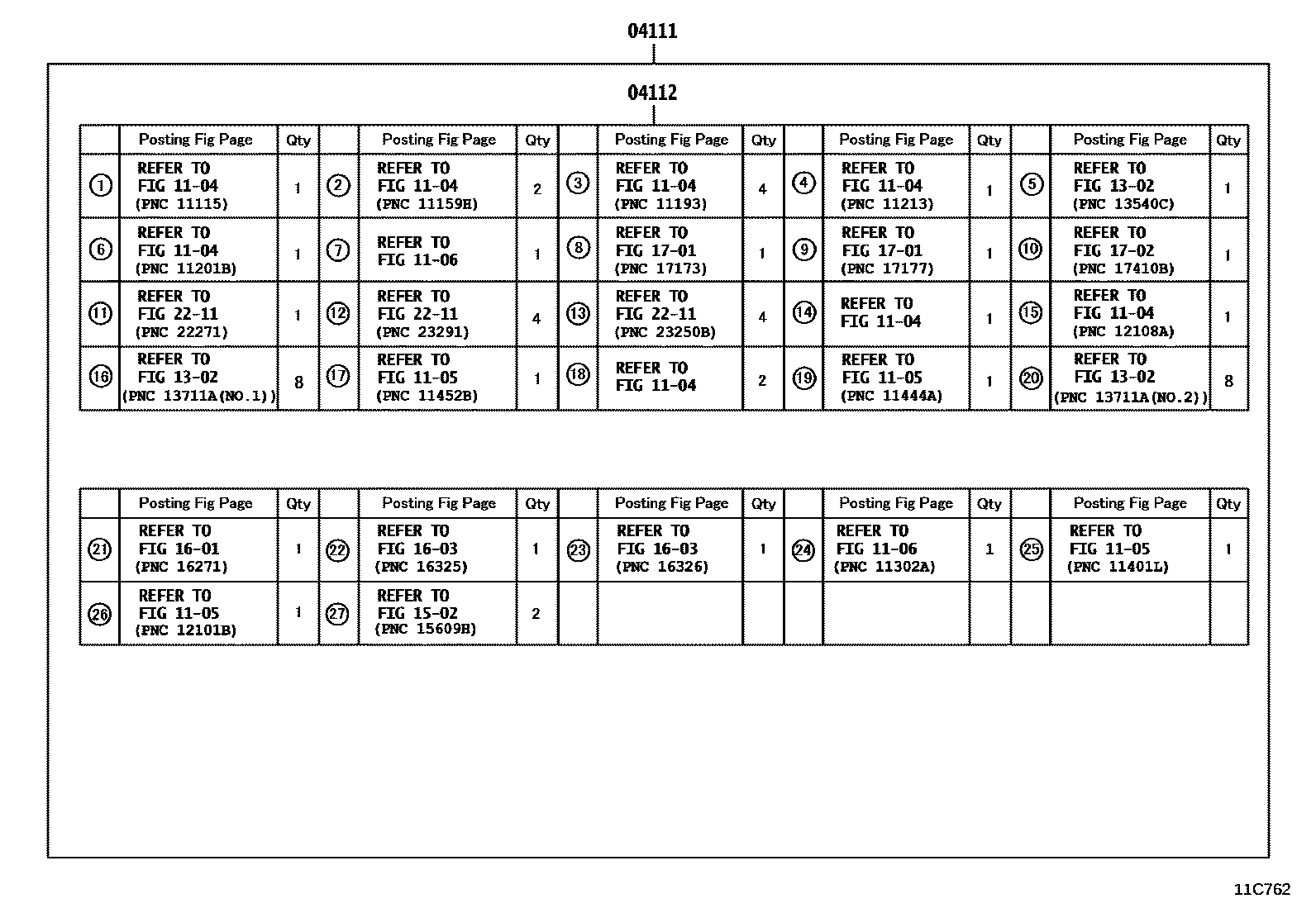

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C762
Engine Overhaul Gasket Kit — 11C762 (201007 – 201407)

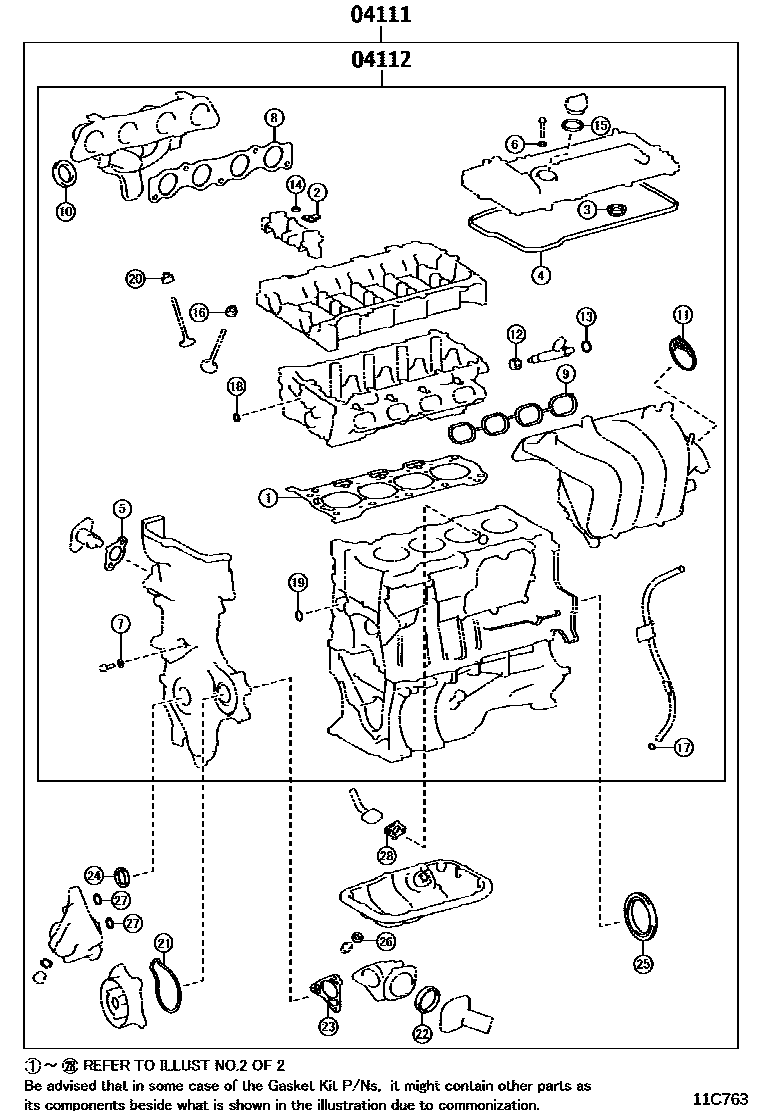

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C763
Engine Overhaul Gasket Kit — 11C763 (200811 – 201407)

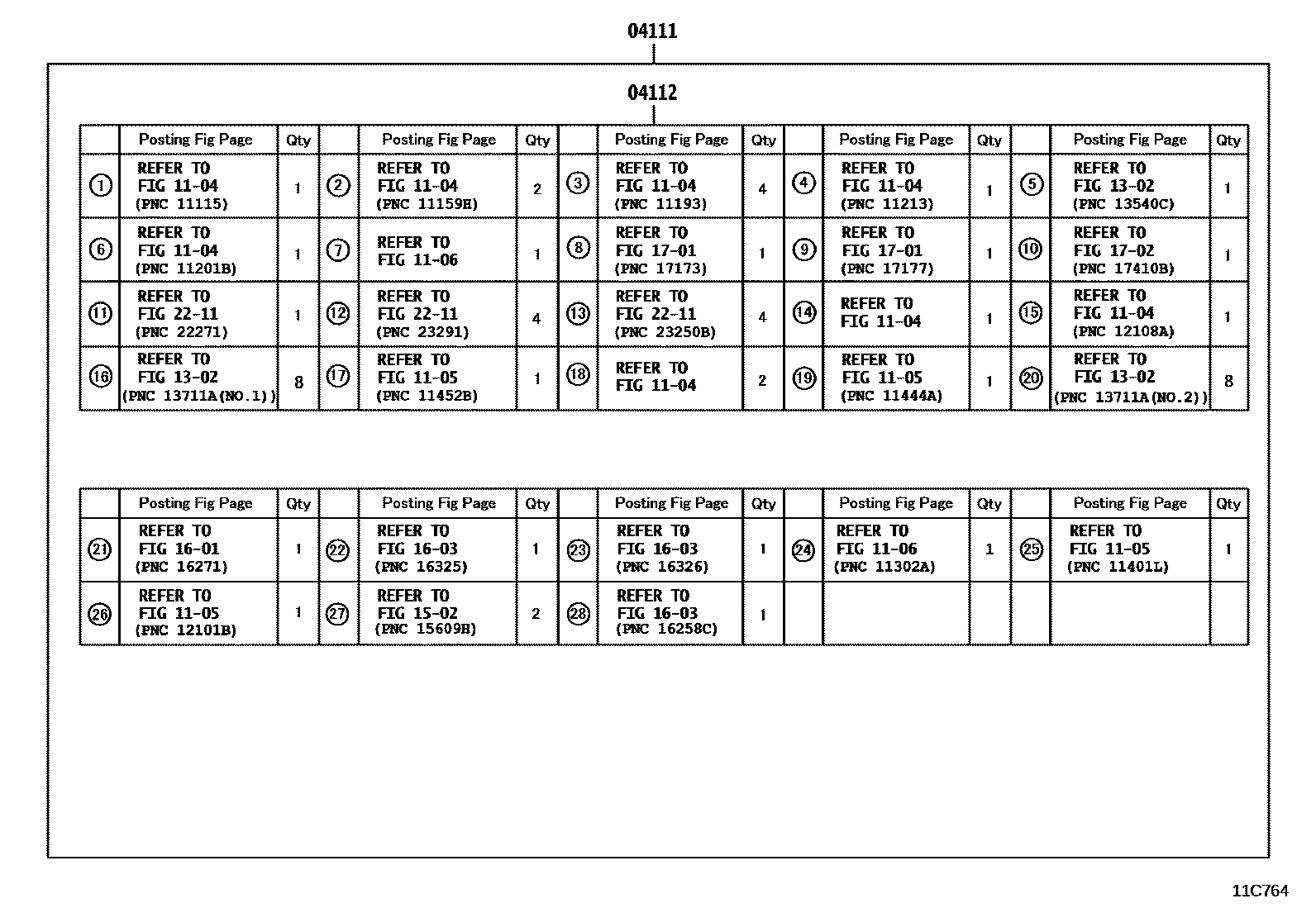

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C764
Engine Overhaul Gasket Kit — 11C764 (200811 – 201407)

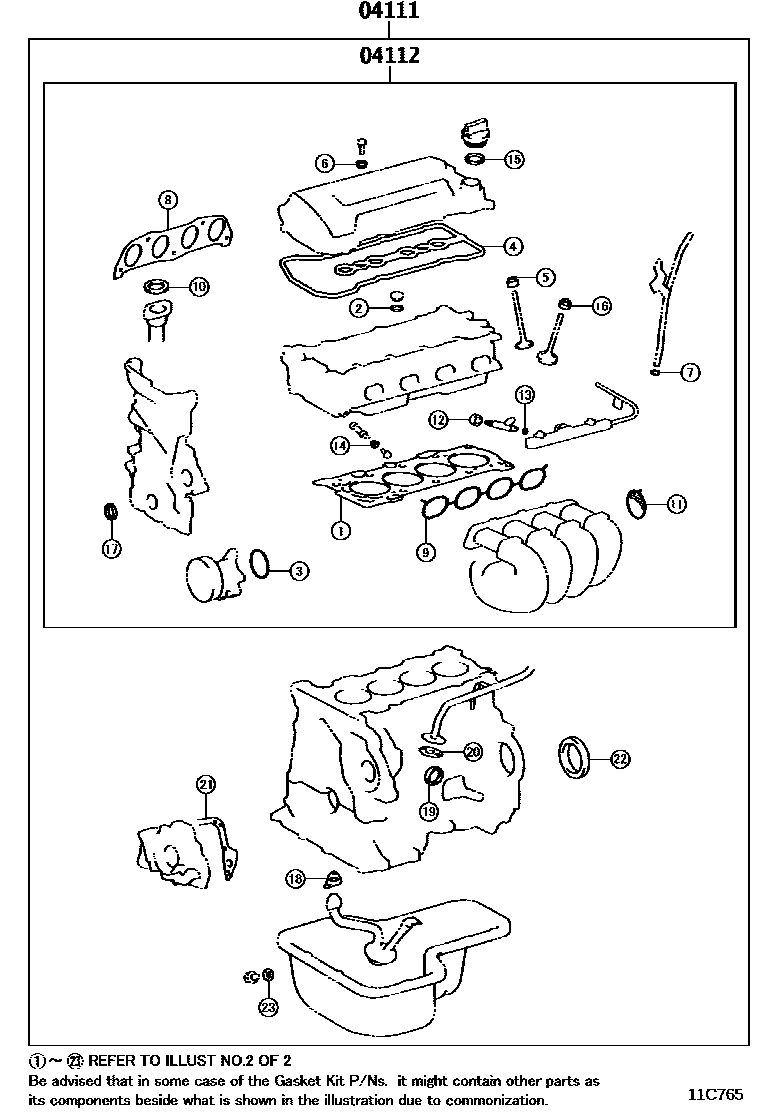

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C765
Engine Overhaul Gasket Kit — 11C765 (200808 – 999999)

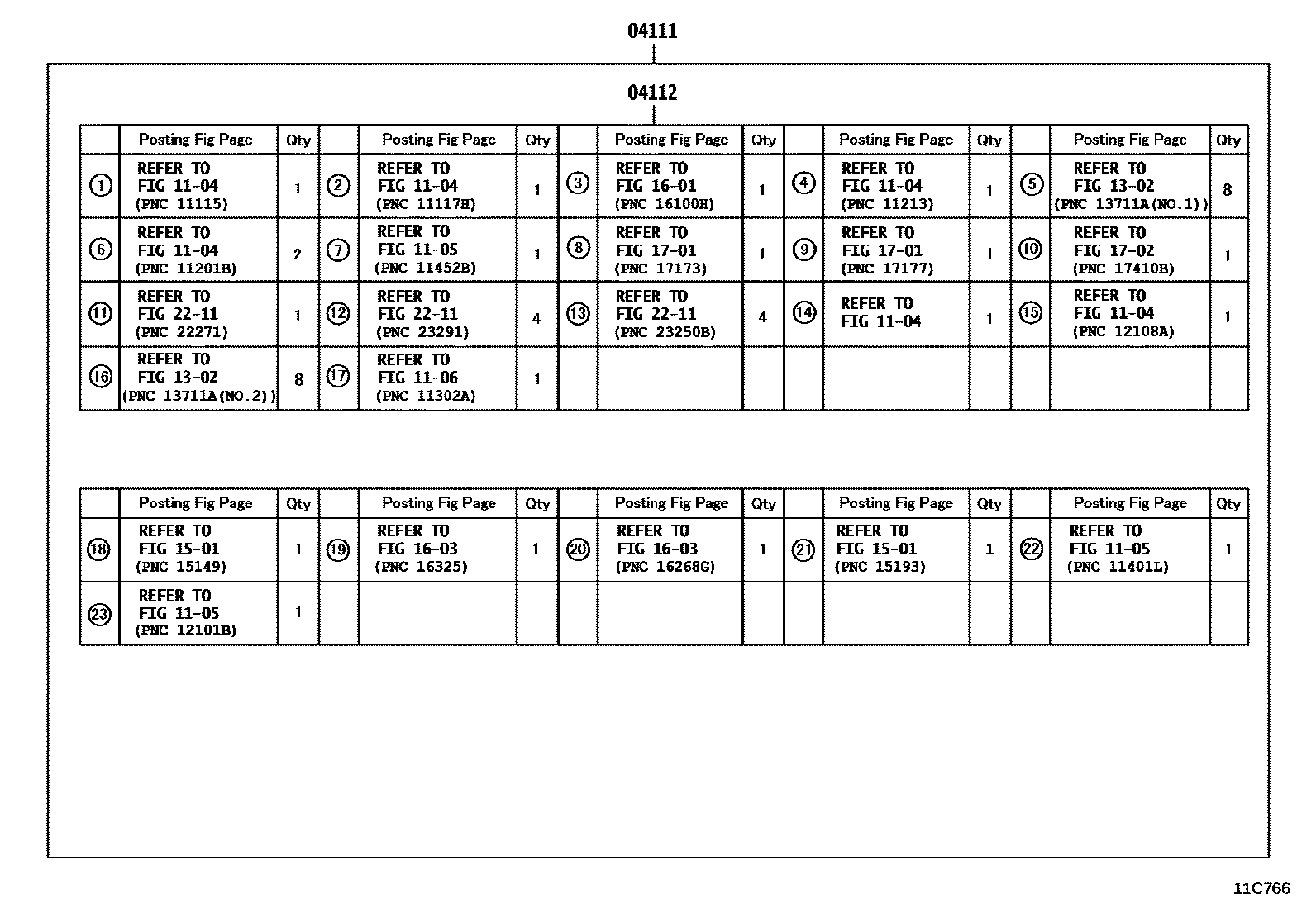

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C766
Engine Overhaul Gasket Kit — 11C766 (200008 – 999999)

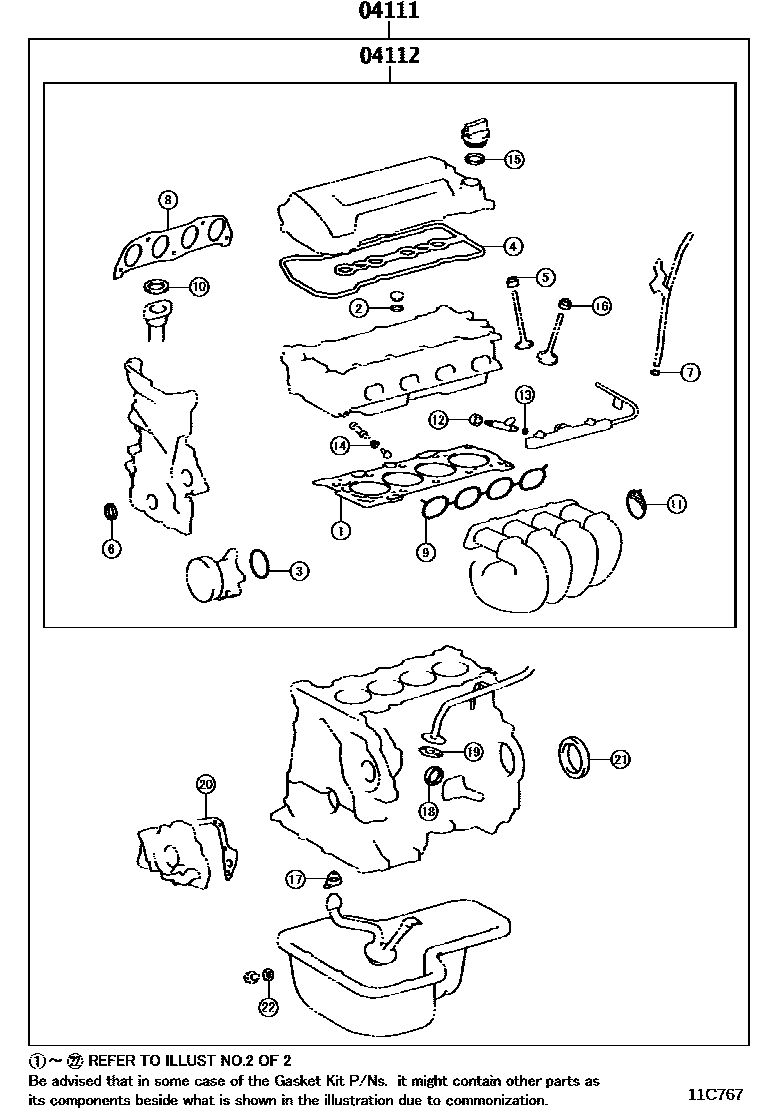

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C767
Engine Overhaul Gasket Kit — 11C767 (200712 – 201010)

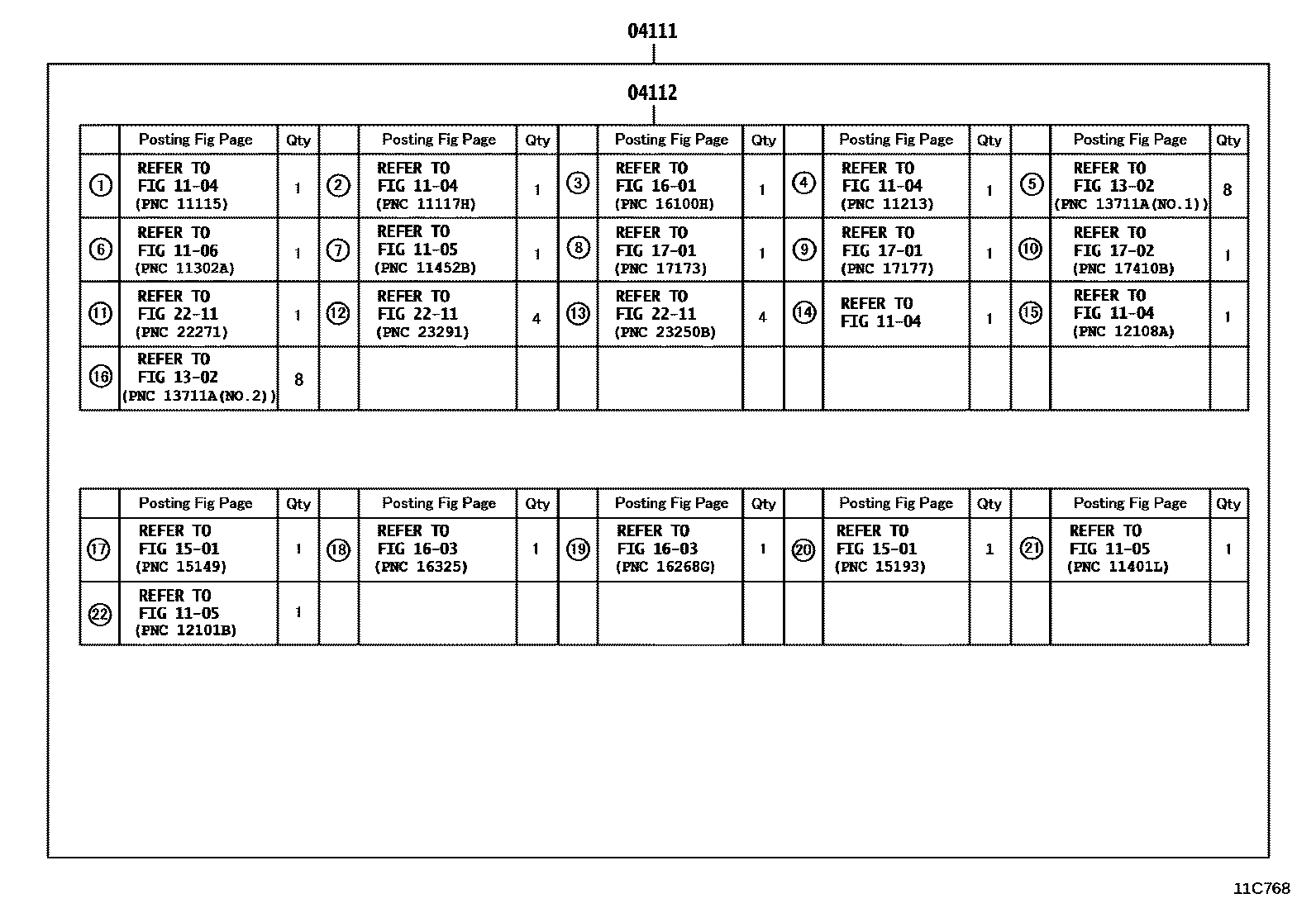

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C768
Engine Overhaul Gasket Kit — 11C768 (200712 – 201010)

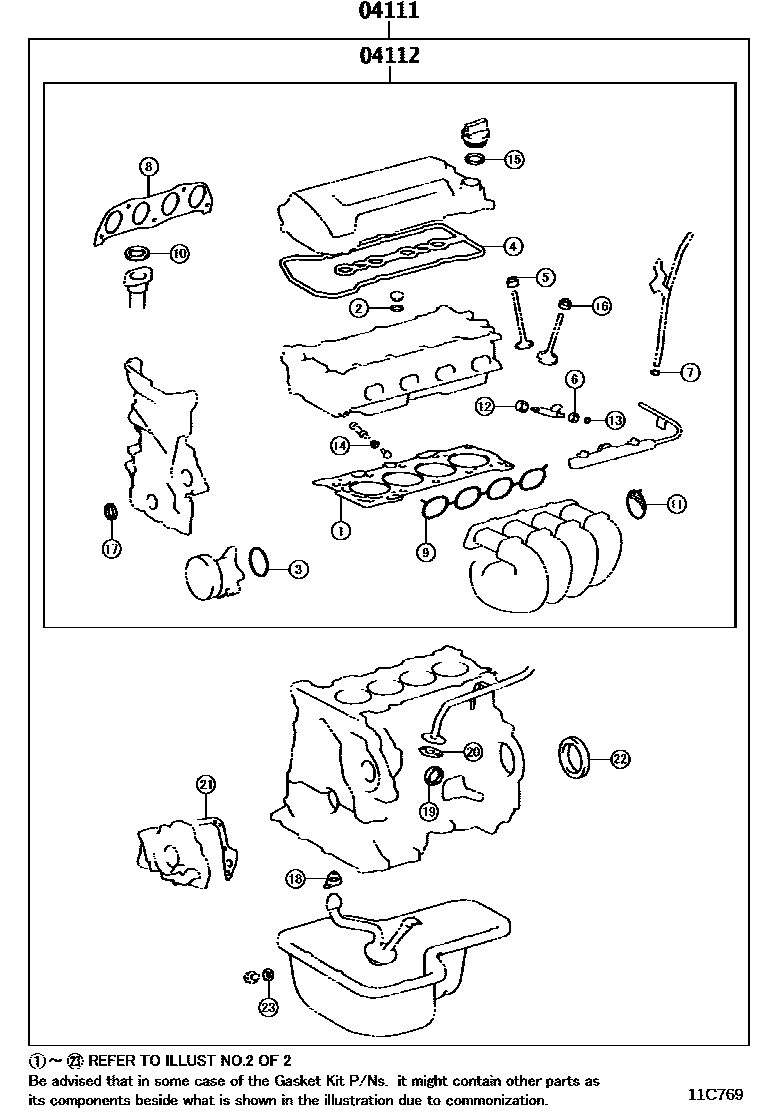

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C769
Engine Overhaul Gasket Kit — 11C769 (200712 – 201311)

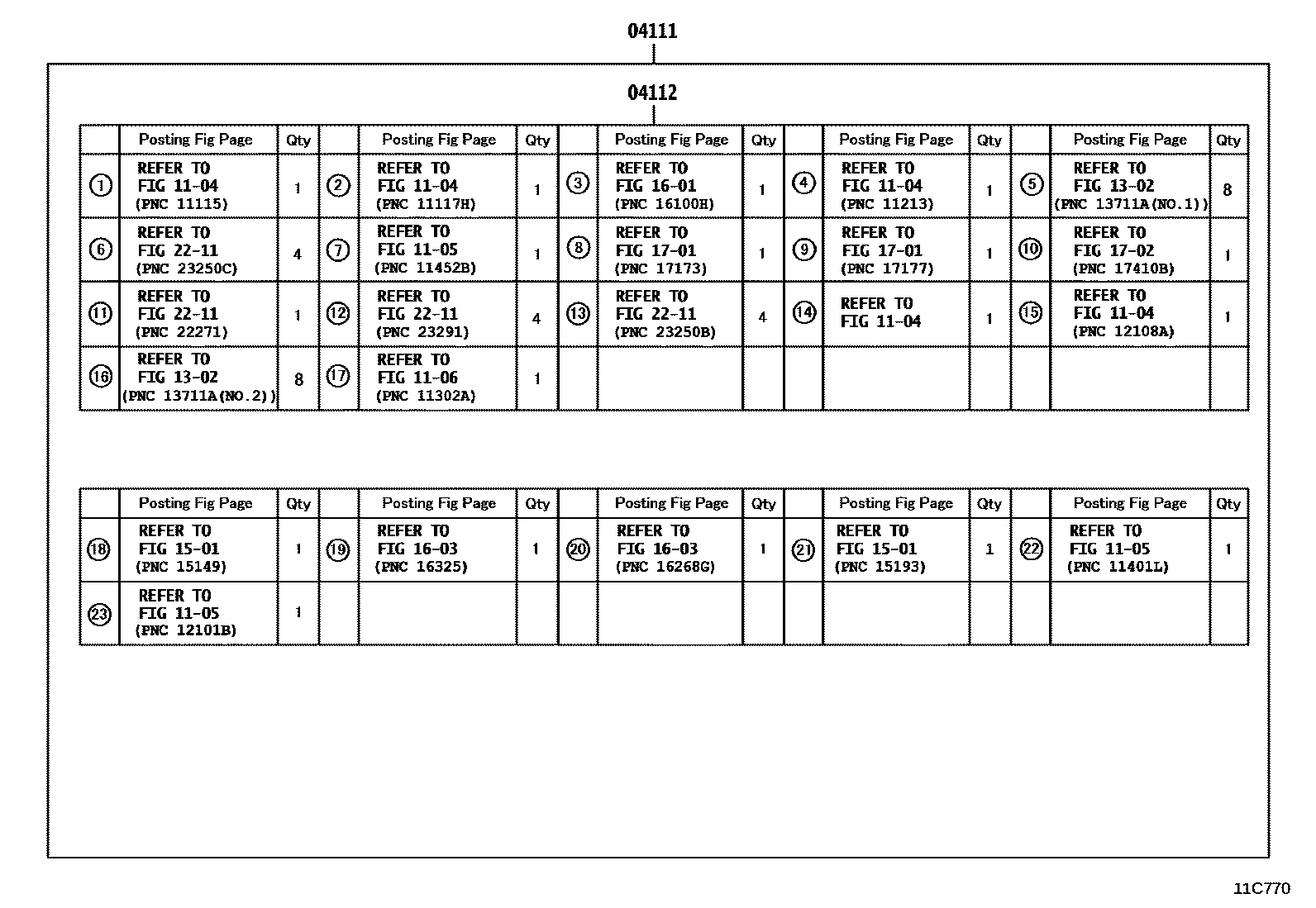

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C770
Engine Overhaul Gasket Kit — 11C770 (200712 – 201311)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D530 · 04111-0D531 · 04111-0D532 · 04111-0D540 · 04111-0D541 · 04111-0M111 · 04111-0M112 · 04111-0M113 · 04111-21239 · 04111-21330 · 04111-21331 · 04111-21332 · 04111-21333 · 04111-21334 · 04111-21370 · 04111-21371 · 04111-22840 · 04111-22841 · 04111-33140 · 04111-33190 · 04111-33191 · 04111-37093 · 04111-37095 · 04111-37096 · 04111-37180 · 04111-37181 · 04111-37183 · 04111-37184 · 04111-64681
04112Engine valve grinding pad assembly04112-0D500 · 04112-0D510 · 04112-0M101 · 04112-0M102 · 04112-21237 · 04112-21238 · 04112-21239 · 04112-21330 · 04112-21331 · 04112-21332 · 04112-21333 · 04112-22690 · 04112-22760 · 04112-33130 · 04112-33180 · 04112-33181 · 04112-37073 · 04112-37074 · 04112-37075 · 04112-37160 · 04112-37161 · 04112-64431
