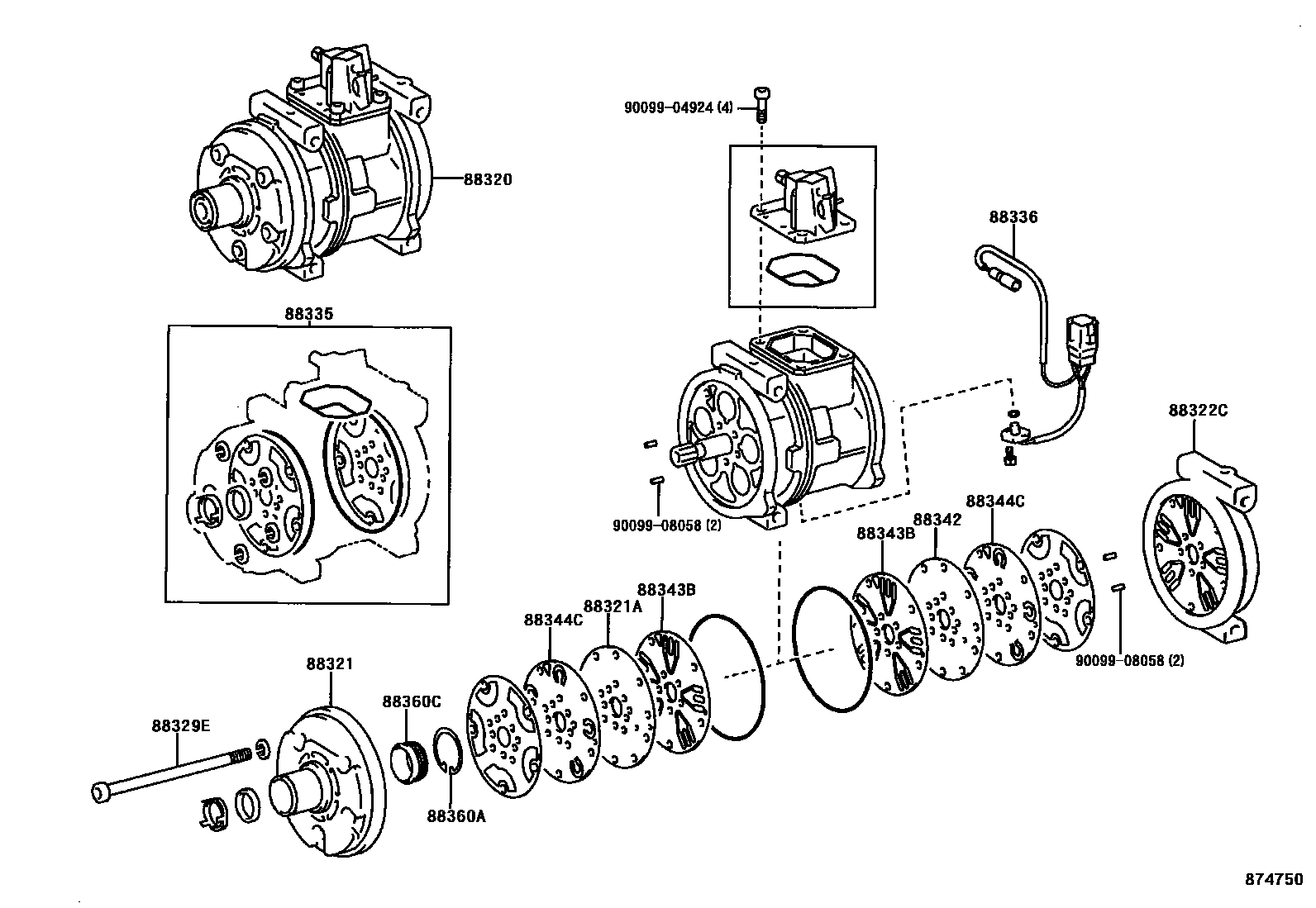

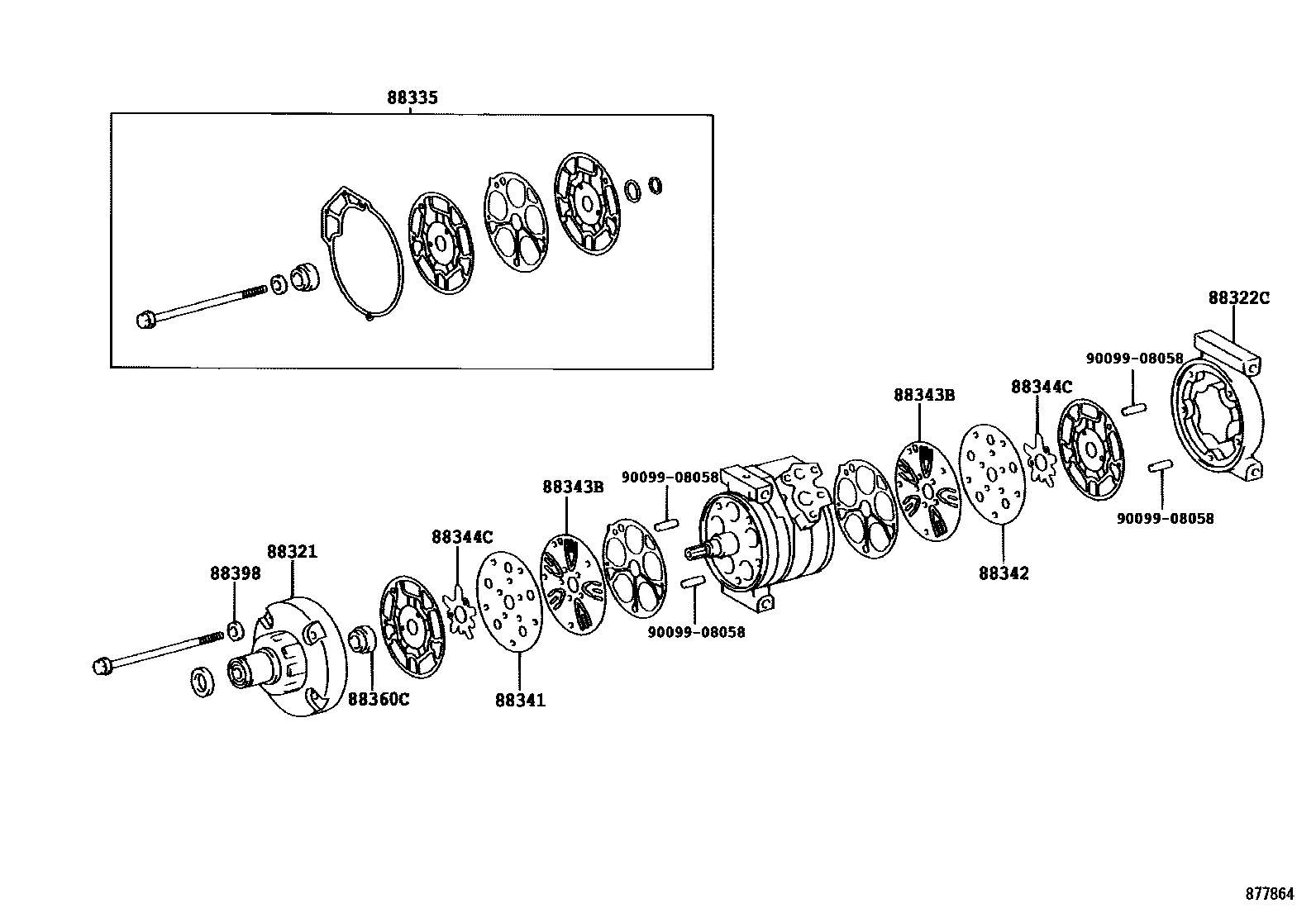

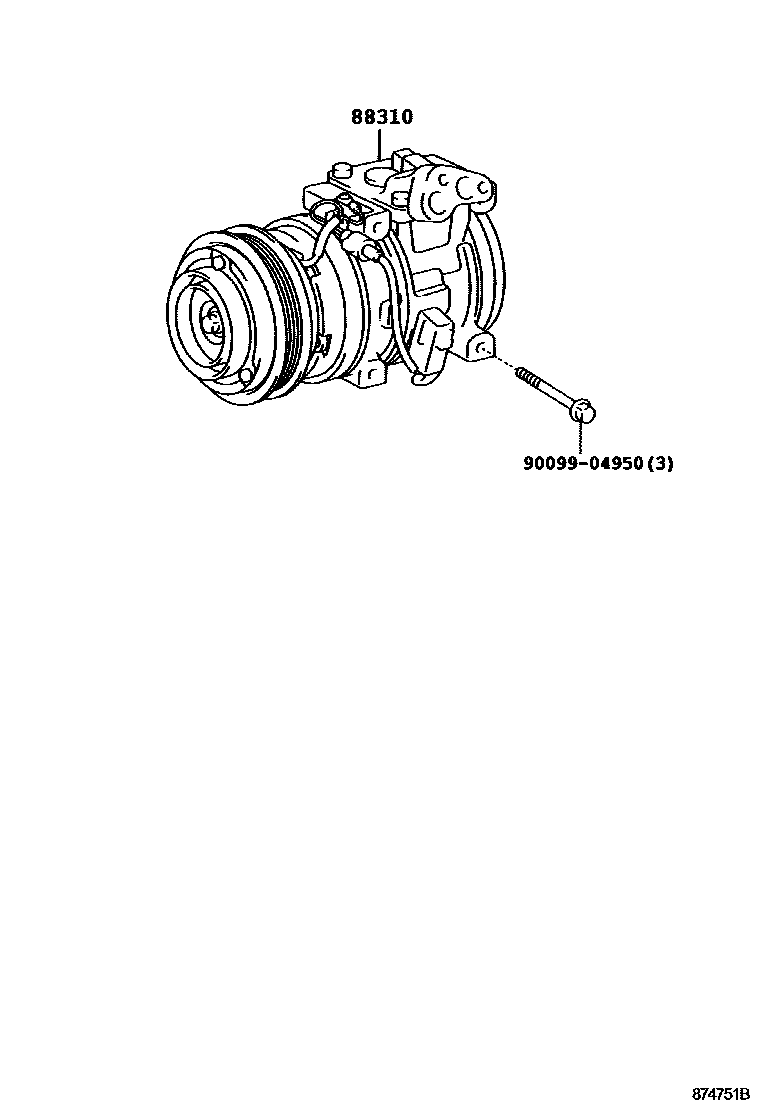

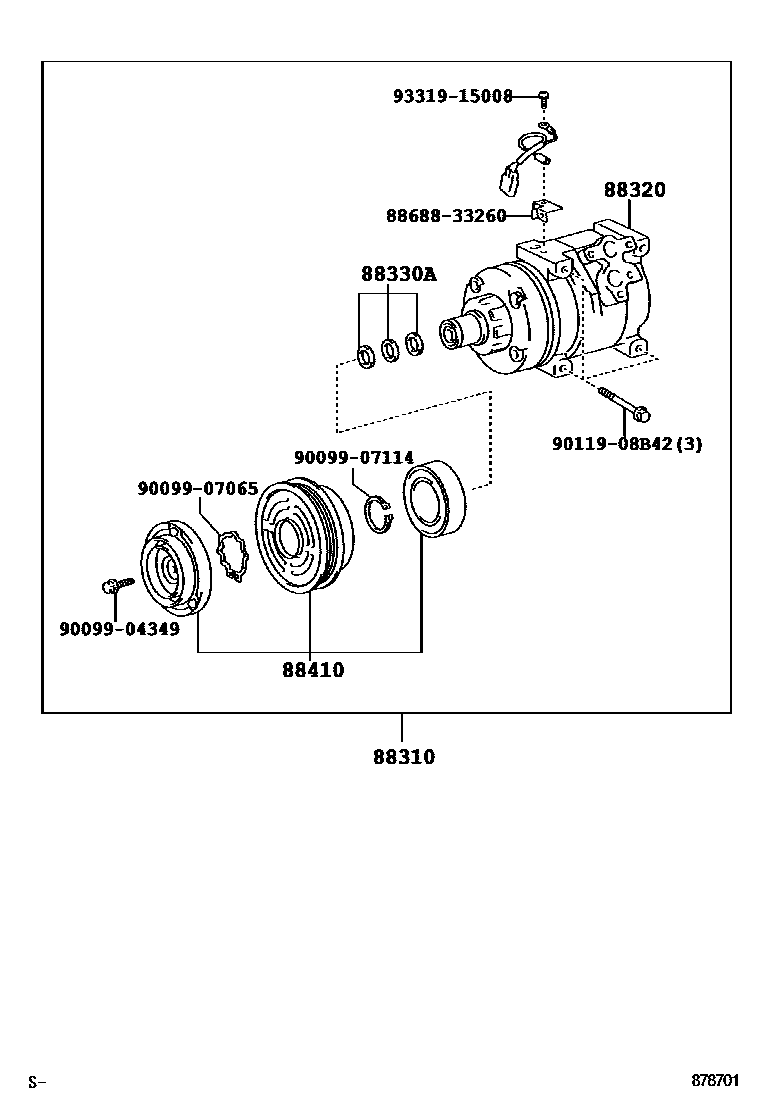

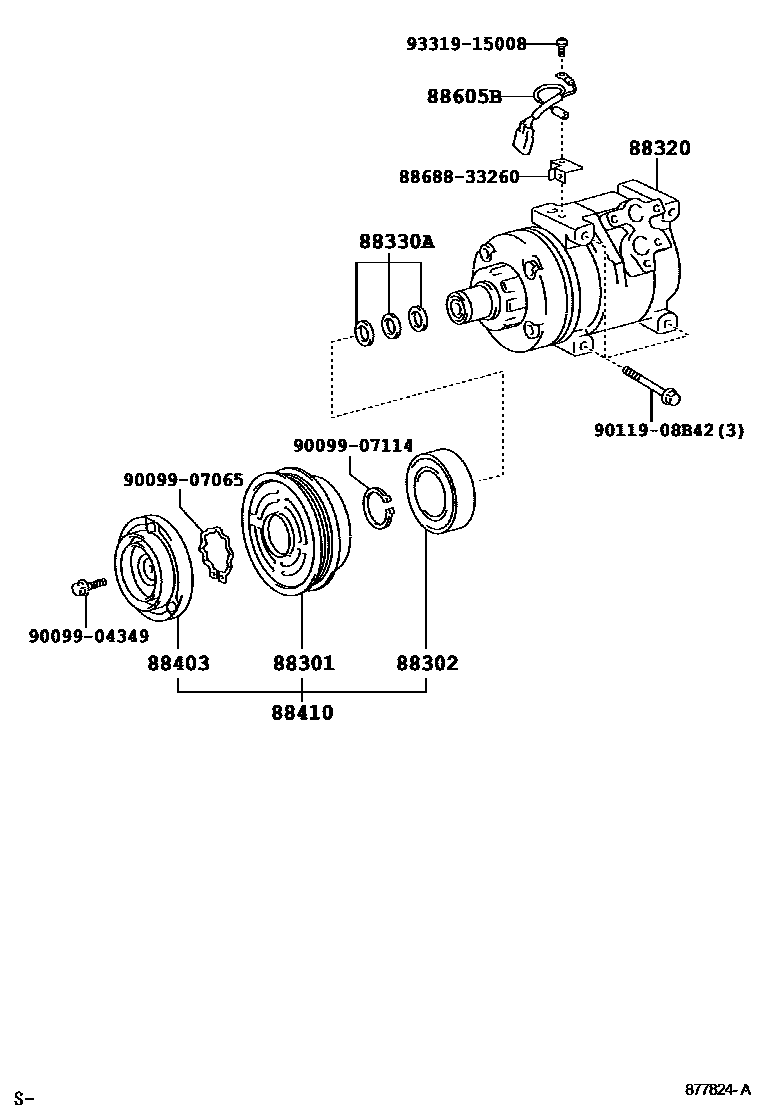

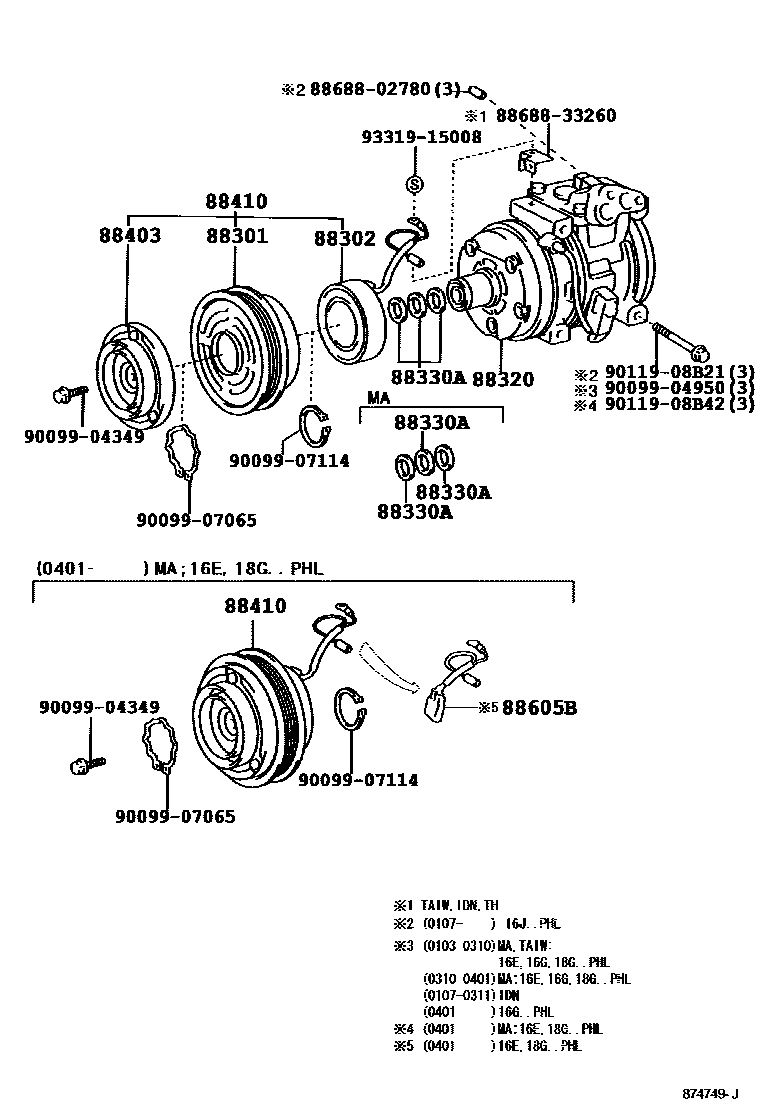

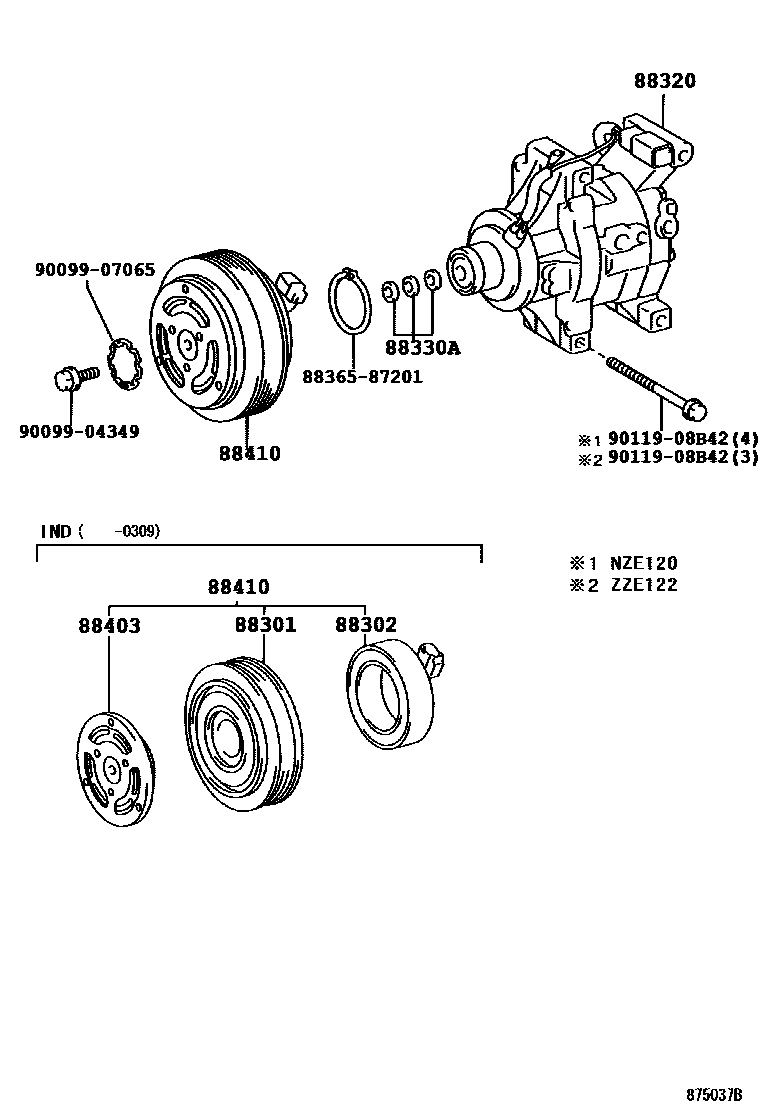

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 7 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-02100 · 88412-02110 · 88412-1A170 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-02040 · 88411-1A050 · 88411-2A030 |
| 88310 | Compressor assembly with pulley | 88310-02140 · 88310-02280 |
| 88320 | Cooler Compressor Assembly | 88320-02100 · 88320-02110 · 88320-02120 · 88320-1A481 · 88320-1A491 · 88320-1A550 · 88320-1A570 · 88320-8C001 |
| 88321 | Cooler compressor cylinder head | 88321-2B010 · 88321-32020 |
| 88321A | Valve sub-assembly | 88341-22010 |
| 88322C | Rear cylinder head | 88322-32040 · 88322-32060 |
| 88329E | No. 1 compressor bolt | 90099-04370 |
| 88330A | Washer (for electromagnetic clutch) | 88318-87704 · 88318-87705 · 88318-87706 · 88335-14020 · 88335-8C000 |
| 88335 | Overhaul gasket assembly | 88335-2B030 · 88335-32030 |
| 88336 | compressor sensor | 88336-8C002 |
| 88341 | front valve | 88341-32010 |
| 88342 | Rear compressor valve plate | 88342-22010 · 88342-32020 |
| 88343B | suction valve reed | 88343-14020 · 88343-32020 |
| 88344C | Discharge valve reed | 88344-22010 · 88344-32020 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-2B020 · 88360-32010 |
| 88398 | Compressor seals | 88398-32010 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A020 · 88403-30290 · 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-02090 · 88410-02120 · 88410-02130 · 88410-1A210 · 88410-1A220 · 88410-1A260 · 88410-1A290 · 88410-52140 · 88410-52230 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35420 · 88605-8C000 |
