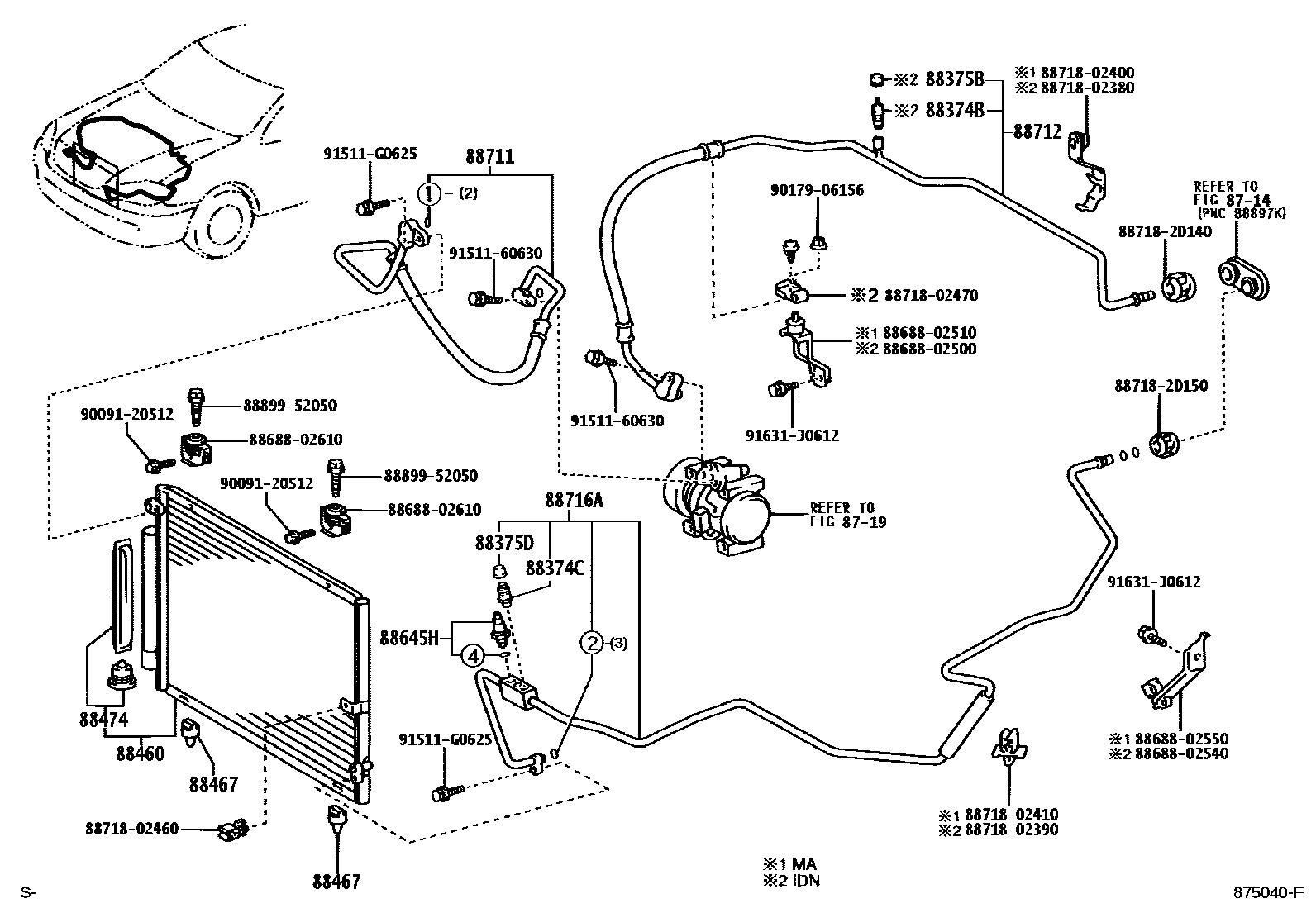

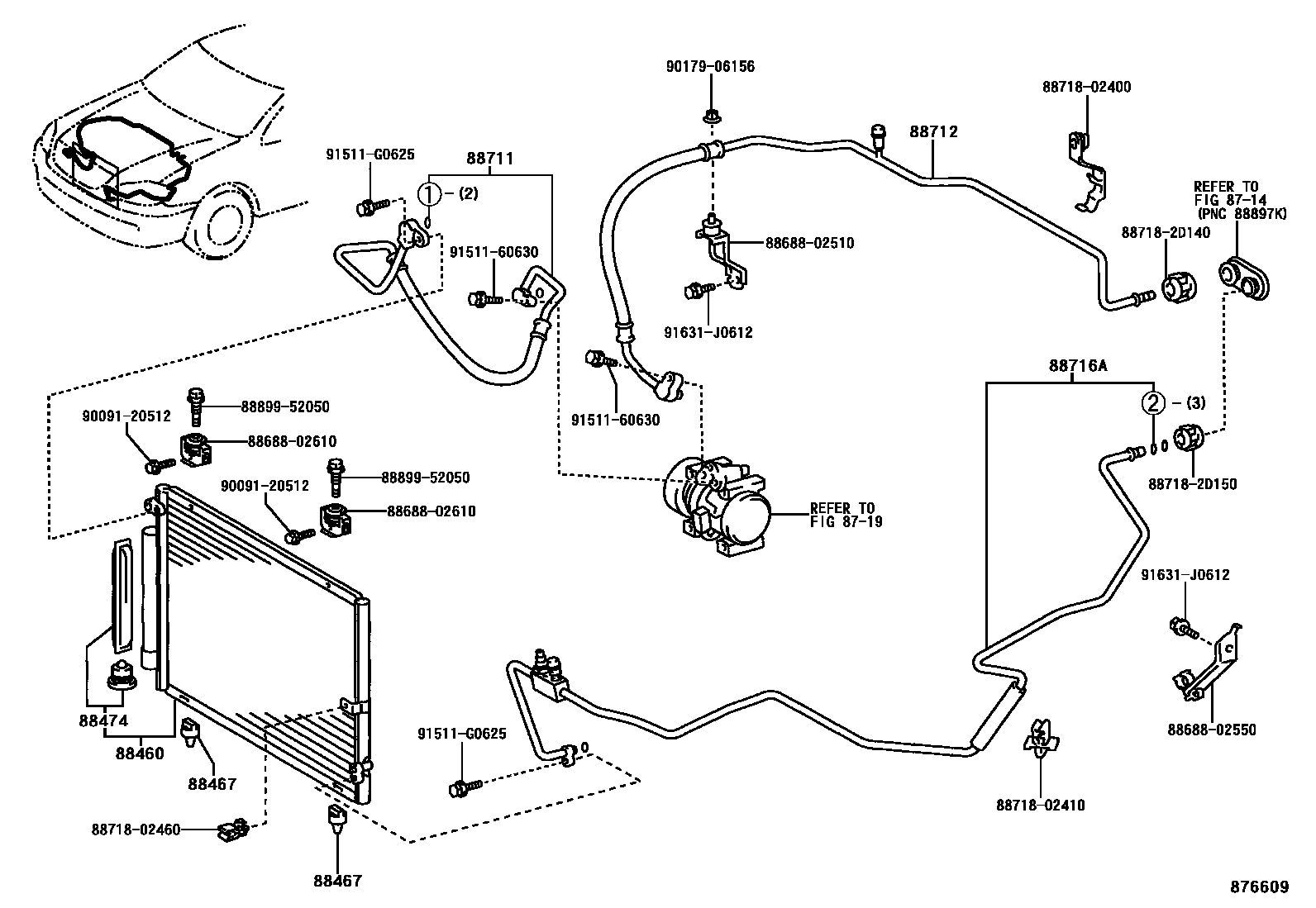

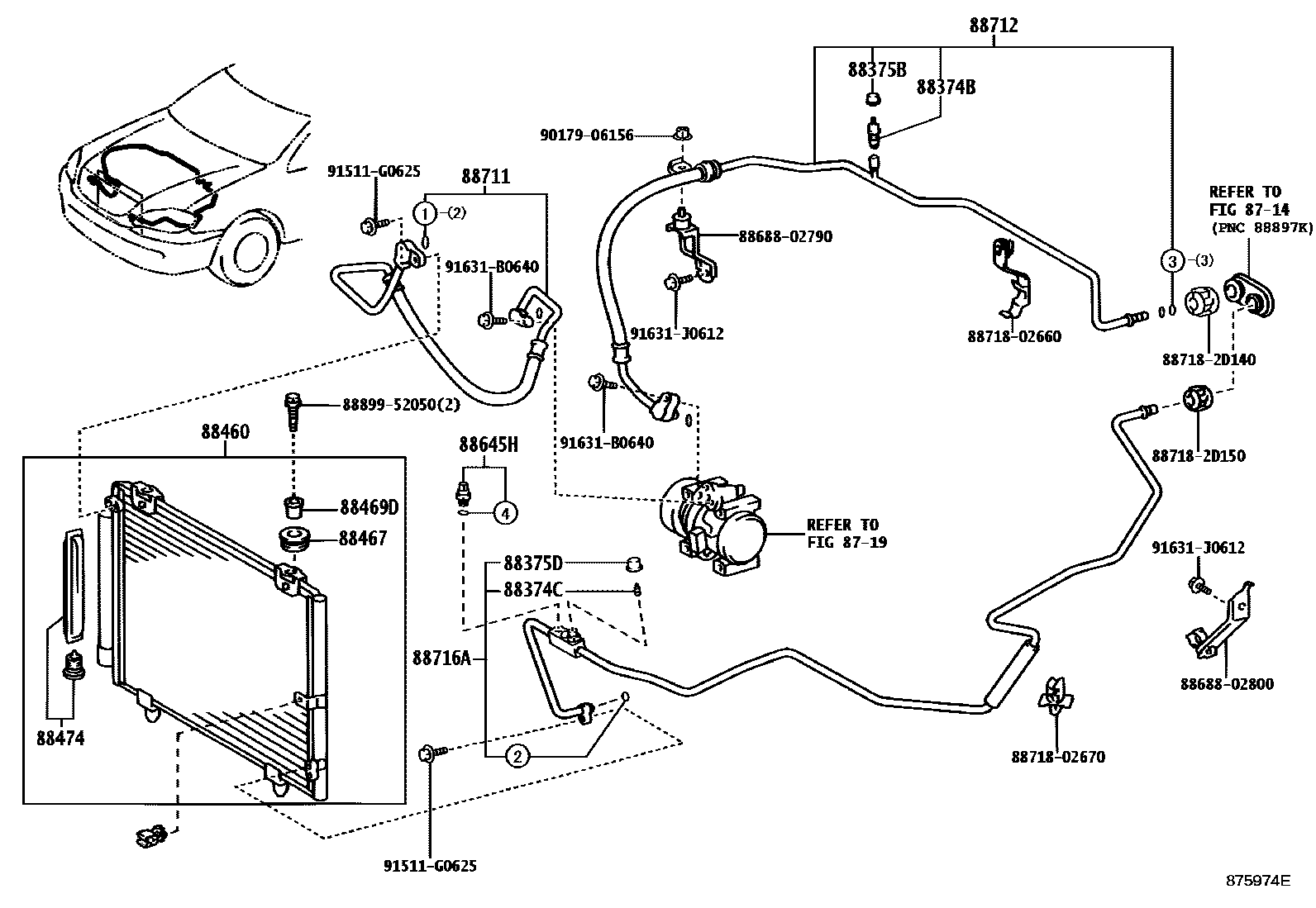

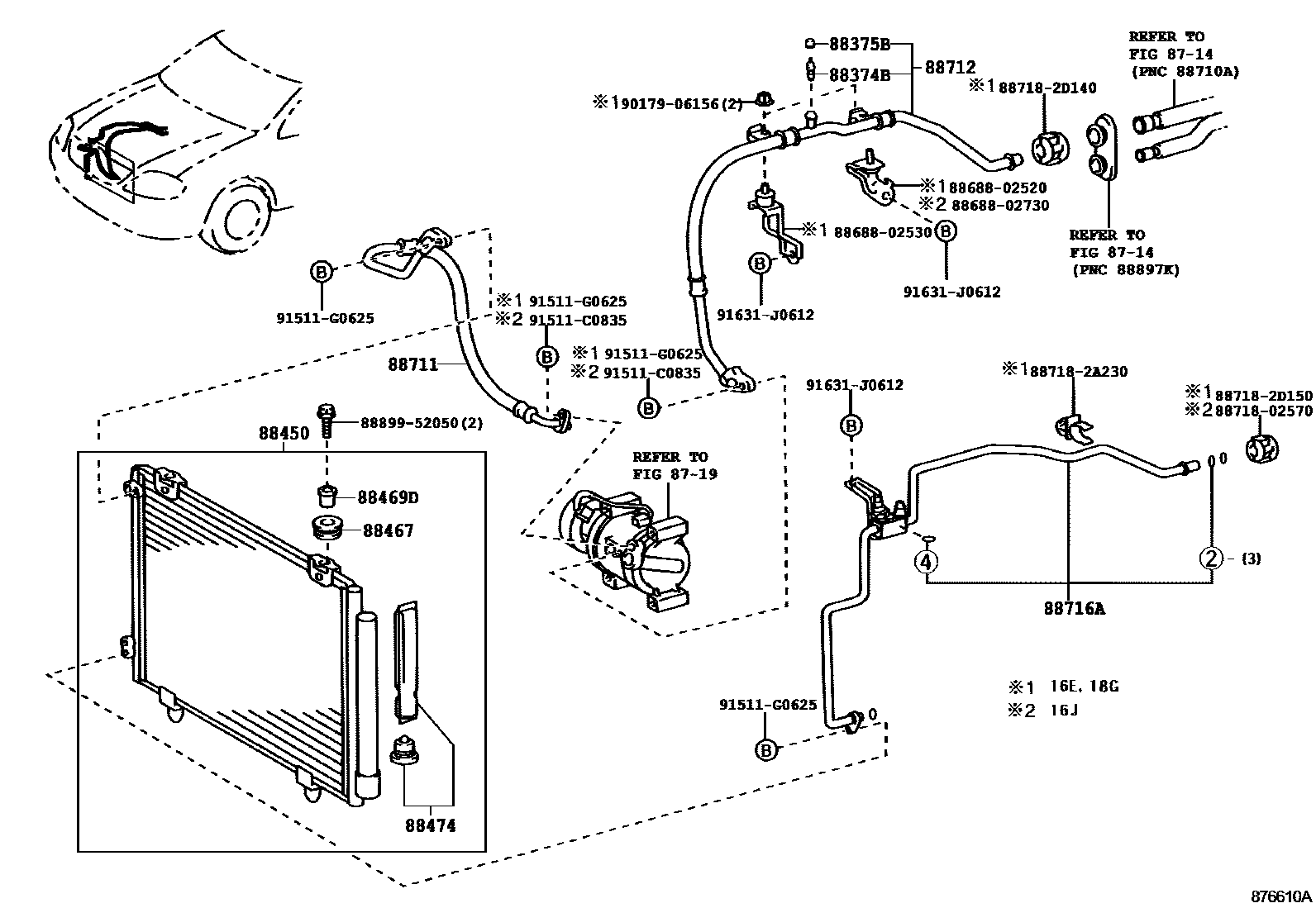

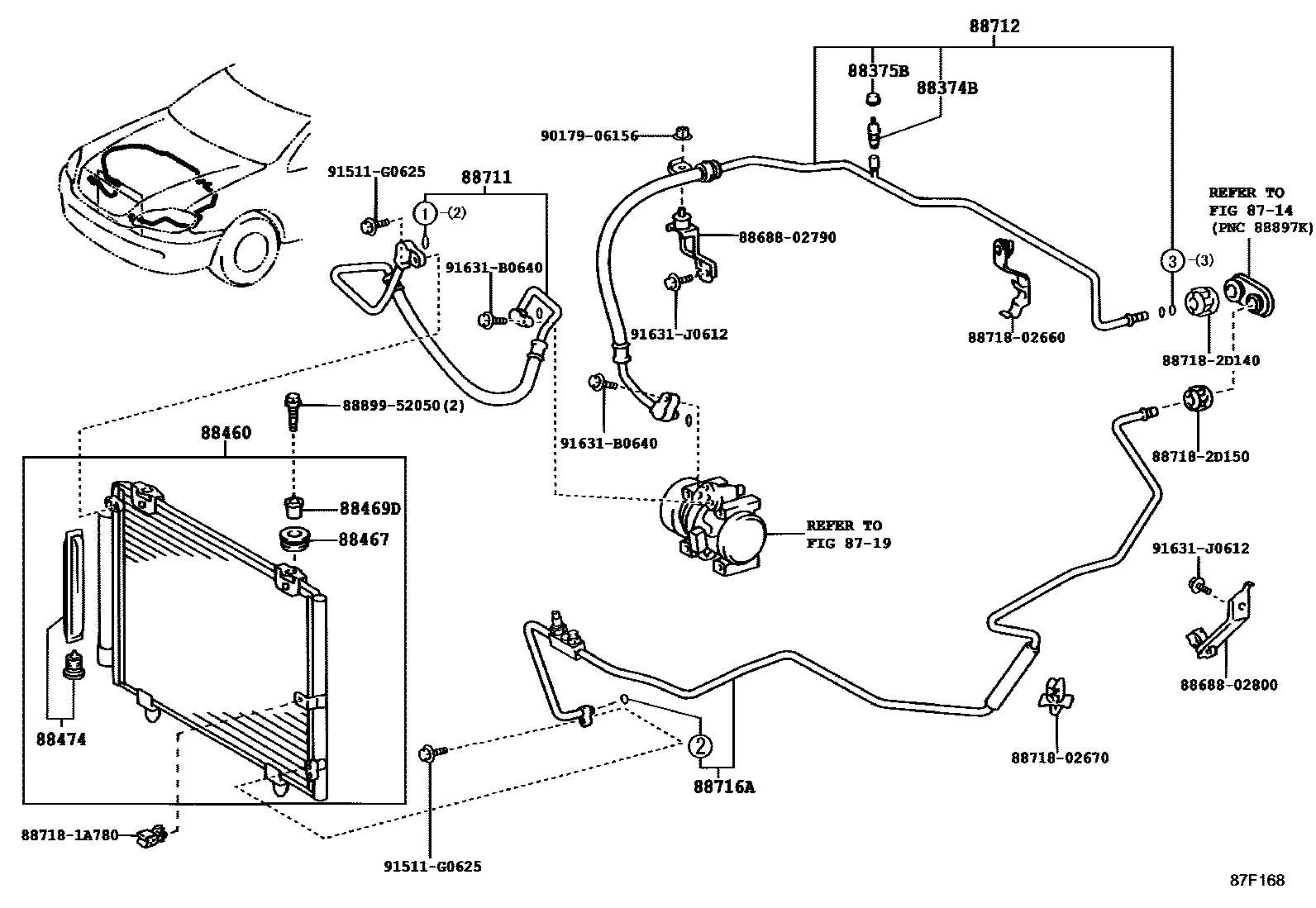

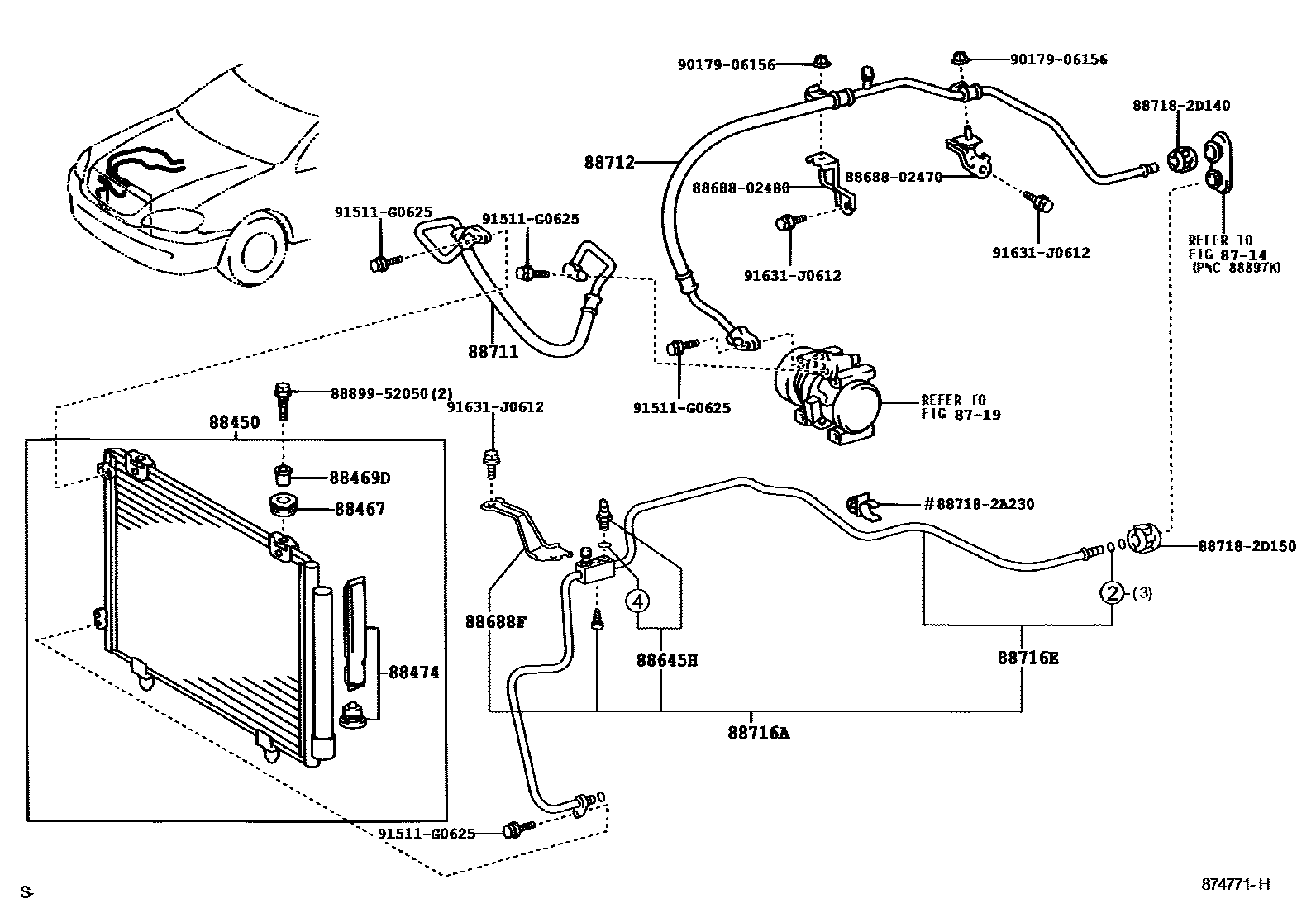

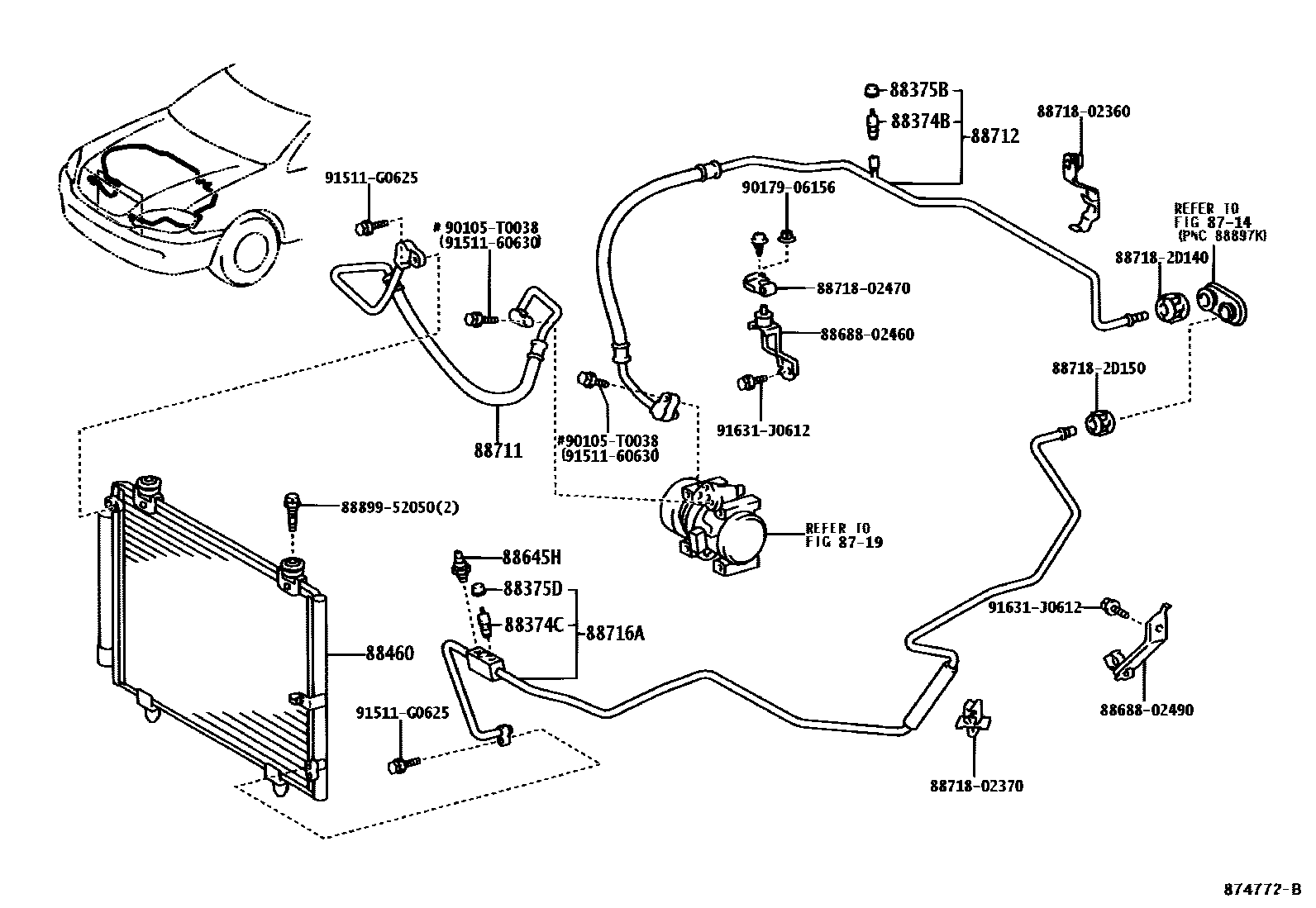

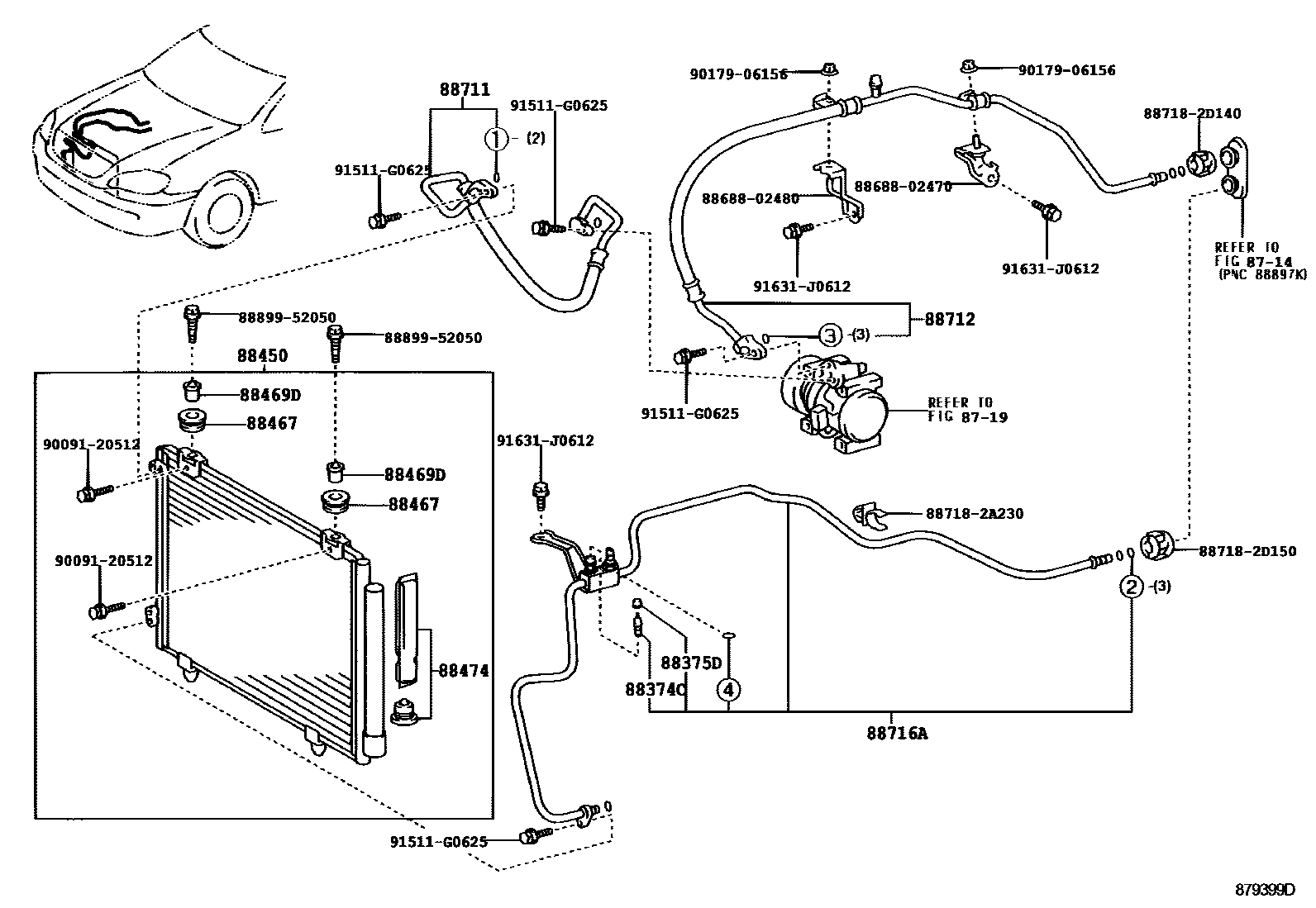

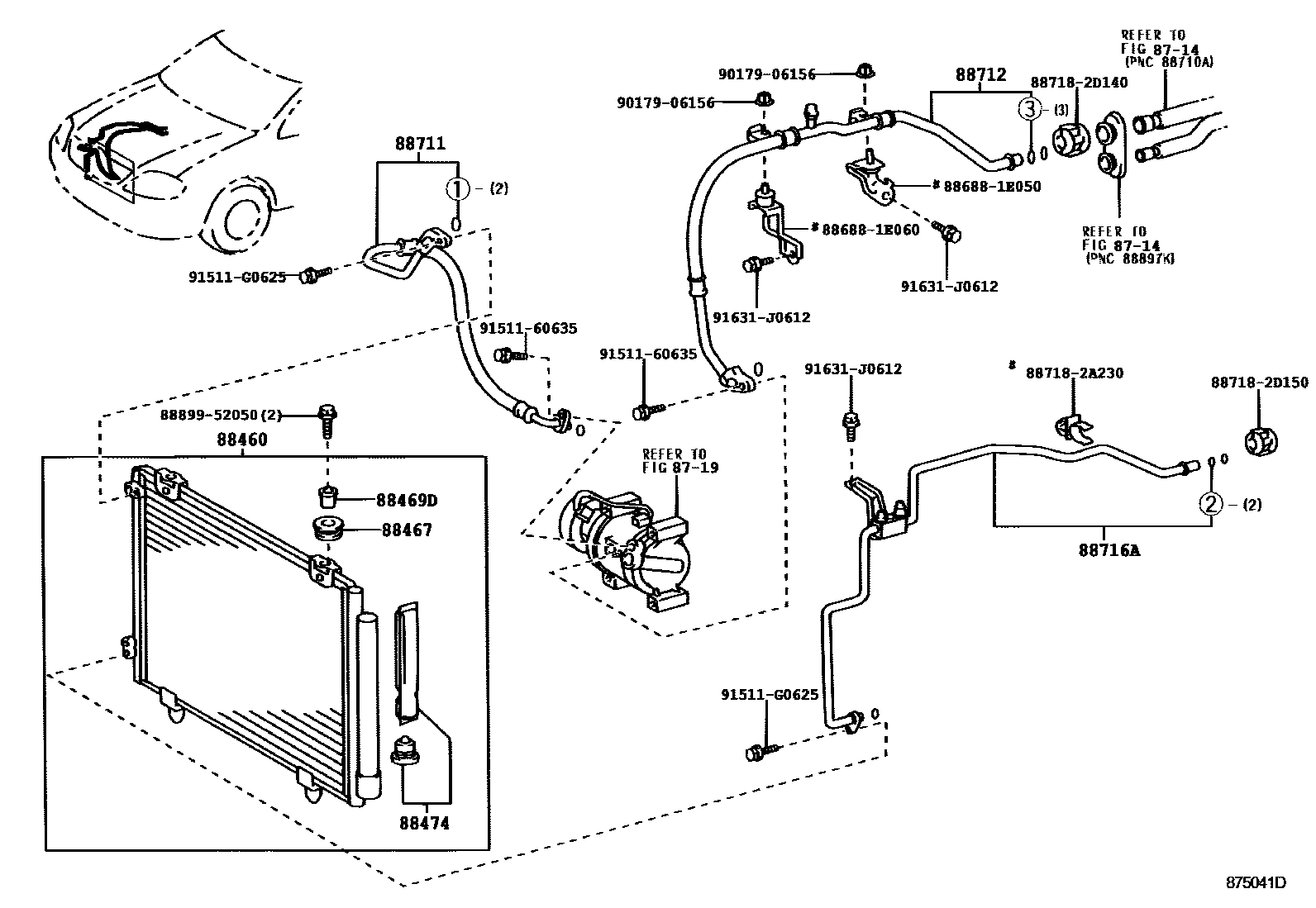

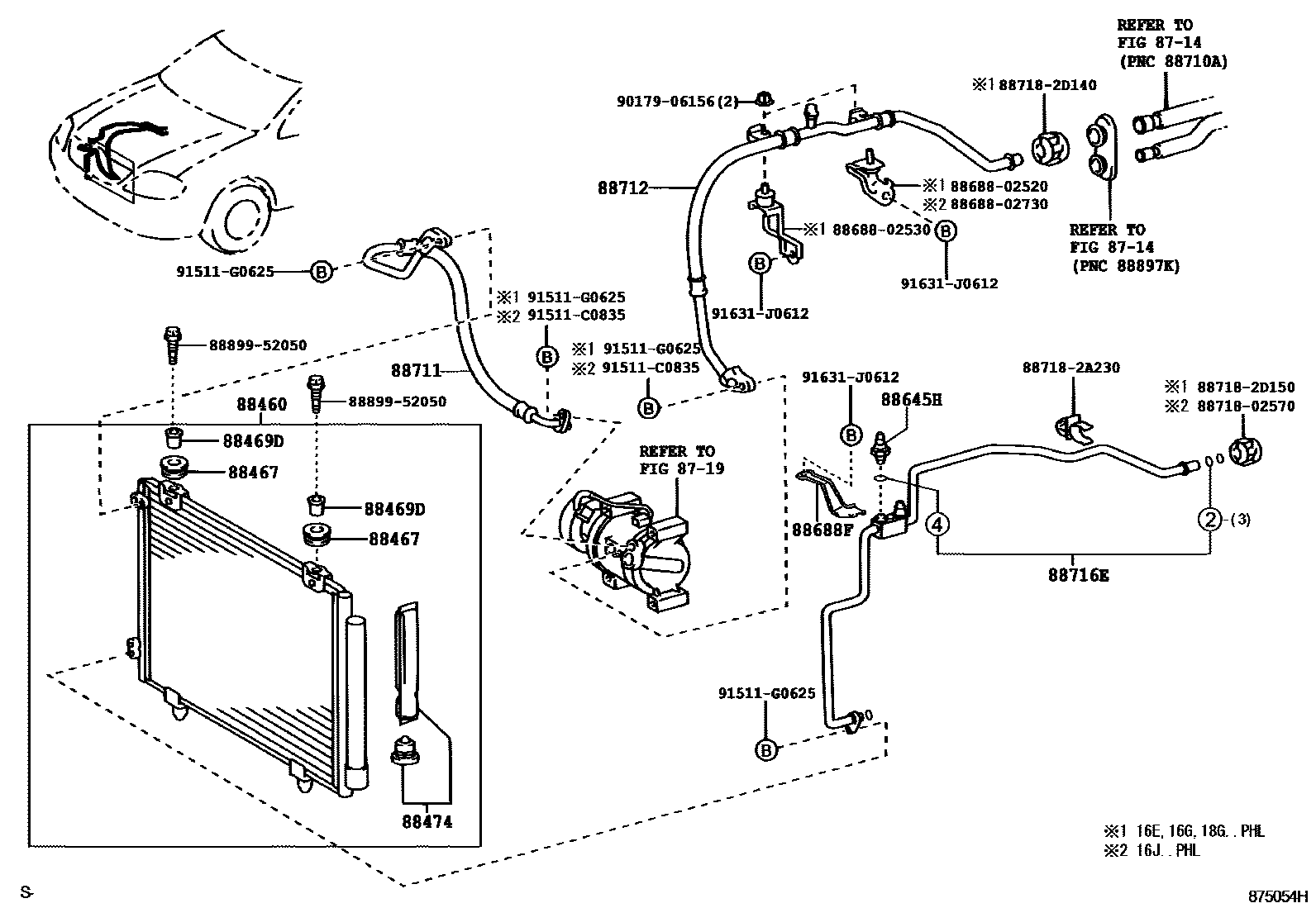

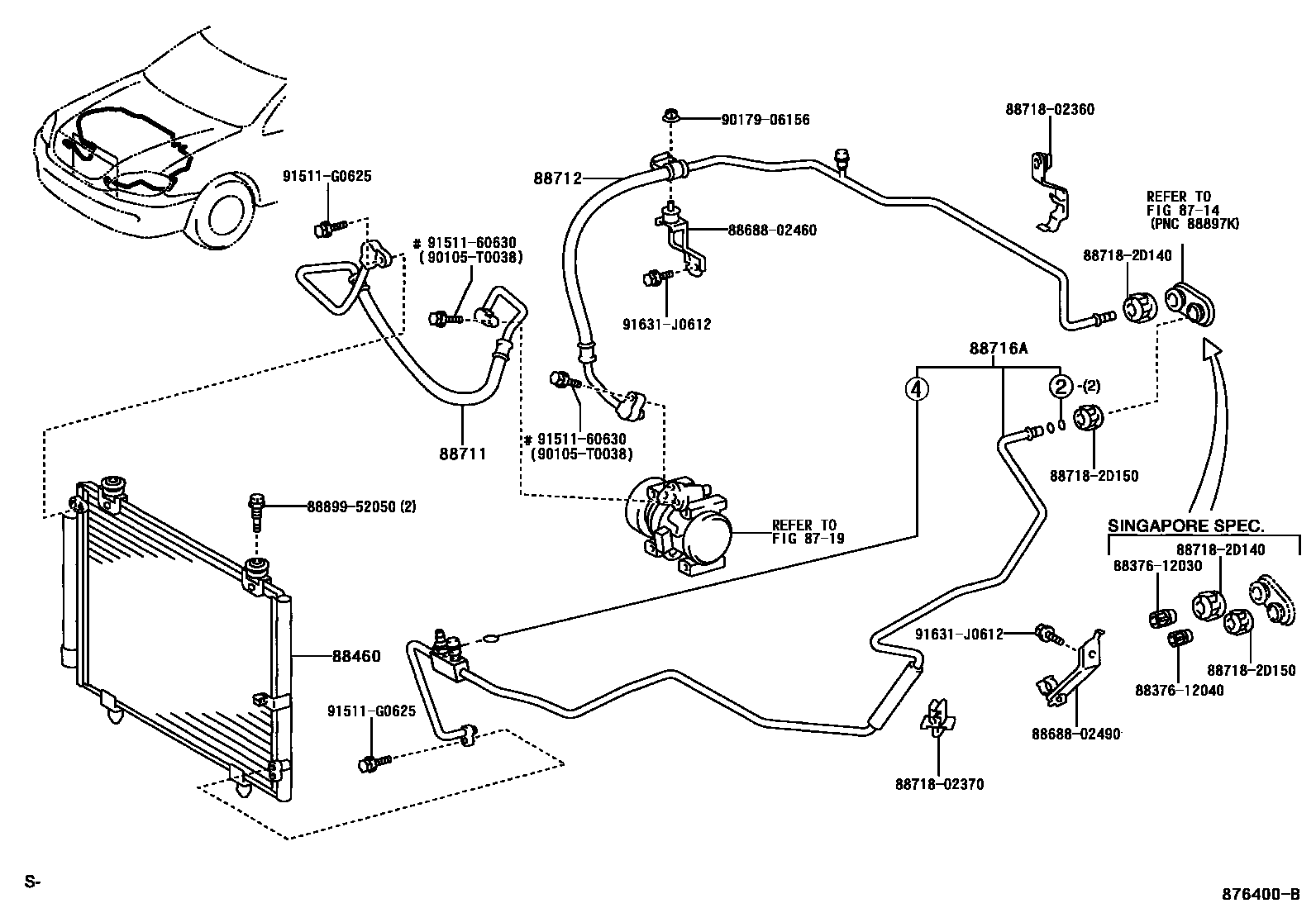

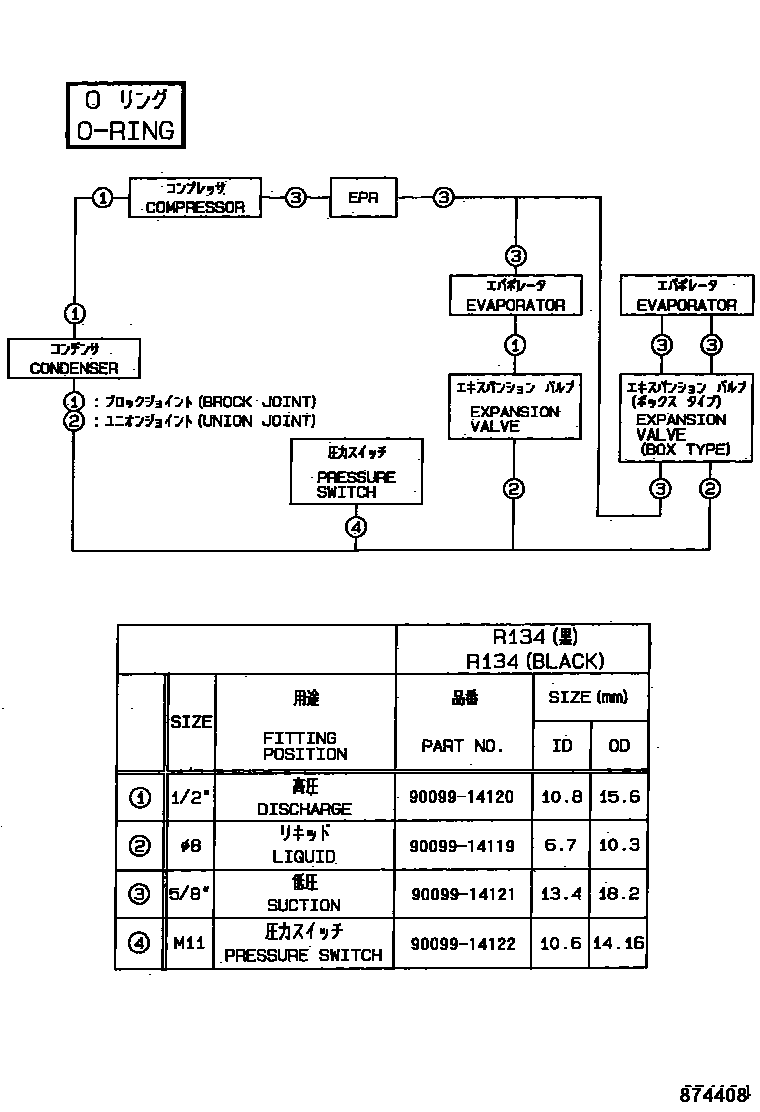

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 12 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02100 · 88450-02101 · 88450-02130 |
| 88460 | Air conditioning condenser assembly | 88450-02090 · 88450-02130 · 88450-02230 · 88450-12230 · 88450-12231 · 88461-02010 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02010 · 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-0A010 · 88645-60030 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-1E120 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02030 · 88703-02050 · 88703-02060 · 88703-02070 · 88703-02080 · 88703-02120 · 88703-02160 · 88703-02200 · 88703-02210 · 88703-02220 · 88703-02230 · 88703-12530 · 88703-12540 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02190 · 88704-02210 · 88704-02220 · 88704-02290 · 88704-02330 · 88704-02430 · 88704-02440 · 88704-02450 · 88704-02460 · 88704-12840 · 88704-12850 · 88712-02170 · 88712-02290 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02210 · 88710-02211 · 88710-02230 · 88710-02240 · 88710-02380 · 88710-02440 · 88710-12530 · 88710-12531 · 88710-12532 · 88716-02270 · 88716-02450 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-1A620 |
