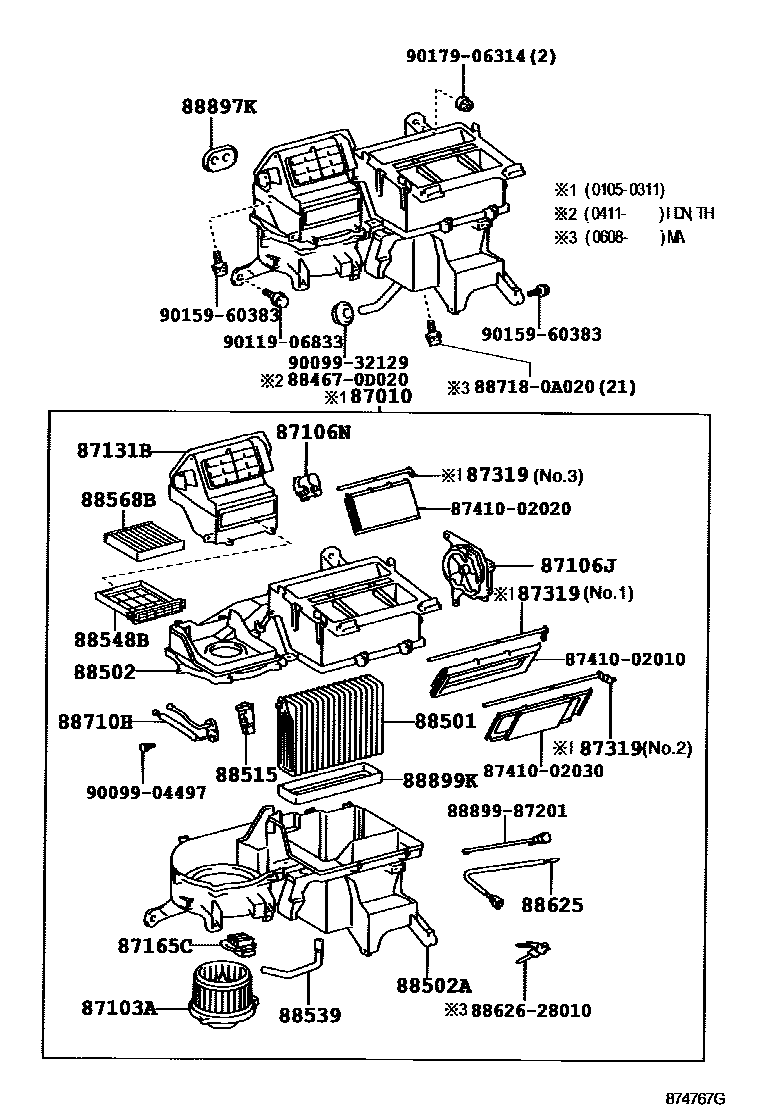

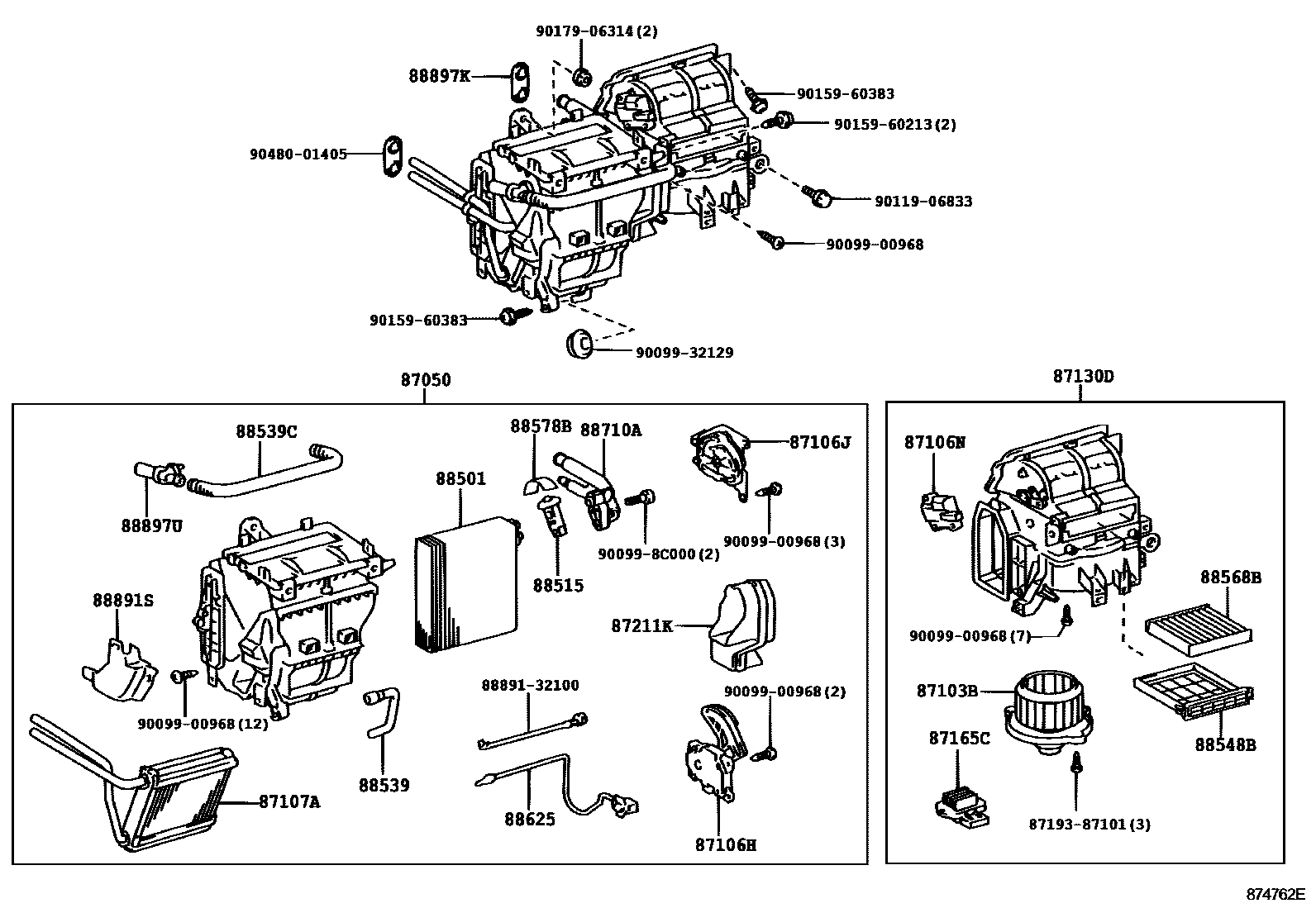

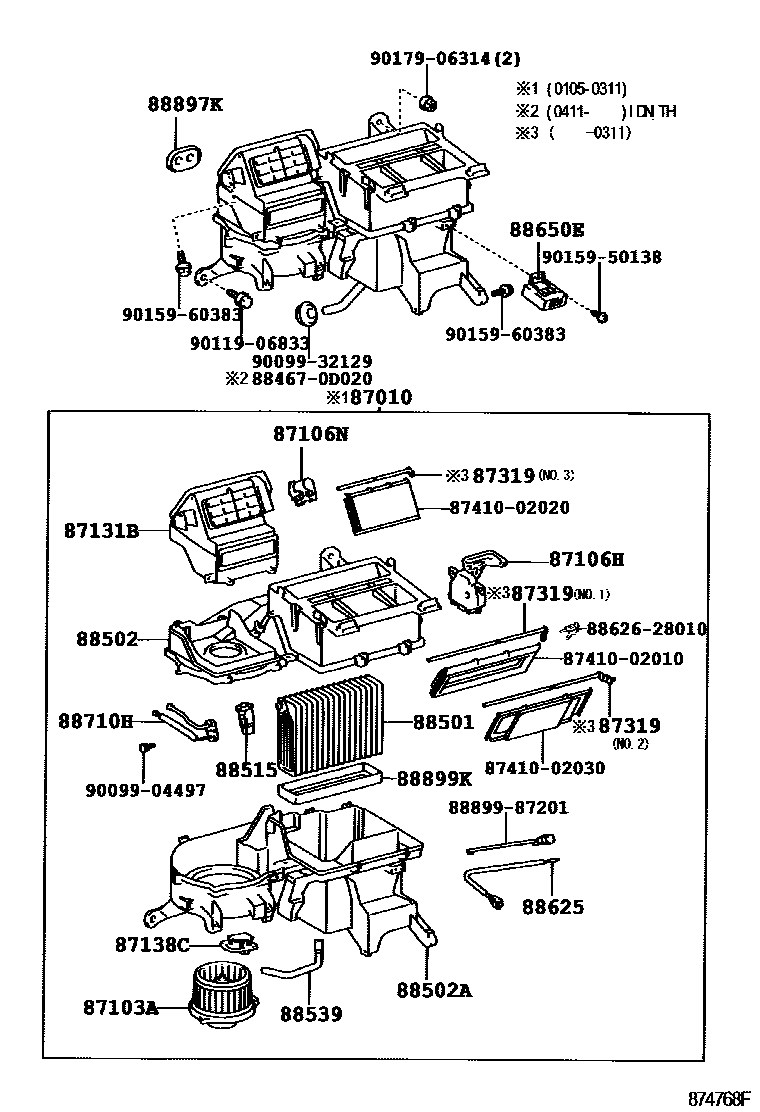

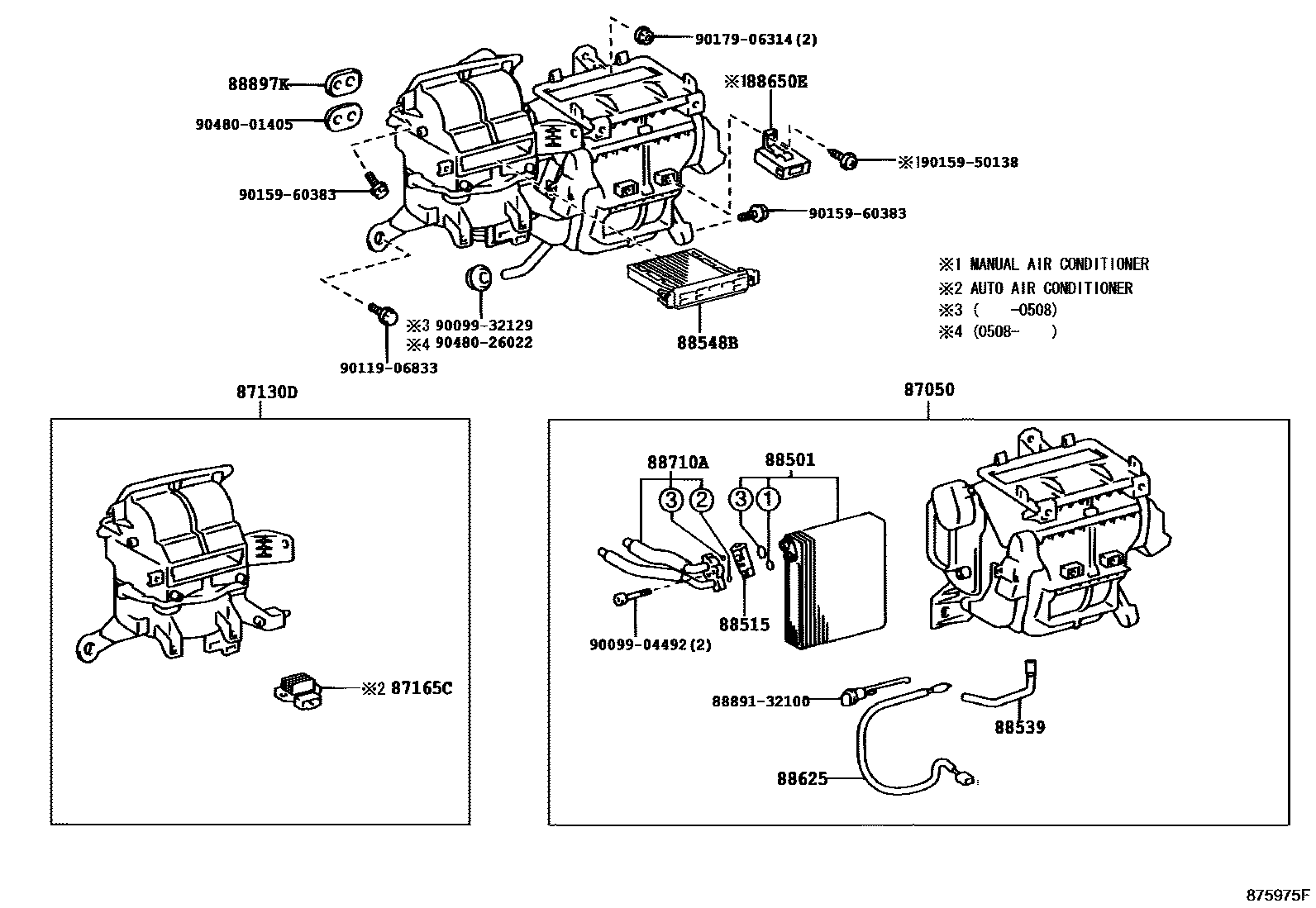

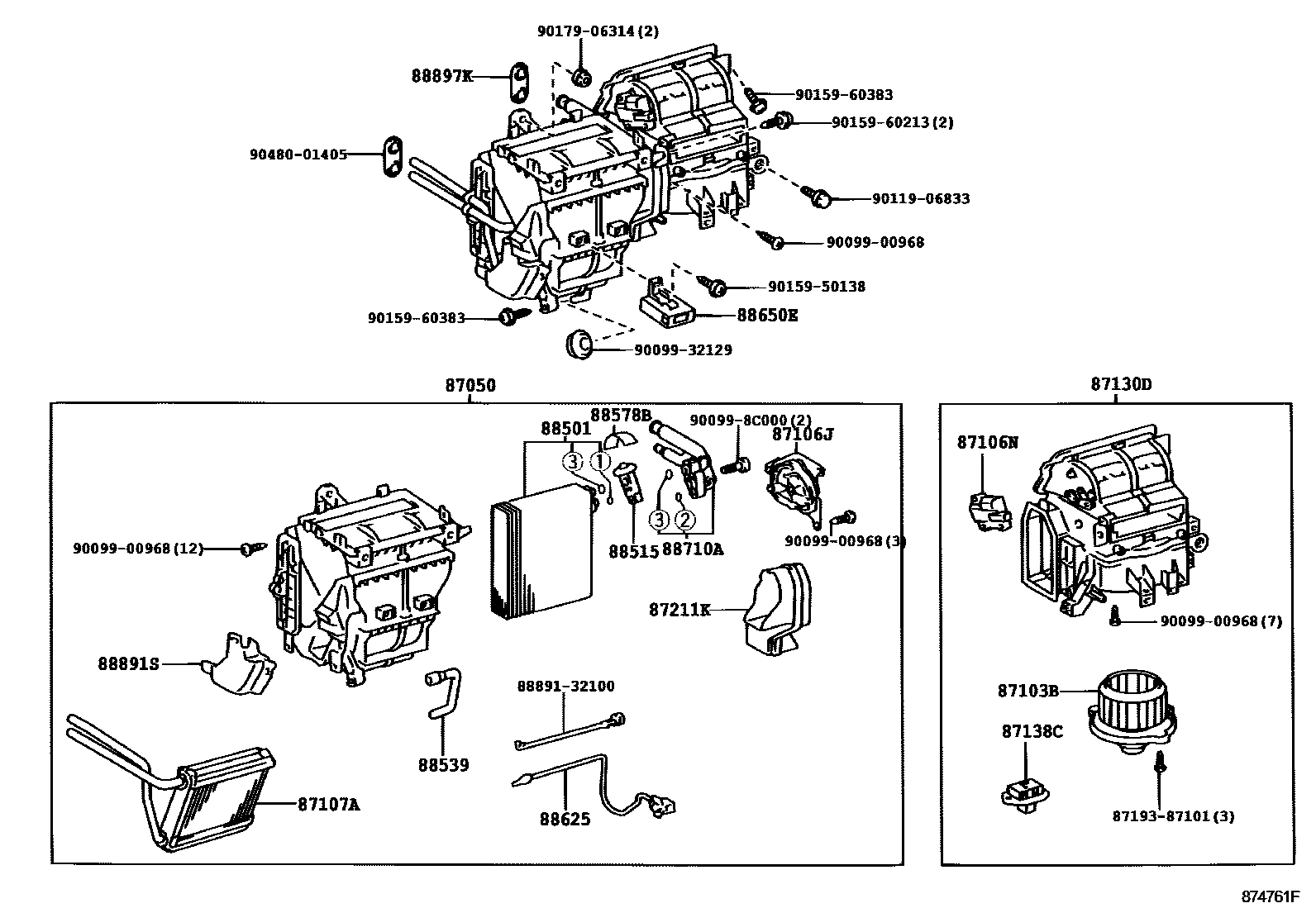

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-02100 · 87010-02110 · 87010-02120 |
| 87050 | Air conditioning radiator assembly | 87050-02360 · 87050-02370 · 87050-8C000 · 87050-8C001 · 87050-8C003 · 87050-8C006 · 87050-8C007 · 87050-8C008 · 87050-8C009 |
| 87103A | Cooling device motor sub-assembly with fan | 87103-02090 |
| 87103B | Blower motor sub-assembly with fan | 87103-12070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02090 · 87106-12131 · 87106-8C003 · 87106-8C007 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02080 · 87106-8C000 · 87106-8C002 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-12150 · 87106-8C001 |
| 87107A | Heater radiator device sub-assembly | 87107-8C000 |
| 87130D | Blower assembly | 87130-02110 · 87130-12450 · 87130-8C000 · 87130-8C001 · 87130-8C003 · 87130-8C004 · 87130-8C005 · 87130-8C006 · 87130-8C007 |
| 87131B | heater blower housing | 87131-02040 · 87131-02050 |
| 87138C | Blower resistor | 87138-20350 · 87138-20360 · 87138-26150 |
| 87165C | Blower motor control device | 87165-13010 · 87165-41010 |
| 87211K | air duct | 87211-8C000 |
| 87319 | Air conditioning shaft sub-assembly | 87319-02010 · 87319-02020 · 87319-02030 · 87319-02040 · 87319-02050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02070 · 88501-02190 · 88501-12440 · 88501-12450 · 88501-8C000 · 88501-8C001 |
| 88502 | Cooling device shell sub-assembly | 87111-02010 · 87111-02040 |
| 88502A | Cooling device shell sub-assembly | 87111-02020 · 87111-02030 · 87111-02050 |
| 88515 | Cooler expansion valve | 88515-02080 · 88515-28160 · 88515-48040 · 88515-8C000 · 88515-8C001 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02090 · 88539-12170 · 88539-12180 · 88539-8C000 |
| 88539C | No. 2 cooler unit drain hose | 88539-8C001 |
| 88548B | air filter housing | 88508-52040 · 88548-52010 |
| 88568B | Air Cleaner | 87139-02100 · 88568-52010 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-02240 · 88650-02300 · 88650-12A50 · 88650-1E410 · 88650-1E420 |
| 88710A | Air conditioning pipe assembly | 88710-0Z140 · 88710-12540 · 88710-12550 · 88710-8C000 |
| 88710H | Air conditioning pipe and accessories assembly | 88710-02330 |
| 88891S | Cooler cover No. 1 | 87237-12010 |

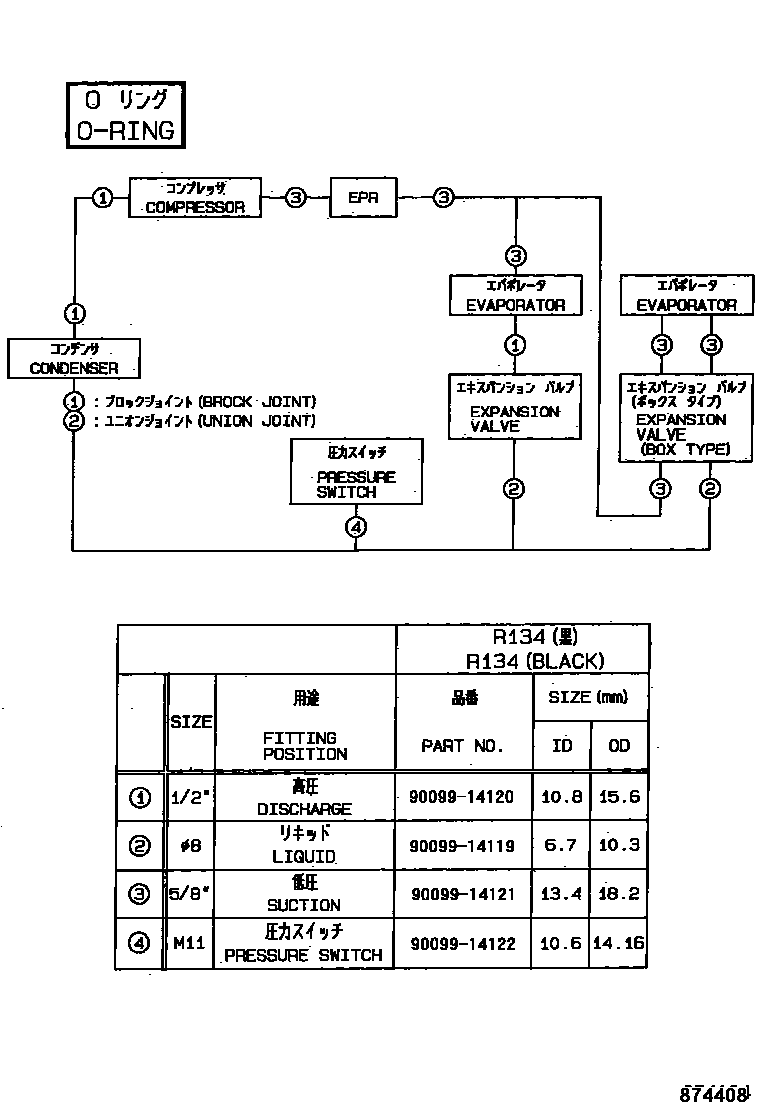

| 88897K | Seals (for cooler tubes) | 88897-02190 · 90480-01434 |
| 88897U | aspirator tube | 88897-12210 |
| 88899K | Cover plate | 88899-02130 |

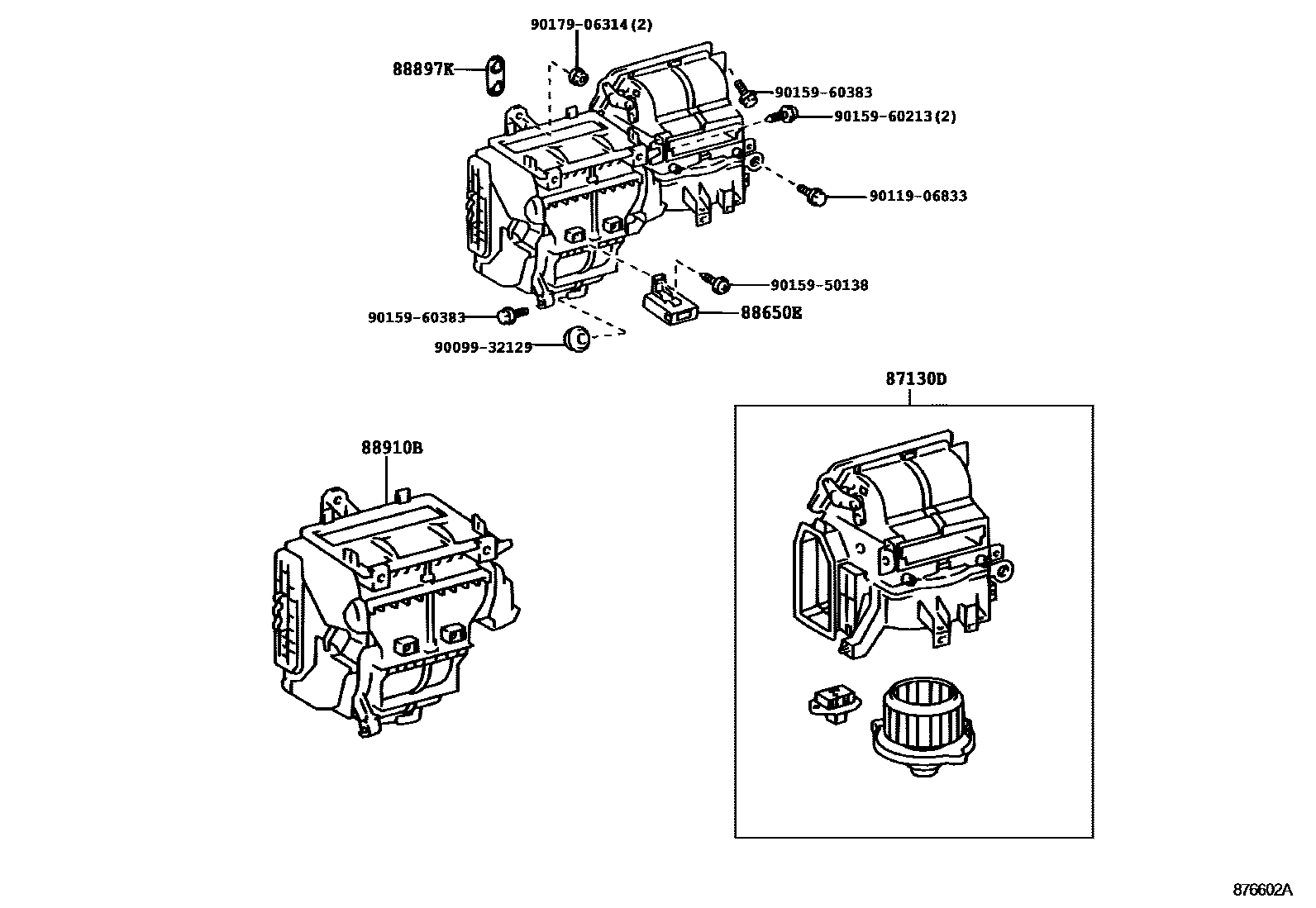

| 88910B | Auxiliary ventilation device assembly | 88910-02010 |
