Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 6 PNC and OE references.

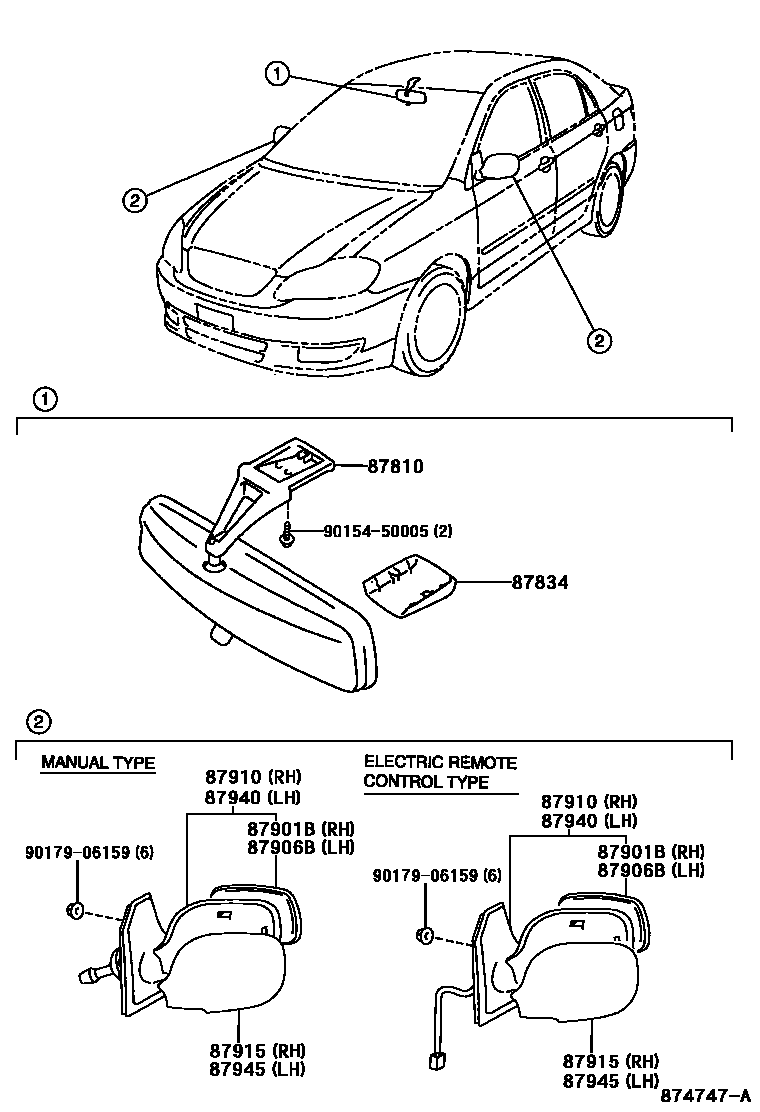

Toyota COROLLA 后视镜 EPC diagram — 874747A
后视镜 — 874747A (200105 – 999999)

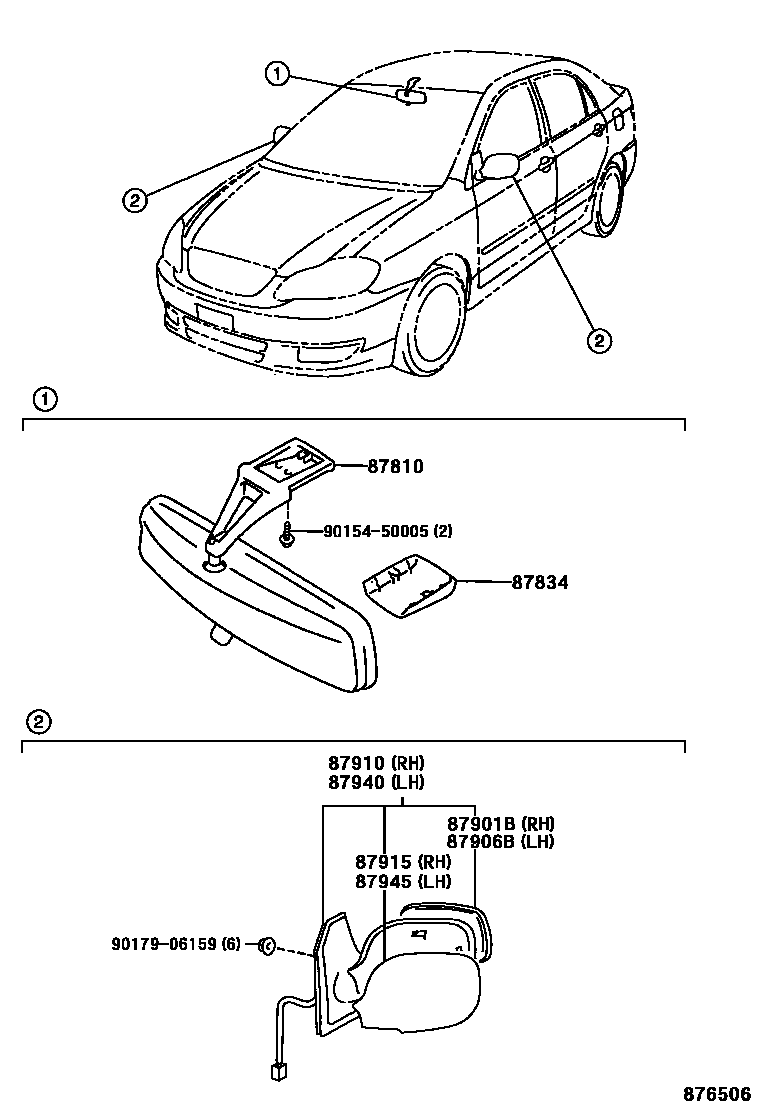

Toyota COROLLA 后视镜 EPC diagram — 876506
后视镜 — 876506 (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
87901BRight exterior rearview mirror sub-assembly87931-02130 · 87931-02540 · 87931-8C000 · 87931-8C002
87906BLeft exterior rearview mirror sub-assembly87961-02130 · 87961-02530 · 87961-8C000 · 87961-8C002
87910Right exterior rearview mirror assembly87910-02130 · 87910-02210 · 87910-02260 · 87910-02290 · 87910-02310 · 87910-02540 · 87910-02550 · 87910-02560 · 87910-02900 · 87910-02901
87915Right exterior rearview mirror cover87915-02010 · 87915-02900 · 87915-8C000
87940Left exterior rearview mirror assembly87940-02130 · 87940-02210 · 87940-02260 · 87940-02290 · 87940-02310 · 87940-02530 · 87940-02540 · 87940-02550 · 87940-02900 · 87940-02901
87945Left exterior rearview mirror cap87945-02010 · 87945-02900 · 87945-8C000
