Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 3 PNC and OE references.

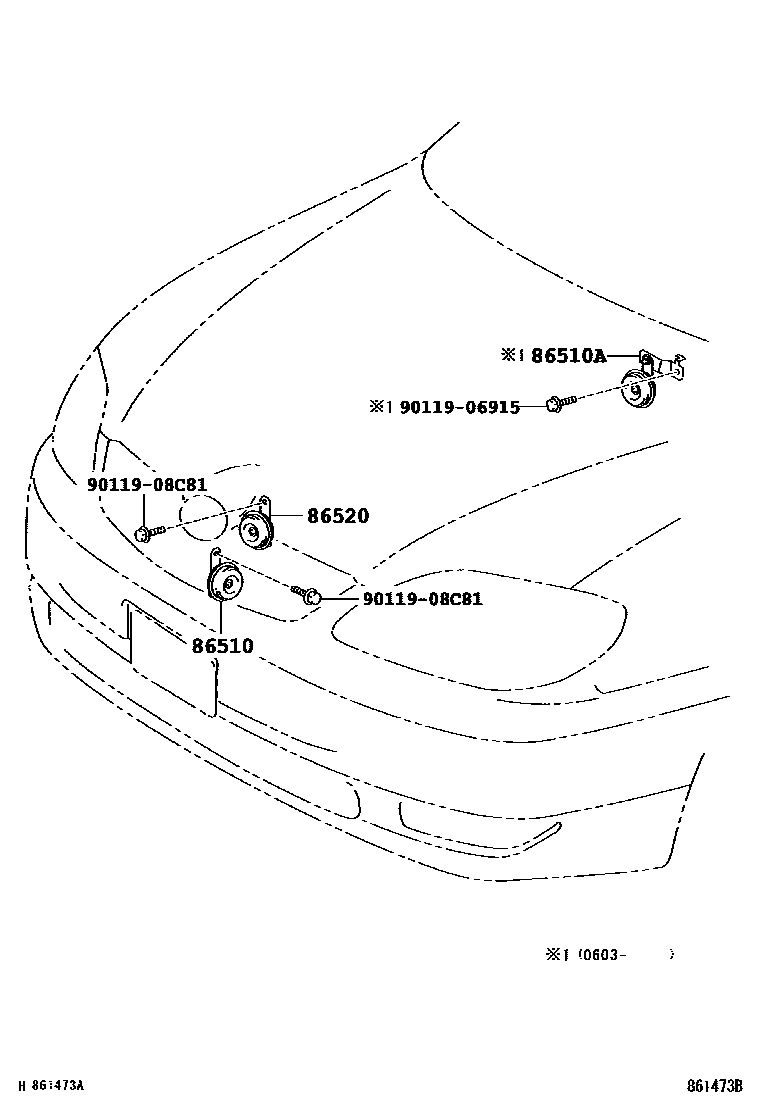

Toyota COROLLA 喇叭 EPC diagram — 861473B
喇叭 — 861473B (200103 – 999999)

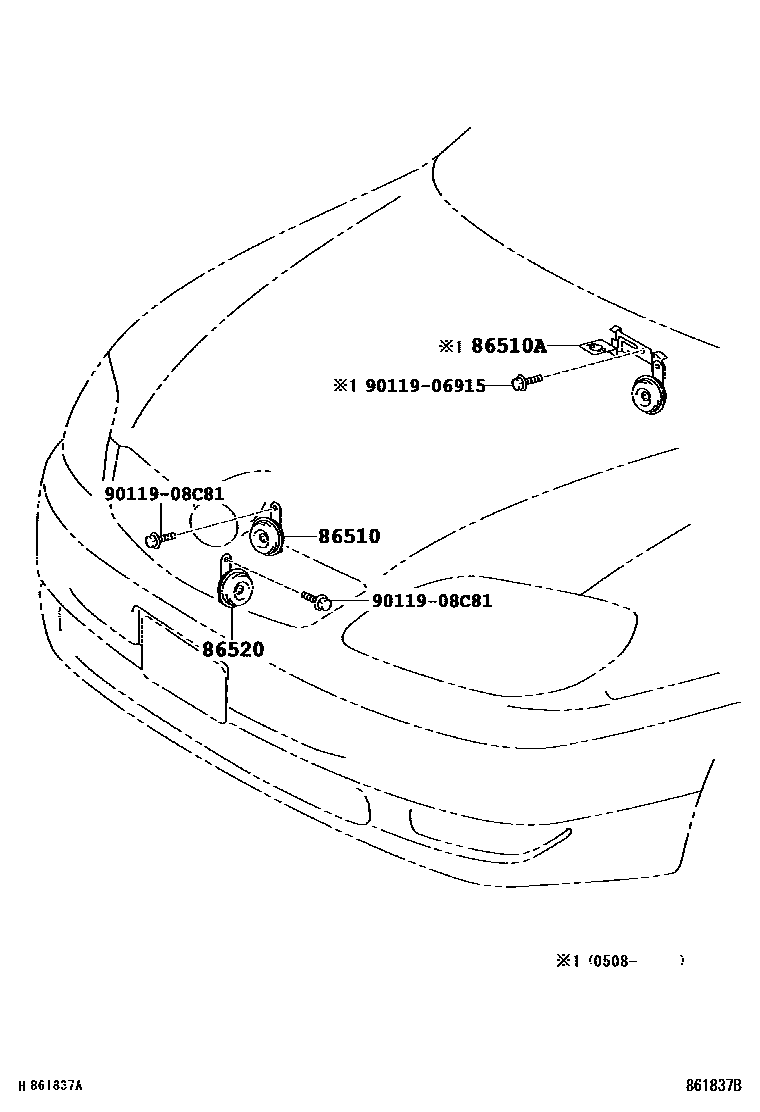

Toyota COROLLA 喇叭 EPC diagram — 861837B
喇叭 — 861837B (200301 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-02010 · 86510-02030 · 86510-12610
86510AAlarm horn assembly86560-12020 · 86560-12021 · 86560-12040 · 86560-12050
86520Subwoofer assembly86520-02020 · 86520-02030 · 86520-02040 · 86520-02080 · 86520-12690
