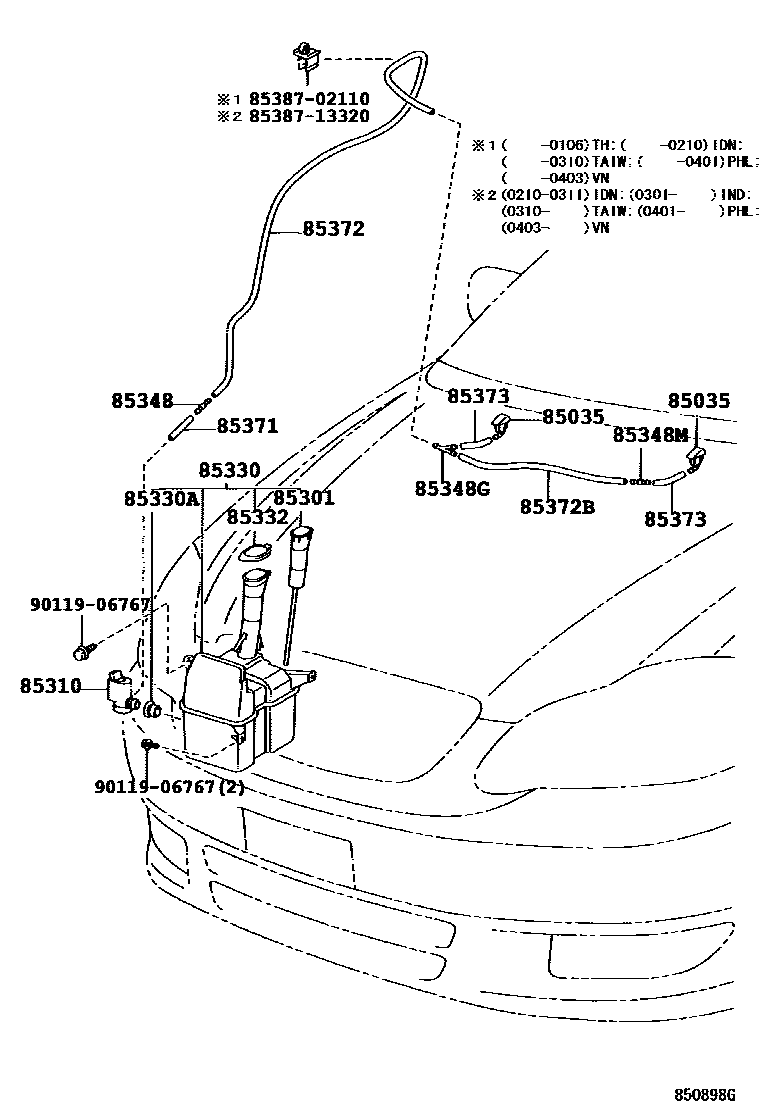

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12240 · 85381-12250 · 85381-44010 |
| 85301 | Cleaner water inlet sub-assembly | 85318-12450 · 85318-12480 |
| 85310 | Windshield washer motor and pump assembly | 85330-10280 |
| 85330 | Windshield washer fluid tank assembly | 85315-12450 · 85315-12480 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-26030 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85348-14390 |
| 85348M | No. 3 windshield washer hose connector | 85349-89122 |
