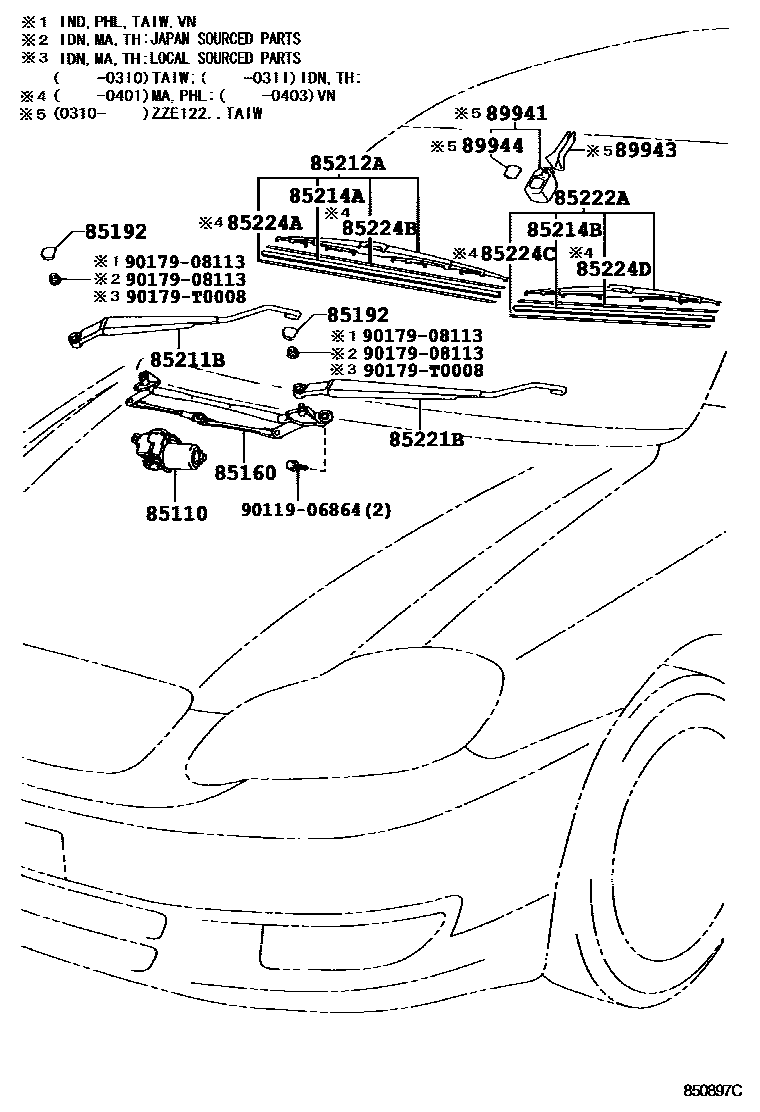

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02080 · 85110-02160 · 85110-1A030 · 85110-1A040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02060 · 85150-02140 · 85150-1A020 · 85150-1A030 |
| 85192 | windshield wiper arm cover | 85292-0K040 · 85292-12020 |
| 85211B | Right front wiper arm | 85211-02080 · 85211-02090 · 85211-12400 |
| 85212A | Right front wiper blade | 85212-02080 · 85212-02090 · 85212-02140 · 85212-02141 · 85212-33180 |
| 85214A | Right wiper rubber strip | 85214-02070 · 85214-02080 · 85214-02090 · 85214-02091 · 85214-02180 · 85214-50100 |
| 85214B | Left wiper rubber strip | 85214-02070 · 85214-02080 · 85214-02090 · 85214-02091 · 85214-02180 · 85214-50060 · 85214-50061 |
| 85221B | Left front wiper arm | 85221-02090 · 85221-02100 · 85221-12370 |
| 85222A | Left front wiper blade | 85222-02080 · 85222-02081 · 85222-02090 · 85222-02150 · 85222-12780 · 85222-12781 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-02070 · 85224-02080 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-02070 · 85224-02080 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-02070 · 85224-02080 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-02070 · 85224-02080 |
| 89941 | rain sensor | 89941-41010 |
| 89943 | Rain sensor cover | 89943-12010 |
| 89944 | Rain sensor tape | 89944-33010 |
