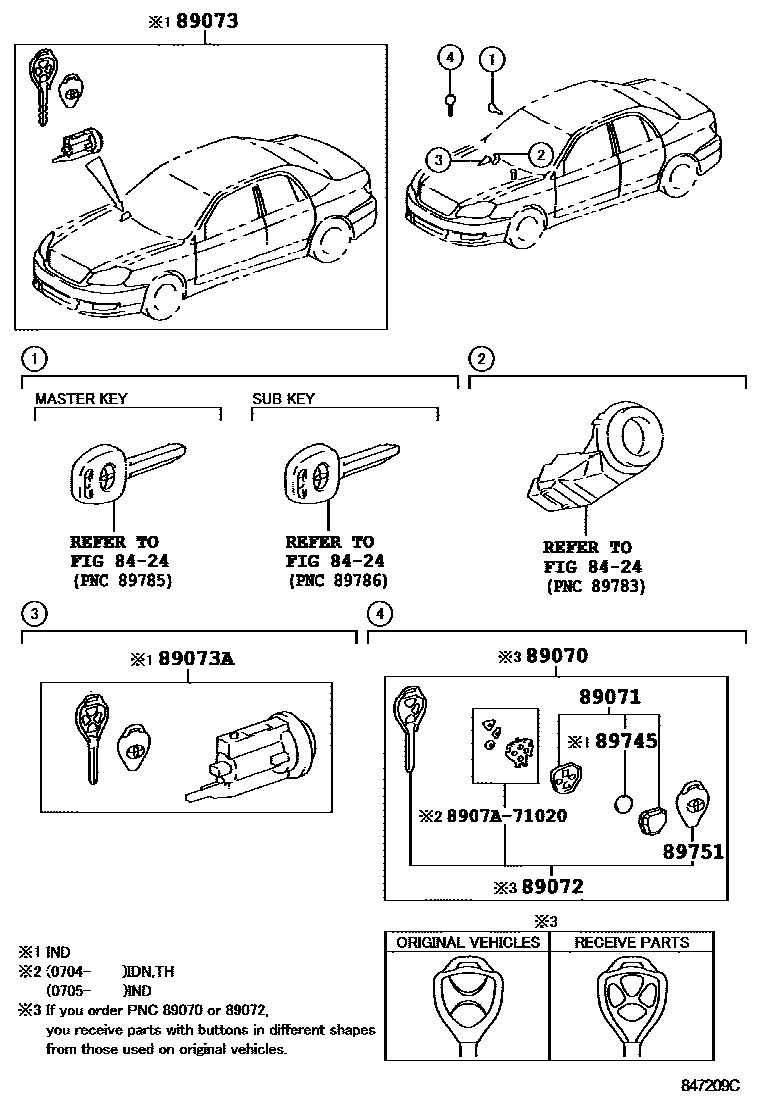

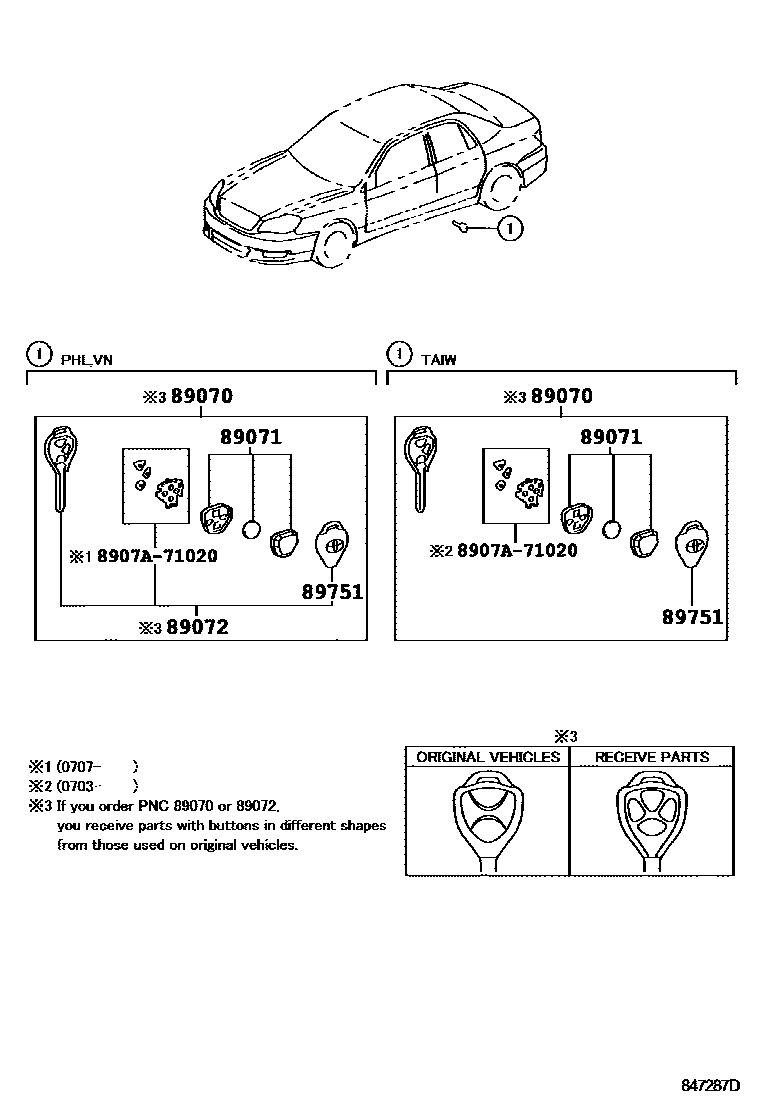

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-02300 · 89070-02480 · 89070-02490 · 89070-02510 · 89070-02511 · 89070-06130 · 89070-06160 · 89070-0K180 · 89070-0K181 · 89070-0K230 · 89070-12150 · 89070-71170 |
| 89071 | Remote key sub-assembly module assembly | 89071-33250 · 89071-68010 · 89071-71030 · 89071-71040 · 89071-71041 |
| 89072 | Remote key shell assembly | 89072-02160 · 89072-02250 · 89072-02270 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 89073-02170 · 89073-02171 |
| 89073A | Ignition lock cylinder assembly with transmitter housing (internal toothed key) | 89073-02160 · 89073-02161 |
| 89745 | Transmitter battery | 89745-71010 |
| 89751 | Transmitter housing cover | 89751-02050 · 89751-02080 · 89751-06020 · 89751-06040 · 89751-26010 · 89751-28070 · 89751-33040 · 89751-71040 |
