Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

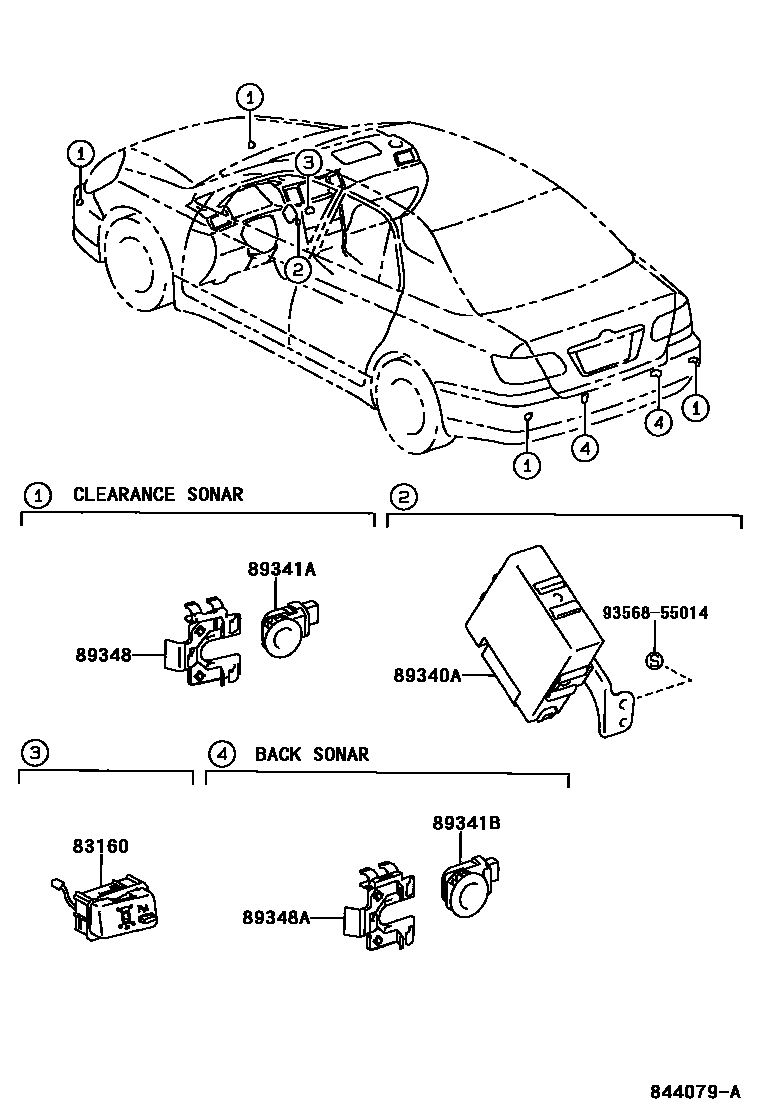

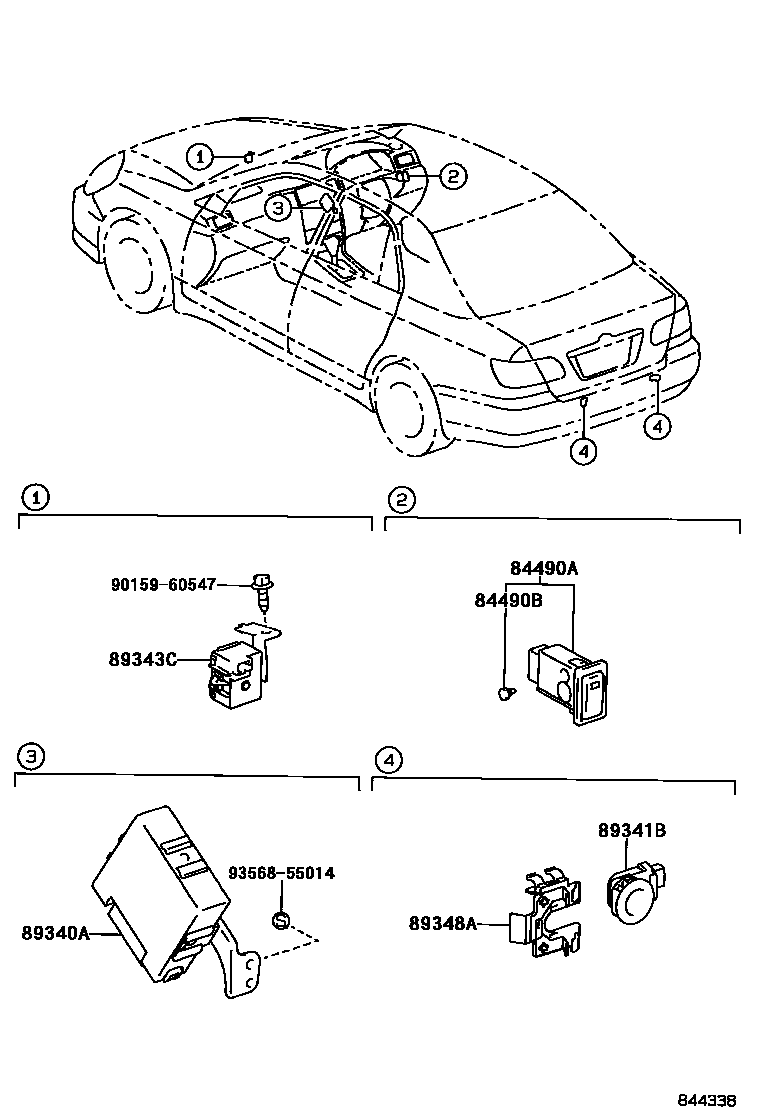

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83160 | Vehicle distance warning indicator light assembly | 83160-02010 · 83160-02020 · 83160-12010 |
| 84490A | Reversing radar or ranging radar switch assembly | 84490-95J01 |
| 84490B | Light bulb (for reversing radar switch) | 84999-10320 |
| 89340A | Distance warning ECU assembly | 89340-12020 · 89340-12030 · 89340-12040 · 89340-12050 |
| 89341A | Ultrasonic sensor No. 1 | 89341-0M040 · 89341-0M050 · 89341-12040 · 89341-12041 · 89341-12060 · 89341-12061 · 89341-12080 · 89341-28370 · 89341-33080 · 89341-33090 |
| 89341B | Ultrasonic sensor No. 2 | 89341-0M010 · 89341-0M020 · 89341-12050 · 89341-12070 · 89341-33050 · 89341-33060 · 89341-52010 · 89341-52020 |
| 89343C | No. 1 distance warning buzzer | 89343-12010 |
| 89348 | Ultrasonic sensor holder No. 1 | 89348-45010 · 89348-50010 |
| 89348A | Ultrasonic sensor holder No. 2 | 89348-45010 · 89348-50010 |
