Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 15 PNC and OE references.

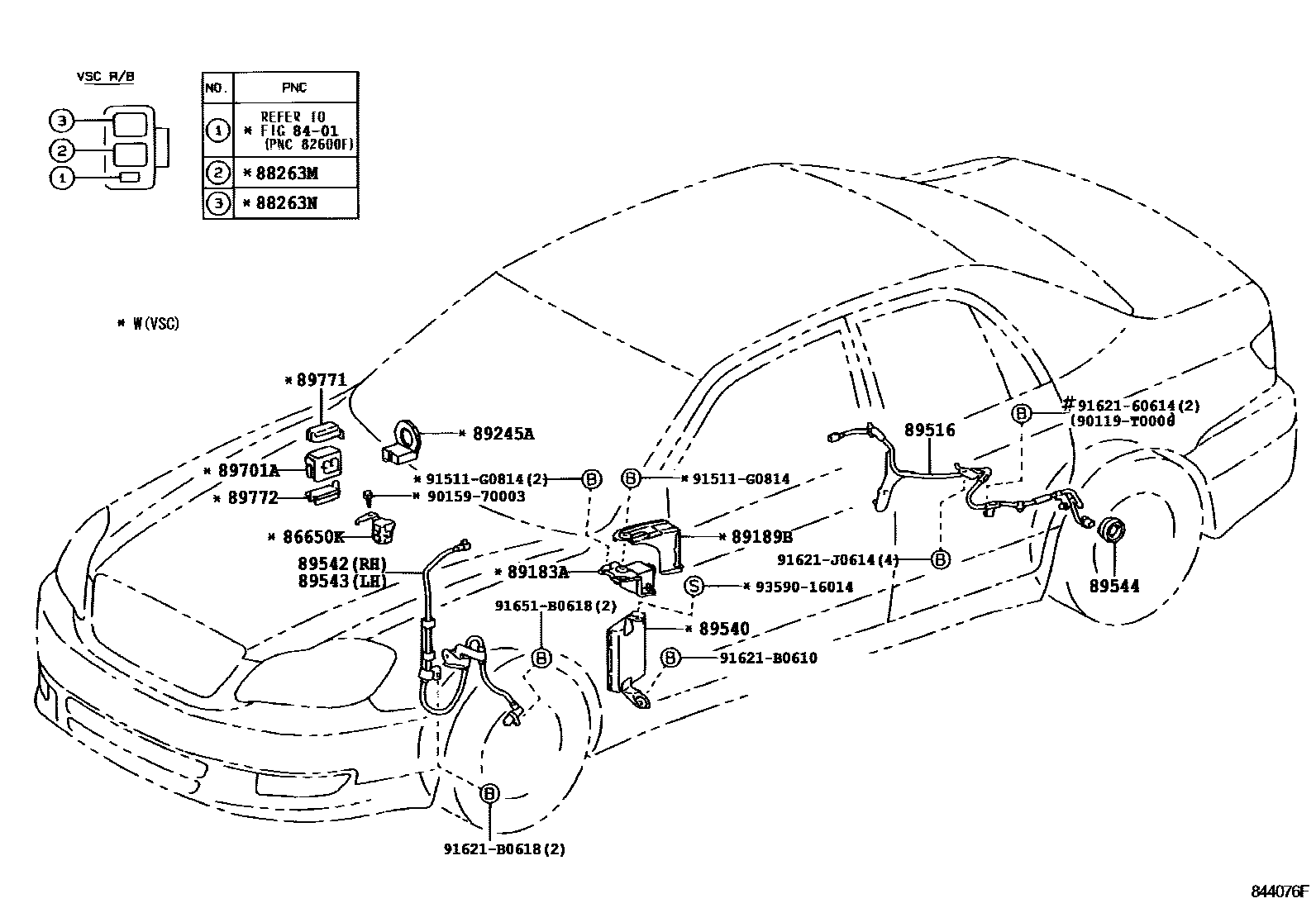

Toyota COROLLA ABS 和 VSC EPC diagram — 844076F
ABS 和 VSC — 844076F (200105 – 999999)

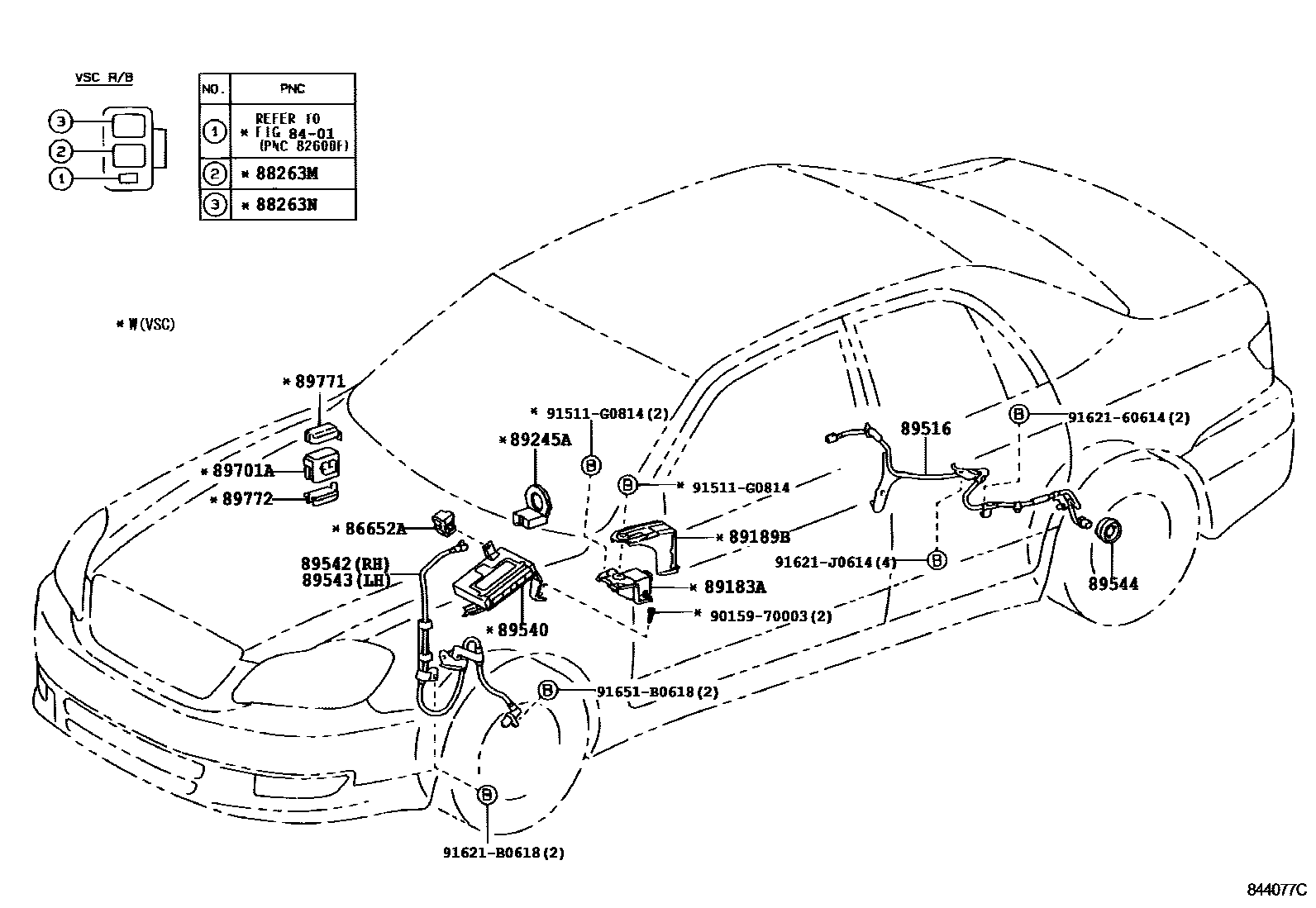

Toyota COROLLA ABS 和 VSC EPC diagram — 844077C
ABS 和 VSC — 844077C (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
86650KAnti-skid control buzzer assembly86650-12070 · 86650-13010
86652AAnti-skid control buzzer assembly86652-51010
88263MABS solenoid valve relay88263-32070
88263NABS motor relay88263-32070
89183AYaw rate sensor89180-12010
89189BYaw rate sensor bracket89189-12020 · 89189-12051
89245Asteering sensor89245-12010
89516Anti-skid control sensor wiring harness89516-02050 · 89516-02060 · 89516-12010 · 89516-12020
89540Anti-skid control ECU assembly89540-12552 · 89540-12560 · 89540-12570 · 89540-12571 · 89540-12580
89542Right front wheel speed sensor89542-12070
89543Left front wheel speed sensor89543-12070
89544Anti-skid control sensor89544-12010 · 89544-12020
89701AABS relay box sub-assembly89701-12020
89771ABS relay box upper cover89771-12020
89772ABS relay box lower cover89772-12020
