Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 3 PNC and OE references.

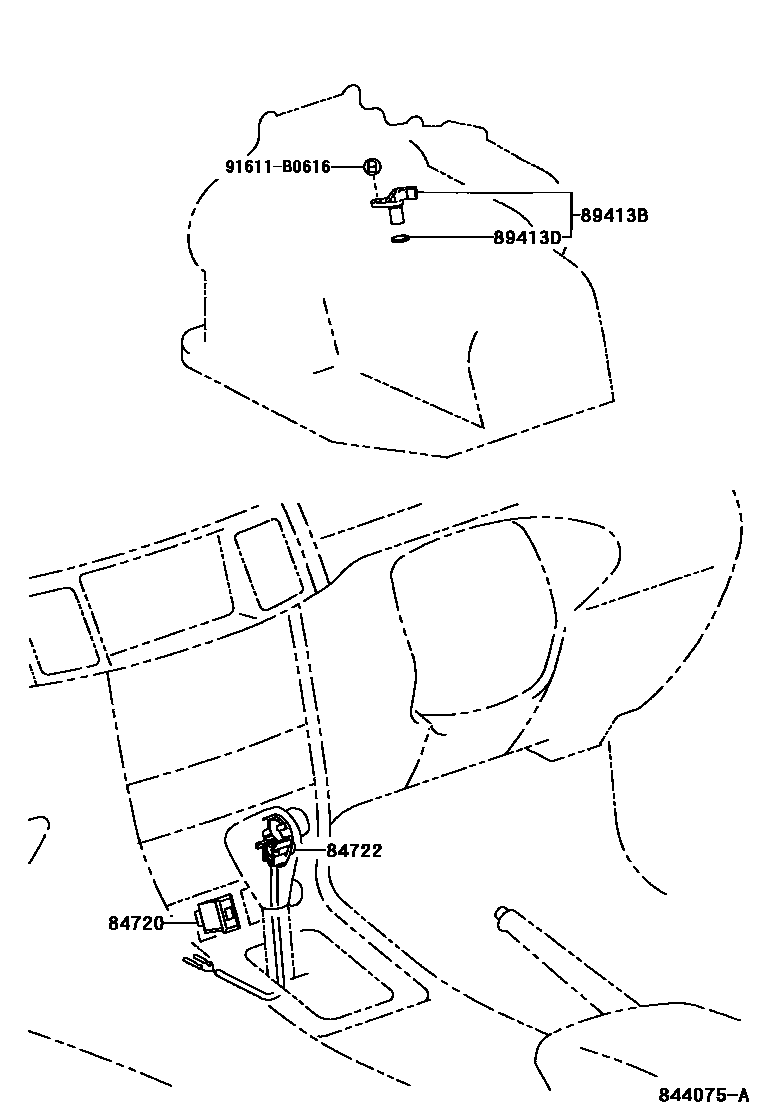

Toyota COROLLA 超速档和电子控制变速器 EPC diagram — 844075A
超速档和电子控制变速器 — 844075A (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
84720Mode selection switch assembly84720-20160
89413BTransmission speed sensor89413-32010
89413DO-ring (for transmission speed sensor)90301-11008
