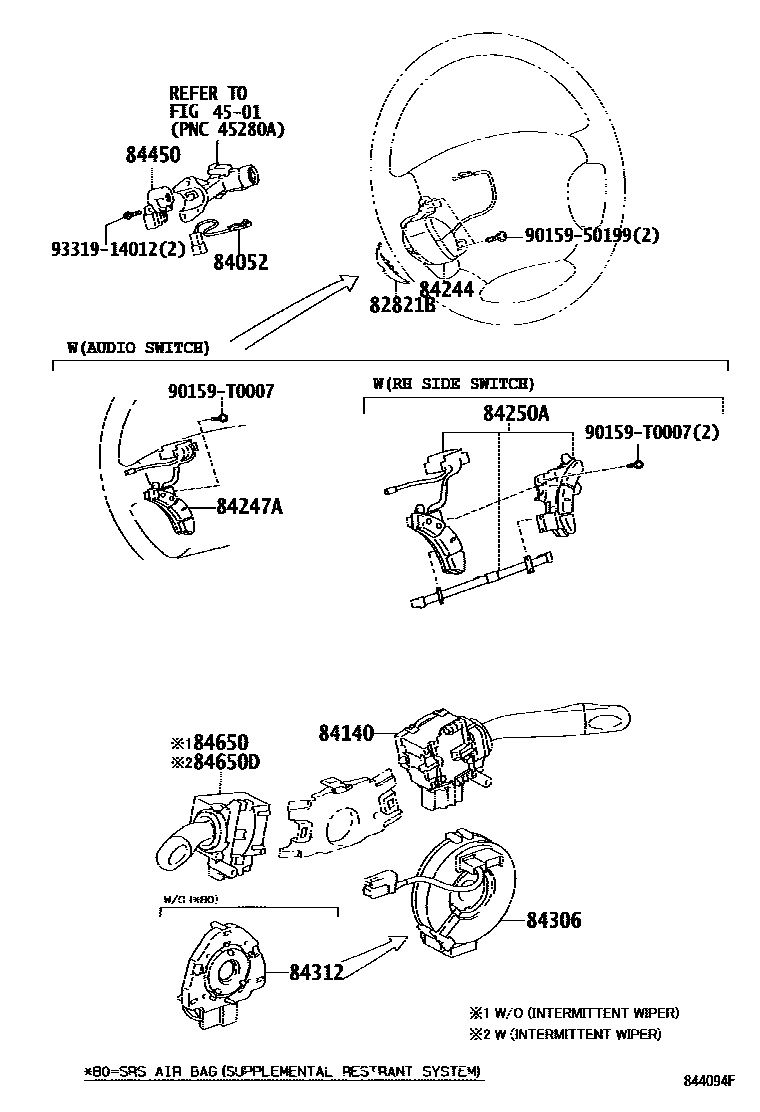

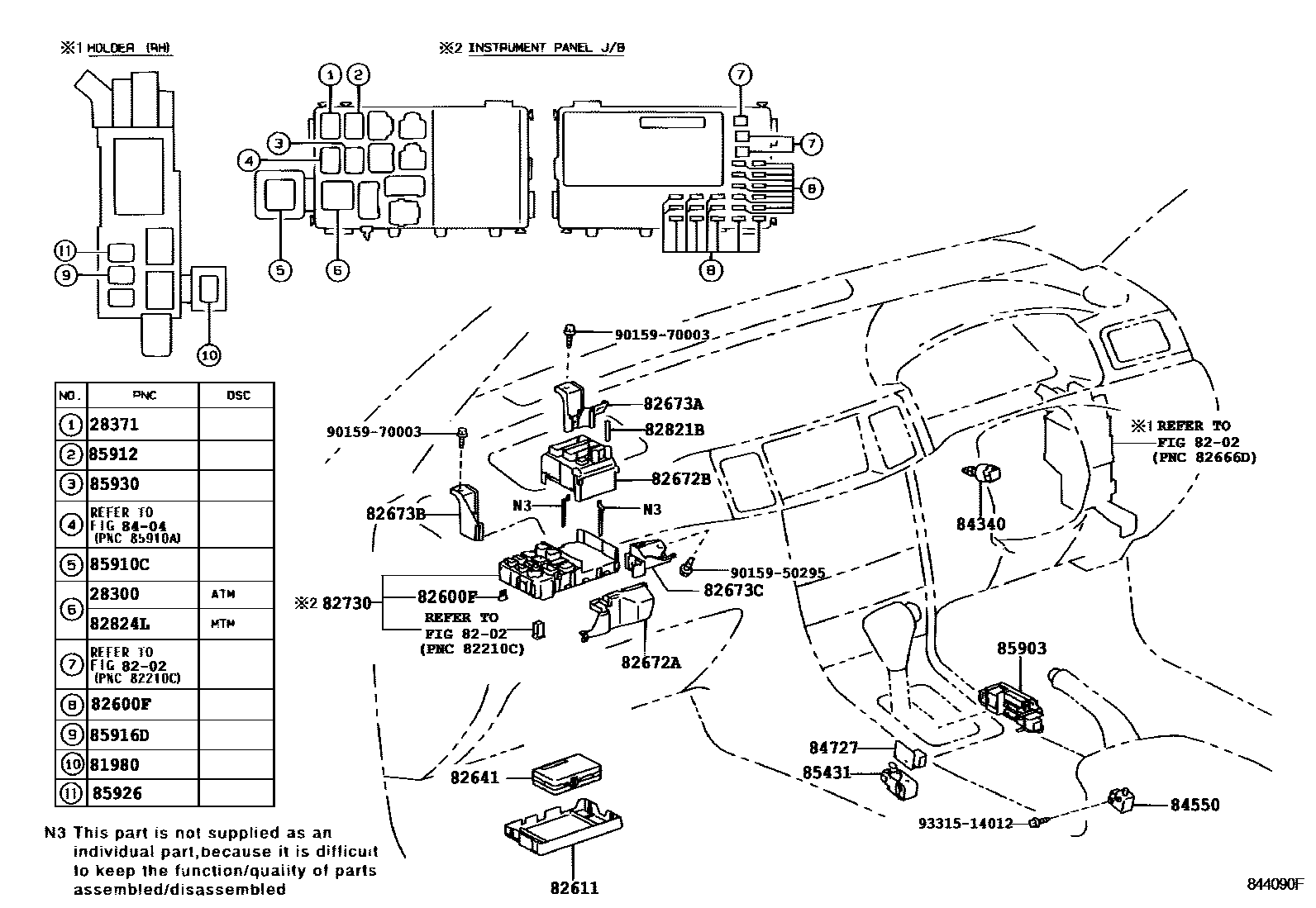

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 10 images and 88 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-06010 · 28300-10020 |
| 28371 | No. 1 ignition relay | 90080-87008 · 90080-87010 · 90080-87027 |
| 81980 | Turn signal flasher relay assembly | 81980-02020 · 81980-50030 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-02100 · 82641-12200 · 82641-12210 · 82641-12211 · 82641-12230 · 82641-12240 |
| 82662A | No. 1 relay box upper cover | 82662-12090 · 82662-12091 · 82662-12110 · 82662-12111 · 82662-12130 · 82662-12131 |
| 82662B | No. 2 relay box upper cover | 82662-12020 · 82662-13041 |
| 82663 | Relay box lower cover | 82663-12010 |
| 82663A | No. 2 relay box lower cover | 82663-12040 |
| 82672A | Junction box cover | 82672-12400 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-12010 · 82673-12050 |
| 82673B | Junction box bracket | 82673-12040 · 82673-12060 |
| 82673C | Junction box bracket | 82673-12070 · 82673-12080 |
| 82683 | Fuse box warning nameplate | 82683-02040 |
| 82683A | Fuse box warning nameplate | 82683-02040 |
| 82730 | Instrument panel junction box assembly | 82730-12130 · 82730-12150 |
| 82741 | Engine room relay box | 82741-12020 |
| 82742 | Engine room No. 2 relay box | 82741-12050 |
| 82821B | Connector cover | 82821-33200 |
| 82824L | Shorting pin | 82824-30140 |
| 83181G | speedometer sensor | 83181-12020 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-02060 · 83320-02070 · 83320-12640 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-60010 |
| 84140 | Headlight dimmer switch assembly | 84140-02090 · 84140-02100 · 84140-02110 · 84140-02111 · 84140-02120 · 84140-02130 · 84140-02140 · 84140-02150 · 84140-02160 · 84140-02210 · 84140-02510 · 84140-02560 · 84140-02570 · 84140-06120 · 84140-06121 · 84140-06130 · 84140-06131 · 84140-06220 |
| 84152 | Headlight beam height adjustment switch | 84152-12060 · 84152-20040 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 |
| 84162A | Rear fog light switch | 84165-0D010 · 84165-12050 |
| 84162C | Bulb (for rear fog light switch) | 84999-20120 · 90010-09012 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-02040 · 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02080 · 84231-02090 |
| 84236 | Door control light switch assembly (for trunk) | 84231-02100 · 84231-12130 |
| 84244 | Steering wheel trim cover switch | 84244-12010 |
| 84306 | Spiral cable sub-assembly | 84306-02040 · 84306-02050 · 84306-02080 · 84306-02090 · 84306-02130 · 84306-0D060 · 84306-58011 · 84306-68010 · 84306-68030 |
| 84312 | Speaker contact piece | 84312-52010 |
| 84330 | Hazard warning signal switch assembly | 84332-02070 · 84332-12440 · 84332-12450 · 84332-20350 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 · 84999-10860 |
| 84340 | brake light switch assembly | 84340-04010 · 84340-04011 · 84340-47010 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-32110 · 84540-52010 · 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-02030 · 84550-02040 |
| 84650 | Windshield wiper switch assembly | 84652-02190 · 84652-02220 · 84652-06100 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02200 · 84652-02210 · 84652-02230 · 84652-02240 · 84652-02250 · 84652-02260 · 84652-02270 · 84652-02500 · 84652-02510 · 84652-06130 · 84652-26600 |
| 84660C | Cooler switch | 84660-12190 · 84660-12200 |
| 84727 | Shift lock control switch | 84727-02020 · 84727-12080 · 84727-12090 |
| 84790 | Rear window defogger switch assembly | 84790-02070 · 84790-02080 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10310 · 90010-01039 · 90010-01060 |
| 84810 | Electric window lift switch assembly | 84810-02030 · 84810-20180 |
| 84810D | Rear electric window lift switch assembly | 84810-02030 · 84810-20180 |
| 84820 | Electric window lift main switch assembly | 84820-02050 · 84820-02060 · 84820-02070 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02020 · 84872-02030 · 84872-02040 |
| 84922B | Front right electric seat switch | 84922-30210 |
| 84922C | Front left electric seat switch | 84922-06020 · 84922-30230 |
| 84988F | traction control switch | 84988-20010 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 85431 | Shift lock solenoid valve | 85431-02020 · 85431-12060 |
| 85500 | Cigarette lighter assembly | 85500-12240 · 85500-28050 |
| 85500B | Cigarette lighter bulb | 90010-01022 · 90010-01065 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 · 85510-22110 |
| 85513 | Cigarette lighter cover | 85513-12020 · 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-12110 · 85515-60010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85903 | Shift lock control ECU sub-assembly | 85903-12020 · 85903-12030 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 · 90987-T2003 |
| 85912 | defogger relay | 90080-87008 · 90080-87010 · 90987-02020 |
| 85916D | fog light relay | 90080-87008 · 90080-87010 · 90080-87027 · 90987-02020 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85916U | No. 2 headlight relay | 90987-04010 |
| 85926 | Headlight dimmer relay | 90080-87008 · 90080-87010 |
| 85927 | cooling fan relay | 90080-87008 · 90080-87010 · 90080-87020 · 90080-87021 · 90080-87027 · 90987-02012 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90080-87028 · 90987-04004 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85930 | Electric window relay assembly | 90080-87008 · 90080-87010 · 90080-87027 |
| 85934 | Electromagnetic clutch relay | 90080-87008 · 90080-87010 · 90987-02020 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-12150 |
| 86530 | Speaker relay assembly | 90080-87008 · 90080-87010 |
| 88607C | Indicator light sub-assembly | 90010-03044 |
| 89407 | Right rear height control sensor sub-assembly | 89407-12010 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89448A | Power steering oil pressure sensor | 89448-51010 |
| 89465 | oxygen sensor | 89465-02220 · 89465-02230 · 89465-02240 · 89465-12620 · 89465-12640 · 89465-12700 |
| 89615 | knock control sensor | 89615-12120 · 89615-52030 · 89615-52040 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12080 |
