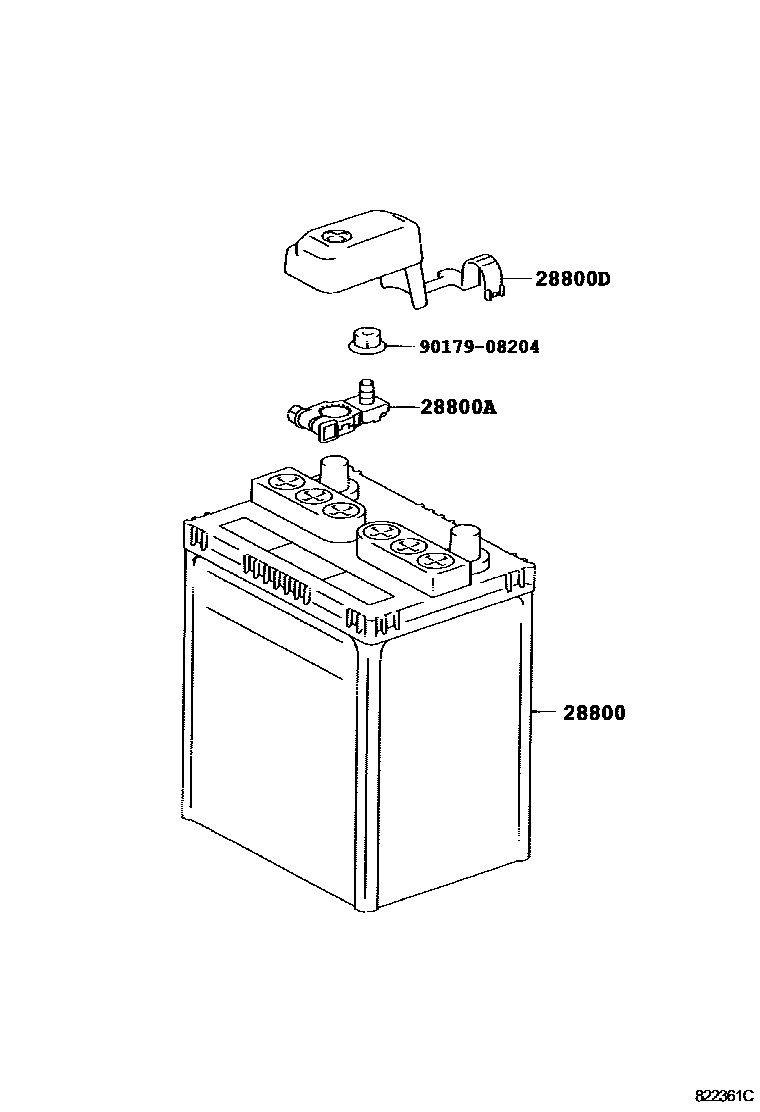

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0D010 · 28800-0D020 · 28800-0D050 · 28800-0D060 · 28800-0D070 · 28800-0D190 · 28800-0D250 · 28800-13210 · 28800-16071 · 28800-21160 · 28800-22020 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05055 · 90982-05056 · 90982-05060 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 · 82821-12500 |
