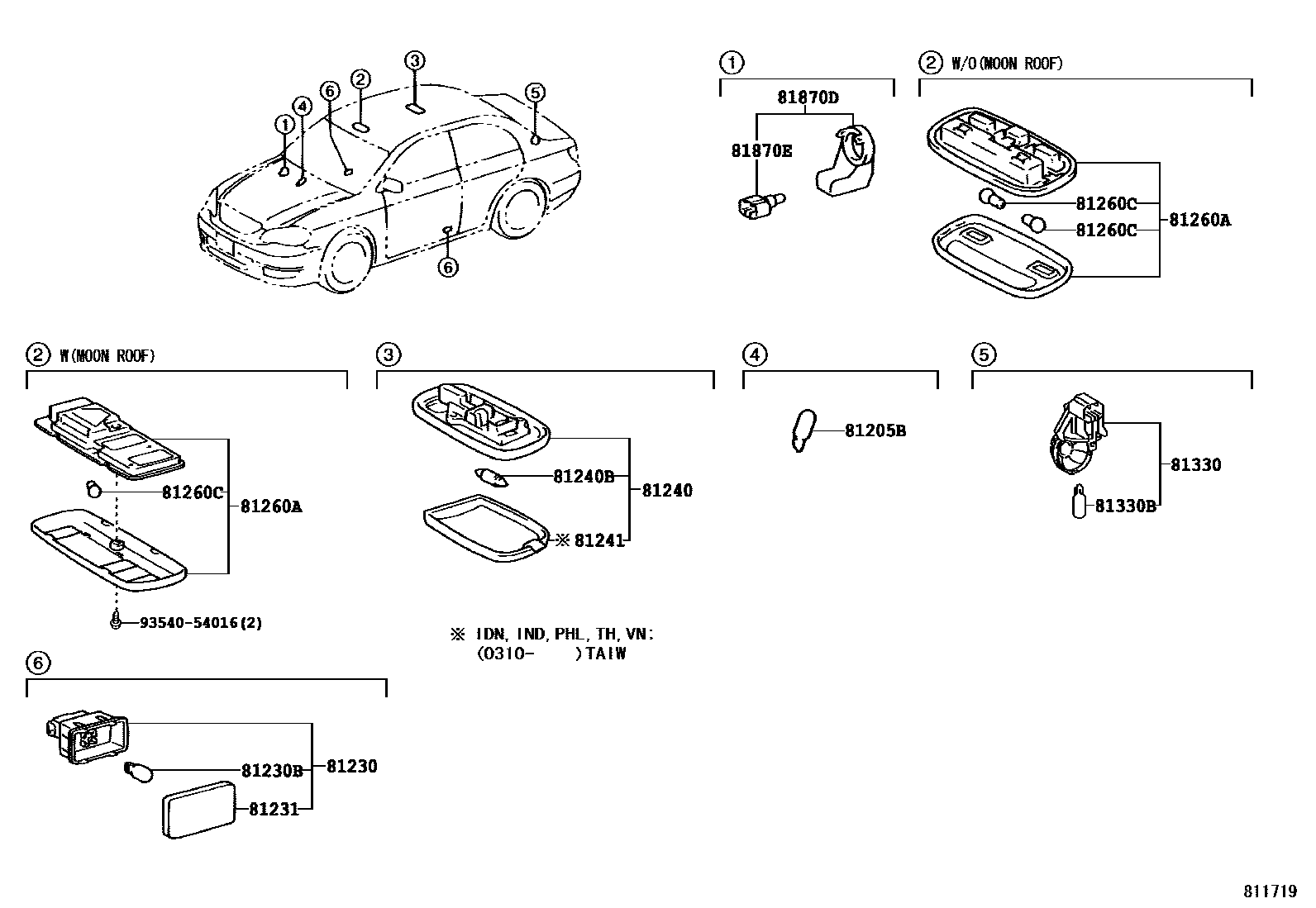

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11018 |
| 81230 | Door control light assembly | 81230-02010 · 81230-02020 · 81230-02021 · 81230-02030 |
| 81230B | Bulb (for gated lights) | 90981-11020 |
| 81231 | door control lamp shade | 81231-02030 · 81231-50010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12070 · 81241-8C001 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 · 90981-12014 · 90981-12020 |
| 81330 | No. 1 trunk light assembly | 81330-0A010 · 81330-12020 |
| 81330B | trunk light bulb | 90080-81058 · 90981-11020 |
| 81870D | Lock core lighting assembly | 81870-12020 |
| 81870E | Lock cylinder lighting bulb | 90010-01056 |
