Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 3 images and 2 PNC and OE references.

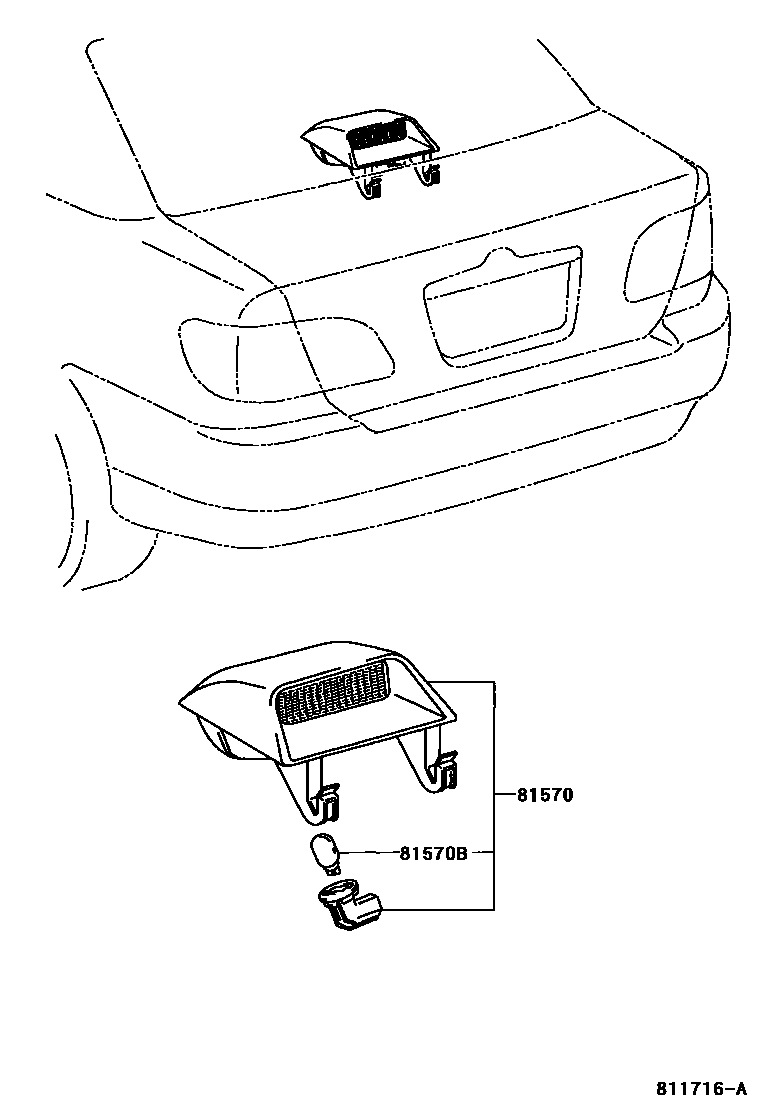

Toyota COROLLA 高位刹车灯 EPC diagram — 811716A — 高位刹车灯 — 811716A (200103 – 999999)

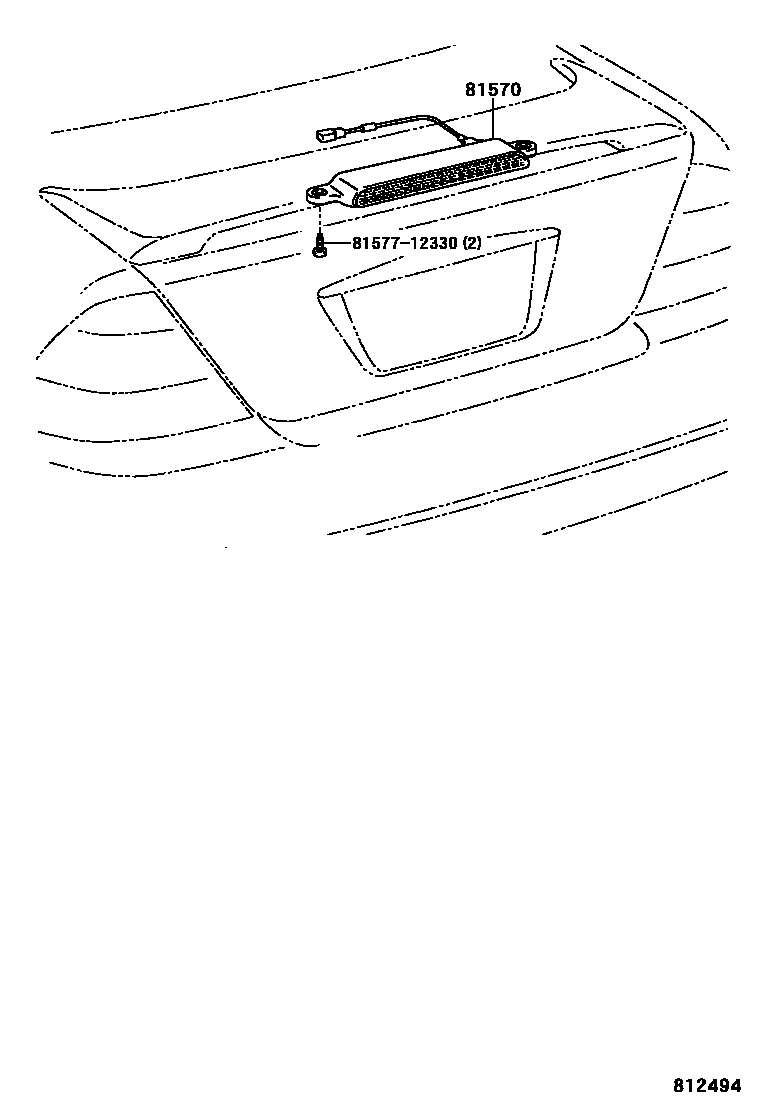

Toyota COROLLA 高位刹车灯 EPC diagram — 812494 — 高位刹车灯 — 812494 (200211 – 200712)

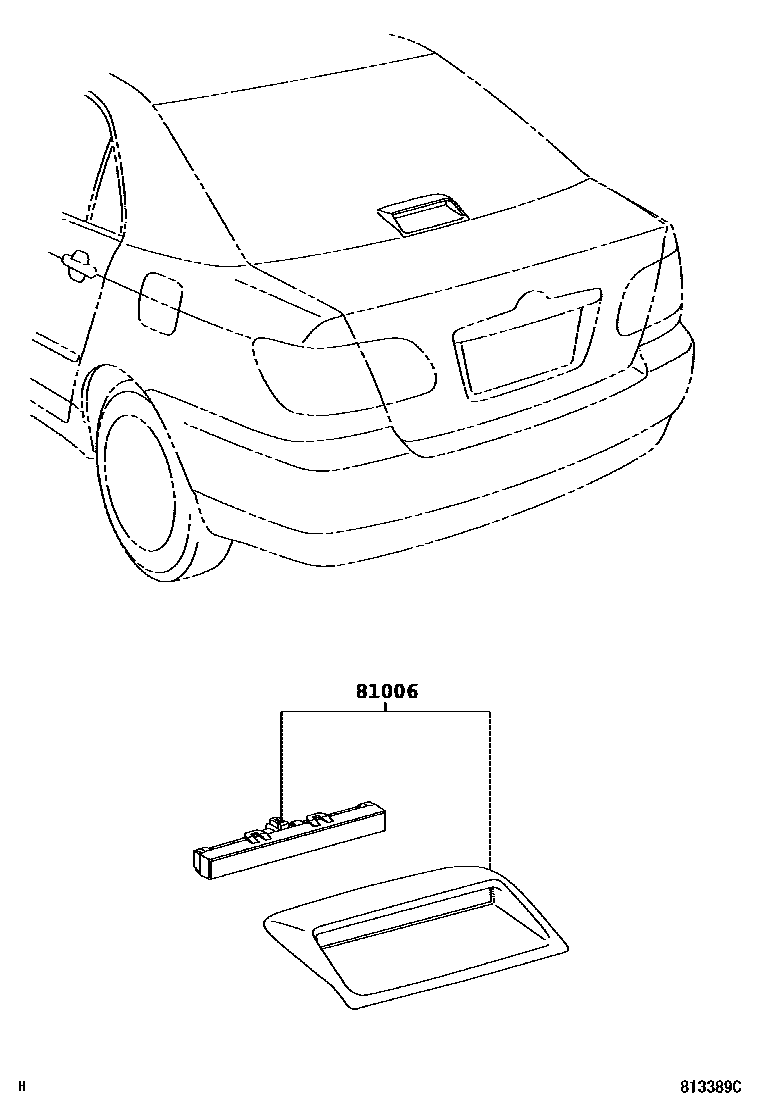

Toyota COROLLA 高位刹车灯 EPC diagram — 813389C — 高位刹车灯 — 813389C (200603 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81570	Central brake light assembly	81570-12360 · 81570-12361
81570B	Bulb (for center brake light)	90981-11059
