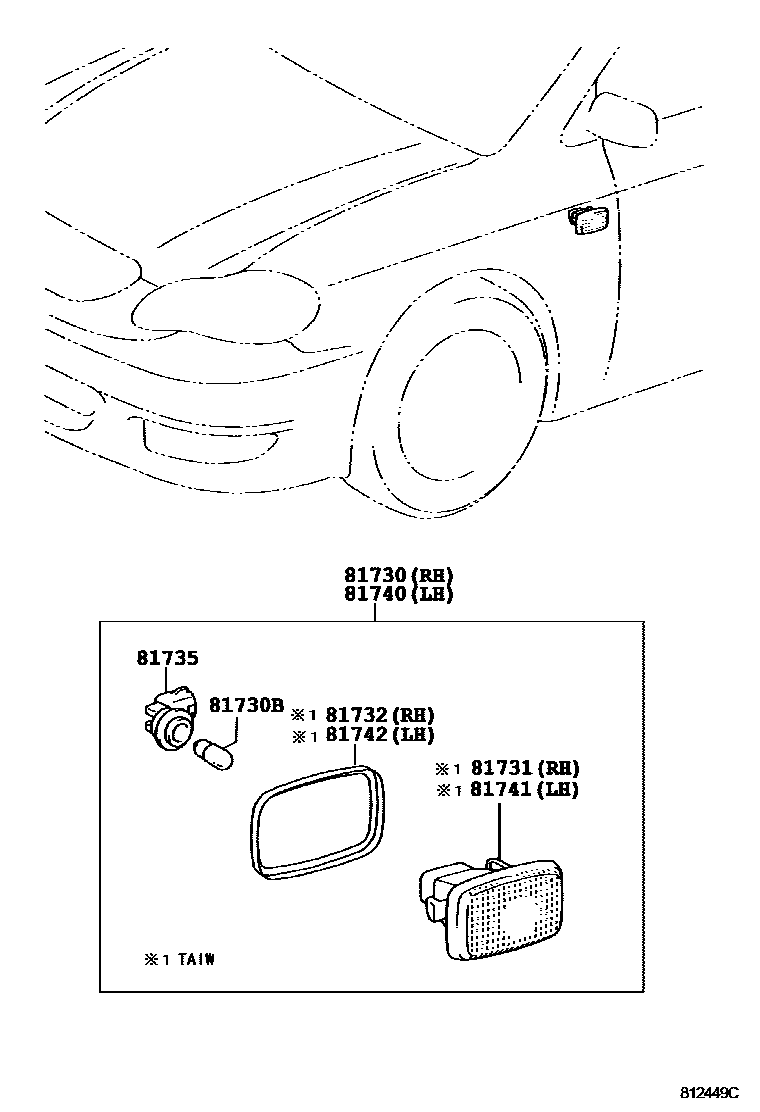

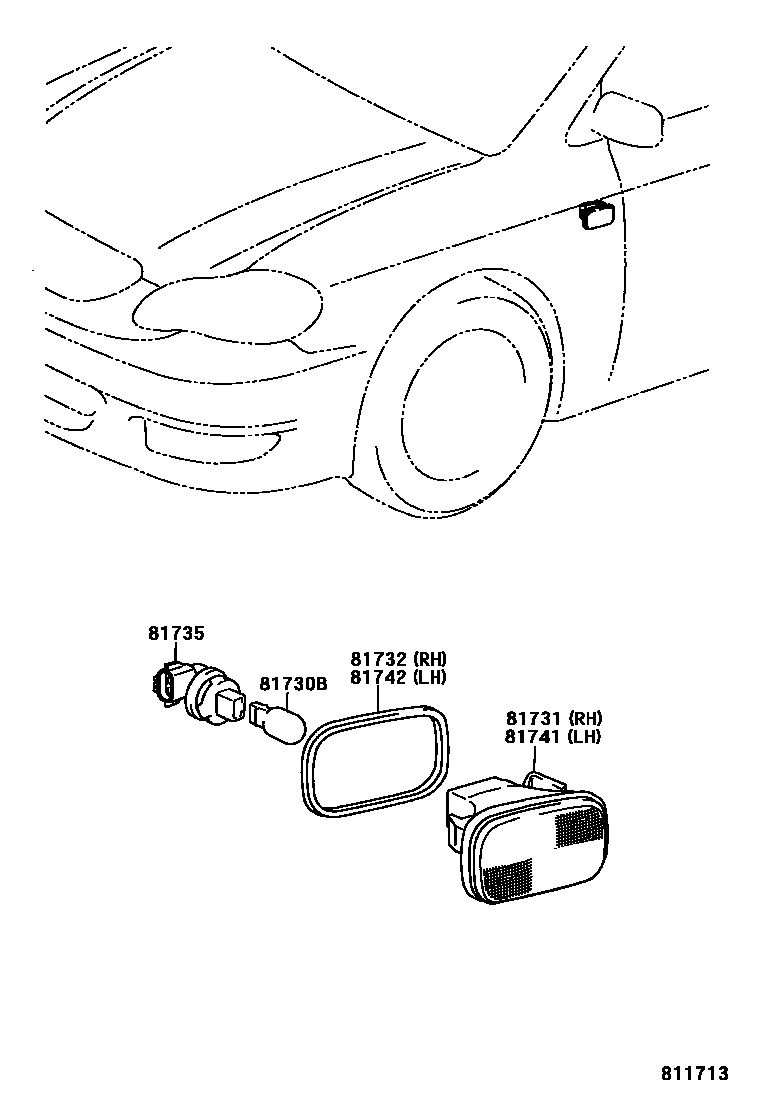

Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-06020 · 81730-0B020 |
| 81730B | Bulb (for side turn signal lights) | 90981-15012 |
| 81731 | Right side turn signal lamp cover | 81731-02040 · 81731-8C000 |
| 81732 | Right side turn signal light housing gasket | 81732-02040 · 81732-8C000 |
| 81735 | Side turn signal lamp holder and wiring harness | 90075-99012 · 9008C-07001 |
| 81740 | Left side turn signal light assembly | 81730-06020 · 81730-0B020 |
| 81741 | Left side turn signal lamp cover | 81731-02040 · 81731-8C000 |
| 81742 | Left side turn signal light housing gasket | 81732-02040 · 81732-8C000 |
