Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 3 images and 6 PNC and OE references.

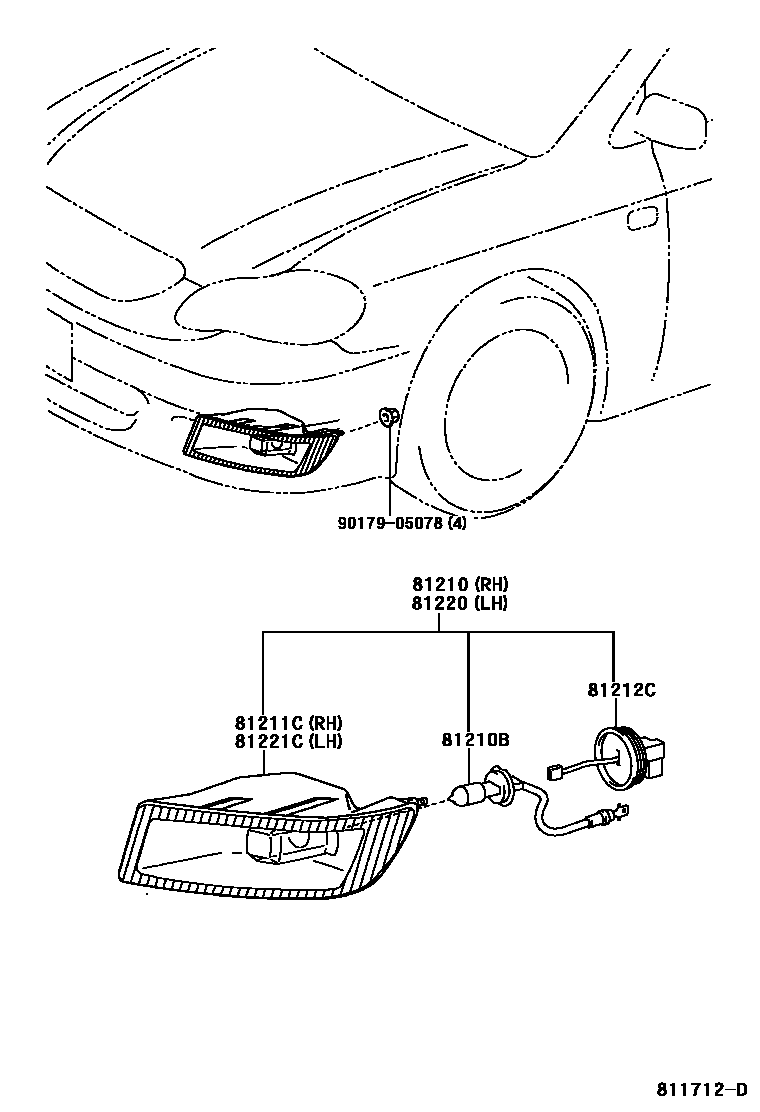

Toyota COROLLA Fog Lamp EPC diagram — 811712D — Fog Lamp — 811712D (200103 – 200508)

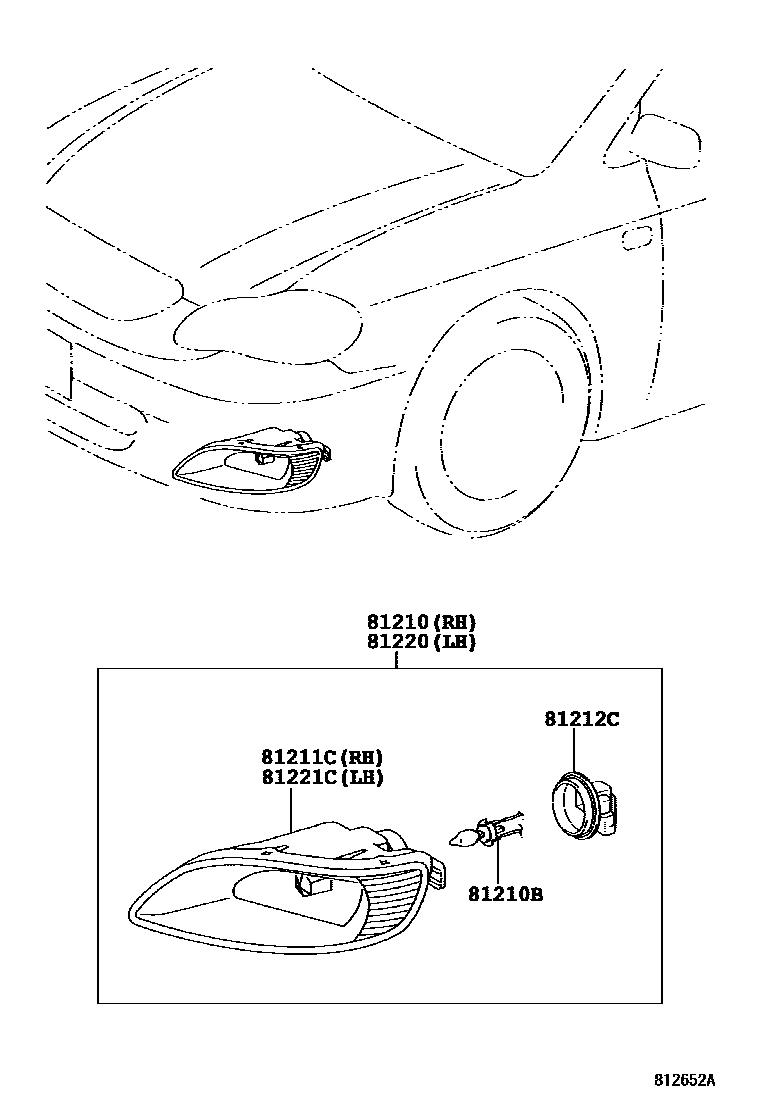

Toyota COROLLA Fog Lamp EPC diagram — 812652A — Fog Lamp — 812652A (200311 – 999999)

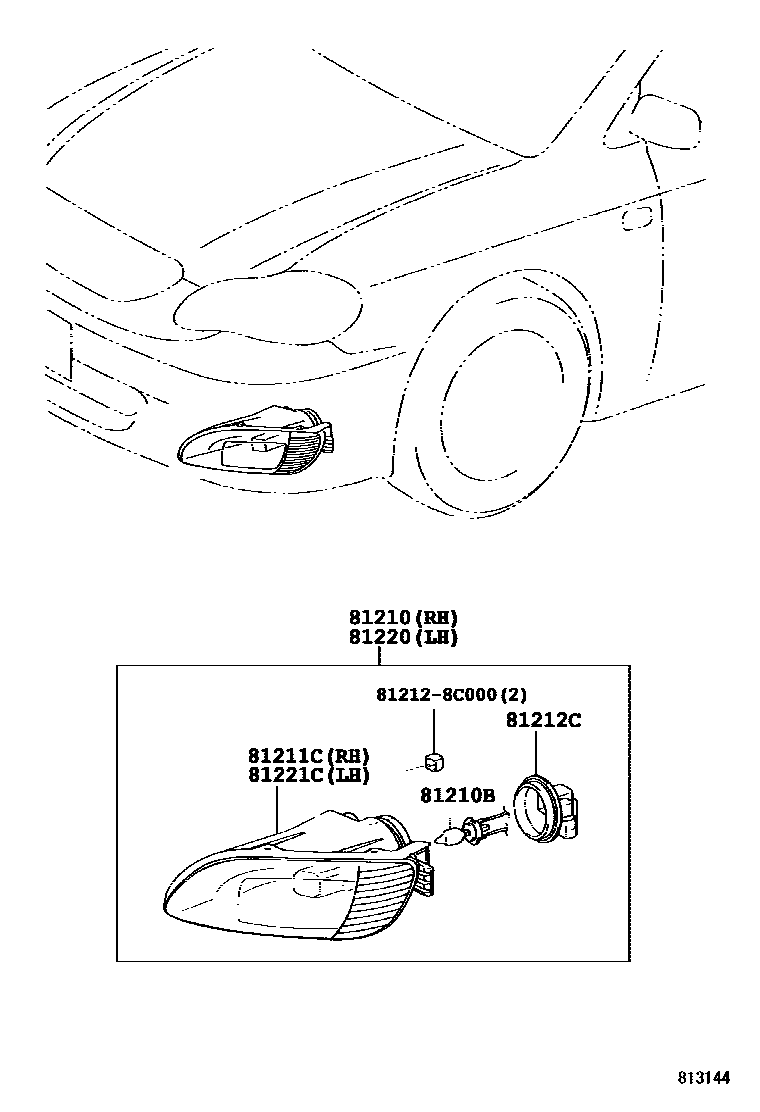

Toyota COROLLA Fog Lamp EPC diagram — 813144 — Fog Lamp — 813144 (200310 – 200712)

PNC and OE references

PNC	Part name	OE numbers
81210	Fog light assembly	81210-06020 · 81210-0B050 · 81210-20450
81210B	fog light bulb	90981-13018 · 90981-13071
81211C	Right fog light assembly	81211-0B050 · 81211-20450 · 81211-8C001
81212C	fog light cover	90075-66001
81220	Left fog light assembly	81220-06020 · 81220-0B040 · 81220-20440
81221C	Left fog light assembly	81221-0B040 · 81221-20440 · 81221-8C001
