Toyota COROLLA Headlamp — Figure 8101

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 21 PNC and OE references.

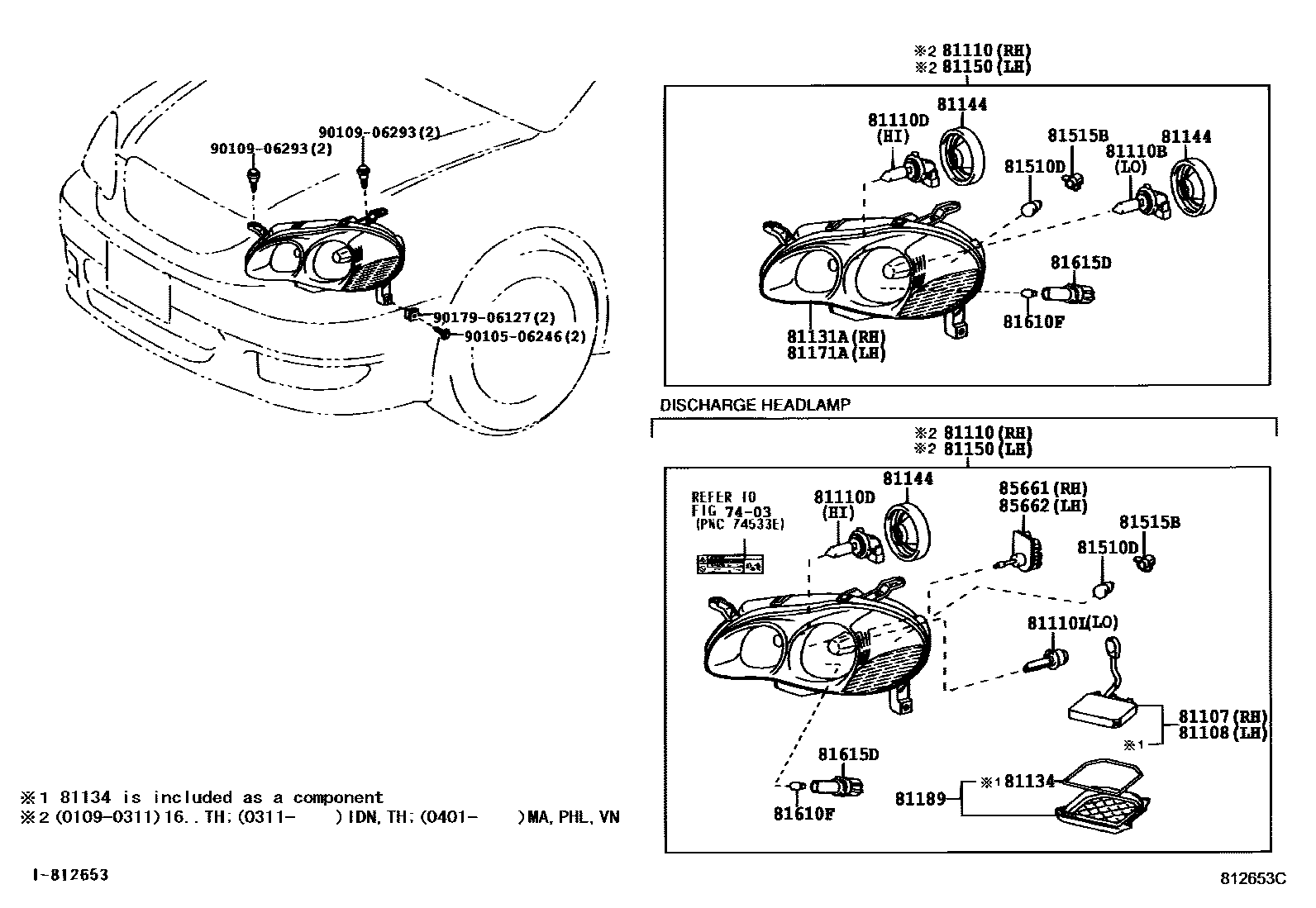

Toyota COROLLA Headlamp EPC diagram — 812653C
Headlamp — 812653C (200103 – 999999)

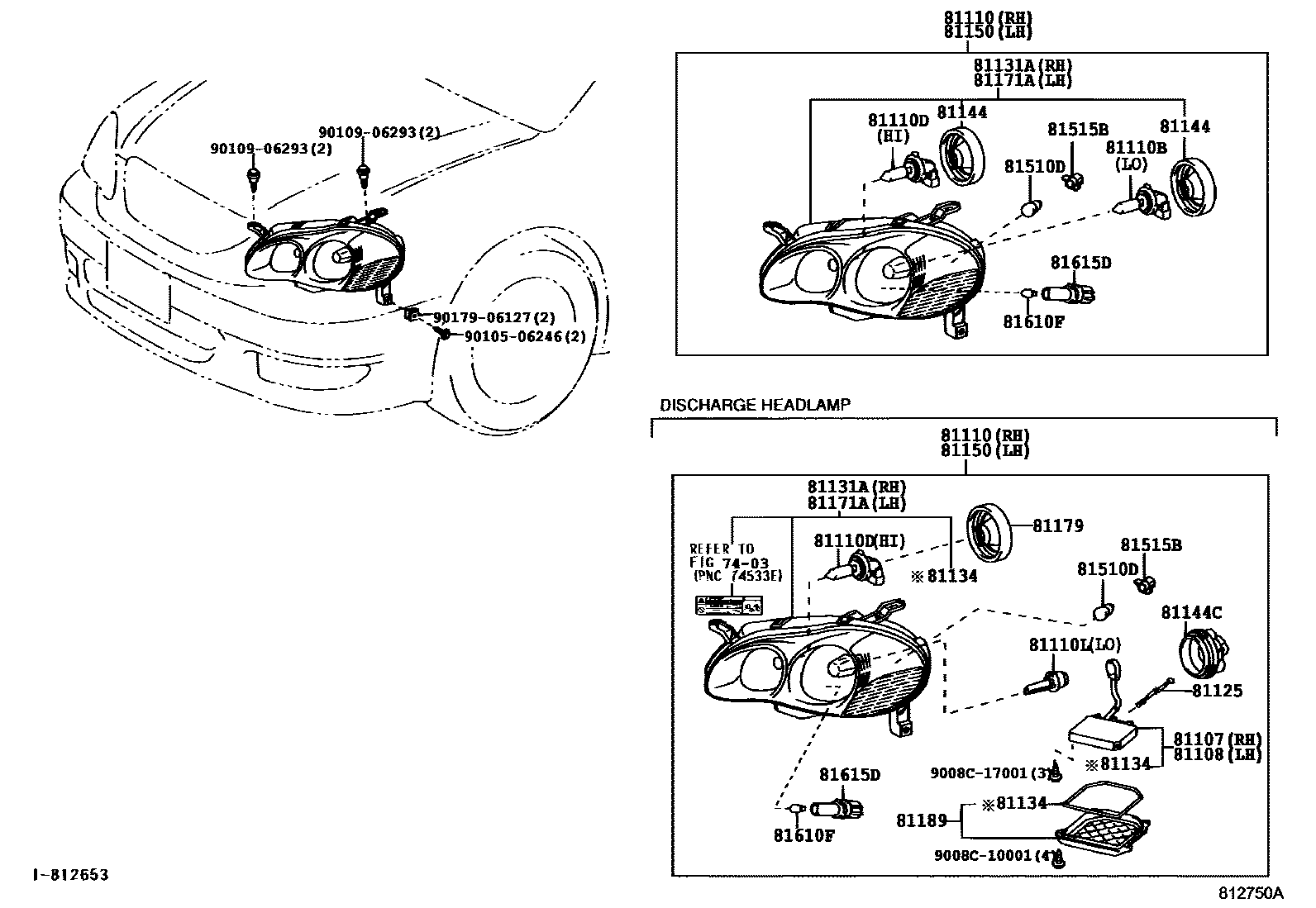

Toyota COROLLA Headlamp EPC diagram — 812750A
Headlamp — 812750A (200310 – 200712)

PNC and OE references

PNCPart nameOE numbers
81107Right headlight control ECU sub-assembly81107-06090 · 81107-8C001
81108Left headlight control ECU sub-assembly81107-06090 · 81107-8C001
81110Right headlight assembly81110-02260 · 81110-02261 · 81110-02300 · 81110-02310 · 81110-02320 · 81110-02330 · 81110-02340 · 81110-02450 · 81110-02460 · 81110-02630
81110BBulb (for headlight No. 1)90981-13047
81110DBulb (for headlight No. 2)90080-81041 · 90981-13046
81110LDischarge headlight bulb90981-20007
81125headlight wire81125-8C001
81131ARight headlight assembly81130-02120 · 81130-02121 · 81130-02130 · 81130-02131 · 81130-02280 · 81130-02300 · 81130-02310 · 81130-02430 · 81130-8C003 · 81130-8C006 · 81130-8C011 · 81140-8C001 · 81145-8C001 · 81145-8C002
81134headlight gasket81134-06090 · 81134-8C001
81144No. 1 headlight cover90069-81016 · 90075-8C000
81144CHeadlight lamp holder cover81135-8C001
81150Left headlight assembly81150-02270 · 81150-02271 · 81150-02290 · 81150-02300 · 81150-02310 · 81150-02320 · 81150-02330 · 81150-02440 · 81150-02450 · 81150-02630
81171ALeft headlight assembly81070-8C001 · 81170-02110 · 81170-02111 · 81170-02120 · 81170-02121 · 81170-02280 · 81170-02290 · 81170-02300 · 81170-02420 · 81170-8C003 · 81170-8C006 · 81170-8C011 · 81185-8C001 · 81185-8C002
81179Headlight lamp holder cover81179-8C002
81189headlight cover81139-06090 · 81139-8C001
81510DBulb (for front turn signal lamp)90981-15009
81515BFront turn signal lamp holder90075-60006
81610FLight bulb (for width indicator light)99132-12050
81615DWidth light lamp holder90075-60004 · 9008C-98004 · 90980-11155
85661Right headlight beam height adjustment motor85661-22020
85662Left headlight beam height adjustment motor85661-22020
