Toyota COROLLA accelerator pedal connecting rod — Figure 7801

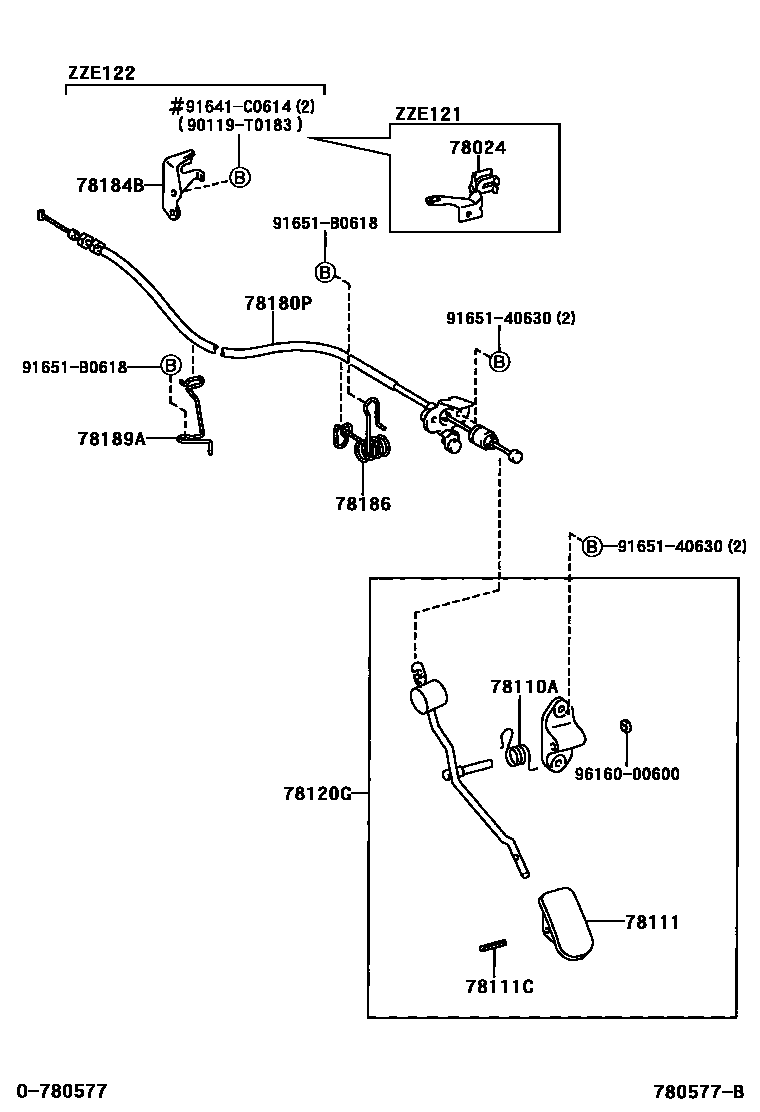

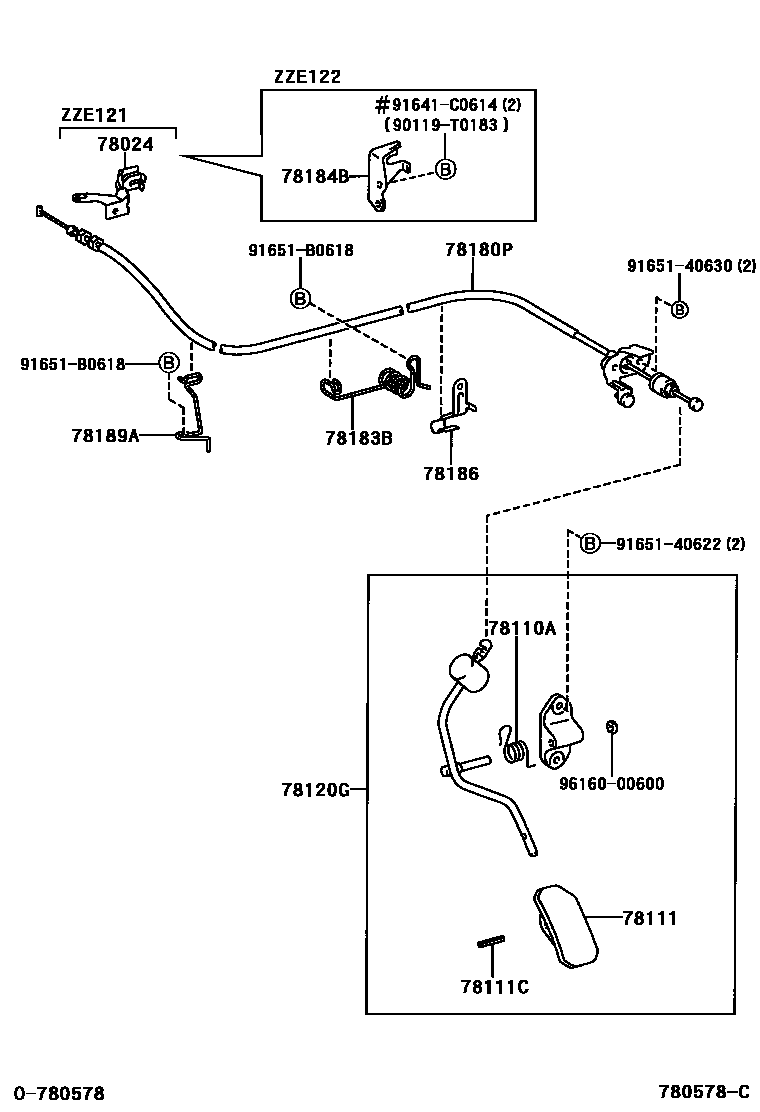

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12090 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26036 · 90959-03307 |
| 78111 | accelerator pedal | 78111-20060 · 78111-32020 |
| 78111C | pin (for gas pedal) | 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-12310 · 78120-12340 |
| 78180P | Accelerator pedal control cable assembly | 78180-02190 · 78180-02200 · 78180-02210 · 78180-02220 · 78180-02221 · 78180-02230 · 78180-1A780 |
| 78183B | Accelerator pedal control cable clip | 78183-02090 · 78183-12240 |
| 78184B | Throttle pedal control cable bracket | 78184-12360 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12370 · 78186-12380 · 78186-12420 · 78186-13040 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-02010 · 78189-12100 |
