Toyota COROLLA 挡泥板和扰流板 — Figure 7601

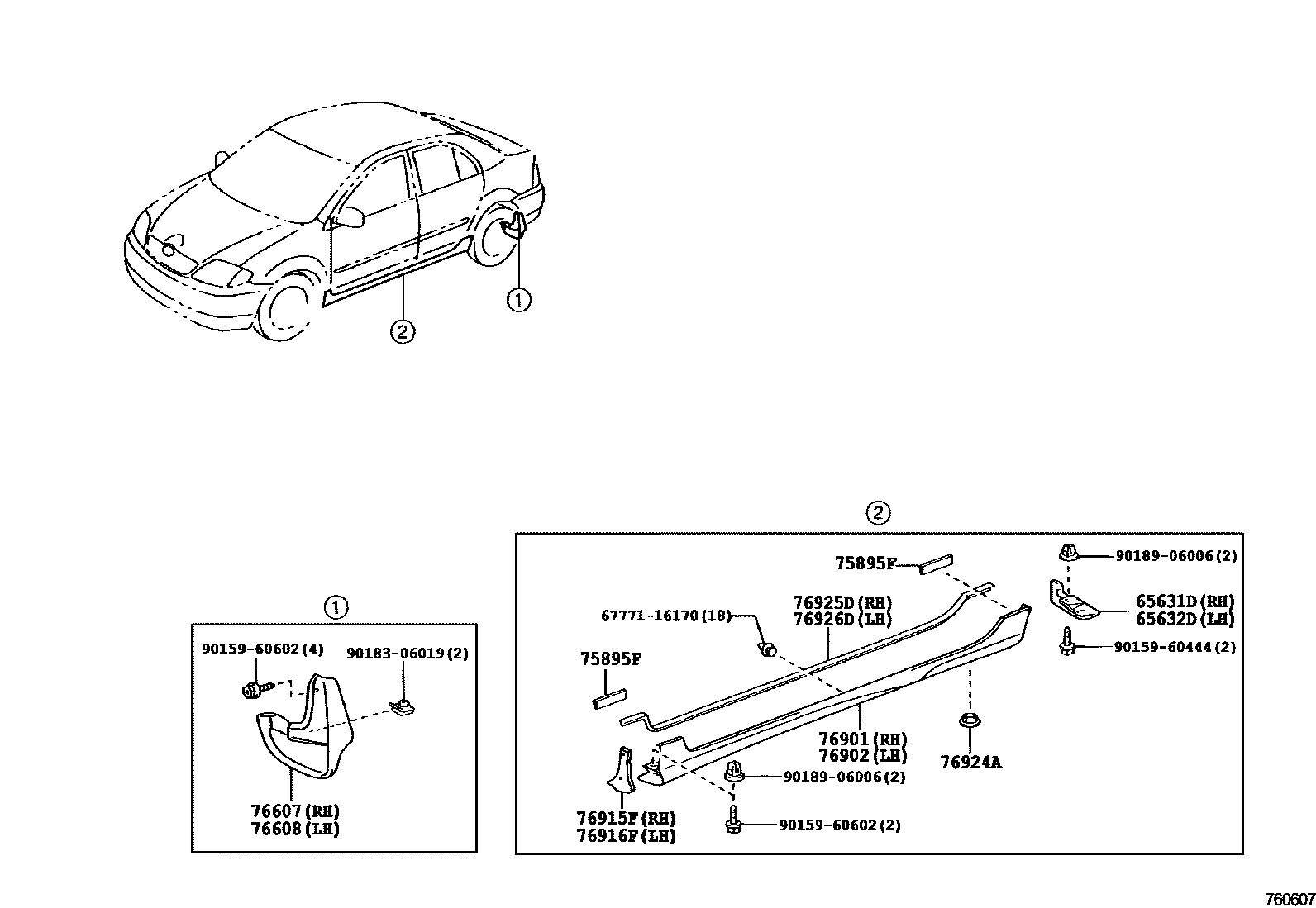

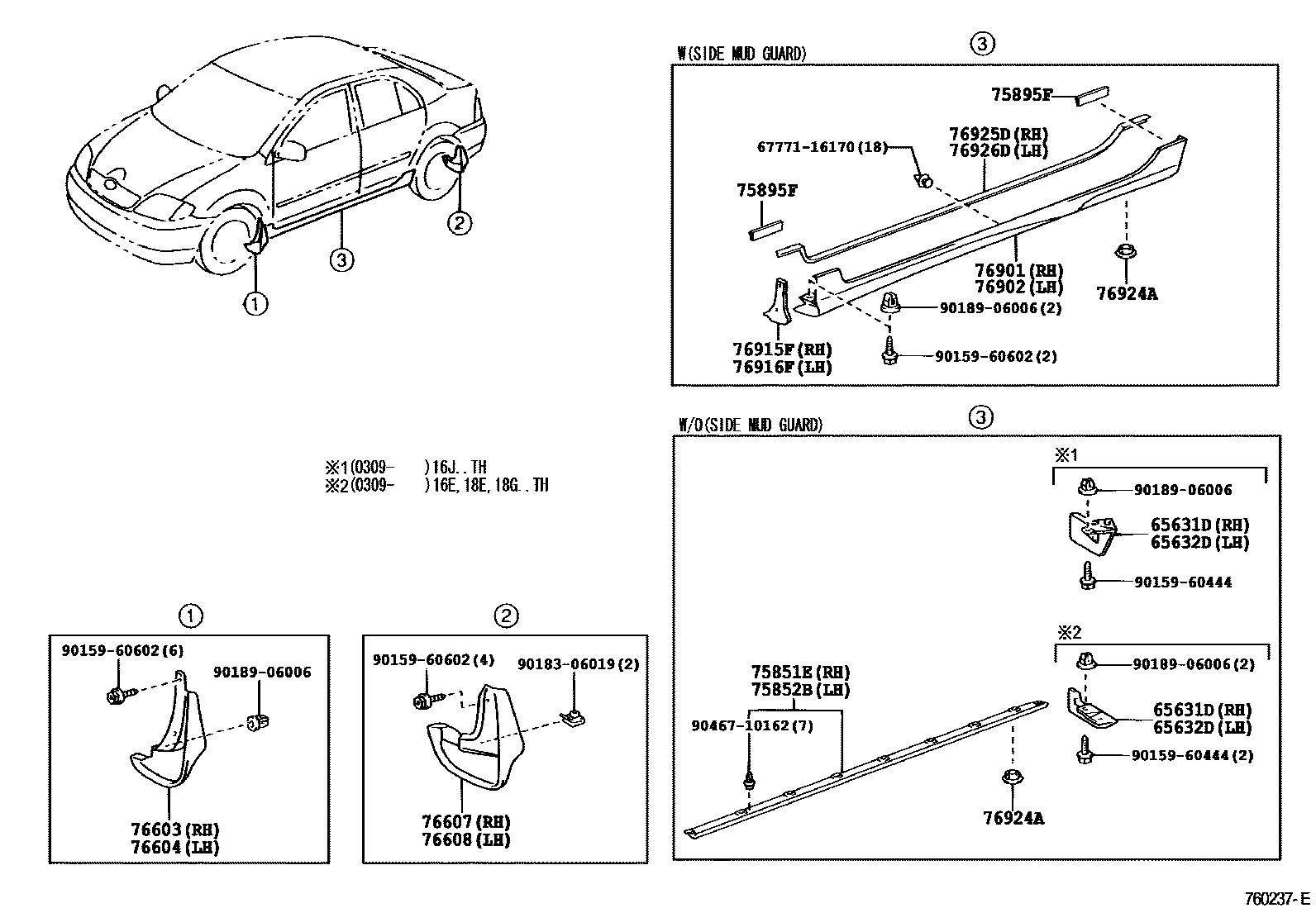

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02020 · 65631-02040 |
| 65632D | Left rear wheel house front panel | 65632-02020 · 65632-02040 |
| 75851E | Right body door sill panel protection strip | 75851-12090 · 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-12060 · 75852-12061 |
| 75895F | No. 1 protective strip tape | 75895-13010 · 75895-13020 |
| 76603 | Right front fender fender sub-assembly | 76621-02080 · 76621-02090 · 76621-02100 · 76621-02905 |
| 76604 | Left front fender fender sub-assembly | 76622-02040 · 76622-02080 · 76622-02100 |
| 76607 | Right rear side fender sub-assembly | 76625-02080 · 76625-02090 · 76625-02100 · 76625-02110 |
| 76608 | Left rear side fender sub-assembly | 76626-02080 · 76626-02090 · 76626-02100 · 76626-02110 |

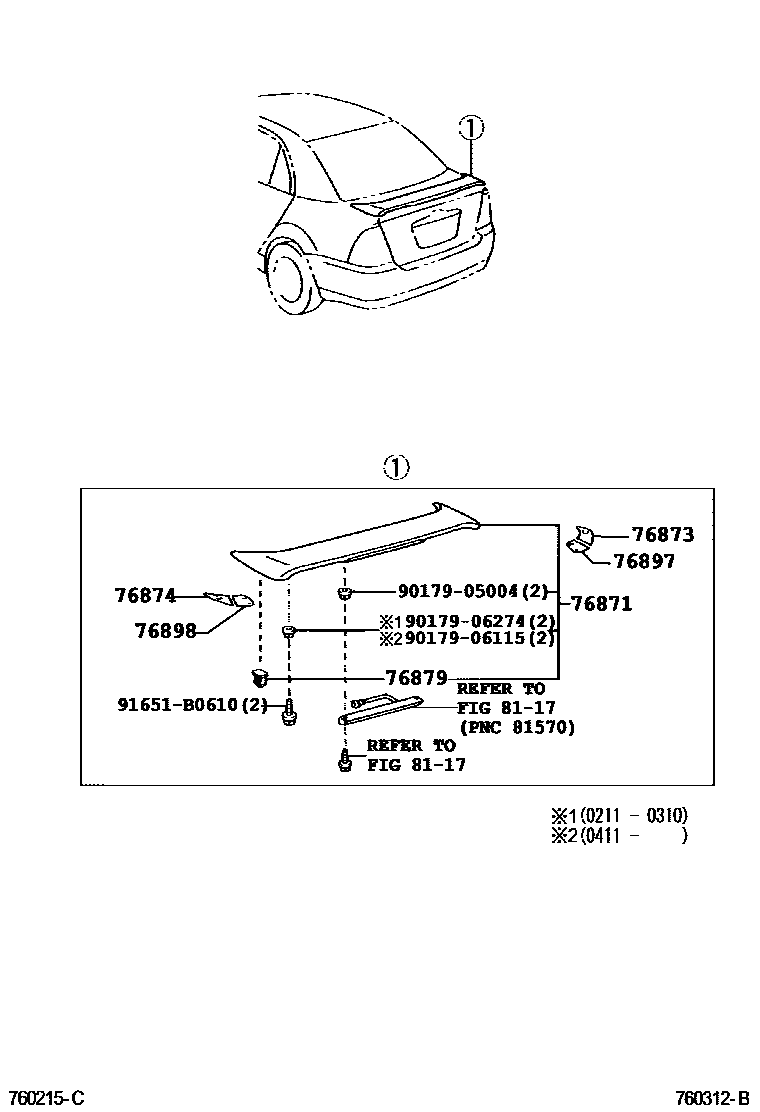

| 76871 | rear spoiler | 76871-02900 · 76871-12911 |
| 76873 | No. 2 rear spoiler protective strip | 76783-02020 · 76783-02030 |
| 76874 | No. 3 rear spoiler protective strip | 76784-02020 · 76784-02030 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
| 76897 | Right rear spoiler protection strip | 76897-02020 · 76897-02030 |
| 76898 | Left rear spoiler protection strip | 76898-02020 · 76898-02030 |
| 76901 | Right fender sub-assembly | 76911-02901 · 76911-02906 · 76911-13902 |
| 76902 | Left fender sub-assembly | 76912-02901 · 76912-02906 · 76912-13902 |
| 76915F | Right front fender | 76915-13020 |
| 76916F | Left front fender | 76916-13020 |
| 76924A | No. 2 side fender fixings | 76924-52020 · 76924-52021 |
