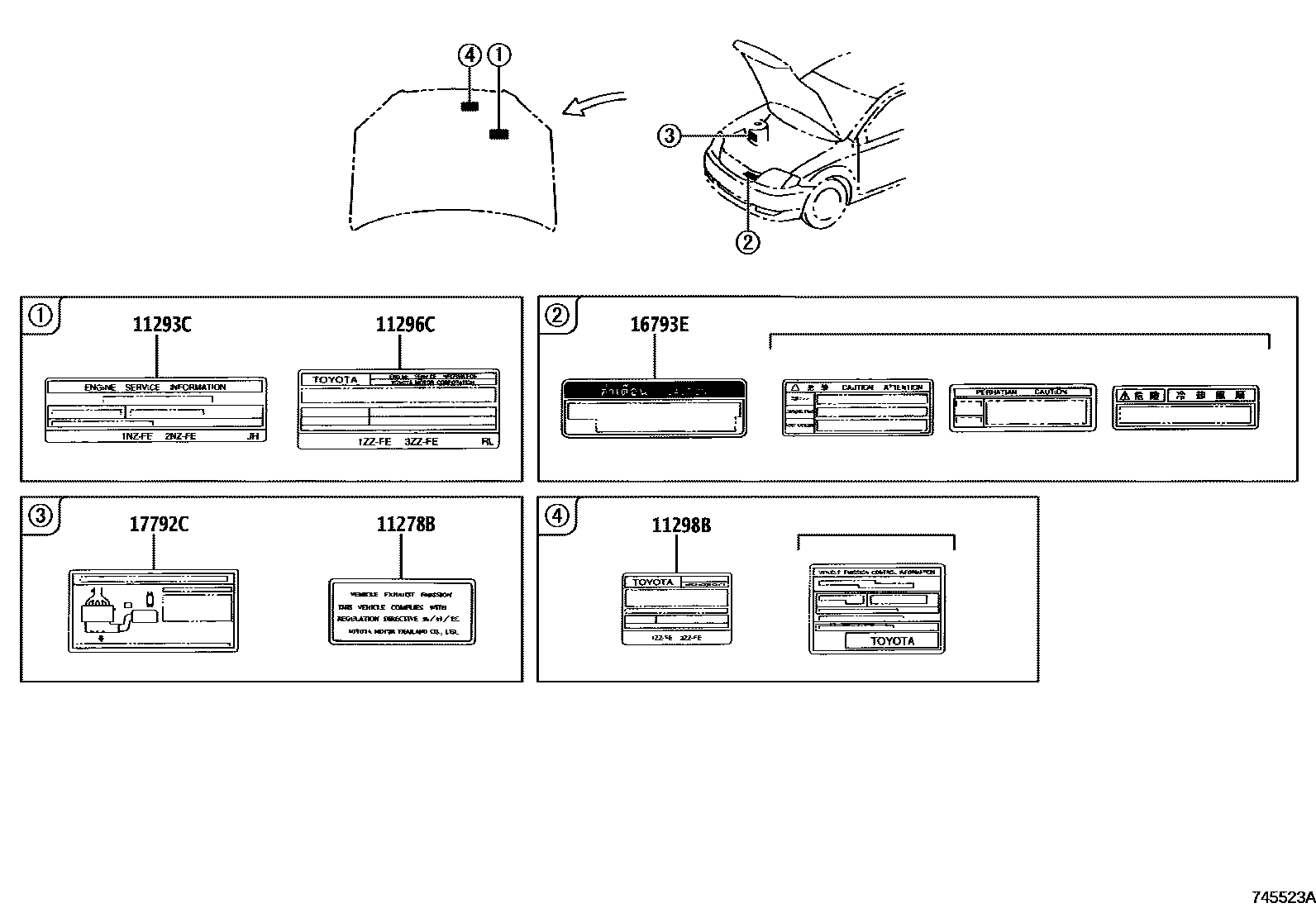

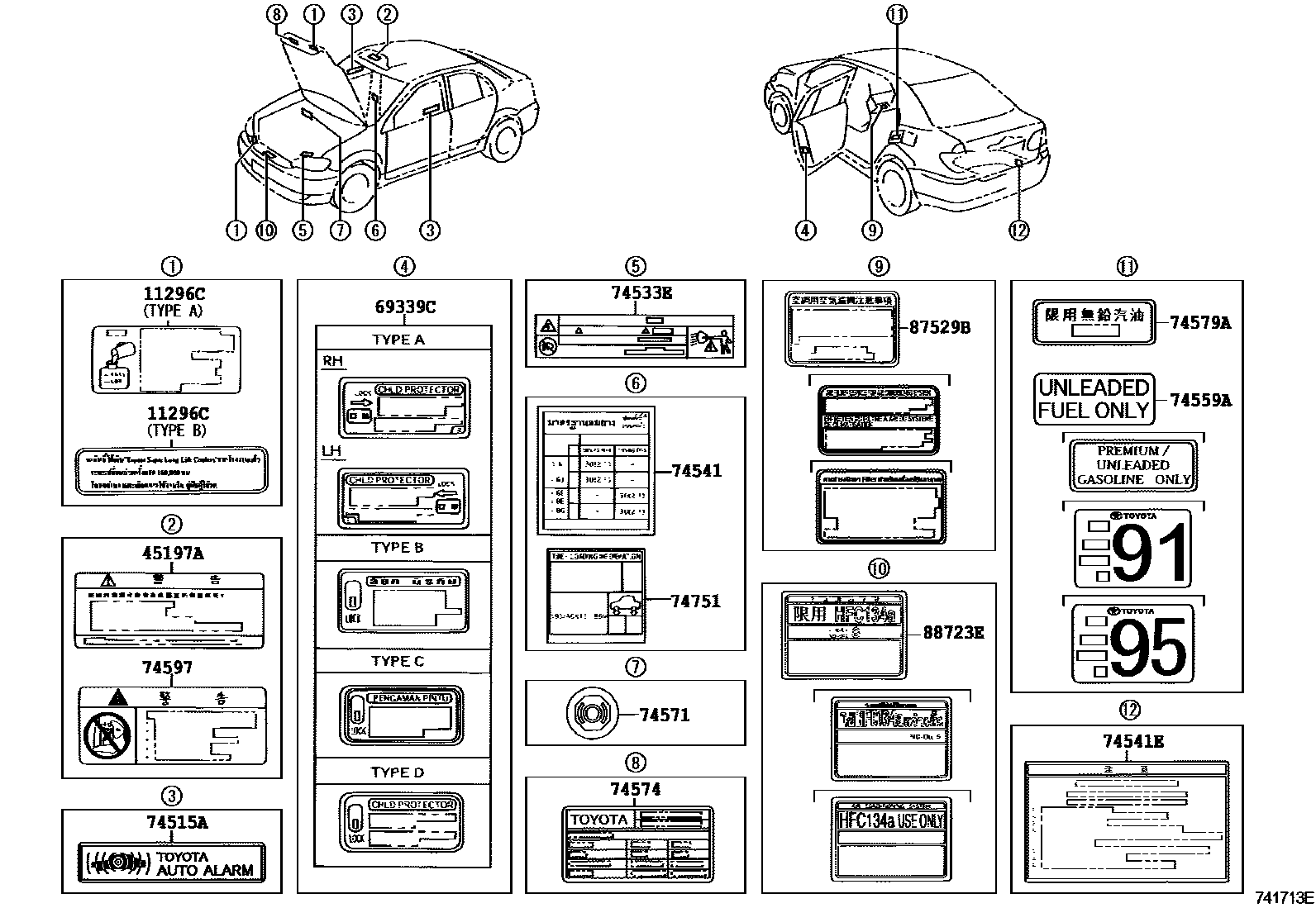

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-15020 |
| 11293C | Adjust specification information label | 11293-0M010 · 11293-21040 |
| 11296C | Engine maintenance information label | 11296-0D010 · 11296-0D020 · 11296-0L010 · 11296-27020 |
| 11298B | Emission Control Information Label | 11298-0D010 · 11298-0D011 · 11298-0D012 · 11298-0D013 · 11298-0D030 · 11298-0D040 |
| 16793E | Cooling fan warning label | 16793-02010 · 16793-02020 · 16793-11010 · 16793-46010 |
| 17792C | Engine vacuum hose information label | 17792-0D010 · 17792-0D011 · 17792-0D012 |
| 45197A | air bag warning label | 45197-0B020 |
| 69339C | Child Restraint Information Label | 69339-0A010 · 69339-0A020 · 69339-12010 · 69339-51010 · 69349-51010 |
| 74515A | Anti-theft warning nameplate | 74515-30020 |
| 74533E | Headlight voltage warning label | 74533-12010 · 74533-12020 |
| 74541 | tire pressure warning plate | 42661-02320 |
| 74541E | Small spare tire warning plate | 42668-16020 |
| 74559A | Fuel warning plate | 74559-02020 · 74559-02021 · 74559-0A020 · 74559-0A021 · 74559-0B020 · 74559-14050 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 74574 | Noise identification nameplate | 74574-02010 · 74574-02030 |
| 74579A | Unleaded Fuel Information Label | 74579-0B010 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74597-0B020 |
| 74751 | tire pressure information label | 42661-1E290 |
| 87529B | Cabin filter information label | 87529-02010 · 87529-06030 · 87529-0M010 · 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-02080 · 88723-02090 · 88723-02110 · 88723-0K050 · 88723-28220 |
